日本进口Fujicom晶振,小尺寸6G信号接收器晶振,FCT1M03276806E3高品质二脚晶振

频率：32.768KHZ

尺寸：1610mm

日本进口Fujicom晶振,小尺寸6G信号接收器晶振,FCT1M03276806E3高品质二脚晶振，日本富士晶振公司，Fujicom晶振，高精度晶振，1610晶振，石英晶振，二脚晶振，无源晶振，KHz晶振，贴片晶振，6G信号接收器晶振，6G网络晶振，高品质晶振，FCT-1M晶振，超小尺寸1.6×1.0×0.5mm，高可靠性环保性能，高频稳定性好，精度高，设计用于自动安装和回流焊，符合RoHS标准/无铅

订购热线：0755-27876565

NDK-2

yijin-1

日本进口Fujicom晶振,小尺寸6G信号接收器晶振,FCT1M03276806E3高品质二脚晶振，日本富士晶振公司，Fujicom晶振，高精度晶振，1610晶振，石英晶振，二脚晶振，无源晶振，KHz晶振，贴片晶振，6G信号接收器晶振，6G网络晶振，高品质晶振，FCT-1M晶振，超小尺寸1.6×1.0×0.5mm，高可靠性环保性能，高频稳定性好，精度高，设计用于自动安装和回流焊，符合RoHS标准/无铅

yijin-2

日本进口Fujicom晶振,小尺寸6G信号接收器晶振,FCT1M03276806E3高品质二脚晶振

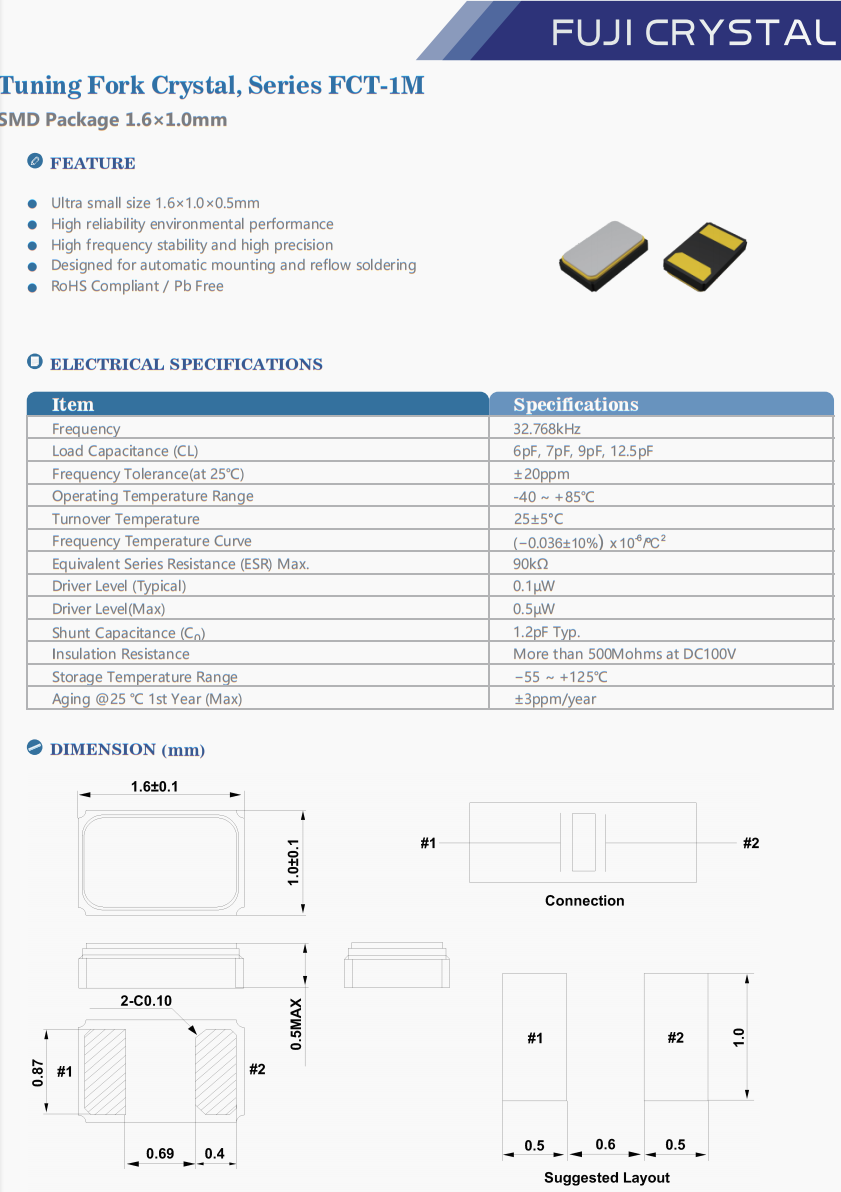

项目	技术规格
频率	32.768kHz
负载电容	6pF, 7pF, 9pF, 12.5pF
频率容差	±20ppm
工作温度	-40 ~ +85℃
周转温度	25±5°C
频率温度曲线	(−0.036± 10%) x 10-6/ºC2
等效串联电阻最大值	90kΩ
驱动电平（标准）	0.1µW
驱动电平（最大）	0.5µW
分流电容	1.2pF Typ.
绝缘电阻	More than 500Mohms at DC100V
储存温度	− 55 ~ +125℃
老化	±3ppm/year

日本进口Fujicom晶振,小尺寸6G信号接收器晶振,FCT1M03276806E3高品质二脚晶振

FUJI原厂编码	生产商品牌	型号	类型	频率	频率容差	负载电容	工作温度
FCT1M03276806E3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 70°C
FCT1M032768C5W1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	0°C ~ 70°C
FCT1M032768C5E1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 70°C
FCT1M03276806E5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 70°C
FCT1M03276807W3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	0°C ~ 70°C
FCT1M03276807P3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 60°C
FCT1M03276807I6	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 125°C
FCT1M03276806U3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 105°C
FCT1M03276807P1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 60°C
FCT1M03276807Y1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 85°C
FCT1M03276806U5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 105°C
FCT1M03276807R1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 70°C
FCT1M03276809D1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 70°C
FCT1M03276807P5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 60°C
FCT1M03276806U6	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 105°C
FCT1M03276806T3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 85°C
FCT1M03276809S5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 75°C
FCT1M032768C5U6	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 105°C
FCT1M032768C5U9	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 105°C
FCT1M032768C5I6	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 125°C
FCT1M03276806D1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 70°C
FCT1M03276809S3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 75°C
FCT1M03276806E1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 70°C
FCT1M03276807Y5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 85°C
FCT1M032768C5D5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 70°C
FCT1M032768C5I5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 125°C
FCT1M03276807I9	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 125°C
FCT1M03276807Y3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 85°C
FCT1M03276807W5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	0°C ~ 70°C
FCT1M032768C5U5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 105°C
FCT1M03276809S1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 75°C
FCT1M03276806I5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 125°C
FCT1M032768C5U3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 105°C
FCT1M03276806D5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 70°C
FCT1M03276809T1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 85°C
FCT1M032768C5E3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 70°C
FCT1M03276806D3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 70°C
FCT1M03276806T5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 85°C
FCT1M03276809R5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 70°C
FCT1M032768C5E5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 70°C
FCT1M03276807I5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 125°C
FCT1M032768C5D1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 70°C
FCT1M03276809W5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	0°C ~ 70°C
FCT1M03276806I9	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 125°C
FCT1M03276809E1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 70°C
FCT1M03276806W1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	0°C ~ 70°C
FCT1M03276806S3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 75°C
FCT1M03276809P5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 60°C
FCT1M03276807D3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 70°C
FCT1M03276809E3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 70°C
FCT1M032768C5Y3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 85°C
FCT1M03276809R1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 70°C
FCT1M032768C5P1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 60°C
FCT1M03276809D3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 70°C
FCT1M03276809T3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 85°C
FCT1M03276806I6	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 125°C
FCT1M03276806P5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 60°C
FCT1M03276806W5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	0°C ~ 70°C
FCT1M03276809U9	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 105°C
FCT1M03276809Y5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 85°C
FCT1M03276809P1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 60°C
FCT1M03276806S5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 75°C
FCT1M032768C5S1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 75°C
FCT1M032768C5S3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 75°C
FCT1M03276807T5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 85°C
FCT1M032768C5R1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 70°C
FCT1M03276806W3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	0°C ~ 70°C
FCT1M03276809U3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 105°C
FCT1M032768C5P3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 60°C
FCT1M03276807S5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 75°C
FCT1M032768C5T1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 85°C
FCT1M03276806S1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-20°C ~ 75°C
FCT1M03276806R1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 70°C
FCT1M03276807U3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 105°C
FCT1M03276806P3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 60°C
FCT1M032768C5R5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 70°C
FCT1M03276809Y3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 85°C
FCT1M03276806U9	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 105°C
FCT1M03276807U5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 105°C
FCT1M03276806P1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-10°C ~ 60°C
FCT1M03276807E1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 70°C
FCT1M03276807W1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	0°C ~ 70°C
FCT1M03276806R5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 70°C
FCT1M03276807R5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 70°C
FCT1M032768C5Y1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 85°C
FCT1M03276807T3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 85°C
FCT1M032768C5R3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 70°C
FCT1M03276809U5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 105°C
FCT1M032768C5S5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-20°C ~ 75°C
FCT1M03276809I5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 125°C
FCT1M032768C5Y5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 85°C
FCT1M03276807R3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 70°C
FCT1M03276809I6	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 125°C
FCT1M03276807U9	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 105°C
FCT1M03276809D5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 70°C
FCT1M03276809U6	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 105°C
FCT1M03276809P3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-10°C ~ 60°C
FCT1M03276807D1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 70°C
FCT1M03276807D5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-10°C ~ 70°C
FCT1M03276809E5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-20°C ~ 70°C
FCT1M03276809R3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 70°C
FCT1M03276809Y1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 85°C
FCT1M03276807U6	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-40°C ~ 105°C
FCT1M03276806T1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 85°C
FCT1M03276806Y1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 85°C
FCT1M03276809T5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-30°C ~ 85°C
FCT1M032768C5P5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 60°C
FCT1M032768C5I9	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-40°C ~ 125°C
FCT1M03276807T1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-30°C ~ 85°C
FCT1M03276807E5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 70°C
FCT1M03276807S3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 75°C
FCT1M032768C5T3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 85°C
FCT1M03276807S1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 75°C
FCT1M032768C5D3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-10°C ~ 70°C
FCT1M03276806Y5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 85°C
FCT1M032768C5T5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	-30°C ~ 85°C
FCT1M03276809W1	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	0°C ~ 70°C
FCT1M032768C5W3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	0°C ~ 70°C
FCT1M03276806R3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-30°C ~ 70°C
FCT1M03276809W3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	0°C ~ 70°C
FCT1M032768C5W5	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	12.5pF	0°C ~ 70°C
FCT1M03276806Y3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	6pF	-40°C ~ 85°C
FCT1M03276807E3	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	7pF	-20°C ~ 70°C
FCT1M03276809I9	Fuji晶振	FCT-1M	kHz Crystal (Tuning Fork)	32.768 kHz	-	9pF	-40°C ~ 125°C
