O16.384-JT32C-A-K-3.3-LF,HCMOS输出温补晶振,JT32C晶振

当前位置：首页 » 欧美晶振 » O16.384-JT32C-A-K-3.3-LF,HCMOS输出温补晶振,JT32C晶振

prevnext

O16.384-JT32C-A-K-3.3-LF,HCMOS输出温补晶振,JT32C晶振

频率：16.384 MHz

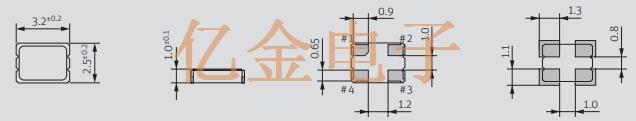

尺寸：3.20mm x 2.50mm

O16.384-JT32C-A-K-3.3-LF,HCMOS输出温补晶振,JT32C晶振,内部采用高品质压电晶体与精密振荡电路,结合特殊的屏蔽工艺,有效减少外部电磁辐射对内部电路的干扰,降低输出信号的相位噪声与谐波失真,确保时钟信号的纯净度.HCMOS输出晶振模式本身具备较强的抗干扰能力,能在复杂电磁环境下维持信号稳定,避免因外界干扰导致设备运行异常.此外,晶振采用坚固的封装结构,具备良好的耐振动,抗冲击性能,同时能抵御湿热,盐雾等恶劣环境影响,适用于汽车电子,工业传感器,户外通信设备等对环境适应性要求较高的场景,保障设备长期稳定运行.

订购热线：0755-27876565

O16.384-JT32C-A-K-3.3-LF,HCMOS输出温补晶振,JT32C晶振

作为JT32C系列的代表性温补晶振,O16.384-JT32C-A-K-3.3-LF具备高度的系列兼容性与通用性.其封装尺寸,引脚定义严格遵循JT32C石英贴片晶体系列标准,可直接替换同系列其他型号晶振,降低设备升级或维护时的适配成本.晶振采用HCMOS输出模式,兼容多种数字逻辑电路,无需额外设计信号调理电路,简化设备研发流程.16.384MHz频率与3.3V工作电压的组合,使其能灵活适配消费电子,工业自动化,通信设备等多个领域,无论是小型家用电子设备,还是中高端工业控制产品,都能凭借稳定的性能与出色的兼容性,快速融入电路系统,提供可靠的时钟解决方案.

O16.384-JT32C-A-K-3.3-LF,HCMOS输出温补晶振,JT32C晶振

原厂型号 Originalmodel：	O 16.384-JT32C-A-K-3.3-LF	品牌brand：	Jauch振荡器
Manufacturer品牌	Jauch振荡器	OperatingTemperature温度	-40°C ~ 85°C
Series型号	JT32C	Current-Supply(Max)	4.8mA
Type类型	TCXO	PackageHeight高度	1.10mm
Frequency频率	16.384 MHz	Termination 脚位	4-pad
输出方式 Output：	HCMOS	PackageType 封装类型	4-SMD
Voltage-Supply电压	3.3V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±2.5ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	3.20mm x 2.50mm	最小包装数MPQ：	3000

O16.384-JT32C-A-K-3.3-LF,HCMOS输出温补晶振,JT32C晶振

JT32C-

O16.384-JT32C-A-K-3.3-LF,HCMOS输出温补晶振,JT32C晶振

J49SML-A-G-G-K-16M0	Jauch无源晶振	J49SML	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
J49SML-A-G-G-K-4M0	Jauch无源晶振	J49SML	MHz Crystal	4 MHz	±30ppm	±30ppm	12pF
J49SML-F-G-G-K-16M0	Jauch无源晶振	J49SML	MHz Crystal	16 MHz	±30ppm	±30ppm	18pF
J49SML-F-G-G-K-25M0	Jauch无源晶振	J49SML	MHz Crystal	25 MHz	±30ppm	±30ppm	18pF
J49SML-F-G-G-K-8M0	Jauch无源晶振	J49SML	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
Q 27.120-JXS22-10-10/10-FU-LF	Jauch无源晶振	JXS22	MHz Crystal	27.12 MHz	±10ppm	±10ppm	10pF
Q 38.40-JXS21-8-10/10-FU-LF	Jauch无源晶振	JXS21	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
Q 38.40-JXS21-9-10/15-T1-FU-LF	Jauch无源晶振	JXS21	MHz Crystal	38.4 MHz	±15ppm	±10ppm	9pF
Q 27.120-JXS21-12-10/15-T1-FU-LF	Jauch无源晶振	JXS21	MHz Crystal	27.12 MHz	±15ppm	±10ppm	12pF
Q 26.0-JXS11-12-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	26 MHz	±10ppm	±10ppm	12pF
Q 32.0-JXS11-8-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
Q 50.0-JXS11-8-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	50 MHz	±10ppm	±10ppm	8pF
Q 32.0-JXS11-10-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF
Q 27.120-JXS11-8-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	27.12 MHz	±10ppm	±10ppm	8pF
Q 38.40-JXS22-8-10/10-FU-LF	Jauch无源晶振	JXS22	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
Q 50.0-JXS11-12-10/20-T1-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	50 MHz	±20ppm	±10ppm	12pF
Q 27.120-JXS11-8-10/20-T1-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	27.12 MHz	±20ppm	±10ppm	8pF
Q 32.0-JXS11-10-10/20-T1-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	32 MHz	±20ppm	±10ppm	10pF
Q 38.40-JXS22-10-10/15-T1-FU-LF	Jauch无源晶振	JXS22	MHz Crystal	38.4 MHz	±15ppm	±10ppm	10pF
J49SML-F-G-G-K-4M0	Jauch无源晶振	J49SML	MHz Crystal	4 MHz	±30ppm	±30ppm	18pF
J49SML-P-G-G-K-12M0	Jauch无源晶振	J49SML	MHz Crystal	12 MHz	±30ppm	±30ppm	30pF
J49SML-A-G-G-K-12M0	Jauch无源晶振	J49SML	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF
Q 19.20-JXS32-12-10/10-LF	Jauch无源晶振	JXS32	MHz Crystal	19.2 MHz	±10ppm	±10ppm	12pF
Q 40.0-JXS11-12-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	40 MHz	±10ppm	±10ppm	12pF
Q 40.0-JXS11-10-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	40 MHz	±10ppm	±10ppm	10pF
J49SMH-C-G-G-K-16M0	Jauch无源晶振	J49SMH	MHz Crystal	16 MHz	±30ppm	±30ppm	20pF
J49SMH-B-G-G-K-14M74560	Jauch无源晶振	J49SMH	MHz Crystal	14.7456 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-10M0	Jauch无源晶振	J49SMH	MHz Crystal	10 MHz	±30ppm	±30ppm	30pF
J49SMH-B-G-G-K-27M0	Jauch无源晶振	J49SMH	MHz Crystal	27 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-18M4320	Jauch无源晶振	J49SMH	MHz Crystal	18.432 MHz	±30ppm	±30ppm	30pF
J49SMH-P-G-G-K-6M0	Jauch无源晶振	J49SMH	MHz Crystal	6 MHz	±30ppm	±30ppm	30pF
J49SMH-C-G-G-K-8M0	Jauch无源晶振	J49SMH	MHz Crystal	8 MHz	±30ppm	±30ppm	20pF
J49SMH-P-G-G-K-4M91520	Jauch无源晶振	J49SMH	MHz Crystal	4.9152 MHz	±30ppm	±30ppm	30pF
J49SMH-B-G-G-K-6M0	Jauch无源晶振	J49SMH	MHz Crystal	6 MHz	±30ppm	±30ppm	16pF
J49SMH-C-G-G-K-20M0	Jauch无源晶振	J49SMH	MHz Crystal	20 MHz	±30ppm	±30ppm	20pF
J49SMH-B-G-G-K-4M0	Jauch无源晶振	J49SMH	MHz Crystal	4 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-3M579545	Jauch无源晶振	J49SMH	MHz Crystal	3.579545 MHz	±30ppm	±30ppm	30pF
J49SMH-P-G-G-K-7M37280	Jauch无源晶振	J49SMH	MHz Crystal	7.3728 MHz	±30ppm	±30ppm	30pF
J49SMH-B-G-G-K-8M0	Jauch无源晶振	J49SMH	MHz Crystal	8 MHz	±30ppm	±30ppm	16pF
J49SMH-B-G-G-K-4M91520	Jauch无源晶振	J49SMH	MHz Crystal	4.9152 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-3M68640	Jauch无源晶振	J49SMH	MHz Crystal	3.6864 MHz	±30ppm	±30ppm	30pF
J49SMH-F-G-G-K-30M0	Jauch无源晶振	J49SMH	MHz Crystal	30 MHz	±30ppm	±30ppm	18pF
Q 30.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	30 MHz	±20ppm	±20ppm	12pF
Q 26.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	26 MHz	±20ppm	±20ppm	12pF
Q 32.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	32 MHz	±20ppm	±20ppm	12pF
Q 24.0-JXS32P4-8-20/20-T1-FU-AEC- LF	Jauch无源晶振	JXS32P4	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF
Q 25.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	25 MHz	±20ppm	±20ppm	12pF
Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	27 MHz	±20ppm	±20ppm	12pF
Q 30.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	30 MHz	±20ppm	±20ppm	12pF
Q 26.0-JXS21P4-8-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	26 MHz	±20ppm	±20ppm	8pF
Q 24.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF
Q 27.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	27 MHz	±20ppm	±20ppm	12pF
Q 32.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	32 MHz	±20ppm	±20ppm	12pF
Q 24.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF
Q 48.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	48 MHz	±20ppm	±20ppm	12pF
Q 48.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	48 MHz	±20ppm	±20ppm	12pF
Q 48.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	48 MHz	±20ppm	±20ppm	12pF
Q 0.032768-JTX110-12.5-20-T1-90K-LF	Jauch无源晶振	JTX110	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF
Q 0.032768-JTX110-9-20-T1-90K-LF	Jauch无源晶振	JTX110	MHz Crystal	32.768 kHz	-	±20ppm	9pF
J31SMT-A-D-K-32K768	Jauch无源晶振	JT31SMT	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF
