CTS,49SMD,GL061F23CDT,6.144MHz,18PF,20PPM,-20~70℃
频率:3.2M~64MHZ

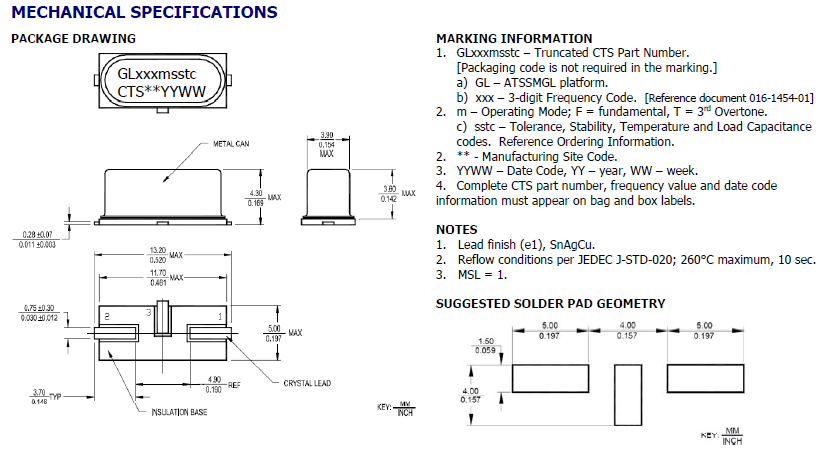

尺寸:13*4.95mm

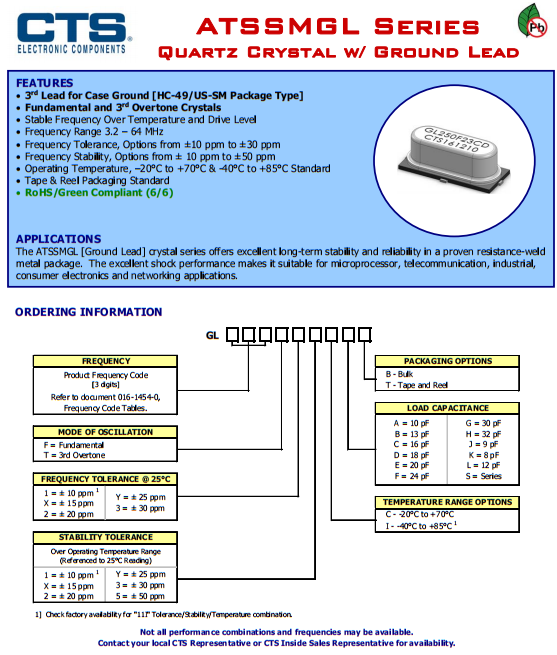

CTS,49SMD,GL061F23CDT,6.144MHz,18PF,20PPM,-20~70℃,美国CTS晶振,第三铅案例地面[HC-49/US-SM包类型],基本和第三泛音晶体稳定频率,超过温度和驱动水平频率范围3.2-64MHz频率公差,选择±10ppm±30ppm频率稳定性,选择±10ppm±50ppm工作温度,-20°C+70°C和-40°C+85°C标准磁带和卷轴包装标准RoHS/绿色兼容(6/6),ATSSMGL[接地铅]晶体系列提供了优秀的长期稳定性和可靠性,在一个已被证明的电阻焊接金属包装。优异的冲击性能使其适用于微处理器、电信、工业、消费电子和网络应用。
CTS,49SMD,GL061F23CDT,6.144MHz,18PF,20PPM,-20~70℃
参数 | 数值 |
频率 | 3.2 MHz to 64.0 MHz |
工作模式 | Fundamental or 3rd Overtone |
晶体切向 | AT-Cut |
频率容差 | ±10, ±15, ±20, ±25, ±30 ppm |
频率稳定公差(超过工作温度范围,参考+25°C) | ±10, ±15, ±20, ±25, ±30, ± 50 ppm |
工作温度 | -20°C to +70°C and -40°C to +85°C |
等效串联电阻 | See ESR Table |
负载电容 | See Ordering Information |
并联电阻 | 7.0 pF Maximum |
驱动电平 | 100 µW Typical, 1,000 µW Maximum |
老化 | ±3 ppm/yr Typical, ±5 ppm/yr Maximum |
储存温度 | -40°C to +85°C |
CTS,49SMD,GL061F23CDT,6.144MHz,18PF,20PPM,-20~70℃
CTS原厂编码 | CTS晶振 | 型号 | 频率 | 频率偏差 | 负载电容 | 工作温度 |
GL240F23CDT | CTS晶振 | ATSSMGL | 24MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL240F23CET | CTS晶振 | ATSSMGL | 24MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL240F33CDT | CTS晶振 | ATSSMGL | 24MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL240F33CET | CTS晶振 | ATSSMGL | 24MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL240F35CDT | CTS晶振 | ATSSMGL | 24MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL240F35CET | CTS晶振 | ATSSMGL | 24MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL240F35IDT | CTS晶振 | ATSSMGL | 24MHz | ±30ppm | 18pF | -40°C ~ 85°C |
GL240F35IET | CTS晶振 | ATSSMGL | 24MHz | ±30ppm | 20pF | -40°C ~ 85°C |
GL24CF23CDT | CTS晶振 | ATSSMGL | 24.576MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL24CF23CET | CTS晶振 | ATSSMGL | 24.576MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL24CF33CDT | CTS晶振 | ATSSMGL | 24.576MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL24CF33CET | CTS晶振 | ATSSMGL | 24.576MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL24CF35CDT | CTS晶振 | ATSSMGL | 24.576MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL24CF35CET | CTS晶振 | ATSSMGL | 24.576MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL24CF35IDT | CTS晶振 | ATSSMGL | 24.576MHz | ±30ppm | 18pF | -40°C ~ 85°C |
GL24CF35IET | CTS晶振 | ATSSMGL | 24.576MHz | ±30ppm | 20pF | -40°C ~ 85°C |
GL250F23CDT | CTS晶振 | ATSSMGL | 25MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL250F23CET | CTS晶振 | ATSSMGL | 25MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL250F33CDT | CTS晶振 | ATSSMGL | 25MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL250F33CET | CTS晶振 | ATSSMGL | 25MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL250F35CDT | CTS晶振 | ATSSMGL | 25MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL250F35CET | CTS晶振 | ATSSMGL | 25MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL250F35IDT | CTS晶振 | ATSSMGL | 25MHz | ±30ppm | 18pF | -40°C ~ 85°C |
GL250F35IET | CTS晶振 | ATSSMGL | 25MHz | ±30ppm | 20pF | -40°C ~ 85°C |
GL270F23CDT | CTS晶振 | ATSSMGL | 27MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL270F23CET | CTS晶振 | ATSSMGL | 27MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL270F33CDT | CTS晶振 | ATSSMGL | 27MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL270F33CET | CTS晶振 | ATSSMGL | 27MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL270F35CDT | CTS晶振 | ATSSMGL | 27MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL270F35CET | CTS晶振 | ATSSMGL | 27MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL270F35IDT | CTS晶振 | ATSSMGL | 27MHz | ±30ppm | 18pF | -40°C ~ 85°C |
GL270F35IET | CTS晶振 | ATSSMGL | 27MHz | ±30ppm | 20pF | -40°C ~ 85°C |
GL042F23CDT | CTS晶振 | ATSSMGL | 4.096MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL042F23CET | CTS晶振 | ATSSMGL | 4.096MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL042F33CDT | CTS晶振 | ATSSMGL | 4.096MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL042F33CET | CTS晶振 | ATSSMGL | 4.096MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL042F35CDT | CTS晶振 | ATSSMGL | 4.096MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL042F35CET | CTS晶振 | ATSSMGL | 4.096MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL042F35IDT | CTS晶振 | ATSSMGL | 4.096MHz | ±30ppm | 18pF | -40°C ~ 85°C |
GL042F35IET | CTS晶振 | ATSSMGL | 4.096MHz | ±30ppm | 20pF | -40°C ~ 85°C |
GL044F23CDT | CTS晶振 | ATSSMGL | 4.433619MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL044F23CET | CTS晶振 | ATSSMGL | 4.433619MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL044F33CDT | CTS晶振 | ATSSMGL | 4.433619MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL044F33CET | CTS晶振 | ATSSMGL | 4.433619MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL044F35CDT | CTS晶振 | ATSSMGL | 4.433619MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL044F35CET | CTS晶振 | ATSSMGL | 4.433619MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL044F35IDT | CTS晶振 | ATSSMGL | 4.433619MHz | ±30ppm | 18pF | -40°C ~ 85°C |
GL044F35IET | CTS晶振 | ATSSMGL | 4.433619MHz | ±30ppm | 20pF | -40°C ~ 85°C |
GL045F23CDT | CTS晶振 | ATSSMGL | 4.5MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL045F23CET | CTS晶振 | ATSSMGL | 4.5MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL045F33CDT | CTS晶振 | ATSSMGL | 4.5MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL045F33CET | CTS晶振 | ATSSMGL | 4.5MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL045F35CDT | CTS晶振 | ATSSMGL | 4.5MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL045F35CET | CTS晶振 | ATSSMGL | 4.5MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL045F35IDT | CTS晶振 | ATSSMGL | 4.5MHz | ±30ppm | 18pF | -40°C ~ 85°C |
GL045F35IET | CTS晶振 | ATSSMGL | 4.5MHz | ±30ppm | 20pF | -40°C ~ 85°C |
GL049F23CDT | CTS晶振 | ATSSMGL | 4.9152MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL049F23CET | CTS晶振 | ATSSMGL | 4.9152MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL049F33CDT | CTS晶振 | ATSSMGL | 4.9152MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL049F33CET | CTS晶振 | ATSSMGL | 4.9152MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL049F35CDT | CTS晶振 | ATSSMGL | 4.9152MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL049F35CET | CTS晶振 | ATSSMGL | 4.9152MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL049F35IDT | CTS晶振 | ATSSMGL | 4.9152MHz | ±30ppm | 18pF | -40°C ~ 85°C |
GL049F35IET | CTS晶振 | ATSSMGL | 4.9152MHz | ±30ppm | 20pF | -40°C ~ 85°C |
GL050F23CDT | CTS晶振 | ATSSMGL | 5MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL050F23CET | CTS晶振 | ATSSMGL | 5MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL050F33CDT | CTS晶振 | ATSSMGL | 5MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL050F33CET | CTS晶振 | ATSSMGL | 5MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL050F35CDT | CTS晶振 | ATSSMGL | 5MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL050F35CET | CTS晶振 | ATSSMGL | 5MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL050F35IDT | CTS晶振 | ATSSMGL | 5MHz | ±30ppm | 18pF | -40°C ~ 85°C |
GL050F35IET | CTS晶振 | ATSSMGL | 5MHz | ±30ppm | 20pF | -40°C ~ 85°C |
GL060F23CDT | CTS晶振 | ATSSMGL | 6MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL060F23CET | CTS晶振 | ATSSMGL | 6MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL060F33CDT | CTS晶振 | ATSSMGL | 6MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL060F33CET | CTS晶振 | ATSSMGL | 6MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL060F35CDT | CTS晶振 | ATSSMGL | 6MHz | ±30ppm | 18pF | -20°C ~ 70°C |
GL060F35CET | CTS晶振 | ATSSMGL | 6MHz | ±30ppm | 20pF | -20°C ~ 70°C |
GL060F35IDT | CTS晶振 | ATSSMGL | 6MHz | ±30ppm | 18pF | -40°C ~ 85°C |
GL060F35IET | CTS晶振 | ATSSMGL | 6MHz | ±30ppm | 20pF | -40°C ~ 85°C |
GL061F23CDT | CTS晶振 | ATSSMGL | 6.144MHz | ±20ppm | 18pF | -20°C ~ 70°C |
GL061F23CET | CTS晶振 | ATSSMGL | 6.144MHz | ±20ppm | 20pF | -20°C ~ 70°C |
GL061F33CDT | CTS晶振 | ATSSMGL | 6.144MHz | ±30ppm | 18pF | -20°C ~ 70°C |
