ECS-115.2-18-5PXEN|11.52MHz|18PF|30PPM|49SMD|CSM-7X|ECS

频率:11.52MHZ

尺寸:11.35X4.8mm

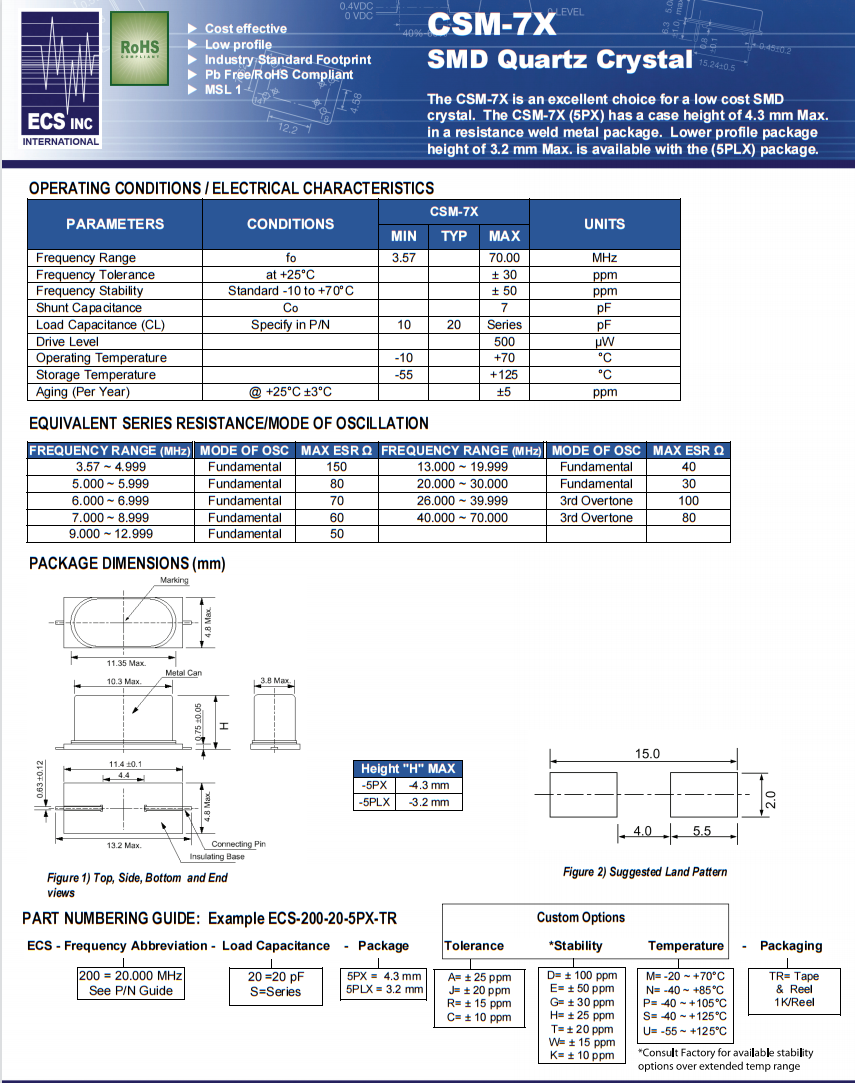

ECS-115.2-18-5PXEN|11.52MHz|18PF|30PPM|49SMD|CSM-7X|ECS国外进口晶振CSM-7X是低成本SMD晶体的绝佳选择。CSM-7X(5PX)的外壳高度为4.3 mm。在一个电阻焊缝金属封装中。较低的轮廓包装高度,最大3.2 mm。可与(5PLX)包。成本效益高,低调的外表,行业标准, 无铅/RoHS
订购热线:0755-27876565
QQ咨询 点击这里给我发消息 ECS-115.2-18-5PXEN|11.52MHz|18PF|30PPM|49SMD|CSM-7X|ECS

ECS-2

yijin-1

ECS-115.2-18-5PXEN|11.52MHz|18PF|30PPM|49SMD|CSM-7X|ECS国外进口晶振CSM-7X是低成本SMD晶体的绝佳选择。CSM-7X(5PX)的外壳高度为4.3 mm。在一个电阻焊缝金属封装中。较低的轮廓包装高度,最大3.2 mm。可与(5PLX)包。成本效益高,低调的外表,行业标准, 无铅/RoHS

yijin-2

参数 环境 CSM-7X 单位
最小值 典型的 最大值
频率 fo 3.57 70.00 MHz
频率容差 at +25°C ± 30 ppm
频率稳定度 Standard -10 to +70°C ± 50 ppm
并联电容 Co 7 pF
负载电容 Specify in P/N 10 20 Series pF
驱动电平 500 µW
工作温度 --10 +70 °C
储存温度 --55 +125 °C
老化 @ +25°C ±3°C ±5 ppm

yijin-3

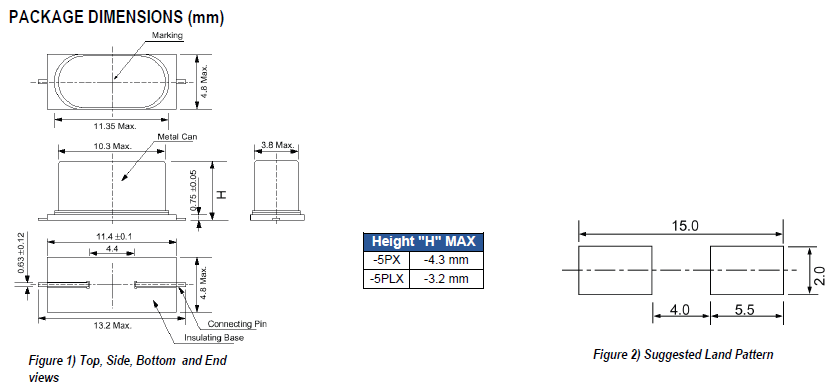

csm-7x 11.4_4.8


csm7x

ECS原厂编码 型号 频率 频率容差 频率偏差度 负载电容 工作温度
ECS-100-18-5PX-TR CSM-7X 10MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-100-S-5PX-TR CSM-7X 10MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-102.4-18-5PXEN CSM-7X 10.24MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-102.45-16-5PX-TR CSM-7X 10.245MHz ±50ppm ±30ppm 16pF -10°C ~ 70°C
ECS-110.5-18-5PXEN-TR CSM-7X 11.0592MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-110.5-20-5PX-TR CSM-7X 11.0592MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-110.5-32-5PX-TR CSM-7X 11.0592MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-110.5-S-5PX-TR CSM-7X 11.0592MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-110-18-5PXEN-TR CSM-7X 11MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-115.2-18-5PXEN CSM-7X 11.52MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-120.003-18-5PXEN CSM-7X 12.000393MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-120-18-5PX-TR CSM-7X 12MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-120-32-5PX-TR CSM-7X 12MHz ±50ppm ±30ppm 32pF -10°C ~ 70°C
ECS-120-S-5PX-TR CSM-7X 12MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-122.8-18-5PXEN-TR CSM-7X 12.288MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-122.8-20-5PX-TR CSM-7X 12.288MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-122.8-S-5PX-TR CSM-7X 12.288MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-135.6-12-5PX-TR CSM-7X 13.56MHz ±50ppm ±30ppm 12pF -10°C ~ 70°C
ECS-135-18-5PXEN-TR CSM-7X 13.5168MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-143-18-5PXEN-TR CSM-7X 14.31818MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-143-20-5PX-TR CSM-7X 14.31818MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-143-S-5PX-TR CSM-7X 14.31818MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-147.4-18-5PXEN-TR CSM-7X 14.7456MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-147.4-20-5PX-TR CSM-7X 14.7456MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-147.4-S-5PX-TR CSM-7X 14.7456MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-150-18-5PXEN CSM-7X 15MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-150-S-5PX-TR CSM-7X 15MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-160.003-18-5PXEN-TR CSM-7X 16.000312MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-160.003-18-5PX-TR CSM-7X 16.000312MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-160-18-5PXEN-TR CSM-7X 16MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-160-20-5PX-TR CSM-7X 16MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-160-S-5PX-TR CSM-7X 16MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-162.57-18-5PXEN-TR CSM-7X 16.257MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-163-18-5PXEN-TR CSM-7X 16.384MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-177.3-18-5PXEN CSM-7X 17.734475MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-180-18-5PXEN CSM-7X 18MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-180-S-5PX-TR CSM-7X 18MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-184-18-5PX-TR CSM-7X 18.432MHz ±50ppm ±30ppm 18pF -10°C ~ 70°C
ECS-184-20-5PX-TR CSM-7X 18.432MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-184-S-5PX-TR CSM-7X 18.432MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-196.6-18-5PXEN-TR CSM-7X 19.6608MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-196.6-20-5PX-TR CSM-7X 19.6608MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-200-16-5PX-TR CSM-7X 20MHz ±50ppm ±30ppm 16pF -10°C ~ 70°C
ECS-200-18-5PXEN-TR CSM-7X 20MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-200-20-5PX-TR CSM-7X 20MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-200-S-5PX-TR CSM-7X 20MHz ±50ppm ±30ppm Series -10°C ~ 70°C
ECS-204.8-20-5PX CSM-7X 20.48MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-221-18-5PXEN-TR CSM-7X 22.1184MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-240-12-5PX-TR CSM-7X 24MHz ±50ppm ±30ppm 12pF -10°C ~ 70°C
ECS-240-16-5PX-TR CSM-7X 24MHz ±50ppm ±30ppm 16pF -10°C ~ 70°C
ECS-240-18-5PXEN-TR CSM-7X 24MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-240-20-5PX-TR CSM-7X 24MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
ECS-245.7-18-5PXEN-TR CSM-7X 24.576MHz ±50ppm ±30ppm 18pF -40°C ~ 85°C
ECS-245.7-20-5PX-TR CSM-7X 24.576MHz ±50ppm ±30ppm 20pF -10°C ~ 70°C
