ECLIPTEK日蚀晶振,E1UAA20-20.000M插件晶振,E1UAA室外6G通讯晶振
频率:20MHZ
尺寸:11.18X4.7mm
ECLIPTEK日蚀晶振,E1UAA20-20.000M插件晶振,E1UAA室外6G通讯晶振,美国ECLIPTEK晶振公司,日蚀晶振,美国晶振,进口晶振,高性能晶振,插件晶振,49S晶振,二脚晶振,可发挥优秀的电气特性,室外基站晶振,6G通讯设备晶振,石英晶体谐振器,无源晶振,高品质晶振,低损耗晶振,11.18X4.7mm晶振

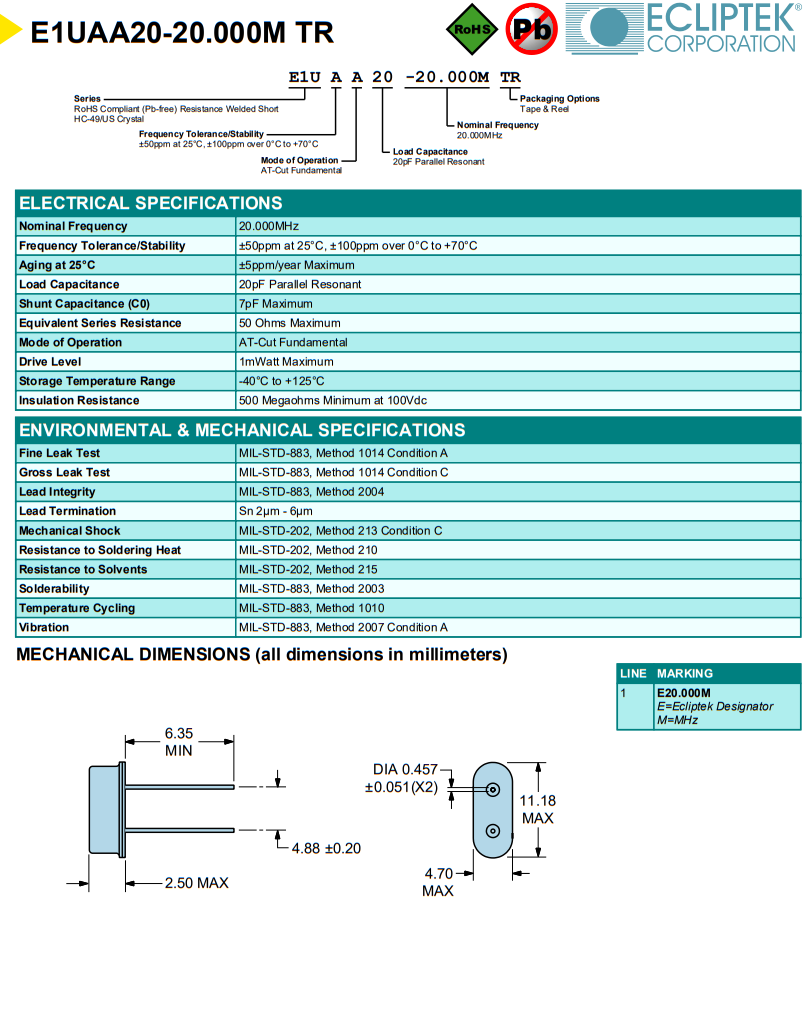

电气规范 | |
标称频率 | 20.000MHz |
频率容差/稳定度 | ±50ppm at 25°C, ±100ppm over 0°C to +70°C |
老化 | ±5ppm/year Maximum |
负载电容 | 20pF Parallel Resonant |
分流电容 (C0) | 7pF Maximum |
等效串联电阻 | 50 Ohms Maximum |
工作模式 | AT-Cut Fundamental |
驱动电平 | 1mWatt Maximum |
储存温度范围 | -40°C to +125°C |
绝缘电阻 | 500 Megaohms Minimum at 100Vdc |
Ecliptek原厂编码 | 生产商 | 系列 | 频率 | 频率稳定性 | 频率容差 | 负载电容 | 工作温度 |
E8WSDC12-32.768K TR | Ecliptek晶振 | E8WS | 32.768 kHz | - | ±20ppm | 12.5pF | -40°C ~ 85°C |
EA2532LA18-24.000M TR | Ecliptek晶振 | EA2532 | 24 MHz | ±30ppm | ±15ppm | 18pF | -40°C ~ 85°C |
E1SJA18-7.3728M TR | Ecliptek晶振 | E1S | 7.3728 MHz | ±30ppm | ±15ppm | 18pF | -40°C ~ 85°C |
E1SCA18-8.000M TR | Ecliptek晶振 | E1S | 8 MHz | ±100ppm | ±50ppm | 18pF | -40°C ~ 85°C |
E1SFA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
E1SJA18-4.000M TR | Ecliptek晶振 | E1S | 4 MHz | ±30ppm | ±15ppm | 18pF | -40°C ~ 85°C |
E1SJA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | ±30ppm | ±15ppm | 18pF | -40°C ~ 85°C |
E1SEA18-8.000M TR | Ecliptek晶振 | E1S | 8 MHz | ±50ppm | ±30ppm | 18pF | -20°C ~ 70°C |
E1SDA12-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | ±50ppm | ±30ppm | 12pF | 0°C ~ 70°C |
EA2532LA18-16.000M TR | Ecliptek晶振 | EA2532 | 16 MHz | ±30ppm | ±15ppm | 18pF | -40°C ~ 85°C |
EA2532LA18-20.000M TR | Ecliptek晶振 | EA2532 | 20 MHz | ±30ppm | ±15ppm | 18pF | -40°C ~ 85°C |
EA2532QA18-24.000M TR | Ecliptek晶振 | EA2532 | 24 MHz | ±20ppm | ±15ppm | 18pF | -40°C ~ 85°C |
EA2532QA18-14.7456M TR | Ecliptek晶振 | EA2532 | 14.7456 MHz | ±20ppm | ±15ppm | 18pF | -40°C ~ 85°C |
EA2532QA18-25.000M TR | Ecliptek晶振 | EA2532 | 25 MHz | ±20ppm | ±15ppm | 18pF | -40°C ~ 85°C |
EA2532QA08-16.000M TR | Ecliptek晶振 | EA2532 | 16 MHz | ±20ppm | ±15ppm | 8pF | -40°C ~ 85°C |
EB1620JA10-27.120M TR | Ecliptek晶振 | EB1620 | 27.12 MHz | ±30ppm | ±15ppm | 10pF | -40°C ~ 85°C |
EB1620JA10-20.000M TR | Ecliptek晶振 | EB1620 | 20 MHz | ±30ppm | ±15ppm | 10pF | -40°C ~ 85°C |
EB1620JA10-19.200M TR | Ecliptek晶振 | EB1620 | 19.2 MHz | ±30ppm | ±15ppm | 10pF | -40°C ~ 85°C |
EB1620JA10-26.000M TR | Ecliptek晶振 | EB1620 | 26 MHz | ±30ppm | ±15ppm | 10pF | -40°C ~ 85°C |
EB1620JA10-27.000M TR | Ecliptek晶振 | EB1620 | 27 MHz | ±30ppm | ±15ppm | 10pF | -40°C ~ 85°C |
EB2532JA12-24.000M TR | Ecliptek晶振 | EB2532 | 24 MHz | ±30ppm | ±15ppm | 12pF | -40°C ~ 85°C |
EB2532JA12-28.63636M TR | Ecliptek晶振 | EB2532 | 28.63636 MHz | ±30ppm | ±15ppm | 12pF | -40°C ~ 85°C |
EB2532JA12-13.560M TR | Ecliptek晶振 | EB2532 | 13.56 MHz | ±30ppm | ±15ppm | 12pF | -40°C ~ 85°C |
EB2532JA12-27.000M TR | Ecliptek晶振 | EB2532 | 27 MHz | ±30ppm | ±15ppm | 12pF | -40°C ~ 85°C |
EB2532JA12-40.000M TR | Ecliptek晶振 | EB2532 | 40 MHz | ±30ppm | ±15ppm | 12pF | -40°C ~ 85°C |
EB1620YA10-24.000M TR | Ecliptek晶振 | EB1620 | 24 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
EB1620YA10-26.000M TR | Ecliptek晶振 | EB1620 | 26 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
EB1620YA10-24.576M TR | Ecliptek晶振 | EB1620 | 24.576 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
EB1620YA10-25.000M TR | Ecliptek晶振 | EB1620 | 25 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
EB2532YA12-40.000M TR | Ecliptek晶振 | EB2532 | 40 MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 125°C |
EB2532YA12-25.000M TR | Ecliptek晶振 | EB2532 | 25 MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 125°C |
EB2532YA12-12.288M TR | Ecliptek晶振 | EB2532 | 12.288 MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 125°C |
EB2532YA12-27.000M TR | Ecliptek晶振 | EB2532 | 27 MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 125°C |
EB2532YA12-20.000M TR | Ecliptek晶振 | EB2532 | 20 MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 125°C |
EB2532YA12-26.000M TR | Ecliptek晶振 | EB2532 | 26 MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 125°C |
EB2532YA12-28.63636M TR | Ecliptek晶振 | EB2532 | 28.63636 MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 125°C |
EB1216JA10-27.120M TR | Ecliptek晶振 | EB1216 | 27.12 MHz | ±30ppm | ±15ppm | 10pF | -40°C ~ 85°C |
EB1216JA10-27.000M TR | Ecliptek晶振 | EB1216 | 27 MHz | ±30ppm | ±15ppm | 10pF | -40°C ~ 85°C |
EB1620YA10-32.000M TR | Ecliptek晶振 | EB1620 | 32 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
EB1620YA10-27.120M TR | Ecliptek晶振 | EB1620 | 27.12 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
EB1216YA10-27.000M TR | Ecliptek晶振 | EB1216 | 27 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 85°C |
EB1216YA10-26.000M TR | Ecliptek晶振 | EB1216 | 26 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 85°C |
EB1216YA10-25.000M TR | Ecliptek晶振 | EB1216 | 25 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 85°C |
EA2025JA18-25.000M TR | Ecliptek晶振 | EA2025 | 25 MHz | ±30ppm | ±15ppm | 18pF | -40°C ~ 85°C |
EA3250MA10-14.7456M TR | Ecliptek晶振 | EA3250 | 14.7456 MHz | ±20ppm | ±15ppm | 10pF | -40°C ~ 85°C |
EB3250JA12-12.000M TR | Ecliptek晶振 | EB3250 | 12 MHz | ±30ppm | ±15ppm | 12pF | -40°C ~ 85°C |
EB3250JA12-24.000M TR | Ecliptek晶振 | EB3250 | 24 MHz | ±30ppm | ±15ppm | 12pF | -40°C ~ 85°C |
EA3250FA18-25.000M TR | Ecliptek晶振 | EA3250 | 25 MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
E1SFA12-3.6864M TR | Ecliptek晶振 | E1S | 3.6864 MHz | ±50ppm | ±30ppm | 12pF | -40°C ~ 85°C |
EA2532LA18-32.000M TR | Ecliptek晶振 | EA2532 | 32 MHz | ±30ppm | ±15ppm | 18pF | -40°C ~ 85°C |
