CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM

频率：3.2M~64MHZ

尺寸：13*4.95mm

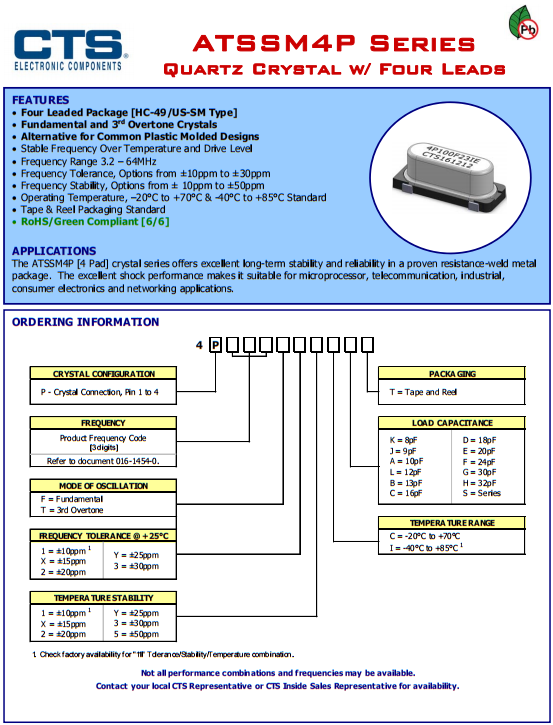

CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM，美国CTS晶振,特性：四铅包[HC-49/US-SM类型]，基本和第三泛音晶体，替代常见塑料模塑设计，稳定频率在温度和驱动水平，频率范围3.2-64MHz，频率公差，选择±10ppm±30ppm，频率稳定性，选择±10ppm±50ppm，工作温度，-20°C+70°C&-40°C+85°C标准，磁带和卷轴包装标准，RoHS/绿色兼容[6/6]，ATSSM4P [4 Pad]晶体系列的长期稳定性和可靠性提供了良好的电阻焊接金属封装的应用。优异的冲击性能使其适用于微处理器、电信、工业、消费电子和网络应用。

订购热线：0755-27876565

CTS-2

yijin-1

CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM，美国CTS晶振,特性：四铅包[HC-49/US-SM类型]，基本和第三泛音晶体，替代常见塑料模塑设计，稳定频率在温度和驱动水平，频率范围3.2-64MHz，频率公差，选择±10ppm±30ppm，频率稳定性，选择±10ppm±50ppm，工作温度，-20°C+70°C&-40°C+85°C标准，磁带和卷轴包装标准，RoHS/绿色兼容[6/6]，ATSSM4P [4 Pad]晶体系列的长期稳定性和可靠性提供了良好的电阻焊接金属封装的应用。优异的冲击性能使其适用于微处理器、电信、工业、消费电子和网络应用。

yijin-2

CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM

参数	数值
频率范围	3.2MHz to 40MHz	24MHz to 64MHz
工作模式	Fundamental	3rd Overtone
晶体切向	AT-Cut
频率容差@ +25°C	±10, ±15, ±20, ±25, ±30ppm
Frequency Stability Tolerance	±10, ±15, ±20, ±25, ±30, ±50ppm
频率稳定公差[工作温度参考+25°C]
工作温度	-20°C to +70°C
	-40°C to +85°C
负载电容	See Ordering Information
并联电阻	7.0pF Maximum
驱动电平	100µW Typ., 1000µW Max.
老化	±3ppm/yr Typical, ±5ppm/yr Maximum
绝缘电阻	500M Ohms @ DC 100V
储存温度范围	-40°C to +100°C

CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM

ATSSM4P 13-4.95

ATSM4P(1)

CTS原厂编码	生产厂家	型号	频率	频率偏差	负载电容	工作温度
4P036F35CDT	CTS晶振	ATSSM4P	3.579545MHz	±30ppm	18pF	-20°C ~ 70°C
4P036F35IST	CTS晶振	ATSSM4P	3.579545MHz	±30ppm	Series	-40°C ~ 85°C
4P037F35CDT	CTS晶振	ATSSM4P	3.6864MHz	±30ppm	18pF	-20°C ~ 70°C
4P037F35IST	CTS晶振	ATSSM4P	3.6864MHz	±30ppm	Series	-40°C ~ 85°C
4P040F35CDT	CTS晶振	ATSSM4P	4MHz	±30ppm	18pF	-20°C ~ 70°C
4P040F35IST	CTS晶振	ATSSM4P	4MHz	±30ppm	Series	-40°C ~ 85°C
4P049F35CDT	CTS晶振	ATSSM4P	4.9152MHz	±30ppm	18pF	-20°C ~ 70°C
4P049F35IST	CTS晶振	ATSSM4P	4.9152MHz	±30ppm	Series	-40°C ~ 85°C
4P050F35CDT	CTS晶振	ATSSM4P	5MHz	±30ppm	18pF	-20°C ~ 70°C
4P060F35IST	CTS晶振	ATSSM4P	6MHz	±30ppm	Series	-40°C ~ 85°C
4P073F35CDT	CTS晶振	ATSSM4P	7.3728MHz	±30ppm	18pF	-20°C ~ 70°C
4P080F35IST	CTS晶振	ATSSM4P	8MHz	±30ppm	Series	-40°C ~ 85°C
4P098F35CDT	CTS晶振	ATSSM4P	9.8304MHz	±30ppm	18pF	-20°C ~ 70°C
4P100F35IST	CTS晶振	ATSSM4P	10MHz	±30ppm	Series	-40°C ~ 85°C
4P111F35CDT	CTS晶振	ATSSM4P	11.0592MHz	±30ppm	18pF	-20°C ~ 70°C
4P120F35IST	CTS晶振	ATSSM4P	12MHz	±30ppm	Series	-40°C ~ 85°C
4P122F35CDT	CTS晶振	ATSSM4P	12.288MHz	±30ppm	18pF	-20°C ~ 70°C
4P143F35IST	CTS晶振	ATSSM4P	14.31818MHz	±30ppm	Series	-40°C ~ 85°C
4P147F35CDT	CTS晶振	ATSSM4P	14.7456MHz	±30ppm	18pF	-20°C ~ 70°C
4P160F35IST	CTS晶振	ATSSM4P	16MHz	±30ppm	Series	-40°C ~ 85°C
4P184F35CDT	CTS晶振	ATSSM4P	18.432MHz	±30ppm	18pF	-20°C ~ 70°C
4P200F35IST	CTS晶振	ATSSM4P	20MHz	±30ppm	Series	-40°C ~ 85°C
4P240F35CDT	CTS晶振	ATSSM4P	24MHz	±30ppm	18pF	-20°C ~ 70°C
4P24MF35IST	CTS晶振	ATSSM4P	24.7456MHz	±30ppm	Series	-40°C ~ 85°C
4P250F35CDT	CTS晶振	ATSSM4P	25MHz	±30ppm	18pF	-20°C ~ 70°C
