CTS,403I35D24M00000,18PF,30PPM,3225,-40~85℃

频率：24MHZ

尺寸：3.2*2.5mm

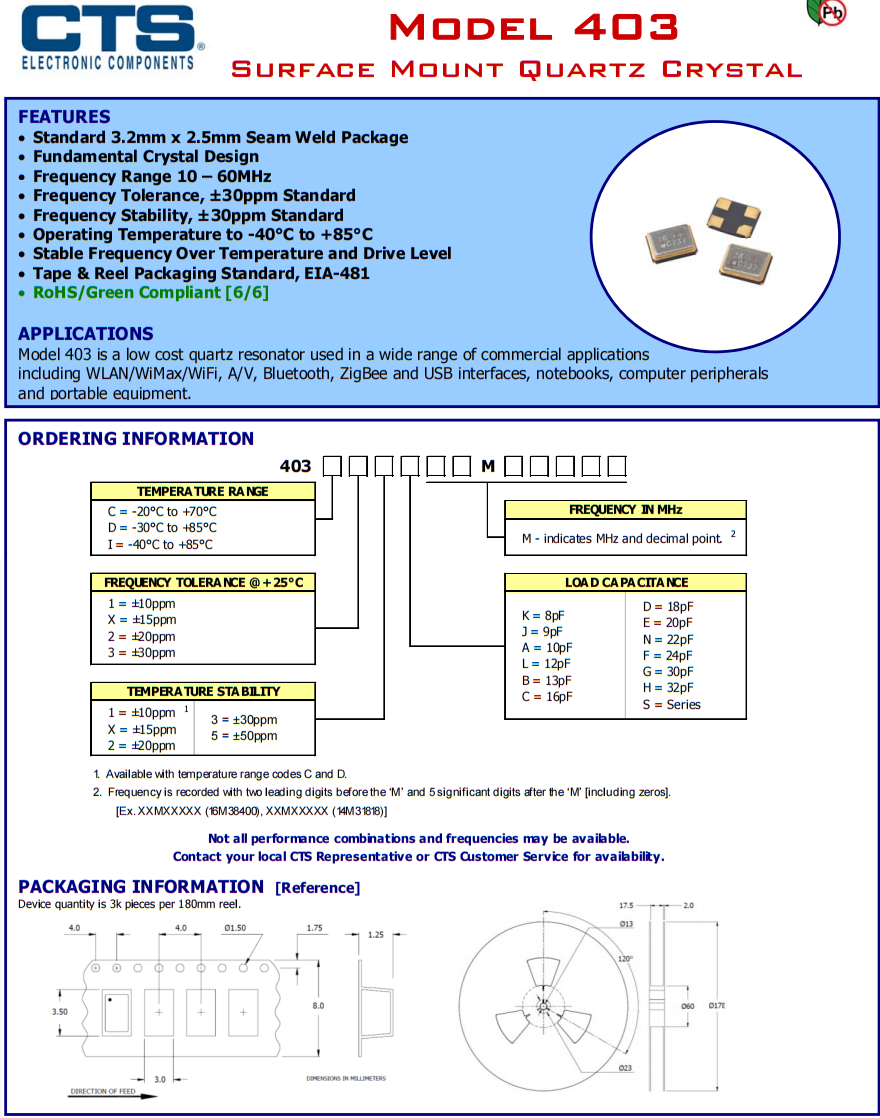

CTS,403I35D24M00000,18PF,30PPM,3225,-40~85℃,SMD晶振,特性，标准3.2毫米x2.5毫米接缝焊接包，基本晶体设计，频率范围10-60MHz，频率公差，±30ppm标准，频率稳定性，±30ppm标准，工作温度-40°C+85°C，稳定频率温度和驱动器水平，磁带和卷轴包装标准，EIA-481，RoHS/绿色兼容[6/6]应用模型403是一个低成本石英谐振器用于广泛的商业应用包括WLAN/WiMax/WiFi，A/V，蓝牙、ZigBee和USB接口，笔记本、电脑外设和便携式设备。

订购热线：0755-27876565

CTS-2

yijin-1

CTS,403I35D24M00000,18PF,30PPM,3225,-40~85℃,SMD晶振,特性，标准3.2毫米x2.5毫米接缝焊接包，基本晶体设计，频率范围10-60MHz，频率公差，±30ppm标准，频率稳定性，±30ppm标准，工作温度-40°C+85°C，稳定频率温度和驱动器水平，磁带和卷轴包装标准，EIA-481，RoHS/绿色兼容[6/6]应用模型403是一个低成本石英谐振器用于广泛的商业应用包括WLAN/WiMax/WiFi，A/V，蓝牙、ZigBee和USB接口，笔记本、电脑外设和便携式设备。

yijin-2

CTS,403I35D24M00000,18PF,30PPM,3225,-40~85℃

参数	数值
频率范围	10MHz to 60MHz
工作模式	Fundamental or 3rd Overtone
晶体切向	AT-Cut
频率容差@ +25°C	± 30 ppm Standard *
频率稳定公差（工作温度参考25°C读数）	± 50 ppm Standard *
工作温度范围	-20°C to +70°C * -30°C to +85°C，-40°C to +85°C
等效串联电阻	See ESR Table
负载电容或共振模式	See Standard Part Numbers tables *
分流电容(C0)	7.0 pF Maximum
驱动电平	10uW Typ., 200uW Max
老化	±3 ppm/yr Typical
绝缘电阻	500 Ohms @ DC 100V
储存温度范围	-40°C to +100°C

CTS,403I35D24M00000,18PF,30PPM,3225,-40~85℃

403 3225

403

CTS原厂编码	生产厂家	型号	频率	频率偏差	负载电容	Operating Temperature 工作温度
403C11A32M00000	CTS晶振	403	32MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A32M00000	CTS晶振	403	32MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A32M00000	CTS晶振	403	32MHz	±10ppm	10pF	-20°C ~ 70°C
403C35D25M00000	CTS晶振	403	25MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D25M00000	CTS晶振	403	25MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D25M00000	CTS晶振	403	25MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D12M00000	CTS晶振	403	12MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D12M00000	CTS晶振	403	12MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D12M00000	CTS晶振	403	12MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D24M00000	CTS晶振	403	24MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D24M00000	CTS晶振	403	24MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D24M00000	CTS晶振	403	24MHz	±30ppm	18pF	-20°C ~ 70°C
403C35E13M00000	CTS晶振	403	13MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E13M00000	CTS晶振	403	13MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E13M00000	CTS晶振	403	13MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E27M00000	CTS晶振	403	27MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E27M00000	CTS晶振	403	27MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E27M00000	CTS晶振	403	27MHz	±30ppm	20pF	-20°C ~ 70°C
403C11A16M00000	CTS晶振	403	16MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M00000	CTS晶振	403	16MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M00000	CTS晶振	403	16MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A24M00000	CTS晶振	403	24MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A24M00000	CTS晶振	403	24MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A24M00000	CTS晶振	403	24MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M80000	CTS晶振	403	16.8MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M80000	CTS晶振	403	16.8MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M80000	CTS晶振	403	16.8MHz	±10ppm	10pF	-20°C ~ 70°C
403C35D22M11840	CTS晶振	403	22.1184MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D22M11840	CTS晶振	403	22.1184MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D22M11840	CTS晶振	403	22.1184MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D28M37500	CTS晶振	403	28.375MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D28M37500	CTS晶振	403	28.375MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D28M37500	CTS晶振	403	28.375MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D28M63636	CTS晶振	403	28.63636MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D28M63636	CTS晶振	403	28.63636MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D28M63636	CTS晶振	403	28.63636MHz	±30ppm	18pF	-20°C ~ 70°C
403C35E12M00000	CTS晶振	403	12MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E12M00000	CTS晶振	403	12MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E12M00000	CTS晶振	403	12MHz	±30ppm	20pF	-20°C ~ 70°C
403C23E26M69000	CTS晶振	403	26.69MHz	±20ppm	20pF	-20°C ~ 70°C
403C23E26M69000	CTS晶振	403	26.69MHz	±20ppm	20pF	-20°C ~ 70°C
403C23E26M69000	CTS晶振	403	26.69MHz	±20ppm	20pF	-20°C ~ 70°C
403C35E16M00000	CTS晶振	403	16MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E16M00000	CTS晶振	403	16MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E16M00000	CTS晶振	403	16MHz	±30ppm	20pF	-20°C ~ 70°C
403C11A12M00000	CTS晶振	403	12MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A12M00000	CTS晶振	403	12MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A12M00000	CTS晶振	403	12MHz	±10ppm	10pF	-20°C ~ 70°C
403I35D12M00000	CTS晶振	403	12MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D12M00000	CTS晶振	403	12MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D12M00000	CTS晶振	403	12MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D16M00000	CTS晶振	403	16MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D16M00000	CTS晶振	403	16MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D16M00000	CTS晶振	403	16MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D24M00000	CTS晶振	403	24MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D24M00000	CTS晶振	403	24MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D24M00000	CTS晶振	403	24MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D30M00000	CTS晶振	403	30MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D30M00000	CTS晶振	403	30MHz	±30ppm	18pF	-40°C ~ 85°C
403I35D30M00000	CTS晶振	403	30MHz	±30ppm	18pF	-40°C ~ 85°C
403I35E16M00000	CTS晶振	403	16MHz	±30ppm	20pF	-40°C ~ 85°C
403I35E16M00000	CTS晶振	403	16MHz	±30ppm	20pF	-40°C ~ 85°C
