357LC5C074M2500,VCXO,3.3V,25PPM,7050,74.25MHz
频率：74.25MHZ
尺寸：7050mm

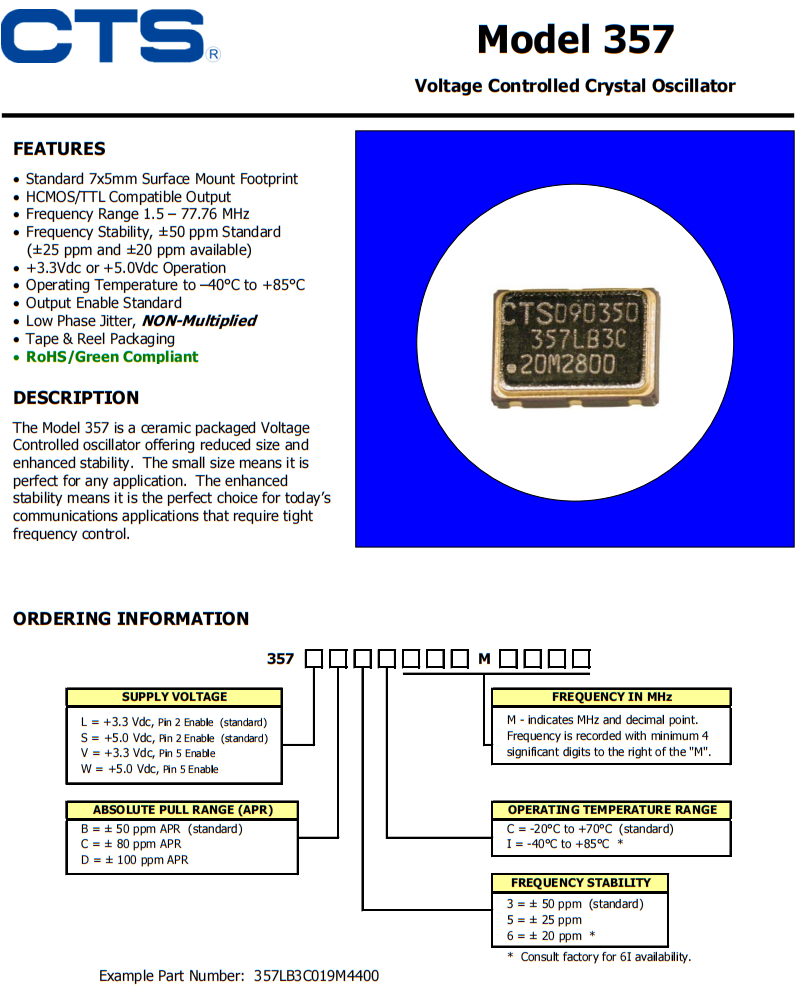

357LC5C074M2500,VCXO,3.3V,25PPM,7050,74.25MHz,美国CTS晶振公司,进口贴片晶振,标准7x5mm表面安装足迹HCMOS/TTL兼容输出频率范围1.5-77.76MHz频率稳定，±50 ppm标准（±25 ppm和±20ppm）+3.3直流或+5.0直流操作工作温度-40°C+85°C输出使标准低相抖动，非相带和卷轴包装RoHS/绿色兼容.357型是一个陶瓷封装的电压控制振荡器，提供减小的尺寸和增强的稳定性。较小的尺寸意味着它非常适合任何应用程序。增强的稳定性意味着它是当今需要严格的频率控制的通信应用程序的完美选择。
357LC5C074M2500,VCXO,3.3V,25PPM,7050,74.25MHz,美国CTS晶振公司,进口贴片晶振,标准7x5mm表面安装足迹HCMOS/TTL兼容输出频率范围1.5-77.76MHz频率稳定，±50 ppm标准（±25 ppm和±20ppm）+3.3直流或+5.0直流操作工作温度-40°C+85°C输出使标准低相抖动，非相带和卷轴包装RoHS/绿色兼容.357型是一个陶瓷封装的电压控制振荡器，提供减小的尺寸和增强的稳定性。较小的尺寸意味着它非常适合任何应用程序。增强的稳定性意味着它是当今需要严格的频率控制的通信应用程序的完美选择。
357LC5C074M2500,VCXO,3.3V,25PPM,7050,74.25MHz
参数
代号
环境
最小值
典型的
最大值
单位
最大供应电压
VCC
-
-0.5
-
7
V
最大控制电压
VC
-
-0.5
-
VCC
V
储存温度
TSTG
-
-55
-
125
°C
频率范围
O
-
1.5
-
77.76
MHz
频率容差 (请参见注1和订购信息)
?f/fO
20, 25 or 50
± ppm
绝对拉力范围（见注2和订购信息）
APR
-
50, 80 or 100
-
-
± ppm
工作温度
TA
-
-20
70
°C
商业的
-40
25
85
工业的
供应电压
VCC
± 10 %
4.5
5
5.5
V
Model 357S, 357W
2.97
3.3
3.63
Model 357L, 357V
源电流
CL = 15 pF
5
20
ICC
1.5 MHz to 20 MHz
-
8
30
mA
20.1 MHz to 40 MHz
-
10
40
40.1 MHz to 60 MHz
-
12
45
60.1 MHz to 80 MHz
-
输出负载
CL
-
-
30
pF
频率[次数]离差
?f
25°C at Time of Shipment, over VC range
-
135
-
± ppm
输出占空比
SYM
@ 50% Level
45
-
55
%
上升和下降时间
TR, TF
@ 10% - 90% Levels
-
3.5
5
ns
输入抗阻
ZC
-
50
-
-
kOhms
转移上课
-
-
-
Positive
-
-
投产期
TS
Application of VCC
-
-
10
ms
调制卷取
-
@ -3dB
10
-
-
kHz
相位抖动
tjms
Bandwidth 12 kHz - 20 MHz
-
-
1
ps RMS
启动时间
TPLZ
Pin 2 or Pin 5 Logic '1'
-
-
100
ns
357LC5C074M2500,VCXO,3.3V,25PPM,7050,74.25MHz
| CTS原厂代码 | 生产商品牌 | 型号 | 类型 | 频率 | 输出 | 电压 |
| 357LB3I032M7680 | CTS-Frequency Controls | 357 | VCXO | 32.768MHz | HCMOS, TTL | 3.3V |
| 357LB3I032M7680 | CTS-Frequency Controls | 357 | VCXO | 32.768MHz | HCMOS, TTL | 3.3V |
| 357LB3I032M7680 | CTS-Frequency Controls | 357 | VCXO | 32.768MHz | HCMOS, TTL | 3.3V |
| 357LB3I040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I002M0480 | CTS-Frequency Controls | 357 | VCXO | 2.048MHz | HCMOS, TTL | 3.3V |
| 357LB3I002M0480 | CTS-Frequency Controls | 357 | VCXO | 2.048MHz | HCMOS, TTL | 3.3V |
| 357LB3I002M0480 | CTS-Frequency Controls | 357 | VCXO | 2.048MHz | HCMOS, TTL | 3.3V |
| 357LB3I027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I004M0960 | CTS-Frequency Controls | 357 | VCXO | 4.096MHz | HCMOS, TTL | 3.3V |
| 357LB3I004M0960 | CTS-Frequency Controls | 357 | VCXO | 4.096MHz | HCMOS, TTL | 3.3V |
| 357LB3I004M0960 | CTS-Frequency Controls | 357 | VCXO | 4.096MHz | HCMOS, TTL | 3.3V |
| 357LB3I019M4400 | CTS-Frequency Controls | 357 | VCXO | 19.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I019M4400 | CTS-Frequency Controls | 357 | VCXO | 19.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I019M4400 | CTS-Frequency Controls | 357 | VCXO | 19.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I001M5440 | CTS-Frequency Controls | 357 | VCXO | 1.544MHz | HCMOS, TTL | 3.3V |
| 357LB3I001M5440 | CTS-Frequency Controls | 357 | VCXO | 1.544MHz | HCMOS, TTL | 3.3V |
| 357LB3I001M5440 | CTS-Frequency Controls | 357 | VCXO | 1.544MHz | HCMOS, TTL | 3.3V |
| 357LB3I006M1760 | CTS-Frequency Controls | 357 | VCXO | 6.176MHz | HCMOS, TTL | 3.3V |
| 357LB3I016M3840 | CTS-Frequency Controls | 357 | VCXO | 16.384MHz | HCMOS, TTL | 3.3V |
| 357LB3I016M3840 | CTS-Frequency Controls | 357 | VCXO | 16.384MHz | HCMOS, TTL | 3.3V |
| 357LB3I016M3840 | CTS-Frequency Controls | 357 | VCXO | 16.384MHz | HCMOS, TTL | 3.3V |
| 357LB3I020M0000 | CTS-Frequency Controls | 357 | VCXO | 20MHz | HCMOS, TTL | 3.3V |
| 357LB3I020M0000 | CTS-Frequency Controls | 357 | VCXO | 20MHz | HCMOS, TTL | 3.3V |
| 357LB3I020M0000 | CTS-Frequency Controls | 357 | VCXO | 20MHz | HCMOS, TTL | 3.3V |
| 357LB3C024M5760 | CTS-Frequency Controls | 357 | VCXO | 24.576MHz | HCMOS, TTL | 3.3V |
| 357LB3C027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I025M6000 | CTS-Frequency Controls | 357 | VCXO | 25.6MHz | HCMOS, TTL | 3.3V |
| 357LB3I035M3280 | CTS-Frequency Controls | 357 | VCXO | 35.328MHz | HCMOS, TTL | 3.3V |
| 357LB3I035M3280 | CTS-Frequency Controls | 357 | VCXO | 35.328MHz | HCMOS, TTL | 3.3V |
| 357LB3I035M3280 | CTS-Frequency Controls | 357 | VCXO | 35.328MHz | HCMOS, TTL | 3.3V |
| 357LB3I038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LB3I038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LB3I038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LB5C038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LD3C027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LD3I012M2880 | CTS-Frequency Controls | 357 | VCXO | 12.288MHz | HCMOS, TTL | 3.3V |
| 357LC5C027M1450 | CTS-Frequency Controls | 357 | VCXO | 27.145MHz | HCMOS, TTL | 3.3V |
| 357LD5C027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I044M7360 | CTS-Frequency Controls | 357 | VCXO | 44.736MHz | HCMOS, TTL | 3.3V |
| 357LB5C049M1520 | CTS-Frequency Controls | 357 | VCXO | 49.152MHz | HCMOS, TTL | 3.3V |
| 357LD5C040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I061M4400 | CTS-Frequency Controls | 357 | VCXO | 61.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I065M3600 | CTS-Frequency Controls | 357 | VCXO | 65.36MHz | HCMOS, TTL | 3.3V |
| 357LB3I065M3600 | CTS-Frequency Controls | 357 | VCXO | 65.36MHz | HCMOS, TTL | 3.3V |
| 357LB3I065M3600 | CTS-Frequency Controls | 357 | VCXO | 65.36MHz | HCMOS, TTL | 3.3V |
| 357LB3I060M0000 | CTS-Frequency Controls | 357 | VCXO | 60MHz | HCMOS, TTL | 3.3V |
| 357LB3I077M7600 | CTS-Frequency Controls | 357 | VCXO | 77.76MHz | HCMOS, TTL | 3.3V |
| 357LB3I077M7600 | CTS-Frequency Controls | 357 | VCXO | 77.76MHz | HCMOS, TTL | 3.3V |
| 357LB3I077M7600 | CTS-Frequency Controls | 357 | VCXO | 77.76MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M1758 | CTS-Frequency Controls | 357 | VCXO | 74.1758MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M1758 | CTS-Frequency Controls | 357 | VCXO | 74.1758MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M1758 | CTS-Frequency Controls | 357 | VCXO | 74.1758MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M2500 | CTS-Frequency Controls | 357 | VCXO | 74.25MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M2500 | CTS-Frequency Controls | 357 | VCXO | 74.25MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M2500 | CTS-Frequency Controls | 357 | VCXO | 74.25MHz | HCMOS, TTL | 3.3V |
