当前位置：首页 » 爱普生晶振 » EPSON差分石英晶振,北斗导航系统SG3225VAN 128.000000M-KJBA3晶振
EPSON差分石英晶振,北斗导航系统SG3225VAN 128.000000M-KJBA3晶振
prevnext

EPSON差分石英晶振,北斗导航系统SG3225VAN 128.000000M-KJBA3晶振

频率：128MHZ

尺寸：3.2x2.5mm

EPSON差分石英晶振,北斗导航系统SG3225VAN 128.000000M-KJBA3晶振,日本爱普生晶振公司，EPSON晶振，SG3225VAN晶振，SG3225VAN 128.000000M-KJBA3晶振，高品质差分晶振,  北斗卫星导航晶振，交换机差分晶振，有源晶振，6G模块晶振，6G基站晶振，石英晶振，差分晶振输出信号LVDS

订购热线：0755-27876565
QQ咨询 点击这里给我发消息 EPSON差分石英晶振,北斗导航系统SG3225VAN 128.000000M-KJBA3晶振

EPSON-2


yijin-1

EPSON差分石英晶振,北斗导航系统SG3225VAN 128.000000M-KJBA3晶振,日本爱普生晶振公司，EPSON晶振，SG3225VAN晶振，SG3225VAN 128.000000M-KJBA3晶振，高品质差分晶振,  北斗卫星导航晶振，交换机差分晶振，有源晶振，6G模块晶振，6G基站晶振，石英晶振，差分晶振输出信号LVDS

yijin-2

EPSON差分石英晶振,北斗导航系统SG3225VAN 128.000000M-KJBA3晶振

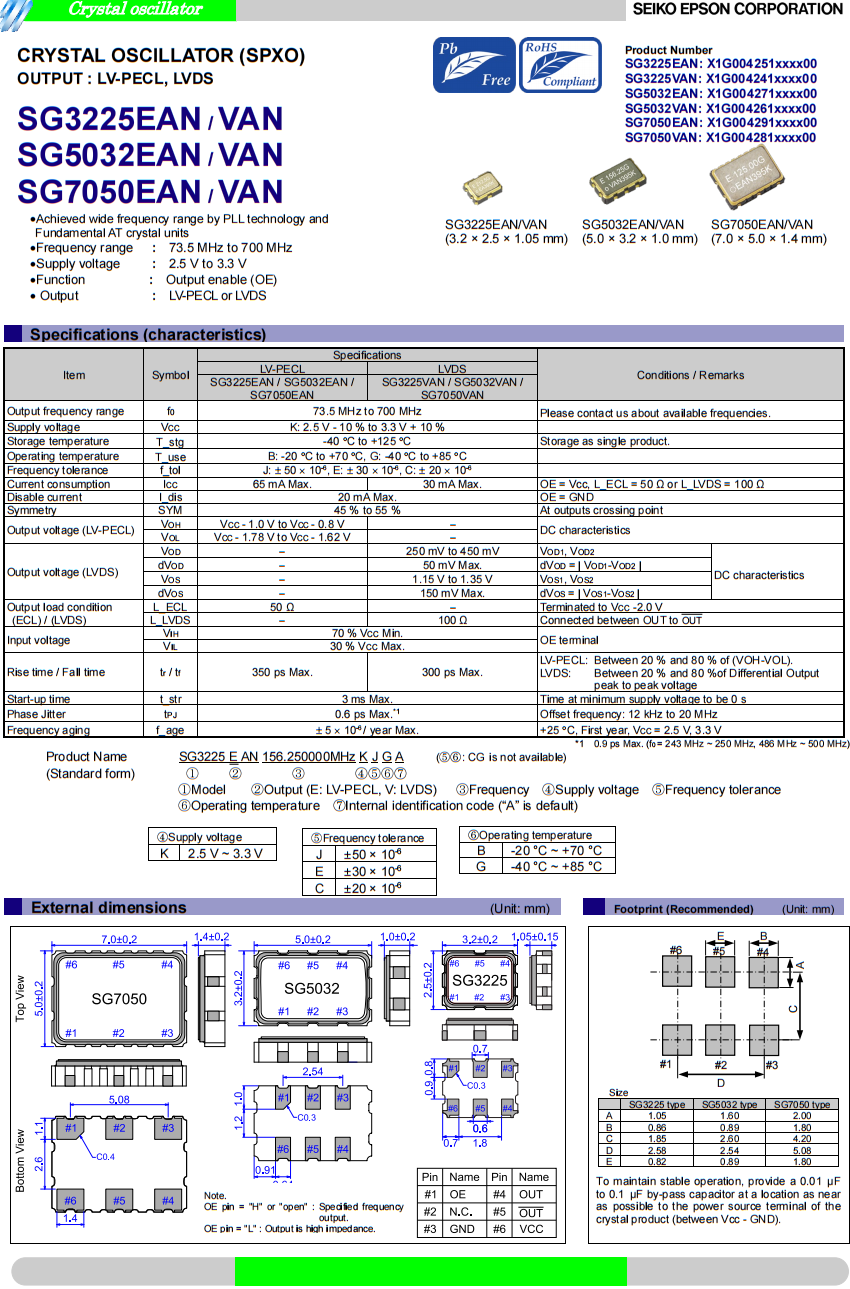

参数 符号 规格说明 条件
LV-PECL LVDS
SG3225EAN / SG5032EAN /
SG7050EAN 		SG3225VAN / SG5032VAN /
SG7050VAN
输出频率范围 0 73.5MHz ~ 700 MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 VCC K: 2.5V ~ 3.3V VCC=   10%
储存温度范围 T_stg -40 oC ~ +125 oC 裸存
工作温度范围 T_use B: -20 oC ~ +70 oC, G: -40 oC ~ +85 oC
频率稳定度 f_tol J:    50    10-6  , E:    30    10-6  , C:    20    10-6
功耗 ICC 65 mA Max. 30 mA Max. OE=Vcc, L_ECL=50    or L_LVDS=100
输出禁用电流 I_dis 20 mA Max. OE=GND
占空比 SYM 45 % ~ 55 % 在输出交叉点
输出电压(LV-PECL) VOH VCC-1.0 V ~ VCC-0.8 V 一 DC 特征
VOL VCC-1.78 V ~ VCC-1.62 V 一
输出电压(LVDS) VOD 一 250 mV ~ 450mV VOD1 , VOD2 DC 特征
dVOD 一 50 mV Max. dVOD  =  VOD1-VOD2
VOS 一 1.15 V ~ 1.35 V VOS1 , VOS2
dVOS 一 150 mV Max. dVOS  =  VOS1-VOS2
输出负载条件
(ECL) / (LVDS) 		L_ECL 50    一 终止于 VCC -2.0 V
L_LVDS 一 100    连接到 OUT 与 OUT 之间
输入电压 VIH 70 % VCC  Min. OE 终端
VIL 30 % VCC  Max.
上升/下降时间 tr / tf 350 ps Max. 300 ps Max. 20% ~ 80% (VOH-VOL).
20% ~ 80% 微分输出 峰-峰值
振荡启动时间 t_str 3 ms Max. 在电源电压最低时，所需时间为 0 秒
相位抖动 PJ 0.6 ps Max.*1 抵消频率: 12 kHz ~ 20 MHz
频率老化 f_aging    5    10-6 / year Max. +25 oC, 第一年, VCC=2.5 V,3.3 V

yijin-3

EPSON差分石英晶振,北斗导航系统SG3225VAN 128.000000M-KJBA3晶振

SG3225EAN_VAN 3225

SG3225

爱普生原厂编码 生产商品牌 型号 类型 频率 输出类型 电压 频率偏差度
SG3225VAN 200.000000M-KEGA0 EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 100.000000M-KEGA0 EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 156.250000M-KEGA0 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 100.000000M-KEGA3 EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 80.000000M-KEGA3 EPSON SG3225VAN XO (Standard) 80 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 125.000000M-KEGA0 EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 409.375000M-KJGAB EPSON SG3225VAN XO (Standard) 409.375 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 50.000000M-KCBBB EPSON SG3225VAN XO (Standard) 50 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 50.000000M-KJGBB EPSON SG3225VAN XO (Standard) 50 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 350.000000M-KEGA3 EPSON SG3225VAN XO (Standard) 350 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 160.000000M-KJGA3 EPSON SG3225VAN XO (Standard) 160 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 125.000000M-KJGA3 EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 156.250000M-KJGA3 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 128.000000M-KJBA3 EPSON SG3225VAN XO (Standard) 128 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 100.000000M-KJBAB EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 133.2620M-KJGAB EPSON SG3225VAN XO (Standard) 133.262 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 148.3500M-KJGAB EPSON SG3225VAN XO (Standard) 148.35 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 148.3516M-KJGAB EPSON SG3225VAN XO (Standard) 148.3516 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 148.5000M-KJGAB EPSON SG3225VAN XO (Standard) 148.5 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 156.250000M-KCBAB EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 156.250000M-KJGAB EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 200.000000M-KCBAB EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 200.000000M-KJBAB EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 312.5000M-KEGAB EPSON SG3225VAN XO (Standard) 312.5 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 400.0000M-KEGAB EPSON SG3225VAN XO (Standard) 400 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 100.000000M-KCBAB EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 297.000000M-KJGAB EPSON SG3225VAN XO (Standard) 297 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 625.000000M-KEGAB EPSON SG3225VAN XO (Standard) 625 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 250.000000M-KJGAB EPSON SG3225VAN XO (Standard) 250 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 233.3330M-KJGAB EPSON SG3225VAN XO (Standard) 233.333 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 625.000000M-KJGAB EPSON SG3225VAN XO (Standard) 625 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 300.000000M-KEGAB EPSON SG3225VAN XO (Standard) 300 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 243.000000M-KEGAB EPSON SG3225VAN XO (Standard) 243 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 322.265625M-KJGAB EPSON SG3225VAN XO (Standard) 322.265625 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 80.000000M-KEGAB EPSON SG3225VAN XO (Standard) 80 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 212.500000M-KEGAB EPSON SG3225VAN XO (Standard) 212.5 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 250.000000M-KEGAB EPSON SG3225VAN XO (Standard) 250 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 100.000000M-KJGAB EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 155.520000M-KEGAB EPSON SG3225VAN XO (Standard) 155.52 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 156.250000M-KEGAB EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 148.500000M-KEGAB EPSON SG3225VAN XO (Standard) 148.5 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 150.000000M-KEGAB EPSON SG3225VAN XO (Standard) 150 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 128.000000M-KJGAB EPSON SG3225VAN XO (Standard) 128 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 160.000000M-KJGAB EPSON SG3225VAN XO (Standard) 160 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 128.000000M-KJBAB EPSON SG3225VAN XO (Standard) 128 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 125.000000M-KEGAB EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 156.250000M-KJBAB EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 125.000000M-KJGAB EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 200.000000M-KEGAB EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 125.000000M-KJBAB EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 106.250000M-KEGA3 EPSON SG3225VAN XO (Standard) 106.25 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 155.520000M-KEGA3 EPSON SG3225VAN XO (Standard) 155.52 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 98.304000M-KEGA3 EPSON SG3225VAN XO (Standard) 98.304 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 114.285000M-KEGA3 EPSON SG3225VAN XO (Standard) 114.285 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 150.000000M-KEGA3 EPSON SG3225VAN XO (Standard) 150 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 312.5000M-KEGA3 EPSON SG3225VAN XO (Standard) 312.5 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 100.000000M-KJBA3 EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 156.250000M-KCBA3 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 200.000000M-KCBA3 EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 100.000000M-KCBA3 EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 297.000000M-KJGA3 EPSON SG3225VAN XO (Standard) 297 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 250.000000M-KJGA3 EPSON SG3225VAN XO (Standard) 250 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 625.000000M-KEGA3 EPSON SG3225VAN XO (Standard) 625 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 322.265625M-KJGA3 EPSON SG3225VAN XO (Standard) 322.265625 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 243.000000M-KEGA3 EPSON SG3225VAN XO (Standard) 243 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 625.000000M-KJGA3 EPSON SG3225VAN XO (Standard) 625 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 148.500000M-KJGA3 EPSON SG3225VAN XO (Standard) 148.5 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 133.262000M-KJGA3 EPSON SG3225VAN XO (Standard) 133.262 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 156.250000M-KJBA3 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 148.351600M-KJGA3 EPSON SG3225VAN XO (Standard) 148.3516 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 200.000000M-KJBA3 EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 128.000000M-KJGA3 EPSON SG3225VAN XO (Standard) 128 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 312.5000M-KEGA6 EPSON SG3225VAN XO (Standard) 312.5 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 297.000000M-KJGA6 EPSON SG3225VAN XO (Standard) 297 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 80.000000M-KEGA0 EPSON SG3225VAN XO (Standard) 80 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 625.000000M-KEGA6 EPSON SG3225VAN XO (Standard) 625 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 80.000000M-KEGA6 EPSON SG3225VAN XO (Standard) 80 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 400.000000M-KEGA0 EPSON SG3225VAN XO (Standard) 400 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 233.3330M-KJGA0 EPSON SG3225VAN XO (Standard) 233.333 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 98.304000M-KEGA6 EPSON SG3225VAN XO (Standard) 98.304 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 250.000000M-KEGA0 EPSON SG3225VAN XO (Standard) 250 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 250.000000M-KJGA6 EPSON SG3225VAN XO (Standard) 250 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 312.500000M-KEGA0 EPSON SG3225VAN XO (Standard) 312.5 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 322.265625M-KJGA0 EPSON SG3225VAN XO (Standard) 322.265625 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 625.000000M-KJGA6 EPSON SG3225VAN XO (Standard) 625 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 243.000000M-KEGA6 EPSON SG3225VAN XO (Standard) 243 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 98.304000M-KEGA0 EPSON SG3225VAN XO (Standard) 98.304 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 322.265625M-KJGA6 EPSON SG3225VAN XO (Standard) 322.265625 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 625.000000M-KJGA0 EPSON SG3225VAN XO (Standard) 625 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 297.000000M-KJGA0 EPSON SG3225VAN XO (Standard) 297 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 625.000000M-KEGA0 EPSON SG3225VAN XO (Standard) 625 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 400.000000M-KEGA6 EPSON SG3225VAN XO (Standard) 400 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 243.000000M-KEGA0 EPSON SG3225VAN XO (Standard) 243 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 106.250000M-KEGA6 EPSON SG3225VAN XO (Standard) 106.25 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 100.000000M-KJBA6 EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 114.285000M-KEGA6 EPSON SG3225VAN XO (Standard) 114.285 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 100.000000M-KJGA0 EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 114.285000M-KEGA0 EPSON SG3225VAN XO (Standard) 114.285 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 100.000000M-KCBA0 EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 100.000000M-KCBA6 EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 100.000000M-KJBA0 EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 106.250000M-KEGA0 EPSON SG3225VAN XO (Standard) 106.25 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 100.000000M-KEGA6 EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 125.000000M-KEGA6 EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 156.250000M-KEGA6 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 148.500000M-KJGA0 EPSON SG3225VAN XO (Standard) 148.5 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 150.000000M-KEGA6 EPSON SG3225VAN XO (Standard) 150 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 156.250000M-KCBA6 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 156.250000M-KCBA0 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 155.520000M-KEGA6 EPSON SG3225VAN XO (Standard) 155.52 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 133.262000M-KJGA0 EPSON SG3225VAN XO (Standard) 133.262 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 155.520000M-KEGA0 EPSON SG3225VAN XO (Standard) 155.52 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 133.262000M-KJGA6 EPSON SG3225VAN XO (Standard) 133.262 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 156.250000M-KJBA6 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 160.000000M-KJGA0 EPSON SG3225VAN XO (Standard) 160 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 125.000000M-KJBA6 EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 200.000000M-KCBA0 EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 128.000000M-KJBA0 EPSON SG3225VAN XO (Standard) 128 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 148.351600M-KJGA0 EPSON SG3225VAN XO (Standard) 148.3516 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 125.000000M-KJBA0 EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 156.250000M-KJGA0 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 160.000000M-KJGA6 EPSON SG3225VAN XO (Standard) 160 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 200.000000M-KEGA6 EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 200.000000M-KCBA6 EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±20ppm
SG3225VAN 148.351600M-KJGA6 EPSON SG3225VAN XO (Standard) 148.3516 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 125.000000M-KJGA6 EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 200.000000M-KJBA0 EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 150.000000M-KEGA0 EPSON SG3225VAN XO (Standard) 150 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 156.250000M-KJGA6 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 148.500000M-KJGA6 EPSON SG3225VAN XO (Standard) 148.5 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 128.000000M-KJGA6 EPSON SG3225VAN XO (Standard) 128 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 200.000000M-KJBA6 EPSON SG3225VAN XO (Standard) 200 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 128.000000M-KJGA0 EPSON SG3225VAN XO (Standard) 128 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 156.250000M-KJBA0 EPSON SG3225VAN XO (Standard) 156.25 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 125.000000M-KJGA0 EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 128.000000M-KJBA6 EPSON SG3225VAN XO (Standard) 128 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 212.500000M-KEGA3 EPSON SG3225VAN XO (Standard) 212.5 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 125.000000M-KJBA3 EPSON SG3225VAN XO (Standard) 125 MHz LVDS 2.5V ~ 3.3V ±50ppm
SG3225VAN 100.000000M-KEGAB EPSON SG3225VAN XO (Standard) 100 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 106.250000M-KEGAB EPSON SG3225VAN XO (Standard) 106.25 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 114.285000M-KEGAB EPSON SG3225VAN XO (Standard) 114.285 MHz LVDS 2.5V ~ 3.3V ±30ppm
SG3225VAN 233.3330M-KJGA6 EPSON SG3225VAN XO (Standard) 233.333 MHz LVDS 2.5V ~ 3.3V ±50ppm

yijin-5

YJ-6

深圳市亿金电子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone联系人黄娜：18924600166

QQ工作QQ:857950243

myt贸易通：yijindz2014

tel座机：0755-27876565

email邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx微信：yijindz，公众号：NDKcrystal

home地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

EPSON差分石英晶振 北斗导航系统SG3225VAN 128.000000M-KJBA3晶振

跟此产品相关的产品 / Related Products

UJ2600007Z,智能手机晶振,台产DIODES晶振,低相位抖动晶振,UJ晶体,削峰正弦波晶振
UJ2600007Z,智能手机晶振,台产DIODES晶振,低相位抖动晶振,UJ晶体,削峰正弦波晶振
UJ2600007Z是一款台产的DIODES晶振，专为智能手机量身打造，属于UJ晶体系列。作为低相位抖动的削峰正弦波晶振，它为智能手机的稳定运行提供了精准的时钟信号，是保障手机各项功能高效运作的关键元件。这款晶振采用先进的制造工艺，选用高品质材料，确保在 - 20℃至 + 70℃的工作温度范围内，能将相位抖动控制在极低水平，展现出卓越的频率稳定性。其削峰正弦波输出特性，不仅降低了谐波干扰，还优化了信号质量，为手机的射频模块、处理器及其他关键组件提供纯净、稳定的时钟基准。在智能手机中，无论是高速的数据传输、流畅的多媒体播放，还是精准的定位导航，UJ2600007Z都凭借其稳定的性能，确保各个功能模块之间的精确协同工作，提升用户体验。
台产石英晶振,光纤通道晶振,FD0810003晶振,Diodes振荡器,FD贴片晶体
台产石英晶振,光纤通道晶振,FD0810003晶振,Diodes振荡器,FD贴片晶体
FD0810003台产Diodes晶振，凭借其在光纤通道领域的卓越表现，成为光纤通信系统中的关键组件。它基于先进的石英制造工艺，确保了在 - 40℃至 + 85℃的宽温度范围内，具备出色的频率稳定性，能将频率偏差严格控制在极小范围，为光纤通道设备提供可靠的时钟基准。作为FD贴片晶体，其封装形式不仅实现了体积的小型化，便于在光纤通信设备的电路板上进行高密度安装，适应设备小型化、集成化的发展趋势，还优化了散热性能和电气性能，提升了晶振在不同工作条件下的稳定性和抗干扰能力。
亚陶5032晶振,台产SQ晶振,HCSL输出晶振,SQF620001差分晶振,服务器晶振
亚陶5032晶振,台产SQ晶振,HCSL输出晶振,SQF620001差分晶振,服务器晶振
SQF620001作为台产亚陶的5032晶振，凭借其紧凑的5032封装，完美适配服务器内部高密度的电路板布局。这种封装不仅节省空间，还具备良好的散热与机械稳定性，确保晶振在服务器长时间运行产生的高温与振动环境中，依旧能保持稳定性能。其HCSL输出特性，使该晶振在服务器复杂电磁环境下优势尽显。HCSL差分输出通过传输一对相位相反的信号，极大地增强了抗干扰能力，有效抑制共模干扰，保障时钟信号在服务器内部长距离传输时的准确性与完整性。这对于服务器内CPU、内存、存储设备及网络接口等组件间的高速数据交互尤为关键，确保数据传输的精准无误。
亿金电子产品中心 Product Center

晶振系列

日本进口晶振

台产晶振

欧美晶振

有源晶振

雾化片

贴片晶振

32.768K

声表面滤波器

石英晶振

KDS晶振

爱普生晶振

NDK晶振

温补晶振

联系亿金电子Contact us
咨询热线：0755-27876565

手机：189 2460 0166

QQ：857950243

邮箱：yijindz@163.com

地址：深圳市宝安区新安107国道旁甲岸路

Fast Track
快速通道

国内晶振分类：
Domestic Crystal
陶瓷晶振
泰艺晶振
TXC晶振
鸿星晶振
希华晶振
加高晶振
百利通亚陶晶振
嘉硕晶振
津绽晶振
石英晶体谐振器
SMD晶振
MERCURY晶振
应达利晶振
AKER晶振
香港NKG晶振
石英晶振
有源晶振
声表面滤波器
雾化片
32.768K
温补晶振
VC-TCXO晶振
差分晶振
压控晶振
恒温晶振
石英晶体振荡器
陶瓷谐振器
进口晶振分类：
Import Crystal
京瓷晶振
精工晶振
西铁城晶振
村田晶振
大河晶振
CTS晶振
微晶晶振
瑞康晶振
康纳温菲尔德晶振
高利奇晶振
Jauch晶振
AbraconCrystal晶振
维管晶振
ECScrystal晶振
日蚀晶振
拉隆晶振
格林雷晶振
SiTimeCrystal晶振
IDTcrystal晶振
PletronicsCrystal晶振
StatekCrystal晶振
KDS Quartz crystal
NDK Quartz crystal
EPSON Quartz crystal
AEK晶振
AEL晶振
Cardinal晶振
Crystek晶振
Euroquartz晶振
福克斯晶振
Frequency晶振
GEYER晶振
ILSI晶振
KVG晶振
MMDCOMP晶振
MtronPTI晶振
QANTEK晶振
QuartzCom晶振
QuartzChnik晶振
SUNTSU晶振
Transko晶振
WI2WI晶振
富士晶振
韩国三呢晶振
ITTI晶振
ACT晶振
Milliren晶振
Lihom晶振
rubyquartz晶振
Oscilent晶振
NAKA晶振
SHINSUNG晶振
SMI晶振
PDI晶振
C-TECH晶振
IQD晶振
Microchip晶振
NJR晶振
Silicon晶振
Fortiming晶振
CORE晶振
NIPPON晶振
NIC晶振
QVS晶振
Bomar晶振
Bliley晶振
GED晶振
FILTRONETICS晶振
STD晶振
Q-Tech晶振
Anderson晶振
Wenzel晶振
NEL晶振
EM晶振
PETERMANN晶振
FCD-Tech晶振
HEC晶振
FMI晶振
Macrobizes晶振
AXTAL晶振
瑞萨renesas晶振
Skyworks晶振
亿金首页32.768K贴片晶振有源晶振声表面滤波器KDS晶振NDK晶振爱普生晶振行业新闻联系亿金网站地图

Copyright © 1996-2012

深圳亿金电子有限公司版权所有

备案号：粤ICP备17105583号-1
