CX5Z-ARB2C5-70-7.3728D18,7.3728MHz,50PPM,-40~125℃,18PF

当前位置：首页 » 欧美晶振 » Cardinal晶振 » CX5Z-ARB2C5-70-7.3728D18,7.3728MHz,50PPM,-40~125℃,18PF

prevnext

CX5Z-ARB2C5-70-7.3728D18,7.3728MHz,50PPM,-40~125℃,18PF

频率：7.3728MHZ

尺寸：7.0*5.0mm

CX5Z-ARB2C5-70-7.3728D18,7.3728MHz,50PPM,-40~125℃,18PF，美国Cardinal晶振CX5系列，石英贴片晶振，石英晶体谐振器，无铅环保晶振，陶瓷表面安装，宽频率范围：7.3728MHZ至48.000MHZ，可用的最低最大驱动器级别，非常紧密的稳定性，小体积轻薄型，被广泛用于移动通讯设备，无线网络，蓝牙模块，电脑主板，汽车电子，数码电子，物联网等应用.

订购热线：0755-27876565

CX5Z-ARB2C5-70-7.3728D18,7.3728MHz,50PPM,-40~125℃,18PF，美国Cardinal晶振CX5系列，石英贴片晶振，石英晶体谐振器，无铅环保晶振，陶瓷表面安装，宽频率范围：7.3728MHZ至48.000MHZ，可用的最低最大驱动器级别，非常紧密的稳定性，小体积轻薄型，被广泛用于移动通讯设备，无线网络，蓝牙模块，电脑主板，汽车电子，数码电子，物联网等应用.

yijin-2

CX5Z-ARB2C5-70-7.3728D18,7.3728MHz,50PPM,-40~125℃,18PF

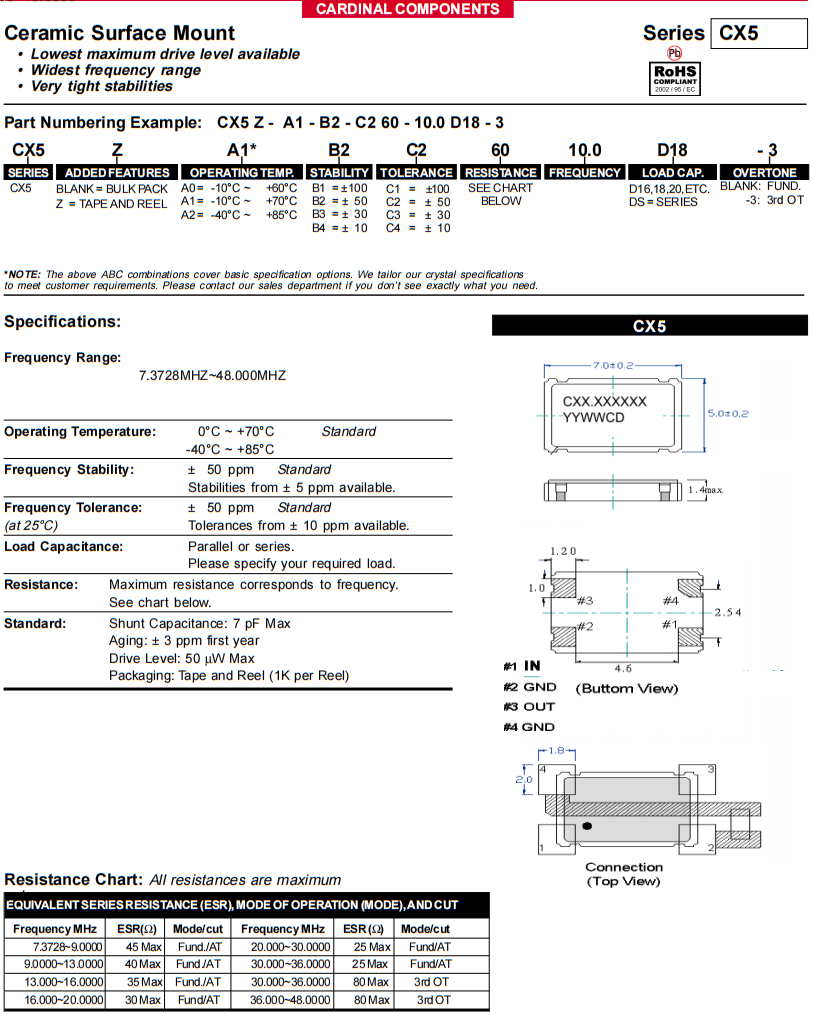

Frequency Range:	7.3728MHZ
Operating Temperature:	0°C ~ +70°C Standard -40°C ~ +85°C
Frequency Stability:	± 50 ppm Standard Stabilities from ± 5 ppm available.
Frequency Tolerance: (at 25°C)	± 50 ppm Standard Tolerances from ± 10 ppm available.
Load Capacitance:	Parallel or series. Please specify your required load.
Resistance:	Maximum resistance corresponds to frequency. See chart below.
Standard:	Shunt Capacitance: 7 pF Max Aging: ± 3 ppm first year Drive Level: 50 µW Max Packaging: Tape and Reel (1K per Reel)

yijin-3

CX5Z-ARB2C5-70-7.3728D18,7.3728MHz,50PPM,-40~125℃,18PF

cx5

进口晶振编码	厂家	型号	系列	频率	频率稳定度
CX5Z-A5B2C5-70-7.37280D18	Cardinal Crystal	CX5	MHz Crystal	7.3728MHz	±50ppm
CX5Z-ARB2C5-70-7.3728D18	Cardinal Crystal	CX5	MHz Crystal	7.3728MHz	±50ppm
CX5Z-A5B2C5-40-27.0D18	Cardinal Crystal	CX5	MHz Crystal	27MHz	±50ppm
CX5Z-A5B2C5-40-24.0D18	Cardinal Crystal	CX5	MHz Crystal	24MHz	±50ppm
CX5Z-A5B2C5-40-24.576D18	Cardinal Crystal	CX5	MHz Crystal	24.576MHz	±50ppm
CX5Z-A5B2C5-70-8.0D18	Cardinal Crystal	CX5	MHz Crystal	8MHz	±50ppm
CX5Z-A1B2C5-40-24.0D18	Cardinal Crystal	CX5	MHz Crystal	24MHz	±50ppm
CX5Z-A5B2C5-50-16.0D18	Cardinal Crystal	CX5	MHz Crystal	16MHz	±50ppm
CX5Z-A0B2C5-50-16.0D18	Cardinal Crystal	CX5	MHz Crystal	16MHz	±50ppm
CX5Z-A2B2C5-40-10.0D18	Cardinal Crystal	CX5	MHz Crystal	10MHz	±50ppm
CX5Z-A2B2C5-70-8.0D18	Cardinal Crystal	CX5	MHz Crystal	8MHz	±50ppm
CX5Z-A2B2C5-40-25D18	Cardinal Crystal	CX5	MHz Crystal	25MHz	±50ppm
CX5Z-A2B2C5-40-12.0D18	Cardinal Crystal	CX5	MHz Crystal	12MHz	±50ppm
CX5Z-A5B2C5-40-12.0D18	Cardinal Crystal	CX5	MHz Crystal	12MHz	±50ppm
CX5Z-A5B2C5-40-10.0D18	Cardinal Crystal	CX5	MHz Crystal	10MHz	±50ppm
CX5Z-A5B2C5-40-25D18	Cardinal Crystal	CX5	MHz Crystal	25MHz	±50ppm
