CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM

当前位置：首页 » 欧美晶振 » Cardinal晶振 » CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM

prevnext

CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM

频率：22.1184MHZ

尺寸：12.9*4.7*4.3mm

CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM，美国Cardinal晶振公司，外形尺寸12.9x4.7x4.3mm晶振，CSM1Z-A2B2C3-40-30.0D18两脚贴片晶振，石英贴片晶振，贴片晶振,石英晶振,无源晶振,石英晶体谐振器,49SMD晶振,进口晶振,CSM1Z-A0B2C3-50-22.1184D18晶振,监控摄像头模块晶振,欧美进口晶振,高品质晶振,导航仪晶振,

订购热线：0755-27876565

CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM，美国Cardinal晶振公司，外形尺寸12.9x4.7x4.3mm晶振，CSM1Z-A2B2C3-40-30.0D18两脚贴片晶振，石英贴片晶振，贴片晶振,石英晶振,无源晶振,石英晶体谐振器,49SMD晶振,进口晶振,CSM1Z-A0B2C3-50-22.1184D18晶振,监控摄像头模块晶振,欧美进口晶振,高品质晶振,导航仪晶振,

yijin-2

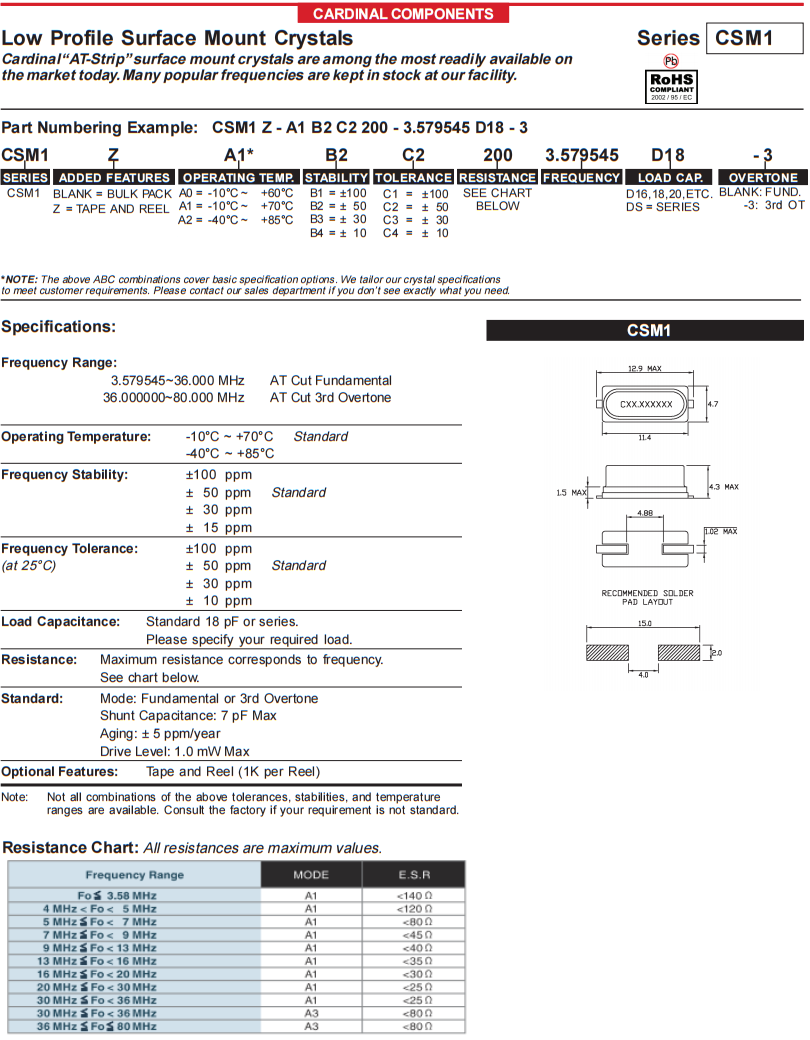

CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM

Operating Temperature:		- 10°C ~ +70°C -40°C ~ +85°C		Standard
Frequency Stability:		±100	ppm
		± 50	ppm Standard
		± 30	ppm
		± 15	ppm
Frequency Tolerance: (at 25°C)		±100	ppm
		± 50	ppm Standard
		± 30	ppm
		± 10	ppm
Load	Capacitance:	Standard 18 pF or series. Please specify your required			load.
Resistance:		Maximum resistance corresponds to frequency. See chart below.
Standard:		Mode: Fundamental or 3rd Overtone Shunt Capacitance: 7 pF Max Aging: ± 5 ppm/year Drive Level: 1.0 mW Max
Optional Features: Tape and Reel (1K per Reel)

yijin-3

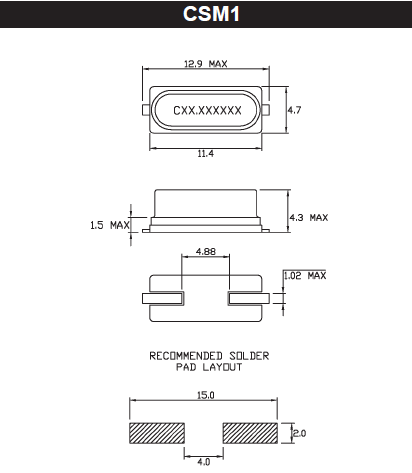

CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM

csm1

石英晶体谐振器	品牌	型号	列	频率
CSM1Z-A5B2C3-40-14.31818D18	Cardinal Crystal	CSM1	MHz Crystal	14.31818MHz
CSM1Z-A5B2C5-60-24.0D18	Cardinal Crystal	CSM1	MHz Crystal	24MHz
CSM1Z-A2B2C3-40-30.0D18	Cardinal Crystal	CSM1	MHz Crystal	30MHz
CSM1Z-A0B2C3-50-22.1184D18	Cardinal Crystal	CSM1	MHz Crystal	22.1184MHz
CSM1Z-A0B2C3-100-5.0D18	Cardinal Crystal	CSM1	MHz Crystal	5MHz
CSM1Z-A5B2C5-40-14.7456D18	Cardinal Crystal	CSM1	MHz Crystal	14.7456MHz
CSM1Z-A5B2C3-40-25.0D18-F	Cardinal Crystal	CSM1	MHz Crystal	25MHz
CSM1Z-A0B2C3-50-16.0D18	Cardinal Crystal	CSM1	MHz Crystal	16MHz
CSM1Z-A5B2C5-50-20.0D18	Cardinal Crystal	CSM1	MHz Crystal	20MHz
CSM1Z-A1B2C3-90-8.0D18	Cardinal Crystal	CSM1	MHz Crystal	8MHz
CSM1Z-A5B2C5-40-11.0592D18	Cardinal Crystal	CSM1	MHz Crystal	11.0592MHz
CSM1Z-A0B2C3-50-15.360D18	Cardinal Crystal	CSM1	MHz Crystal	15.36MHz
CSM1Z-A0B2C3-50-19.6608D18	Cardinal Crystal	CSM1	MHz Crystal	19.6608MHz
CSM1Z-A5B2C3-40-14.7456D20	Cardinal Crystal	CSM1	MHz Crystal	14.7456MHz
CSM1Z-A0B2C3-80-13.5D18	Cardinal Crystal	CSM1	MHz Crystal	13.5MHz
CSM1Z-A0B2C3-50-16.257D18	Cardinal Crystal	CSM1	MHz Crystal	16.257MHz
CSM1Z-A5B2C3-40-24.576D18	Cardinal Crystal	CSM1	MHz Crystal	24.576MHz
CSM1Z-A0B2C3-50-16.000312D18	Cardinal Crystal	CSM1	MHz Crystal	16.000312MHz
CSM1Z-A0B2C3-50-18.0D18	Cardinal Crystal	CSM1	MHz Crystal	18MHz
CSM1Z-A0B2C3-200-3.6864D18	Cardinal Crystal	CSM1	MHz Crystal	3.6864MHz
CSM1Z-A5B2C3-200-3.6864D18	Cardinal Crystal	CSM1	MHz Crystal	3.6864MHz
CSM1Z-A0B2C3-150-4.9152D18	Cardinal Crystal	CSM1	MHz Crystal	4.915MHz
CSM1Z-A0B2C3-40-25.0D18	Cardinal Crystal	CSM1	MHz Crystal	25MHz
CSM1Z-A5B2C5-70-10.0D18	Cardinal Crystal	CSM1	MHz Crystal	10MHz
CSM1Z-A0B2C3-50-25.175D18	Cardinal Crystal	CSM1	MHz Crystal	25.175MHz
CSM1Z-A5B2C3-120-6.144D18	Cardinal Crystal	CSM1	MHz Crystal	6.144MHz
CSM1-A1B2C3-50-20.0D16	Cardinal Crystal	CSM1	MHz Crystal	20MHz
CSM1Z-A5B2C5-150-3.6864D18	Cardinal Crystal	CSM1	MHz Crystal	3.6864MHz
