C3E-20.000-12-3030-X-R|AKER|3225|20MHz|30PPM|12PF|-40~85℃

频率：8~150MHZ

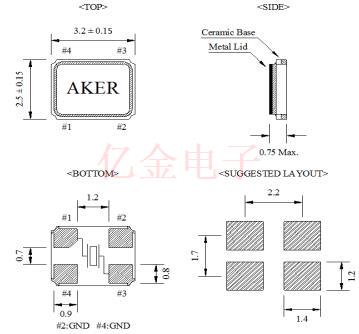

尺寸：3.2*2.5mm

C3E-20.000-12-3030-X-R|AKER|3225|20MHz|30PPM|12PF|-40~85℃，台湾AKER晶振公司，微处理器晶体单元低轮廓3.2 x 2.5毫米表面安装-4垫通用产品规格，-频率公差和稳定性选项受到物理尺寸的限制。* ±10 PPM温度稳定性仅适用于-30到+85°C. -标准温度范围不需要包括在零件号描述中。-基本模式不需要包含在零件号说明中，-少于250件的数量仅以磁带形式运输。

订购热线：0755-27876565

SITIME-2

yijin-1

C3E-20.000-12-3030-X-R|AKER|3225|20MHz|30PPM|12PF|-40~85℃，台湾AKER晶振公司，微处理器晶体单元低轮廓3.2 x 2.5毫米表面安装-4垫通用产品规格，-频率公差和稳定性选项受到物理尺寸的限制。* ±10 PPM温度稳定性仅适用于-30到+85°C. -标准温度范围不需要包括在零件号描述中。-基本模式不需要包含在零件号说明中，-少于250件的数量仅以磁带形式运输。

yijin-2

C3E-20.000-12-3030-X-R|AKER|3225|20MHz|30PPM|12PF|-40~85℃

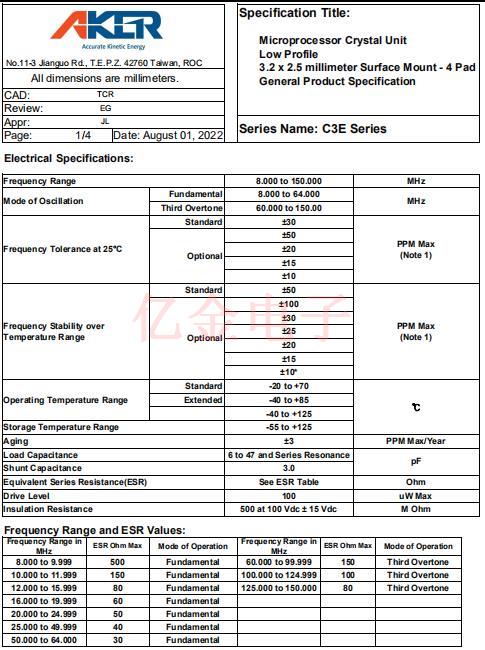

频率范围		8.000 to 150.000	MHz
工作模式	Fundamental	8.000 to 64.000	MHz
	Third Overtone	60.000 to 150.00
频率容差 at 25°C	Standard	±30	PPM Max (Note 1)
	Optional	±50
		±20
		±15
		±10
在温度范围内的频率稳定性	Standard	±50	PPM Max (Note 1)
	Optional	±100
		±30
		±25
		±20
		±15
		±10*
工作温度范围	Standard	-20 to +70	℃
	Extended	-40 to +85
		-40 to +125
储存温度范围		-55 to +125
老化		±3	PPM Max/Year
负载电容		6 to 47 and Series Resonance	pF
并联电容		3.0
等效串联电阻(ESR)		See ESR Table	Ohm
驱动电平		100	uW Max
绝缘电阻		500 at 100 Vdc ± 15 Vdc	M Ohm

yijin-3

C3E-20.000-12-3030-X-R|AKER|3225|20MHz|30PPM|12PF|-40~85℃

AKER零件编号	生产商	系列	频率	频率稳定性	频率容差	负载电容
C3E-8.000-18-3030-R	AKER晶振	C3E	8 MHz	±30ppm	±30ppm	18pF
C3E-25.000-8-1015-X-R	AKER晶振	C3E	25 MHz	±15ppm	±10ppm	8pF
C3E-24.576-12-3030-X-R	AKER晶振	C3E	24.576 MHz	±30ppm	±30ppm	12pF
C3E-16.000-8-1015-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	8pF
C3E-12.000-12-1015-R	AKER晶振	C3E	12 MHz	±15ppm	±10ppm	12pF
C3E-16.000-8-50100-X1-R	AKER晶振	C3E	16 MHz	±100ppm	±50ppm	8pF
C3E-12.000-18-3030-X-R	AKER晶振	C3E	12 MHz	±30ppm	±30ppm	18pF
C3E-8.000-10-3030-R	AKER晶振	C3E	8 MHz	±30ppm	±30ppm	10pF
C3E-24.000-12-1015-X-R	AKER晶振	C3E	24 MHz	±15ppm	±10ppm	12pF
C3E-32.000-10-1015-R	AKER晶振	C3E	32 MHz	±15ppm	±10ppm	10pF
C3E-25.000-12-3030-X-R	AKER晶振	C3E	25 MHz	±30ppm	±30ppm	12pF
C3E-32.000-8-1015-X-R	AKER晶振	C3E	32 MHz	±15ppm	±10ppm	8pF
C3E-24.000-10-1010-R	AKER晶振	C3E	24 MHz	±10ppm	±10ppm	10pF
C3E-12.000-12-3030-X-R	AKER晶振	C3E	12 MHz	±30ppm	±30ppm	12pF
C3E-25.000-8-1010-R	AKER晶振	C3E	25 MHz	±10ppm	±10ppm	8pF
C3E-8.000-18-3030-X-R	AKER晶振	C3E	8 MHz	±30ppm	±30ppm	18pF
C3E-16.000-12-3030-X-R	AKER晶振	C3E	16 MHz	±30ppm	±30ppm	12pF
C3E-13.560-12-1530-X-R	AKER晶振	C3E	13.56 MHz	±30ppm	±15ppm	12pF
C3E-25.000-10-3030-X-R	AKER晶振	C3E	25 MHz	±30ppm	±30ppm	10pF
C3E-25.000-18-2030-R	AKER晶振	C3E	25 MHz	±30ppm	±20ppm	18pF
C3E-24.000-8-1015-R	AKER晶振	C3E	24 MHz	±15ppm	±10ppm	8pF
C3E-8.000-10-3030-X-R	AKER晶振	C3E	8 MHz	±30ppm	±30ppm	10pF
C3E-16.000-12-1015-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	12pF
C3E-16.000-12-3030-R	AKER晶振	C3E	16 MHz	±30ppm	±30ppm	12pF
C3E-24.000-10-1015-X-R	AKER晶振	C3E	24 MHz	±15ppm	±10ppm	10pF
C3E-25.000-18-3030-R	AKER晶振	C3E	25 MHz	±30ppm	±30ppm	18pF
C3E-32.000-12-1010-R	AKER晶振	C3E	32 MHz	±10ppm	±10ppm	12pF
C3E-12.000-8-3030-R	AKER晶振	C3E	12 MHz	±30ppm	±30ppm	8pF
C3E-32.000-10-1010-R	AKER晶振	C3E	32 MHz	±10ppm	±10ppm	10pF
C3E-12.000-8-1010-R	AKER晶振	C3E	12 MHz	±10ppm	±10ppm	8pF
C3E-24.000-12-1530-X-R	AKER晶振	C3E	24 MHz	±30ppm	±15ppm	12pF
C3E-12.000-8-1520-R	AKER晶振	C3E	12 MHz	±20ppm	±15ppm	8pF
C3E-24.000-18-1010-R	AKER晶振	C3E	24 MHz	±10ppm	±10ppm	18pF
C3E-20.000-12-3030-X-R	AKER晶振	C3E	20 MHz	±30ppm	±30ppm	12pF
C3E-24.576-12-1010-R	AKER晶振	C3E	24.576 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1015-R	AKER晶振	C3E	25 MHz	±15ppm	±10ppm	8pF
C3E-12.000-18-3030-R	AKER晶振	C3E	12 MHz	±30ppm	±30ppm	18pF
C3E-16.000-12-1015-X-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	12pF
C3E-27.120-12-1010-R	AKER晶振	C3E	27.12 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1530-X-R	AKER晶振	C3E	25 MHz	±30ppm	±15ppm	8pF
C3E-16.000-12-1015-X-M	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	12pF
C3E-24.000-12-3030-X-R	AKER晶振	C3E	24 MHz	±30ppm	±30ppm	12pF
C3E-32.000-12-1530-X-R	AKER晶振	C3E	32 MHz	±30ppm	±15ppm	12pF
C3E-25.000-8-1520-R	AKER晶振	C3E	25 MHz	±20ppm	±15ppm	8pF
C3E-20.000-10-1530-X-R	AKER晶振	C3E	20 MHz	±30ppm	±15ppm	10pF
C3E-40.000-10-1015-X-R	AKER晶振	C3E	40 MHz	±15ppm	±10ppm	10pF
C3E-26.000-10-1015-X-R3	AKER晶振	C3E	26 MHz	±15ppm	±10ppm	10pF
C3E-16.000-18-3030-X-R	AKER晶振	C3E	16 MHz	±30ppm	±30ppm	18pF
C3E-8.000-12-1020-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	12pF
C3E-8.000-20-1020-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	12pF
C3E-8.000-18-1020-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	18pF
C3E-8.000-10-1020-M	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	10pF
C3E-8.000-18-1020-X-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	18pF
C3E-25.000-20-1015-X-R	AKER晶振	C3E	25 MHz	±15ppm	±10ppm	20pF
C3E-24.000-9-1015-X-R	AKER晶振	C3E	24 MHz	±15ppm	±10ppm	9pF
C3E-16.000-9-1015-X-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	9pF
C3E-24.000-9-1010-R	AKER晶振	C3E	24 MHz	±10ppm	±10ppm	9pF
C3E-16.000-9-1010-R	AKER晶振	C3E	16 MHz	±10ppm	±10ppm	9pF
