C2E-19.200-13-2030-X-R 2520 19.2MHz 20PPM 13PF -40~85℃ AKER

频率：19.2MHZ

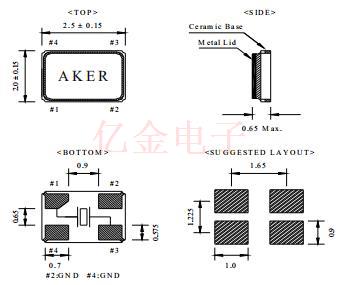

尺寸：2.5*2.0mm

C2E-19.200-13-2030-X-R 2520 19.2MHz 20PPM 13PF -40~85℃ AKER,台产AKER石英晶体，微处理器晶体单元低轮廓2.5 x 2.0毫米表面安装-4垫通用产品规格，频率公差和稳定性选项由于物理尺寸而受到限制。* ±10 PPM温度稳定性仅适用于-30到+85°C. -标准温度范围不需要包括在零件号描述中。-产品以磁带和卷轴配置的形式发货。

订购热线：0755-27876565

SITIME-2

yijin-2

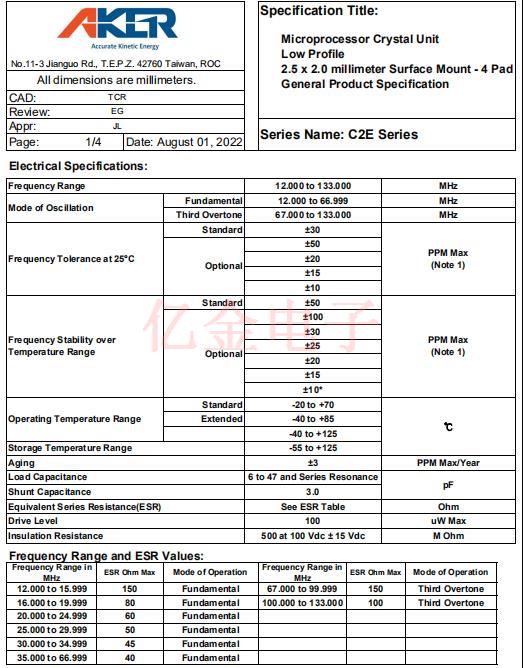

C2E-19.200-13-2030-X-R 2520 19.2MHz 20PPM 13PF -40~85℃ AKER

温度下的频率偏差

Standard

±50

PPM Max (Note 1)

Optional

±100

±30

±25

±20

±15

±10*

工作温度

Standard

-20 to +70

℃

Extended

-40 to +85

-40 to +125

储存温度

-55 to +125

老化

±3

PPM Max/Year

负载电容

6 to 47 and Series Resonance

并联带内容

3.0

等效串联电阻(ESR)

See ESR Table

Ohm

驱动电平

100

uW Max

绝缘电阻

500 at 100 Vdc ± 15 Vdc

M Ohm

yijin-3

C2E-19.200-13-2030-X-R 2520 19.2MHz 20PPM 13PF -40~85℃ AKER

AKER零件编号	生产商	系列	频率	频率稳定性	频率容差	负载电容
C3E-8.000-18-3030-R	AKER晶振	C3E	8 MHz	±30ppm	±30ppm	18pF
C3E-25.000-8-1015-X-R	AKER晶振	C3E	25 MHz	±15ppm	±10ppm	8pF
C3E-24.576-12-3030-X-R	AKER晶振	C3E	24.576 MHz	±30ppm	±30ppm	12pF
C2E-25.000-10-3030-X-M	AKER晶振	C2E	25 MHz	±30ppm	±30ppm	10pF
C3E-16.000-8-1015-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	8pF
C3E-12.000-12-1015-R	AKER晶振	C3E	12 MHz	±15ppm	±10ppm	12pF
C3E-16.000-8-50100-X1-R	AKER晶振	C3E	16 MHz	±100ppm	±50ppm	8pF
C3E-12.000-18-3030-X-R	AKER晶振	C3E	12 MHz	±30ppm	±30ppm	18pF
C1E-25.000-20-2030-R	AKER晶振	C1E	25 MHz	±30ppm	±20ppm	20pF
C2E-16.000-8-1530-X-R	AKER晶振	C2E	16 MHz	±30ppm	±15ppm	8pF
C1E-32.000-8-1515-R	AKER晶振	C1E	32 MHz	±15ppm	±15ppm	8pF
C3E-13.560-12-1530-X-R	AKER晶振	C3E	13.56 MHz	±30ppm	±15ppm	12pF
C2E-24.000-10-1010-R	AKER晶振	C2E	24 MHz	±10ppm	±10ppm	10pF
C1E-24.000-10-1010-R	AKER晶振	C1E	24 MHz	±10ppm	±10ppm	10pF
C3E-16.000-12-1015-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	12pF
C3E-16.000-12-3030-R	AKER晶振	C3E	16 MHz	±30ppm	±30ppm	12pF
C3E-24.000-10-1015-X-R	AKER晶振	C3E	24 MHz	±15ppm	±10ppm	10pF
C3E-25.000-18-3030-R	AKER晶振	C3E	25 MHz	±30ppm	±30ppm	18pF
C2E-25.000-10-3030-X-R	AKER晶振	C2E	25 MHz	±30ppm	±30ppm	10pF
C3E-32.000-12-1010-R	AKER晶振	C3E	32 MHz	±10ppm	±10ppm	12pF
C3E-12.000-8-3030-R	AKER晶振	C3E	12 MHz	±30ppm	±30ppm	8pF
C3E-32.000-10-1010-R	AKER晶振	C3E	32 MHz	±10ppm	±10ppm	10pF
C2E-16.000-10-1010-R	AKER晶振	C2E	16 MHz	±10ppm	±10ppm	10pF
C3E-12.000-8-1010-R	AKER晶振	C3E	12 MHz	±10ppm	±10ppm	8pF
C3E-24.000-12-1530-X-R	AKER晶振	C3E	24 MHz	±30ppm	±15ppm	12pF
C3E-12.000-8-1520-R	AKER晶振	C3E	12 MHz	±20ppm	±15ppm	8pF
C3E-24.000-18-1010-R	AKER晶振	C3E	24 MHz	±10ppm	±10ppm	18pF
C3E-20.000-12-3030-X-R	AKER晶振	C3E	20 MHz	±30ppm	±30ppm	12pF
C1E-32.000-10-1015-X-R	AKER晶振	C1E	32 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1015-M	AKER晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C3E-24.576-12-1010-R	AKER晶振	C3E	24.576 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1015-R	AKER晶振	C3E	25 MHz	±15ppm	±10ppm	8pF
C3E-12.000-18-3030-R	AKER晶振	C3E	12 MHz	±30ppm	±30ppm	18pF
C3E-16.000-12-1015-X-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	12pF
C1E-32.000-8-1015-X-R	AKER晶振	C1E	32 MHz	±15ppm	±10ppm	8pF
C1E-24.000-10-1015-R	AKER晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C2E-16.000-12-3030-X-R	AKER晶振	C2E	16 MHz	±30ppm	±30ppm	12pF
C3E-8.000-12-1020-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	12pF
C3E-8.000-20-1020-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	12pF
C3E-8.000-18-1020-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	18pF
C2E-12.000-10-2050-X1-R	AKER晶振	C2E X1	12 MHz	±50ppm	±20ppm	10pF
C2E-12.000-8-2050-X1-R	AKER晶振	C2E X1	12 MHz	±50ppm	±20ppm	8pF
C2E-20.000-10-2050-X1-R	AKER晶振	C2E X1	20 MHz	±50ppm	±20ppm	10pF
C3E-8.000-10-1020-M	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	10pF
C3E-8.000-18-1020-X-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	18pF
C2E-12.000-18-1020-X-R	AKER晶振	C2E	12 MHz	±20ppm	±10ppm	18pF
C2E-12.000-18-1020-R	AKER晶振	C2E	12 MHz	±20ppm	±10ppm	18pF
C3E-25.000-20-1015-X-R	AKER晶振	C3E	25 MHz	±15ppm	±10ppm	20pF
C3E-24.000-9-1015-X-R	AKER晶振	C3E	24 MHz	±15ppm	±10ppm	9pF
C3E-16.000-9-1015-X-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	9pF
C3E-24.000-9-1010-R	AKER晶振	C3E	24 MHz	±10ppm	±10ppm	9pF
C3E-16.000-9-1010-R	AKER晶振	C3E	16 MHz	±10ppm	±10ppm	9pF
C2E-19.200-13-2030-X-R	AKER晶振	C2E	19.2 MHz	±30ppm	±20ppm	13pF
