X2AGHINANF-48.000000-48MHz-50ppm-8PF-3225

产品简介

X2AGHINANF-48.000000-48MHz-50ppm-8PF-3225，台湾泰艺晶振公司，贴片晶振，X2晶振，X2AGHINANF-48.000000晶振,无源晶振,贴片晶振,陶瓷晶振,小型晶振,3225晶振,四脚晶振,打印机晶振,电脑主板晶振,X3AEELNANF-50.000000晶振,X2HCCCNANF-12.000000晶振,X3LEECNANF-50.000000晶振

产品详情

TY-2

yijin-1

X2AGHINANF-48.000000-48MHz-50ppm-8PF-3225，台湾泰艺晶振公司，贴片晶振，X2晶振，X2AGHINANF-48.000000晶振,无源晶振,贴片晶振,陶瓷晶振,小型晶振,3225晶振,四脚晶振,打印机晶振,电脑主板晶振,X3AEELNANF-50.000000晶振,X2HCCCNANF-12.000000晶振,X3LEECNANF-50.000000晶振

yijin-2

X2AGHINANF-48.000000-48MHz-50ppm-8PF-3225

泰艺晶振规格	单位	X2晶振频率范围	石英晶振基本条件
标准频率	f_nom	48MHZ	标准频率
储存温度	T_stg	-55°C ～ +125°C	裸存
工作温度	T_use	-40°C ～ +85°C	标准温度
激励功率	DL	200μW Max.	推荐:1μW ～ 100μW
频率公差	f_— l	±50 × 10-6(标准), (±15 × 10-6～ ±50 × 10-6可用)	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息,http://www.vc-tcxo.com/
频率温度特征	f_tem	±50 × 10-6/-20°C ～ +70°C	超出标准的规格请联系我们.
负载电容	CL	8pF	超出标准说明,请联系我们.
串联电阻(ESR)	R1	如下表所示	-40°C — +85°C,DL = 100μW
频率老化	f_age	±5 × 10-6/ year Max.	+25°C,第一年

X2AGHINANF-48.000000-48MHz-50ppm-8PF-3225

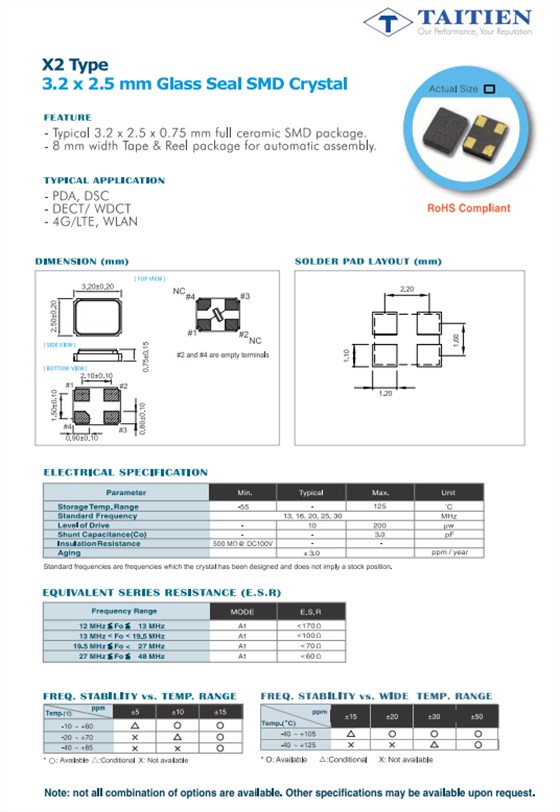

X2 3225

TAITIEN原厂编码	生产厂家	型号	Type 系列	Frequency	频率稳定度	频率偏差	负载电容
X2AEECNANF-24.000000	Taitien	X2	MHz Crystal	24MHz	±30ppm	±30ppm	8pF
X2AGHINANF-48.000000	Taitien	X2	MHz Crystal	48MHz	±100ppm	±50ppm	8pF
X2CGGCSANF-25.000000	Taitien	X2	MHz Crystal	25MHz	±50ppm	±50ppm	10pF
X2CGGCSANF-30.000000	Taitien	X2	MHz Crystal	30MHz	±50ppm	±50ppm	10pF
X2DCCCNANF-25.000000	Taitien	X2	MHz Crystal	25MHz	±20ppm	±20ppm	12pF
X2DEECNANF-24.000000	Taitien	X2	MHz Crystal	24MHz	±30ppm	±30ppm	12pF
X2DEECNANF-25.000000	Taitien	X2	MHz Crystal	25MHz	±30ppm	±30ppm	12pF
X2FCCLNANF-16.000000	Taitien	X2	MHz Crystal	16MHz	±20ppm	±20ppm	16pF
X2FCCLNANF-25.000000	Taitien	X2	MHz Crystal	25MHz	±20ppm	±20ppm	16pF
X2GCELNANF-24.000000	Taitien	X2	MHz Crystal	24MHz	±30ppm	±20ppm	18pF
X2GCELNANF-25.000000	Taitien	X2	MHz Crystal	25MHz	±30ppm	±20ppm	18pF
X2GEECNANF-24.000000	Taitien	X2	MHz Crystal	24MHz	±30ppm	±30ppm	18pF
X2GEGLNANF-24.000000	Taitien	X2	MHz Crystal	24MHz	±50ppm	±30ppm	18pF
X2GGGLNANF-12.000000	Taitien	X2	MHz Crystal	12MHz	±50ppm	±50ppm	18pF
X2HCCCNANF-12.000000	Taitien	X2	MHz Crystal	12MHz	±20ppm	±20ppm	20pF
XIHEELAANF-11.059200	Taitien	XI	MHz Crystal	11.0592MHz	±30ppm	±30ppm	20pF
XIHEELAANF-16.000000	Taitien	XI	MHz Crystal	16MHz	±30ppm	±30ppm	20pF
XIHEELAANF-25.000000	Taitien	XI	MHz Crystal	25MHz	±30ppm	±30ppm	20pF
XIHEELAANF-4.000000	Taitien	XI	MHz Crystal	4MHz	±30ppm	±30ppm	20pF
XIHEELAANF-7.372800	Taitien	XI	MHz Crystal	7.3728MHz	±30ppm	±30ppm	20pF
XIHEELAANF-8.000000	Taitien	XI	MHz Crystal	8MHz	±30ppm	±30ppm	20pF
XIHCELAANF-16.000000	Taitien	XI	MHz Crystal	16MHz	±30ppm	±20ppm	20pF
