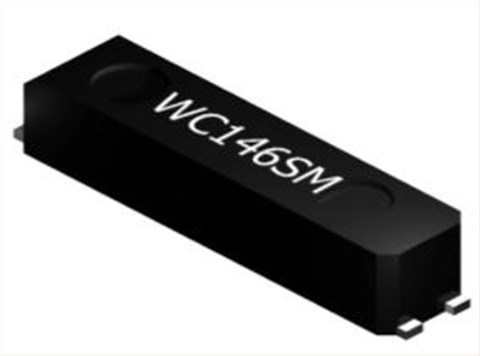

WC146SMF-32.768KHZ-T,7015mm,Mmdcomp陶瓷谐振器，美国进口晶振，Mmdcomp晶振，麦迪康晶振，型号：WC146SM，编码为：WC146SMF-32.768KHZ-T，频率为：32.768KHz，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x1.5x1.4mm陶瓷SMD封装，四脚贴片晶振，无源晶振，陶瓷谐振器，7015晶振，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，耐热及耐环境特点。应用于：通讯设备晶振，钟表电子晶振，数字显示晶振，电脑主板晶振，数码电子等应用。
WC146SMF-32.768KHZ-T,7015mm,Mmdcomp陶瓷谐振器,产品特点：
超低剖面，最大高度1.4mm
频率：32.768KHz，小型紧凑型音叉表晶
非常适合在空间受限的应用中使用
可提供符合RoHS的产品
胶带和卷筒包装

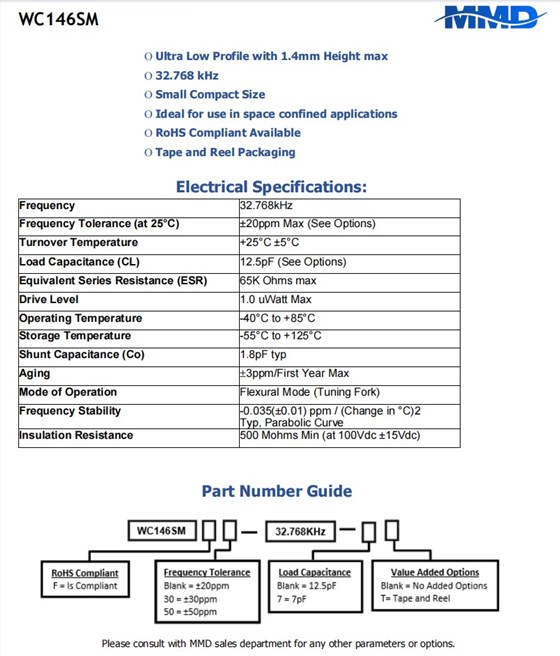

WC146SMF-32.768KHZ-T,7015mm,Mmdcomp陶瓷谐振器,参数表
| Frequency | 32.768kHz | ||||
| Frequency Tolerance (at 25°C) | ±20ppm Max (See Options) | ||||
| Turnover Temperature | +25°C ±5°C | ||||
| Load Capacitance (CL) | 12.5pF (See Options) | ||||
| Equivalent Series Resistance (ESR) | 65K Ohms max | ||||
| Drive Level | 1.0 uWatt Max | ||||
| Operating Temperature | -40°C to +85°C | ||||
| Storage Temperature | -55°C to +125°C | ||||
| Shunt Capacitance (Co) | 1.8pF typ | ||||
| Aging | ±3ppm/First Year Max | ||||
| Mode of Operation | Flexural Mode (Tuning Fork) | ||||
| Frequency Stability | -0.035(±0.01) ppm / (Change in °C)2 Typ, Parabolic Curve |
||||
| Insulation Resistance | 500 Mohms Min (at 100Vdc ±15Vdc) |
||||

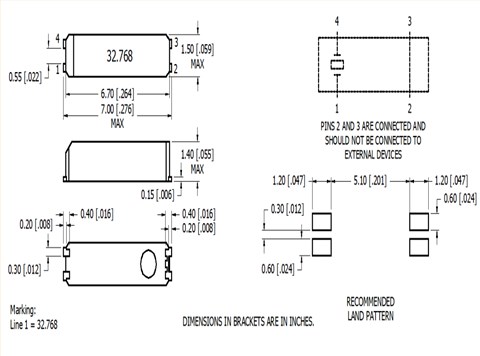

WC146SMF-32.768KHZ-T,7015mm,Mmdcomp陶瓷谐振器,尺寸图
| 进口晶振编码 | 品牌 | 描述 | 系列 |
| WC146SMF-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | WC146SM |
| DF18CC1-4.000MHZ-T | Mmdcomp晶振 | CRYSTAL 4.0000MHZ 18PF SMD | D |
| DF18CC1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 18PF SMD | D |
| MMC-463F-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | MMC |
| WC315-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | WC315 |
| DF18CC1-9.8304MHZ-T | Mmdcomp晶振 | CRYSTAL 9.8304MHZ 18PF SMD | D |
| DF18CC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 18PF SMD | D |
| DF18CC1-10.000MHZ-T | Mmdcomp晶振 | CRYSTAL 10.0000MHZ 18PF SMD | D |
| DF18CC1-10.240MHZ-T | Mmdcomp晶振 | CRYSTAL 10.2400MHZ 18PF SMD | D |
| DF18CC1-3.6864MHZ-T | Mmdcomp晶振 | CRYSTAL 3.6864MHZ 18PF SMD | D |
| DF18CC1-4.500MHZ-T | Mmdcomp晶振 | CRYSTAL 4.5000MHZ 18PF SMD | D |
| DF18CC1-15.000MHZ-T | Mmdcomp晶振 | CRYSTAL 15.0000MHZ 18PF SMD | D |
| DF18CC1-3.579545MHZ-T | Mmdcomp晶振 | CRYSTAL 3.579545MHZ 18PF SMD | D |
| DF18CC1-13.000MHZ-T | Mmdcomp晶振 | CRYSTAL 13.0000MHZ 18PF SMD | D |
| DF18CC1-14.31818MHZ-T | Mmdcomp晶振 | CRYSTAL 14.31818MHZ 18PF SMD | D |
| T10GC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | T |
| X10CB1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | X |
| X10CB1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 10PF SMD | X |
| X10CB1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | X |
| X10CB1-22.1184MHZ-T | Mmdcomp晶振 | CRYSTAL 22.1184MHZ 10PF SMD | X |
| X10CB1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 10PF SMD | X |
| X10CB1-32.000MHZ-T | Mmdcomp晶振 | CRYSTAL 32.0000MHZ 10PF SMD | X |
| X10CB1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | X |
| DF18CC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 18PF SMD | D |
| DF18CC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 18PF SMD | D |
| DF18CC1-4.433619MHZ-T | Mmdcomp晶振 | CRYSTAL 4.433619MHZ 18PF SMD | D |
| DF18CC1-19.6608MHZ-T | Mmdcomp晶振 | CRYSTAL 19.6608MHZ 18PF SMD | D |
| DF18CC1-14.7456MHZ-T | 石英晶振 | CRYSTAL 14.7456MHZ 18PF SMD | D |
| DF18CC1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 18PF SMD | D |
| DF18CC1-16.9344MHZ-T | Mmdcomp晶振 | CRYSTAL 16.9344MHZ 18PF SMD | D |
| DF18CC1-6.144MHZ-T | Mmdcomp晶振 | CRYSTAL 6.1440MHZ 18PF SMD | D |
| DF18CC1-7.3728MHZ-T | Mmdcomp晶振 | CRYSTAL 7.3728MHZ 18PF SMD | D |
| DF18CC1-4.194304MHZ-T | Mmdcomp晶振 | CRYSTAL 4.194304MHZ 18PF SMD | D |
| DF18CC1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 18PF SMD | D |
| DF18CC1-15.360MHZ-T | Mmdcomp晶振 | CRYSTAL 15.3600MHZ 18PF SMD | D |
| DF18CC1-6.7458MHZ-T | Mmdcomp晶振 | CRYSTAL 6.7458MHZ 18PF SMD | D |
| DF18CC1-18.000MHZ-T | Mmdcomp晶振 | CRYSTAL 18.0000MHZ 18PF SMD | D |
| DF18CC1-12.000MHZ-T | Mmdcomp晶振 | CRYSTAL 12.0000MHZ 18PF SMD | D |
| DF18CC1-4.9152MHZ-T | Mmdcomp晶振 | CRYSTAL 4.9152MHZ 18PF SMD | D |
| DF18CC1-28.63636MHZ-T | Mmdcomp晶振 | CRYSTAL 28.63636MHZ 18PF SMD | D |
| DF18CC1-6.000MHZ-T | Mmdcomp晶振 | CRYSTAL 6.0000MHZ 18PF SMD | D |
| DF18CC1-5.000MHZ-T | Mmdcomp晶振 | CRYSTAL 5.0000MHZ 18PF SMD | D |
| DF18CC1-13.500MHZ-T | Mmdcomp晶振 | CRYSTAL 13.5000MHZ 18PF SMD | D |
| DF18CC1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 18PF SMD | D |
| DF18CC1-11.0592MHZ-T | Mmdcomp晶振 | CRYSTAL 11.0592MHZ 18PF SMD | D |
| DF18CC1-9.216MHZ-T | Mmdcomp晶振 | CRYSTAL 9.2160MHZ 18PF SMD | D |
| DF18CC1-12.288MHZ-T | Mmdcomp晶振 | CRYSTAL 12.2880MHZ 18PF SMD | D |
| T10GC1-22.1184MHZ-T | Mmdcomp晶振 | CRYSTAL 22.1184MHZ 10PF SMD | T |
| T10GC1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 10PF SMD | T |
| T10GC1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | T |
| T10GC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | T |
| T10GC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | T |
| T10GC1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 10PF SMD | T |
| T10GC1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | T |
| X10CB1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | X |
| X10CB1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | X |
| X10CB1-26.000MHZ-T | Mmdcomp晶振 | CRYSTAL 26.0000MHZ 10PF SMD | X |
| X10CB1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 10PF SMD | X |
| X10CB1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 10PF SMD | X |
| WC26SMFD-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | WC26SM |
| DF18CC1-8.000MHZ-T | Mmdcomp晶振 | CRYSTAL 8.0000MHZ 18PF SMD | D |
| WC38F-32.768KHZ | Mmdcomp晶振 | 2 PIN THROUGH HOLE METAL PACKAGE | WC |
| WC26F-32.768KHZ | Mmdcomp晶振 | 2 PIN THROUGH HOLE METAL PACKAGE | WC |
| X10CB1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | X |
| X10CB1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | X |
| DF18CC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 18PF SMD | D |
| T10GC1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 10PF SMD | T |
| X10CB1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | X |
| T10GC1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | T |
| X10CB1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 10PF SMD | X |
| T10GC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | T |
| T10GC1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 10PF SMD | T |
| T10GC1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | T |
| T10GC1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 10PF SMD | T |
| DF18CC1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 18PF SMD | D |
