原厂型号Originalmodel：	S11805T-25.000-X1-R	品牌brand：	AKER有源晶振
Manufacturer品牌	AKER有源晶振	OperatingTemperature温度	-40°C ~ 85°C
Series型号	S1	Current-Supply(Max)	5mA
Type类型	XO (Standard)	PackageHeight高度	0.60mm
Frequency频率	25 MHz	Termination脚位	4-pad
输出方式Output：	CMOS	PackageType封装类型	4-SMD
Voltage-Supply电压	1.8V	Packaging包装	TapeandReel
FrequencyStability频率稳定度	±50ppm	安装方式Installation：	Surfacemount
Size/Dimension尺寸	2.00mm x 1.60mm	最小包装数MPQ：	3000

YJ-A

YJ-3

S11805T-25.000-X1-R,汽车级电子晶振,台湾AKER安基晶振

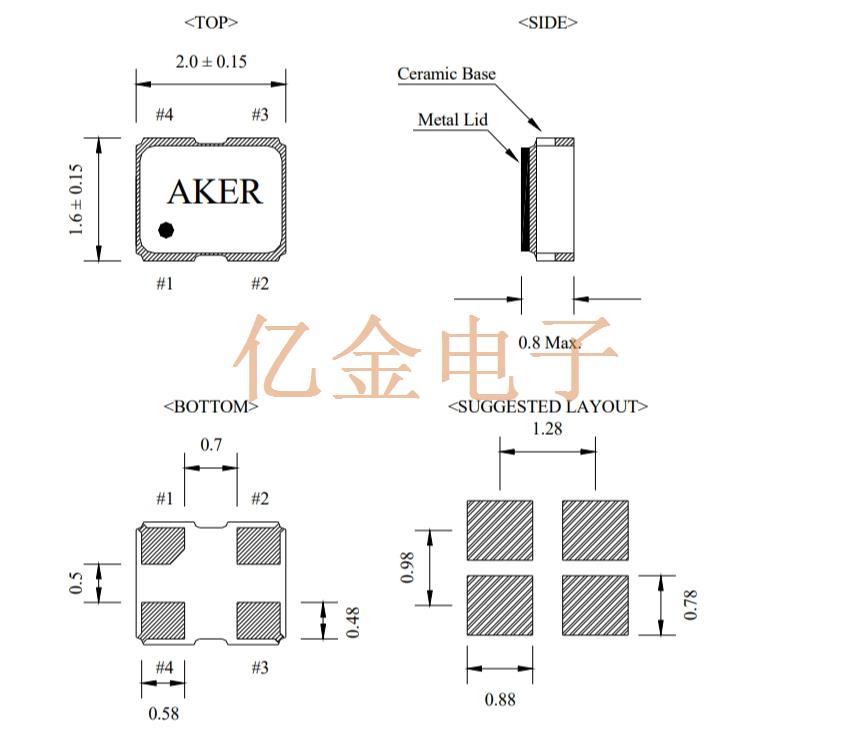

S11805T1

S11805T-25.000-X1-R,汽车级电子晶振,台湾AKER安基晶振

C3E-16.000-18-3030-X-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	18pF
C3E-20.000-12-3030-X-R	AKER	C3E	MHz Crystal	20 MHz	±30ppm	±30ppm	12pF
C3E-16.000-12-3030-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C3E-25.000-18-2030-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±20ppm	18pF
C3E-12.000-8-3030-R	AKER	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	8pF
C3E-25.000-8-1010-R	AKER	C3E	MHz Crystal	25 MHz	±10ppm	±10ppm	8pF
C3E-25.000-8-1520-R	AKER	C3E	MHz Crystal	25 MHz	±20ppm	±15ppm	8pF
C3E-16.000-12-3030-X-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C3E-32.000-10-1010-R	AKER	C3E	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF
C3E-12.000-8-1520-R	AKER	C3E	MHz Crystal	12 MHz	±20ppm	±15ppm	8pF
C3E-32.000-12-1010-R	AKER	C3E	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1015-R	AKER	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	8pF
C3E-12.000-18-3030-X-R	AKER	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
C3E-25.000-12-3030-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±30ppm	12pF
C3E-25.000-10-3030-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF
C3E-24.000-8-1015-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	8pF
C3E-24.000-10-1010-R	AKER	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
C3E-32.000-12-1530-X-R	AKER	C3E	MHz Crystal	32 MHz	±30ppm	±15ppm	12pF
C3E-12.000-8-1010-R	AKER	C3E	MHz Crystal	12 MHz	±10ppm	±10ppm	8pF
C3E-16.000-8-1015-R	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	8pF
C3E-32.000-10-1015-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C3E-24.000-12-1530-X-R	AKER	C3E	MHz Crystal	24 MHz	±30ppm	±15ppm	12pF
C3E-24.000-12-3030-X-R	AKER	C3E	MHz Crystal	24 MHz	±30ppm	±30ppm	12pF
C3E-24.000-18-1010-R	AKER	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
C3E-20.000-10-1530-X-R	AKER	C3E	MHz Crystal	20 MHz	±30ppm	±15ppm	10pF
C3E-25.000-8-1530-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±15ppm	8pF
C3E-24.000-12-1015-X-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	12pF
C3E-24.000-10-1015-X-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF
C3E-16.000-12-1015-X-R	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF
C3E-40.000-10-1015-X-R	AKER	C3E	MHz Crystal	40 MHz	±15ppm	±10ppm	10pF
C3E-32.000-8-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	8pF
C3E-32.000-10-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C3E-32.000-12-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	12pF
C2E-16.000-12-3030-X-R	AKER	C2E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C2E-25.000-10-3030-X-R	AKER	C2E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF
C2E-16.000-8-1530-X-R	AKER	C2E	MHz Crystal	16 MHz	±30ppm	±15ppm	8pF
C3E-8.000-10-3030-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
C3E-8.000-10-3030-X-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
C3E-8.000-18-3030-X-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
C3E-8.000-18-3030-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
C1E-32.000-10-1015-X-R	AKER	C1E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C1E-25.000-20-2030-R	AKER	C1E	MHz Crystal	25 MHz	±30ppm	±20ppm	20pF
C1E-24.000-10-1015-R	AKER	C1E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1010-R	AKER	C1E	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
C3E-16.000-12-1015-X-M	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF
C5S-26.000-16-1010-R	AKER晶振	C5S	MHz Crystal	26 MHz	±10ppm	±10ppm	16pF
CAA-8.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF
CAA-40.000-18-3050-R	AKER晶振	CAA	MHz Crystal	40 MHz	±50ppm	±30ppm	18pF
C3E-12.000-12-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	12pF
C3E-12.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	18pF
