低相位抖动差分NP5032SA-100MHZ-NSC5400B晶振,日本进口NDK6G路由器晶振，日本NDK晶振公司，贴片晶振,有源晶振,差动输出SPXO,紧凑尺寸:5.0 × 3.2 × 1.2 mm。,供电电压:+2.5V或+3.3V,输出规格:LVPECL,优良的低相位抖动。0.08 ps @148.5MHz,用于超声波、SDH和gb以太网相关的设备，光模块差分晶振，通信差分晶振
低相位抖动差分NP5032SA-100MHZ-NSC5400B晶振,日本进口NDK6G路由器晶振

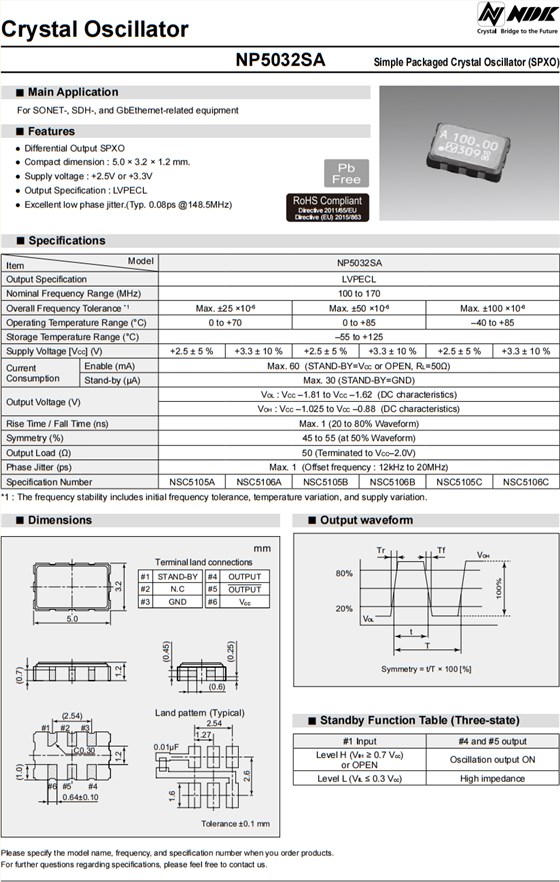

| 项目 | 型号 | NP5032SA | ||||
| 输出类型 | LVPECL | |||||
| 标称频率 | 100 to 170 | |||||
| 总容许频率 | Max. ±25 × 10-6 | Max. ±50 ×10-6 | Max. ±100 ×10-6 | |||
| 工作温度范围（°C） | 0 to +70 | 0 to +85 | –40 to +85 | |||
| 储存温度范围（°C） | –55 to +125 | |||||
| 电源电压[VCC] (V) | +2.5 ± 5 % | +2.5 ± 5 % | +3.3 ± 10 % | +2.5 ± 5 % | +3.3 ± 10 % | |
| 当前消耗量 | 使能(mA) | Max. 60(STAND-BY=VCCor OPEN, RL=50Ω) | ||||
| 备用（μA） | Max. 30 (STAND-BY=GND) | |||||
| 输出电压(V) | VOL: VCC– 1.81 to VCC– 1.62(DC characteristics) | |||||
| VOH: VCC– 1.025 to VCC–0.88(DC characteristics) | ||||||
| 上升时间/下降时间（ns） | Max. 1 (20 to 80% Waveform) | |||||
| 对称性（%） | 45 to 55 (at 50% Waveform) | |||||
| 输出负载(Ω) | 50 (Terminated to VCC–2.0V) | |||||
| 相位抖动(ps) | Max. 1(Offset frequency : 12kHz to 20MHz) | |||||
| 规格编号 | NSC5105A | NSC5105B | NSC5106B | NSC5105C | NSC5106C | |
低相位抖动差分NP5032SA-100MHZ-NSC5400B晶振,日本进口NDK6G路由器晶振
| 型号 | 常规频率[MHz] | 规格编码 | 尺寸 | 输出类型 | 工作温度 | 储存温度 | 电源电压 |
| NP2520SA | 156.25 | NSC5300A | 2.5x2.0 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP2520SA | 156.25 | NSC5300B | 2.5x2.0 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP2520SB | 156.25 | NSC5301A | 2.5x2.0 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP2520SB | 156.25 | NSC5301B | 2.5x2.0 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP2520SAB | 156.25 | NSC5326A | 2.5x2.0 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP2520SAB | 156.25 | NSC5326B | 2.5x2.0 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP2520SBB | 156.25 | NSC5327A | 2.5x2.0 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP2520SBB | 156.25 | NSC5327B | 2.5x2.0 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 100 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 122.88 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 125 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 156.25 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 175 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 100 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 122.88 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 125 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 156.25 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 175 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 100 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 122.88 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 125 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 156.25 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 175 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 100 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 122.88 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 125 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 156.25 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 175 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 200 | NSC5235A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 212.5 | NSC5235A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 200 | NSC5235B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 212.5 | NSC5235B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 200 | NSC5237A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 212.5 | NSC5237A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 200 | NSC5237B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 212.5 | NSC5237B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 50 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 100 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 125 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 135 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 148 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 156.25 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 200 | NSC5236A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 50 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 100 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 125 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 135 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 148 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 156.25 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 200 | NSC5236B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 50 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 100 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 125 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 135 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 148 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 156.25 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 200 | NSC5238A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 50 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 100 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 125 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 135 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 148 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 156.25 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 200 | NSC5238B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SC | 100 | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SC | 156.25 | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SC | 100 | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SC | 156.25 | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SC | 100 | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SC | 156.25 | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SC | 100 | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SC | 156.25 | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +3.3±0.33 |
