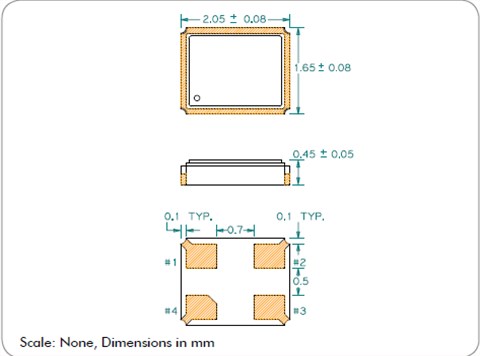

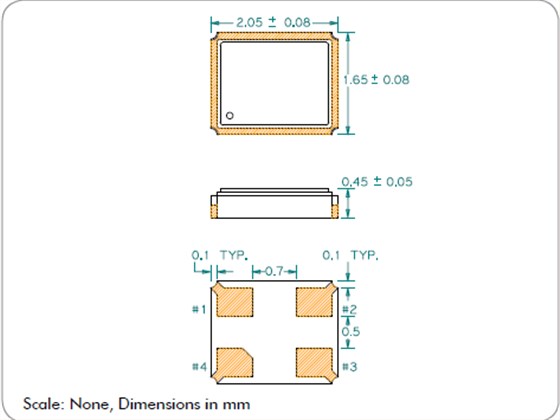

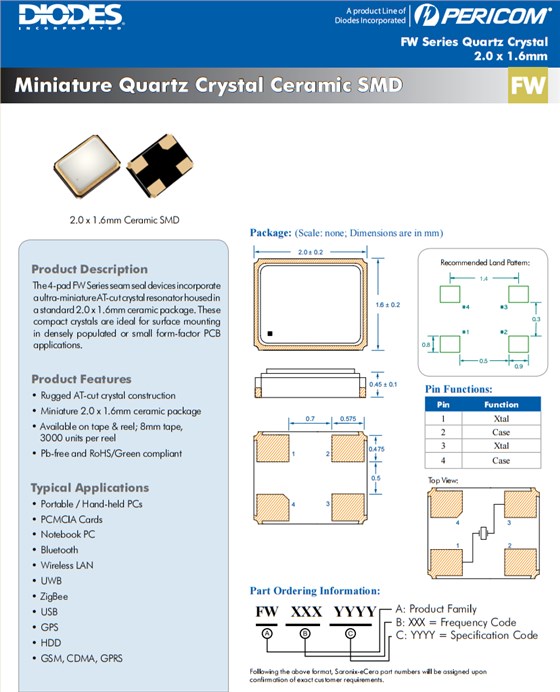

FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃,台湾百利通亚陶晶振公司,坚固的AT-cut晶体结构微型2.0 x 1.6mm陶瓷包装,可在胶带和卷;8mm带,3000单位每卷无pb和RoHS/绿色兼容,4垫FW系列接缝密封装置包含一个超微型的at切割晶体谐振器,封装在一个标准的2.0 x 1.6mm陶瓷封装中。这些紧凑的晶体是理想的表面安装在密集的人口或小的形状因子PCB应用。智能手机,便携式/手持式电脑,PCMCIA卡,笔记本电脑,蓝牙无线局域网SIPRF-SIM笔驱动器SD模块
FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃
亚陶晶振规格 |
单位 |
FWQ/FW晶振频率范围 |
石英晶振基本条件 |
标准频率 |
f_nom |
19.2MHZ |
标准频率 |
储存温度 |
T_stg |
-40°C ~ +85°C |
裸存 |
工作温度 |
T_use |
-20°C ~ +70°C |
标准温度 |
激励功率 |
DL |
200μW Max. |
推荐:1μW ~ 100μW |
频率公差 |
f_— l |
±50 × 10-6(标准), |
+25°C 对于超出标准的规格说明, |
频率温度特征 |
f_tem |
±30 × 10-6/-20°C ~ +70°C |
超出标准的规格请联系我们. |
负载电容 |
CL |
8pF |
超出标准说明,请联系我们. |
DIODES原厂编码 | 生产厂家 | 型号 | 频率 | 频率稳定度 | 频率偏差 | 负载电容 | 工作温度 |
FW1600008 | Diodes晶振 | FW | 16MHz | ±20ppm | ±10ppm | 12pF | -40°C ~ 85°C |
FW1600008 | Diodes晶振 | FW | 16MHz | ±20ppm | ±10ppm | 12pF | -40°C ~ 85°C |
FW1600008 | Diodes晶振 | FW | 16MHz | ±20ppm | ±10ppm | 12pF | -40°C ~ 85°C |
FW1920001 | Diodes晶振 | FW | 19.2MHz | ±20ppm | ±10ppm | 8pF | -20°C ~ 70°C |
FW1920001 | Diodes晶振 | FW | 19.2MHz | ±20ppm | ±10ppm | 8pF | -20°C ~ 70°C |
FW1920001 | Diodes晶振 | FW | 19.2MHz | ±20ppm | ±10ppm | 8pF | -20°C ~ 70°C |
FW2600018 | Diodes晶振 | FW | 26MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 75°C |
FW2600018 | Diodes晶振 | FW | 26MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 75°C |
FW2600018 | Diodes晶振 | FW | 26MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 75°C |
FW3740009 | Diodes晶振 | FW | 37.4MHz | ±15ppm | ±10ppm | 11pF | -20°C ~ 70°C |
FW3740009 | Diodes晶振 | FW | 37.4MHz | ±15ppm | ±10ppm | 11pF | -20°C ~ 70°C |
FW3740009 | Diodes晶振 | FW | 37.4MHz | ±15ppm | ±10ppm | 11pF | -20°C ~ 70°C |
FW2000008 | Diodes晶振 | FW | 20MHz | ±10ppm | ±10ppm | 12pF | -20°C ~ 85°C |
FW2000008 | Diodes晶振 | FW | 20MHz | ±10ppm | ±10ppm | 12pF | -20°C ~ 85°C |
FW2000008 | Diodes晶振 | FW | 20MHz | ±10ppm | ±10ppm | 12pF | -20°C ~ 85°C |
FW3000010 | Diodes晶振 | FW | 30MHz | ±30ppm | ±30ppm | 10pF | -20°C ~ 70°C |
FW3000010 | Diodes晶振 | FW | 30MHz | ±30ppm | ±30ppm | 10pF | -20°C ~ 70°C |
FW3000010 | Diodes晶振 | FW | 30MHz | ±30ppm | ±30ppm | 10pF | -20°C ~ 70°C |
FW4000001 | Diodes晶振 | FW | 40MHz | ±15ppm | ±10ppm | 18pF | -10°C ~ 85°C |
FW4000001 | Diodes晶振 | FW | 40MHz | ±15ppm | ±10ppm | 18pF | -10°C ~ 85°C |
FW4000001 | Diodes晶振 | FW | 40MHz | ±15ppm | ±10ppm | 18pF | -10°C ~ 85°C |
FW2400001 | Diodes晶振 | FW | 24MHz | ±50ppm | ±50ppm | 20pF | -20°C ~ 70°C |
FW2400001 | Diodes晶振 | FW | 24MHz | ±50ppm | ±50ppm | 20pF | -20°C ~ 70°C |
FW2400001 | Diodes晶振 | FW | 24MHz | ±50ppm | ±50ppm | 20pF | -20°C ~ 70°C |
FW1600010 | Diodes晶振 | FW | 16MHz | ±20ppm | ±10ppm | 8pF | -40°C ~ 85°C |
FW1600010 | Diodes晶振 | FW | 16MHz | ±20ppm | ±10ppm | 8pF | -40°C ~ 85°C |
FW1600010 | Diodes晶振 | FW | 16MHz | ±20ppm | ±10ppm | 8pF | -40°C ~ 85°C |
FW3200020 | Diodes晶振 | FW | 32MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
FW3200020 | Diodes晶振 | FW | 32MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
FW3200020 | Diodes晶振 | FW | 32MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
FW2500025Z | Diodes晶振 | FW | 25MHz | ±30ppm | ±30ppm | 20pF | -20°C ~ 80°C |
FW2500025Z | Diodes晶振 | FW | 25MHz | ±30ppm | ±30ppm | 20pF | -20°C ~ 80°C |
FW2500025Z | Diodes晶振 | FW | 25MHz | ±30ppm | ±30ppm | 20pF | -20°C ~ 80°C |
FW374WFBR2 | Diodes晶振 | FW | 37.4MHz | ±10ppm | ±10ppm | 16pF | -20°C ~ 85°C |
FW374WFBR2 | Diodes晶振 | FW | 37.4MHz | ±10ppm | ±10ppm | 16pF | -20°C ~ 85°C |
FW374WFBR2 | Diodes晶振 | FW | 37.4MHz | ±10ppm | ±10ppm | 16pF | -20°C ~ 85°C |
FW400WFMT1 | Diodes晶振 | FW | 40MHz | ±17ppm | ±7ppm | 12pF | -40°C ~ 100°C |
FW400WFMT1 | Diodes晶振 | FW | 40MHz | ±17ppm | ±7ppm | 12pF | -40°C ~ 100°C |
FW400WFMT1 | Diodes晶振 | FW | 40MHz | ±17ppm | ±7ppm | 12pF | -40°C ~ 100°C |
FW374WFMR1 | Diodes晶振 | FW | 37.4MHz | ±10ppm | ±10ppm | 8pF | -30°C ~ 85°C |
FW374WFMR1 | Diodes晶振 | FW | 37.4MHz | ±10ppm | ±10ppm | 8pF | -30°C ~ 85°C |
FW374WFMR1 | Diodes晶振 | FW | 37.4MHz | ±10ppm | ±10ppm | 8pF | -30°C ~ 85°C |
FW384WFIN1 | Diodes晶振 | FW | 38.4MHz | ±12ppm | ±10ppm | 7pF | -30°C ~ 90°C |
FW384WFIN1 | Diodes晶振 | FW | 38.4MHz | ±12ppm | ±10ppm | 7pF | -30°C ~ 90°C |
FW384WFIN1 | Diodes晶振 | FW | 38.4MHz | ±12ppm | ±10ppm | 7pF | -30°C ~ 90°C |
FW520WFMT1 | Diodes晶振 | FW | 52MHz | ±17ppm | ±7ppm | 12pF | -40°C ~ 100°C |
FW520WFMT1 | Diodes晶振 | FW | 52MHz | ±17ppm | ±7ppm | 12pF | -40°C ~ 100°C |
FW520WFMT1 | Diodes晶振 | FW | 52MHz | ±17ppm | ±7ppm | 12pF | -40°C ~ 100°C |
FW260WFMT1 | Diodes晶振 | FW | 26MHz | ±17ppm | ±7ppm | 12pF | -40°C ~ 100°C |
FW260WFMT1 | Diodes晶振 | FW | 26MHz | ±17ppm | ±7ppm | 12pF | -40°C ~ 100°C |
FW260WFMT1 | Diodes晶振 | FW | 26MHz | ±17ppm | ±7ppm | 12pF | -40°C ~ 100°C |
FW260WFMR1 | Diodes晶振 | FW | 26MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 85°C |
FW260WFMR1 | Diodes晶振 | FW | 26MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 85°C |
FW260WFMR1 | Diodes晶振 | FW | 26MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 85°C |
FW374WFBR1 | Diodes晶振 | FW | 37.4MHz | ±10ppm | ±10ppm | 12pF | -20°C ~ 85°C |
FW374WFBR1 | Diodes晶振 | FW | 37.4MHz | ±10ppm | ±10ppm | 12pF | -20°C ~ 85°C |
FW374WFBR1 | Diodes晶振 | FW | 37.4MHz | ±10ppm | ±10ppm | 12pF | -20°C ~ 85°C |
FW400WFMR1 | Diodes晶振 | FW | 40MHz | ±10ppm | ±10ppm | 10pF | -20°C ~ 85°C |
FW400WFMR1 | Diodes晶振 | FW | 40MHz | ±10ppm | ±10ppm | 10pF | -20°C ~ 85°C |
FW400WFMR1 | Diodes晶振 | FW | 40MHz | ±10ppm | ±10ppm | 10pF | -20°C ~ 85°C |
FW3840001 | Diodes晶振 | FW | 38.4MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 70°C |
FW3840001 | Diodes晶振 | FW | 38.4MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 70°C |
FW3840001 | Diodes晶振 | FW | 38.4MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 70°C |
FW2500016Z | Diodes晶振 | FW | 25MHz | ±40ppm | ±30ppm | 6pF | -30°C ~ 85°C |
FW2500016Z | Diodes晶振 | FW | 25MHz | ±40ppm | ±30ppm | 6pF | -30°C ~ 85°C |
FW2500016Z | Diodes晶振 | FW | 25MHz | ±40ppm | ±30ppm | 6pF | -30°C ~ 85°C |
FW400WFQA1 | Diodes晶振 | FW | 40MHz | ±10ppm | ±10ppm | 7pF | -30°C ~ 85°C |
FW400WFQA1 | Diodes晶振 | FW | 40MHz | ±10ppm | ±10ppm | 7pF | -30°C ~ 85°C |
FW400WFQA1 | Diodes晶振 | FW | 40MHz | ±10ppm | ±10ppm | 7pF | -30°C ~ 85°C |
FW400WFMR1 | Diodes晶振 | FW | 40MHz | ±10ppm | ±10ppm | 10pF | -20°C ~ 85°C |
