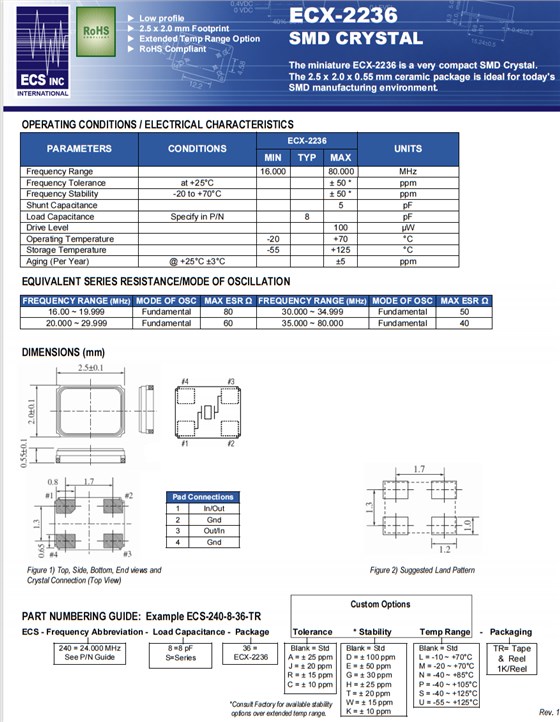

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520,美国ECS晶振,微型的ECX-2236是一个非常紧凑的SMD晶体。2.5 x 2.0 x 0.55 mm陶瓷封装是当今SMD制造环境的理想选择。低轮廓,2.5 x 2.0 mm足迹,扩展温度范围选项, RoHS兼容。

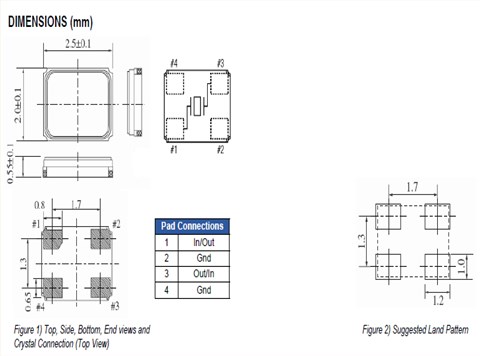

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520
参数 | 环境 | ECX-2236 | 单位 | ||
最小值 | 典型的 | 最大值 | |||
频率 | 16.000 | 80.000 | MHz | ||
频率容差 | at +25°C | ± 50 * | ppm | ||
频率偏差度 | -20 to +70°C | ± 50 * | ppm | ||
并联电容 | 5 | pF | |||
负载电容 | Specify in P/N | 8 | pF | ||
驱动电平 | 100 | µW | |||
工作温度 | --20 | +70 | °C | ||
储存温度 | --55 | +125 | °C | ||
老化 | @ +25°C ±3°C | ±5 | ppm |
ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520
ECS原厂编码 | 型号 | 频率 | 频率容差 | 频率偏差度 | 负载电容 | 工作温度 |
ECS-160-8-36CKM | ECX-2236 | 16MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-184-8-36CKM | ECX-2236 | 18.432MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-192-8-36CKM | ECX-2236 | 19.2MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-196-8-36CKM | ECX-2236 | 19.6608MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-200-8-36CKM | ECX-2236 | 20MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-240-8-36CKM | ECX-2236 | 24MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-245.7-8-36CKM | ECX-2236 | 24.576MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-250-8-36CKM | ECX-2236 | 25MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-260-8-36CKM | ECX-2236 | 26MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-270-8-36CKM | ECX-2236 | 27MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-300-8-36CKM | ECX-2236 | 30MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-320-8-36CKM | ECX-2236 | 32MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-360-8-36CKM | ECX-2236 | 36MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-400-8-36CKM | ECX-2236 | 40MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-480-8-36CKM | ECX-2236 | 48MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-800-8-36CKM | ECX-2236 | 80MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
ECS-120-10-36Q-ES-TR | ECX-2236Q | 12MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-160-10-36Q-ES-TR | ECX-2236Q | 16MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-200-10-36Q-ES-TR | ECX-2236Q | 20MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-240-10-36Q-ES-TR | ECX-2236Q | 24MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-245.7-10-36Q-ES-TR | ECX-2236Q | 24.576MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-250-10-36Q-ES-TR | ECX-2236Q | 25MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-260-10-36Q-ES-TR | ECX-2236Q | 26MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-270-10-36Q-ES-TR | ECX-2236Q | 27MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-300-10-36Q-ES-TR | ECX-2236Q | 30MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-320-10-36Q-ES-TR | ECX-2236Q | 32MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-120-10-36Q-JEN-TR | ECX-2236Q | 12MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-160-10-36Q-JEN-TR | ECX-2236Q | 16MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-200-10-36Q-JEN-TR | ECX-2236Q | 20MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-240-10-36Q-JEN-TR | ECX-2236Q | 24MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-245.7-10-36Q-JEN-TR | ECX-2236Q | 24.576MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-250-10-36Q-JEN-TR | ECX-2236Q | 25MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-260-10-36Q-JEN-TR | ECX-2236Q | 26MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-270-10-36Q-JEN-TR | ECX-2236Q | 27MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-300-10-36Q-JEN-TR | ECX-2236Q | 30MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-320-10-36Q-JEN-TR | ECX-2236Q | 32MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-400-10-36Q-JEN-TR | ECX-2236Q | 40MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-480-10-36Q-JEN-TR | ECX-2236Q | 48MHz | ±50ppm | ±20ppm | 10pF | -40°C ~ 85°C |
ECS-400-10-36Q-DS-TR | ECX-2236Q | 40MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-480-10-36Q-DS-TR | ECX-2236Q | 48MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-160-10-36Q-DS-TR | ECX-2236Q | 16MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-240-10-36Q-DS-TR | ECX-2236Q | 24MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-250-10-36Q-DS-TR | ECX-2236Q | 25MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-270-10-36Q-DS-TR | ECX-2236Q | 27MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-320-10-36Q-DS-TR | ECX-2236Q | 32MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-120-10-36Q-DS-TR | ECX-2236Q | 12MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-200-10-36Q-DS-TR | ECX-2236Q | 20MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-245.7-10-36Q-DS-TR | ECX-2236Q | 24.576MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-260-10-36Q-DS-TR | ECX-2236Q | 26MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-300-10-36Q-DS-TR | ECX-2236Q | 30MHz | ±100ppm | ±30ppm | 10pF | -40°C ~ 125°C |
ECS-120-10-36Q-EP-TR | ECX-2236Q | 12MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-160-10-36Q-EP-TR | ECX-2236Q | 16MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-200-10-36Q-EP-TR | ECX-2236Q | 20MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-240-10-36Q-EP-TR | ECX-2236Q | 24MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-245.7-10-36Q-EP-TR | ECX-2236Q | 24.576MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-250-10-36Q-EP-TR | ECX-2236Q | 25MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-260-10-36Q-EP-TR | ECX-2236Q | 26MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-270-10-36Q-EP-TR | ECX-2236Q | 27MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-300-10-36Q-EP-TR | ECX-2236Q | 30MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-320-10-36Q-EP-TR | ECX-2236Q | 32MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-400-10-36Q-EP-TR | ECX-2236Q | 40MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-480-10-36Q-EP-TR | ECX-2236Q | 48MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 105°C |
ECS-240-8-36-RWN-TR | ECX-2236 | 24MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-160-8-36-RWN-TR | ECX-2236 | 16MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-250-8-36-RWN-TR | ECX-2236 | 25MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-300-8-36-RWN-TR | ECX-2236 | 30MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-184.3-8-36-RWN-TR | ECX-2236 | 18.432MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-192.0-8-36-RWN-TR | ECX-2236 | 19.2MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-260-8-36-RWN-TR | ECX-2236 | 26MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-480-8-36-RWN-TR | ECX-2236 | 48MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-200-8-36-RWN-TR | ECX-2236 | 20MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-245.7-8-36-RWN-TR | ECX-2236 | 24.576MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-270-8-36-RWN-TR | ECX-2236 | 27MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
ECS-320-8-36-RWN-TR | ECX-2236 | 32MHz | ±15ppm | ±15ppm | 8pF | -40°C ~ 85°C |
