Ecliptek|EB2532JA12-12.288M TR|15PPM|-40~85℃|2520|12PF

RS-2

yijin-1

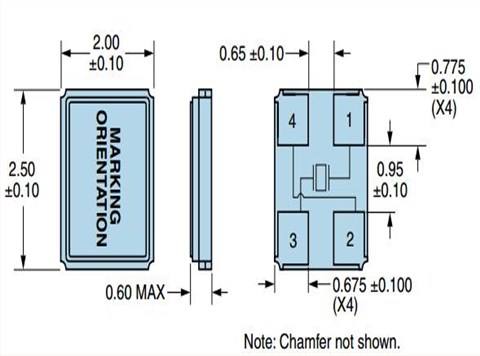

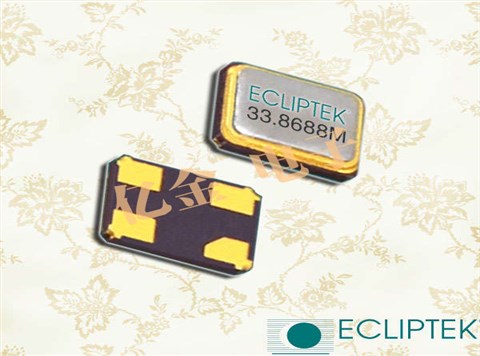

Ecliptek|EB2532JA12-12.288M TR|15PPM|-40~85℃|2520|12PF,石英晶振,欧美进口晶振,高品质晶振,EB2520晶振,Ecliptek晶振,EB2532JA12-12.288M TR晶振,4脚晶振,无源晶振,石英晶振,贴片晶振,车载氛围灯控制器晶振,汽车香氛系统晶振，汽车级石英晶体谐振器，2.0mm x 2.5mm x 0.65mm ，4垫陶瓷表面安装（SMD）

yijin-2

Ecliptek|EB2532JA12-12.288M TR|15PPM|-40~85℃|2520|12PF

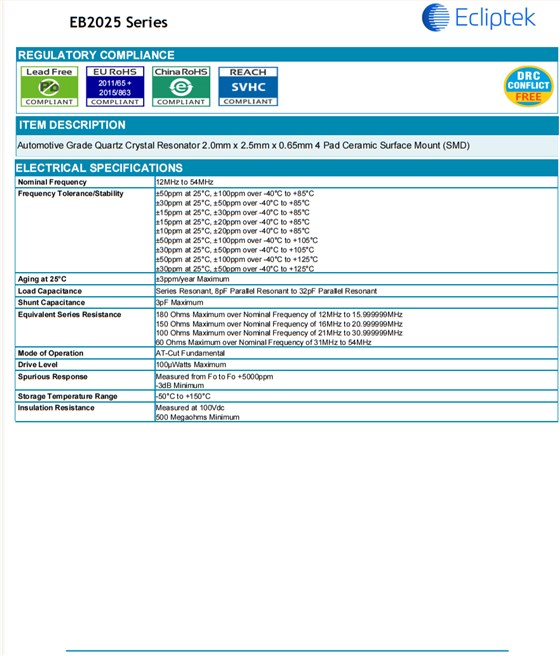

标称频率	12MHz to 54MHz
容许频率/稳定性	±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±20ppm over -40°C to +85°C ±50ppm at 25°C, ±100ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +105°C ±50ppm at 25°C, ±100ppm over -40°C to +125°C ±30ppm at 25°C, ±50ppm over -40°C to +125°C
老化	±3ppm/year Maximum
负载电容	Series Resonant, 8pF Parallel Resonant to 32pF Parallel Resonant
并联电容	3pF Maximum
等效串联电阻	180 Ohms Maximum over Nominal Frequency of 12MHz to 15.999999MHz 150 Ohms Maximum over Nominal Frequency of 16MHz to 20.999999MHz 100 Ohms Maximum over Nominal Frequency of 21MHz to 30.999999MHz 60 Ohms Maximum over Nominal Frequency of 31MHz to 54MHz
工作模式	AT-Cut Fundamental
驱动电平	100µWatts Maximum
假信号	Measured from Fo to Fo +5000ppm -3dB Minimum
储存温度	-50°C to +150°C
绝缘电阻	Measured at 100Vdc 500 Megaohms Minimum

Ecliptek|EB2532JA12-12.288M TR|15PPM|-40~85℃|2520|12PF

EA2025RA08-32.000M 2520

eb2025

Ecliptek原厂编码	生产商	系列	类型	频率	频率稳定性	频率容差	负载电容	工作温度
EB2532JA12-24.000M TR	Ecliptek	EB2532	MHz 晶体	24 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-28.63636M TR	Ecliptek	EB2532	MHz 晶体	28.63636 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-13.560M TR	Ecliptek	EB2532	MHz 晶体	13.56 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-27.000M TR	Ecliptek	EB2532	MHz 晶体	27 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-40.000M TR	Ecliptek	EB2532	MHz 晶体	40 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532YA12-40.000M TR	Ecliptek	EB2532	MHz 晶体	40 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-25.000M TR	Ecliptek	EB2532	MHz 晶体	25 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-12.288M TR	Ecliptek	EB2532	MHz 晶体	12.288 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-27.000M TR	Ecliptek	EB2532	MHz 晶体	27 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-20.000M TR	Ecliptek	EB2532	MHz 晶体	20 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-26.000M TR	Ecliptek	EB2532	MHz 晶体	26 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-28.63636M TR	Ecliptek	EB2532	MHz 晶体	28.63636 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532JA12-25.000M TR	Ecliptek	EB2532	MHz 晶体	25 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-32.000M TR	Ecliptek	EB2532	MHz 晶体	32 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-20.000M TR	Ecliptek	EB2532	MHz 晶体	20 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-24.576M TR	Ecliptek	EB2532	MHz 晶体	24.576 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-26.000M TR	Ecliptek	EB2532	MHz 晶体	26 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-12.000M TR	Ecliptek	EB2532	MHz 晶体	12 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-12.288M TR	Ecliptek	EB2532	MHz 晶体	12.288 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-16.000M TR	Ecliptek	EB2532	MHz 晶体	16 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532YA12-12.000M TR	Ecliptek	EB2532	MHz 晶体	12 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-30.000M TR	Ecliptek	EB2532	MHz 晶体	30 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-32.000M TR	Ecliptek	EB2532	MHz 晶体	32 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-13.560M TR	Ecliptek	EB2532	MHz 晶体	13.56 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-24.576M TR	Ecliptek	EB2532	MHz 晶体	24.576 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-16.000M TR	Ecliptek	EB2532	MHz 晶体	16 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-24.000M TR	Ecliptek	EB2532	MHz 晶体	24 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532JA12-30.000M TR	Ecliptek	EB2532	MHz 晶体	30 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-18.432M TR	Ecliptek	EB2532	MHz 晶体	18.432 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532YA12-18.432M TR	Ecliptek	EB2532	MHz 晶体	18.432 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
