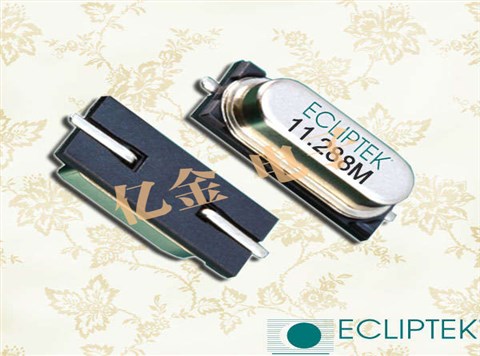

E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD

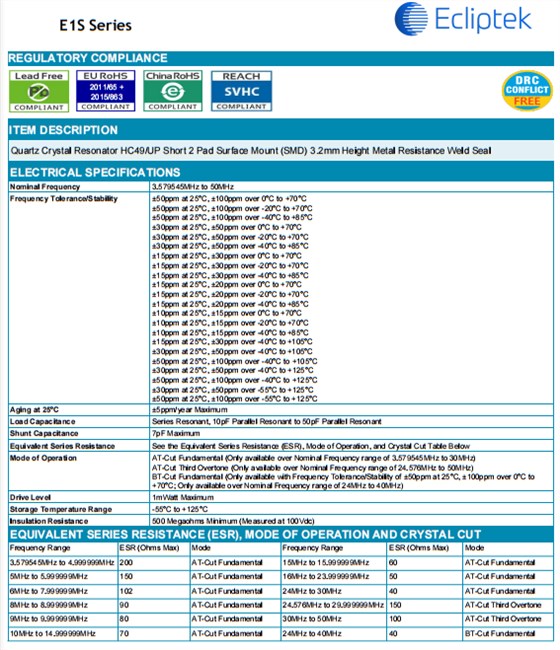

标称频率 | 3.579545MHz to 50MHz | ||||||
容许频率/稳定性 |
±50ppm at 25°C, ±100ppm over 0°C to +70°C ±50ppm at 25°C, ±100ppm over -20°C to +70°C ±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over 0°C to +70°C ±30ppm at 25°C, ±50ppm over -20°C to +70°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over 0°C to +70°C ±15ppm at 25°C, ±30ppm over -20°C to +70°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over 0°C to +70°C ±15ppm at 25°C, ±20ppm over -20°C to +70°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±15ppm over 0°C to +70°C ±10ppm at 25°C, ±15ppm over -20°C to +70°C ±10ppm at 25°C, ±15ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +105°C ±50ppm at 25°C, ±100ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +125°C ±50ppm at 25°C, ±100ppm over -40°C to +125°C ±30ppm at 25°C, ±50ppm over -55°C to +125°C ±50ppm at 25°C, ±100ppm over -55°C to +125°C |
||||||
老化 | ±5ppm/year Maximum | ||||||
负载电容 | Series Resonant, 10pF Parallel Resonant to 50pF Parallel Resonant | ||||||
并联电容 | 7pF Maximum | ||||||
等效串联电阻 | See the Equivalent Series Resistance (ESR), Mode of Operation, and Crystal Cut Table Below | ||||||
工作模式 |
AT-Cut Fundamental (Only available over Nominal Frequency range of 3.579545MHz to 30MHz) AT-Cut Third Overtone (Only available over Nominal Frequency range of 24.576MHz to 50MHz) BT-Cut Fundamental (Only available with Frequency Tolerance/Stability of ±50ppm at 25°C, ±100ppm over 0°C to +70°C; Only available over Nominal Frequency range of 24MHz to 40MHz) |
||||||
驱动电平 | 1mWatt Maximum | ||||||
储存温度 | -55°C to +125°C | ||||||
绝缘电阻 | 500 Megaohms Minimum (Measured at 100Vdc) |
E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD
Ecliptek原厂编码 | 生产商 | 系列 | 类型 | 频率 | 频率稳定性 | 频率容差 | 负载电容 |
E1SJA18-7.3728M TR | Ecliptek晶振 | E1S | MHz 晶体 | 7.3728 MHz | ±30ppm | ±15ppm | 18pF |
E1SCA18-8.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 8 MHz | ±100ppm | ±50ppm | 18pF |
E1SFA18-25.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 25 MHz | ±50ppm | ±30ppm | 18pF |
E1SJA18-4.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 4 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-25.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 25 MHz | ±30ppm | ±15ppm | 18pF |
E1SEA18-8.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 8 MHz | ±50ppm | ±30ppm | 18pF |
E1SDA12-25.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 25 MHz | ±50ppm | ±30ppm | 12pF |
E1SFA12-3.6864M TR | Ecliptek晶振 | E1S | MHz 晶体 | 3.6864 MHz | ±50ppm | ±30ppm | 12pF |
E1SJA18-6.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 6 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-18.432M TR | Ecliptek晶振 | E1S | MHz 晶体 | 18.432 MHz | ±30ppm | ±15ppm | 18pF |
E1SFA18-4.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 4 MHz | ±50ppm | ±30ppm | 18pF |
E1SJA18-14.31818M TR | Ecliptek晶振 | E1S | MHz 晶体 | 14.31818 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-6.144M TR | Ecliptek晶振 | E1S | MHz 晶体 | 6.144 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-28.63636M TR | Ecliptek晶振 | E1S | MHz 晶体 | 28.63636 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-13.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 13 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-19.6608M TR | Ecliptek晶振 | E1S | MHz 晶体 | 19.6608 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-9.8304M TR | Ecliptek晶振 | E1S | MHz 晶体 | 9.8304 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-18.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 18 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-20.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 20 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-14.7456M TR | Ecliptek晶振 | E1S | MHz 晶体 | 14.7456 MHz | ±30ppm | ±15ppm | 18pF |
E1SCA18-7.3728M TR | Ecliptek晶振 | E1S | MHz 晶体 | 7.3728 MHz | ±100ppm | ±50ppm | 18pF |
E1SEA18-16.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 16 MHz | ±50ppm | ±30ppm | 18pF |
E1SEA18-12.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 12 MHz | ±50ppm | ±30ppm | 18pF |
E1SJA18-10.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 10 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-12.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 12 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-11.0592M TR | Ecliptek晶振 | E1S | MHz 晶体 | 11.0592 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-8.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 8 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-16.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 16 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-3.579545M TR | Ecliptek晶振 | E1S | MHz 晶体 | 3.579545 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-4.194304M TR | Ecliptek晶振 | E1S | MHz 晶体 | 4.194304 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-16.9344M TR | Ecliptek晶振 | E1S | MHz 晶体 | 16.9344 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-5.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 5 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-13.500M TR | Ecliptek晶振 | E1S | MHz 晶体 | 13.5 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-9.216M TR | Ecliptek晶振 | E1S | MHz 晶体 | 9.216 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-12.288M TR | Ecliptek晶振 | E1S | MHz 晶体 | 12.288 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-4.500M TR | Ecliptek晶振 | E1S | MHz 晶体 | 4.5 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-15.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 15 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-4.433619M TR | Ecliptek晶振 | E1S | MHz 晶体 | 4.433619 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-16.384M TR | Ecliptek晶振 | E1S | MHz 晶体 | 16.384 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-6.7458M TR | Ecliptek晶振 | E1S | MHz 晶体 | 6.7458 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-15.360M TR | Ecliptek晶振 | E1S | MHz 晶体 | 15.36 MHz | ±30ppm | ±15ppm | 18pF |
E1SDA18-25.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 25 MHz | ±50ppm | ±30ppm | 18pF |
E1SJA18-4.9152M TR | Ecliptek晶振 | E1S | MHz 晶体 | 4.9152 MHz | ±30ppm | ±15ppm | 18pF |
E1SGA18-25.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 25 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-24.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 24 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-3.6864M TR | Ecliptek晶振 | E1S | MHz 晶体 | 3.6864 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-24.576M TR | Ecliptek晶振 | E1S | MHz 晶体 | 24.576 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-27.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 27 MHz | ±30ppm | ±15ppm | 18pF |
E1SEA18-24.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 24 MHz | ±50ppm | ±30ppm | 18pF |
E1SJA18-30.000M TR | Ecliptek晶振 | E1S | MHz 晶体 | 30 MHz | ±30ppm | ±15ppm | 18pF |
E1SJA18-10.240M TR | Ecliptek晶振 | E1S | MHz 晶体 | 10.24 MHz | ±30ppm | ±15ppm | 18pF |
