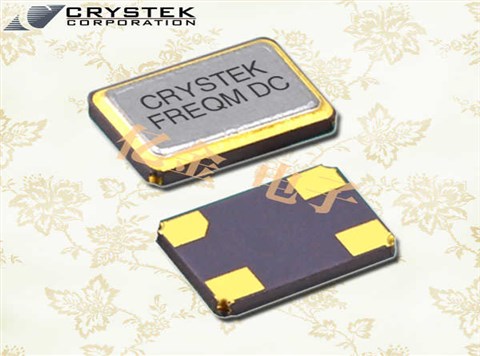

CSX2-AB-12-24.000晶振,进口Crystek晶体,遥遥领先的无人机晶振，Crystek贴片晶振本身体积小,超薄型石英晶体振荡器,特别适用于有目前高速发展的高端电子数码产品,因为晶振本身小型化需求的市场领域,小型,薄型是对应陶瓷振荡器(偏差大)和普通的石英晶体振荡器(偏差小)的中间领域的一种性价比较出色的产品.产品广泛用于笔记本电脑,无线电话,卫星导航SSD,USB,Blu-ray等用途,符合无铅焊接的高温回流焊曲线特性.美国Crystek晶振公司，无源晶振，贴片晶振，石英晶振， 四脚晶振，7050晶振，石英晶体振荡器，6G基站晶振，无人机晶振，6G路由器晶振，遥遥领先晶振，美国晶振，进口晶振，高精度晶振，高品质晶振，低损耗晶振
CSX2-AB-12-24.000晶振,进口Crystek晶体,遥遥领先的无人机晶振
| 频率范围 |
8.000 MHz to 50.000 MHz
40.000 MHz to 100.000MHz |
| 频率稳定度 | ±10ppm to ±50ppm |
| 频率容差 | ±15ppm to ±100ppm |
| 工作温度范围 | -20°C to 70°C |
| 储存温度范围 | -40°C to 85°C |
| 分流电容 | 5pF Max |
| 电阻 | See Table 1 |

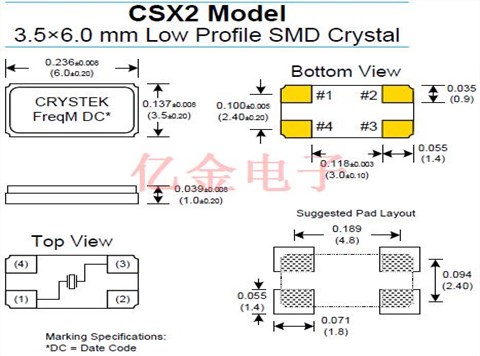

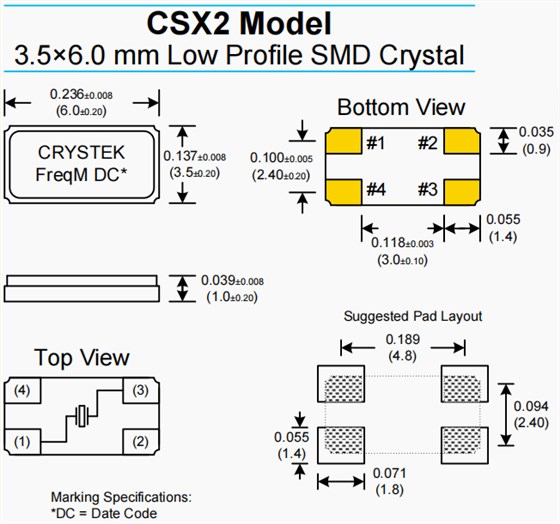

| 尺寸 | 3.5×6.0mm SMD |
| 老化 | ±3ppm |
| 驱动电平 | 50uW Typical, 300uW Max |
CSX2-AB-12-24.000晶振,进口Crystek晶体,遥遥领先的无人机晶振
| Crystek原厂编码 | 生产商品牌 | 型号 | 类型 | 频率 | 输出 | 电源电压 |
| CCLD-033-50-100.000 | Crystek | CCLD | XO | 100 MHz | LVDS | 3.3V |
| CCLD-033-50-125.000 | Crystek | CCLD | XO | 125 MHz | LVDS | 3.3V |
| CCLD-033-50-156.250 | Crystek | CCLD | XO | 156.25 MHz | LVDS | 3.3V |
| CVHD-037X-80 | Crystek | CVHD-037X | VCXO | 80 MHz | CMOS | 3.3V |
| CVHD-950X-122.880 | Crystek | CVHD-950 | VCXO | 122.88 MHz | CMOS | 3.3V |
| CVHD-950-122.880 | Crystek | CVHD-950 | VCXO | 122.88 MHz | CMOS | 3.3V |
| CVHD-037X-100 | Crystek | CVHD-037X | VCXO | 100 MHz | CMOS | 3.3V |
| CVHD-950-100.000 | Crystek | CVHD-950 | VCXO | 100 MHz | CMOS | 3.3V |
| CCHD-957-25-22.5792 | Crystek | CCHD-957 | XO | 22.5792 MHz | HCMOS | 3.3V |
| CCHD-957-25-24.576 | Crystek | CCHD-957 | XO | 24.576 MHz | HCMOS | 3.3V |
| CCHD-957-25-49.152 | Crystek | CCHD-957 | XO | 49.152 MHz | HCMOS | 3.3V |
| CCHD-957-25-45.1584 | Crystek | CCHD-957 | XO | 45.1584 MHz | HCMOS | 3.3V |
| CVSS-945-100.000 | Crystek | CVSS-945 | VCXO | 100 MHz | Sine Wave | 5V |
| CVSS-945X-100.000 | Crystek | CVSS-945 | VCXO | 100 MHz | Sine Wave | 5V |
| CVS575S-500.000 | Crystek | CVS575S | VCSO (SAW) | 500 MHz | Sine Wave | 3.3V |
| CVCSO-914-1000 | Crystek | CVCSO | VCSO (SAW) | 1 GHz | Sine Wave | 5V |
| CCHD-575-25-24.576 | Crystek | CCHD-575 | XO | 24.576 MHz | HCMOS | 3.3V |
| CCPD-034-50-200.000 | Crystek | CCPD-034 | XO | 200 MHz | LVPECL | 3.3V |
| CVHD-950-80.000 | Crystek | CVHD-950 | VCXO | 80 MHz | CMOS | 3.3V |
| CVSS-945-125.000 | Crystek | CVSS-945 | VCXO | 125 MHz | Sine Wave | 5V |
| CCSO-914X-250.000 | Crystek | CCSO | SO (SAW) | 250 MHz | Sine Wave | 5V |
| C3391-4.096 | Crystek | C33 | XO | 4.096 MHz | HCMOS | 3.3V |
| CCPD-033-50-156.250 | Crystek | CCPD-033 | XO | 156.25 MHz | LVPECL | 3.3V |
| CCPD-033-50-161.1328 | Crystek | CCPD-033 | XO | 161.1328 MHz | LVPECL | 3.3V |
| CCHD-575-25-22.5792 | Crystek | CCHD-575 | XO | 22.5792 MHz | HCMOS | 3.3V |
| CVHD-037X-122.88 | Crystek | CVHD-037X | VCXO | 122.88 MHz | CMOS | 3.3V |
| CVPD-037X-153.6 | Crystek | CVPD-037X | VCXO | 153.6 MHz | LVPECL | 3.3V |
| CVHD-950-125.000 | Crystek | CVHD-950 | VCXO | 125 MHz | CMOS | 3.3V |
| CCSO-914X-1000.000 | Crystek | CCSO | SO (SAW) | 1 GHz | Sine Wave | 5V |
| 601188 | Crystek | - | XO | 49.152 MHz | HCMOS | 1.8V |
| CCPD-033-50-100.000 | Crystek | CCPD-033 | XO | 100 MHz | LVPECL | 3.3V |
| CCPD-033-50-106.250 | Crystek | CCPD-033 | XO | 106.25 MHz | LVPECL | 3.3V |
| CCPD-033-50-77.760 | Crystek | CCPD-033 | XO | 77.76 MHz | LVPECL | 3.3V |
| 601252 | Crystek | - | - | 98.304 MHz | - | 1.8V |
| CVHD-950-50.000 | Crystek | CVHD-950 | VCXO | 50 MHz | CMOS | 3.3V |
| CCPD-575X-20-100.000 | Crystek | CCPD-575 | XO | 100 MHz | LVPECL | 3.3V |
| CCHD-575-50-80.000 | Crystek | CCHD-575 | XO | 80 MHz | HCMOS | 3.3V |
| CCHD-950-50-100.000 | Crystek | CCHD-950 | XO | 100 MHz | HCMOS | 3.3V |
| CVSS-945-122.880 | Crystek | CVSS-945 | VCXO | 122.88 MHz | Sine Wave | 5V |
| CCSO-914X3-1000 | Crystek | CCSO | SO (SAW) | 1 GHz | Sine Wave | 3.3V |
| CXOH20-BP-10.000 | Crystek | CXOH20 | TCXO | 10 MHz | HCMOS | 5V |
| CCHD-575-50-125.000 | Crystek | CCHD-575 | XO | 125 MHz | HCMOS | 3.3V |
| CVSS-945-80.000 | Crystek | CVSS-945 | VCXO | 80 MHz | Sine Wave | 5V |
| CCPD-575X-20-125.000 | Crystek | CCPD-575 | XO | 125 MHz | LVPECL | 3.3V |
| RFPRO33-1000.000 | Crystek | RFPRO | SO (SAW) | 1 GHz | Sine Wave | 3.3V |
| CPROBS5-0100 | Crystek | PRO | XO | 100 MHz | Sine Wave | 5V |
| CCHD-950-50-49.152 | Crystek | CCHD-950 | XO | 49.152 MHz | HCMOS | 3.3V |
| CCHD-950-50-80.000 | Crystek | CCHD-950 | XO | 80 MHz | HCMOS | 3.3V |
| CE3391-19.440 | Crystek | C33 | XO | 19.44 MHz | HCMOS | 3.3V |
| C3291-2.048 | Crystek | C3291 | XO | 2.048 MHz | HCMOS, TTL | 5V |
| 601251 | Crystek | - | - | 98.304 MHz | - | 1.8V |
| CVHD-950X-100 | Crystek | CVHD-950 | VCXO | 100 MHz | CMOS | 3.3V |
| CCHD-575-50-100.000 | Crystek | CCHD-575 | XO | 100 MHz | HCMOS | 3.3V |
| CVHD-037X-125 | Crystek | CVHD-037X | VCXO | 125 MHz | CMOS | 3.3V |
| 603281 | Crystek | - | VCXO | 122.88 MHz | - | - |
| CVS575-500.000 | Crystek | CVS575 | VCSO (SAW) | 500 MHz | LVPECL | 3.3V |
| 601107 | Crystek | - | - | 98.304 MHz | - | 3.3V |
| CCPD-575X-50-100.000 | Crystek | CCPD-575 | XO | 100 MHz | LVPECL | 3.3V |
| CCPD-575X-20-80.000 | Crystek | CCPD-575 | XO | 80 MHz | LVPECL | 3.3V |
