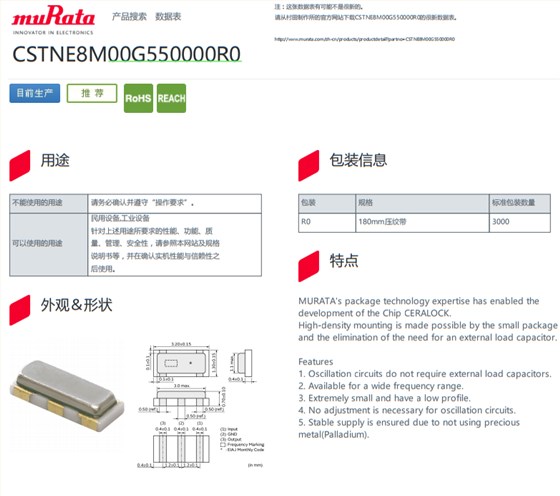

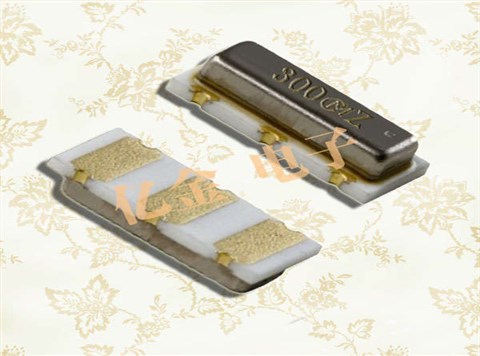

CSTNE8M00G550000R0|3.2*1.3|8M|33PF|-40℃~85℃,日本muRata陶瓷谐振器,MURATA的封装技术专长使芯片陶瓷机的发展成为可能。高密度安装是可能的小包装和消除需要一个外部负载电容器。功能1。振荡电路不需要外部负载电容器。 2.可用于一个较宽的频率范围。 3.非常小,很低调。 4.对振荡电路不需要进行调整。 5.由于不使用贵金属(钯),确保稳定供应。
CSTNE8M00G550000R0|3.2*1.3|8M|33PF|-40℃~85℃

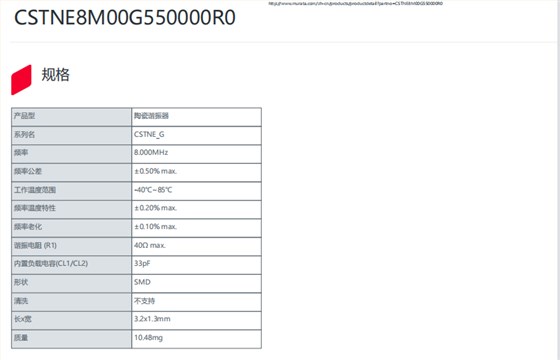

产品型
陶瓷谐振器
系列名
CSTNE_G
频率
8.000MHz
频率公差
±0.50% max.
工作温度范围
-40℃~85℃
频率温度特性
±0.20% max.
频率老化
±0.10% max.
谐振电阻 (R1)
40Ω max.
内置负载电容(CL1/CL2)
33pF
形状
SMD
清洗
不支持

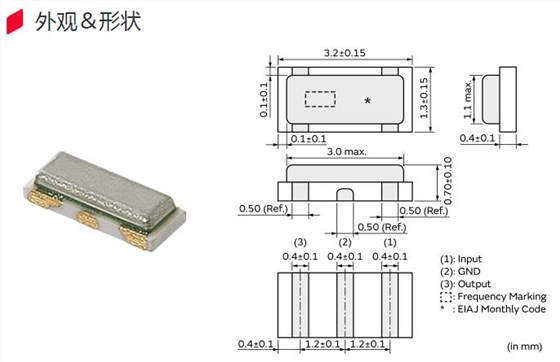

长x宽
3.2x1.3mm
质量
10.48mg
型号 | 长x宽 | 高 | 频率 | 频率公差(at 25℃) | 内置负载电容(CL1/CL2) | 工作温度范围 |
CSTCR4M00G53-R0 | 4.5x2.0mm | 1.2mm | 4.000MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR4M00G53093-R0 | 4.5x2.0mm | 1.2mm | 4.000MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR4M00G53U-R0 | 4.5x2.0mm | 1.2mm | 4.000MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR4M00G53Z-R0 | 4.5x2.0mm | 1.2mm | 4.000MHz | ±0.50% | 15pF | -40℃to 125℃ |
CSTCR4M00G55-R0 | 4.5x2.0mm | 1.2mm | 4.000MHz | ±0.50% | 39pF | -20℃to 80℃ |
CSTCR4M00G55B-R0 | 4.5x2.0mm | 1.2mm | 4.000MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR4M00G55B95-R0 | 4.5x2.0mm | 1.2mm | 4.000MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR4M00G55Z-R0 | 4.5x2.0mm | 1.2mm | 4.000MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR4M09G53-R0 | 4.5x2.0mm | 1.2mm | 4.096MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR4M09G55-R0 | 4.5x2.0mm | 1.2mm | 4.096MHz | ±0.50% | 39pF | -20℃to 80℃ |
CSTCR4M09G55B-R0 | 4.5x2.0mm | 1.2mm | 4.096MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR4M09G55Z-R0 | 4.5x2.0mm | 1.2mm | 4.096MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR4M16G55001-R0 | 4.5x2.0mm | 1.2mm | 4.166MHz | ±0.50% | 39pF | -20℃to 80℃ |
CSTCR4M19G53-R0 | 4.5x2.0mm | 1.2mm | 4.194MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR4M19G55-R0 | 4.5x2.0mm | 1.2mm | 4.194MHz | ±0.50% | 39pF | -20℃to 80℃ |
CSTCR4M19G55B-R0 | 4.5x2.0mm | 1.2mm | 4.194MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR4M19G55Z-R0 | 4.5x2.0mm | 1.2mm | 4.194MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR4M20G53-R0 | 4.5x2.0mm | 1.2mm | 4.200MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR4M20G55-R0 | 4.5x2.0mm | 1.2mm | 4.200MHz | ±0.50% | 39pF | -20℃to 80℃ |
CSTCR4M20G55B-R0 | 4.5x2.0mm | 1.2mm | 4.200MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR4M20G55Z-R0 | 4.5x2.0mm | 1.2mm | 4.200MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR4M25G53-R0 | 4.5x2.0mm | 1.2mm | 4.258MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR4M50G53093-R0 | 4.5x2.0mm | 1.2mm | 4.500MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR4M50G55-R0 | 4.5x2.0mm | 1.2mm | 4.500MHz | ±0.50% | 39pF | -20℃to 80℃ |
CSTCR4M91G53-R0 | 4.5x2.0mm | 1.2mm | 4.915MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR4M91G53Z-R0 | 4.5x2.0mm | 1.2mm | 4.915MHz | ±0.50% | 15pF | -40℃to 125℃ |
CSTCR4M91G55-R0 | 4.5x2.0mm | 1.2mm | 4.915MHz | ±0.50% | 39pF | -20℃to 80℃ |
CSTCR4M91G55B-R0 | 4.5x2.0mm | 1.2mm | 4.915MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR4M91G55Z-R0 | 4.5x2.0mm | 1.2mm | 4.915MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR5M00G53-R0 | 4.5x2.0mm | 1.2mm | 5.000MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR5M00G53Z-R0 | 4.5x2.0mm | 1.2mm | 5.000MHz | ±0.50% | 15pF | -40℃to 125℃ |
CSTCR5M00G55-R0 | 4.5x2.0mm | 1.2mm | 5.000MHz | ±0.50% | 39pF | -20℃to 80℃ |
CSTCR5M00G55B-R0 | 4.5x2.0mm | 1.2mm | 5.000MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR5M00G55Z-R0 | 4.5x2.0mm | 1.2mm | 5.000MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR6M00G53-R0 | 4.5x2.0mm | 1.2mm | 6.000MHz | ±0.50% | 15pF | -20℃to 80℃ |
CSTCR6M00G53Z-R0 | 4.5x2.0mm | 1.2mm | 6.000MHz | ±0.50% | 15pF | -40℃to 125℃ |
CSTCR6M00G55-R0 | 4.5x2.0mm | 1.2mm | 6.000MHz | ±0.50% | 39pF | -20℃to 80℃ |
CSTCR6M00G55B-R0 | 4.5x2.0mm | 1.2mm | 6.000MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR6M00G55Z-R0 | 4.5x2.0mm | 1.2mm | 6.000MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR6M14G55B-R0 | 4.5x2.0mm | 1.2mm | 6.144MHz | ±0.50% | 39pF | -40℃to 125℃ |
CSTCR6M25G55-R0 | 4.5x2.0mm | 1.2mm | 6.250MHz | ±0.50% | 39pF | -20℃to 80℃ |
CSTCR6M29G53-R0 | 4.5x2.0mm | 1.2mm | 6.290MHz | ±0.50% | 15pF | -20℃to 80℃ |
