CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM

CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPMCSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM

产品简介

CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM,美国Cardinal晶振公司,外形尺寸12.9x4.7x4.3mm晶振,CSM1Z-A2B2C3-40-30.0D18两脚贴片晶振,石英贴片晶振贴片晶振,石英晶振,无源晶振,石英晶体谐振器,49SMD晶振,进口晶振,CSM1Z-A0B2C3-50-22.1184D18晶振,监控摄像头模块晶振,欧美进口晶振,高品质晶振,导航仪晶振,

产品详情

SITIME-2

yijin-1

CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM,美国Cardinal晶振公司,外形尺寸12.9x4.7x4.3mm晶振,CSM1Z-A2B2C3-40-30.0D18两脚贴片晶振,石英贴片晶振贴片晶振,石英晶振,无源晶振,石英晶体谐振器,49SMD晶振,进口晶振,CSM1Z-A0B2C3-50-22.1184D18晶振,监控摄像头模块晶振,欧美进口晶振,高品质晶振,导航仪晶振,

yijin-2

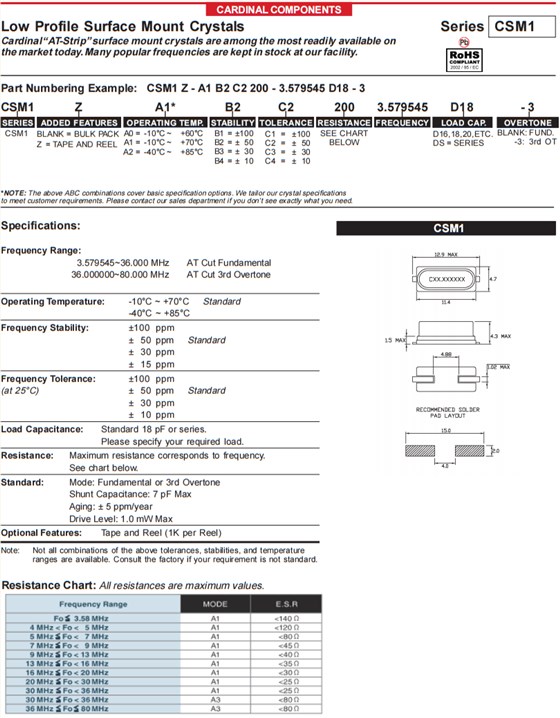

CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM

OperatingTemperature: - 10°C ~ +70°C
-40°C ~ +85°C
Standard
FrequencyStability: ±100 ppm
±50 ppmStandard
±30 ppm
±15 ppm
FrequencyTolerance: ±100 ppm
(at25°C) ±50 ppmStandard
±30 ppm
±10 ppm
Load Capacitance: Standard 18 pF or series.
Please specify your required
load.
Resistance: Maximum resistance corresponds to frequency.
See chart below.
Standard: Mode: Fundamental or 3rd Overtone
Shunt Capacitance: 7 pF Max
Aging: ± 5 ppm/year
Drive Level: 1.0 mW Max
OptionalFeatures:Tape and Reel (1K per Reel)

yijin-3

CSM1Z-A0B2C3-50-22.1184D18 49SMD 22.1184MHz 18PF 50PPM

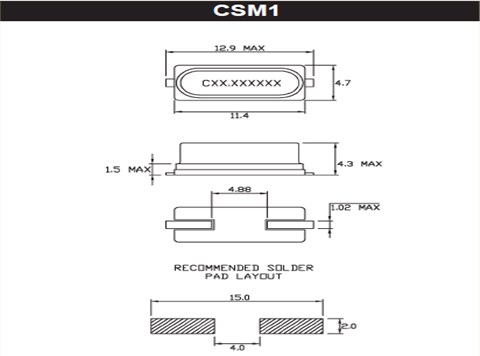

csm1 49SMD

csm1

石英晶体谐振器 品牌 型号 频率
CSM1Z-A5B2C3-40-14.31818D18 Cardinal Crystal CSM1 MHz Crystal 14.31818MHz
CSM1Z-A5B2C5-60-24.0D18 Cardinal Crystal CSM1 MHz Crystal 24MHz
CSM1Z-A2B2C3-40-30.0D18 Cardinal Crystal CSM1 MHz Crystal 30MHz
CSM1Z-A0B2C3-50-22.1184D18 Cardinal Crystal CSM1 MHz Crystal 22.1184MHz
CSM1Z-A0B2C3-100-5.0D18 Cardinal Crystal CSM1 MHz Crystal 5MHz
CSM1Z-A5B2C5-40-14.7456D18 Cardinal Crystal CSM1 MHz Crystal 14.7456MHz
CSM1Z-A5B2C3-40-25.0D18-F Cardinal Crystal CSM1 MHz Crystal 25MHz
CSM1Z-A0B2C3-50-16.0D18 Cardinal Crystal CSM1 MHz Crystal 16MHz
CSM1Z-A5B2C5-50-20.0D18 Cardinal Crystal CSM1 MHz Crystal 20MHz
CSM1Z-A1B2C3-90-8.0D18 Cardinal Crystal CSM1 MHz Crystal 8MHz
CSM1Z-A5B2C5-40-11.0592D18 Cardinal Crystal CSM1 MHz Crystal 11.0592MHz
CSM1Z-A0B2C3-50-15.360D18 Cardinal Crystal CSM1 MHz Crystal 15.36MHz
CSM1Z-A0B2C3-50-19.6608D18 Cardinal Crystal CSM1 MHz Crystal 19.6608MHz
CSM1Z-A5B2C3-40-14.7456D20 Cardinal Crystal CSM1 MHz Crystal 14.7456MHz
CSM1Z-A0B2C3-80-13.5D18 Cardinal Crystal CSM1 MHz Crystal 13.5MHz
CSM1Z-A0B2C3-50-16.257D18 Cardinal Crystal CSM1 MHz Crystal 16.257MHz
CSM1Z-A5B2C3-40-24.576D18 Cardinal Crystal CSM1 MHz Crystal 24.576MHz
CSM1Z-A0B2C3-50-16.000312D18 Cardinal Crystal CSM1 MHz Crystal 16.000312MHz
CSM1Z-A0B2C3-50-18.0D18 Cardinal Crystal CSM1 MHz Crystal 18MHz
CSM1Z-A0B2C3-200-3.6864D18 Cardinal Crystal CSM1 MHz Crystal 3.6864MHz
CSM1Z-A5B2C3-200-3.6864D18 Cardinal Crystal CSM1 MHz Crystal 3.6864MHz
CSM1Z-A0B2C3-150-4.9152D18 Cardinal Crystal CSM1 MHz Crystal 4.915MHz
CSM1Z-A0B2C3-40-25.0D18 Cardinal Crystal CSM1 MHz Crystal 25MHz
CSM1Z-A5B2C5-70-10.0D18 Cardinal Crystal CSM1 MHz Crystal 10MHz
CSM1Z-A0B2C3-50-25.175D18 Cardinal Crystal CSM1 MHz Crystal 25.175MHz
CSM1Z-A5B2C3-120-6.144D18 Cardinal Crystal CSM1 MHz Crystal 6.144MHz
CSM1-A1B2C3-50-20.0D16 Cardinal Crystal CSM1 MHz Crystal 20MHz
CSM1Z-A5B2C5-150-3.6864D18 Cardinal Crystal CSM1 MHz Crystal 3.6864MHz
