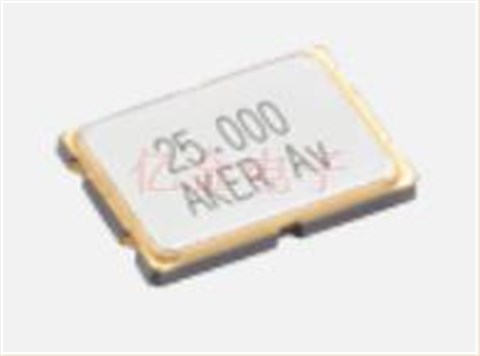

AKER,C7S-8.000-18-1030-X-R,8.0000MHz,18PF,10PPM,7050,台湾AKER晶振,台湾晶振,高品质晶振,AKER晶振,C7S晶振,C7S-8.000-18-1030-X-R晶振,7050晶振,微处理器晶振,四脚晶振,贴片晶振,无源晶振,高品质晶振,电脑主板晶振,家用电视机顶盒晶振微处理器晶体,单元低轮廓,7.0 x 5.0毫米表面安装,-4垫通用产品规格,系列名称:C7S系列。
AKER,C7S-8.000-18-1030-X-R,8.0000MHz,18PF,10PPM,7050

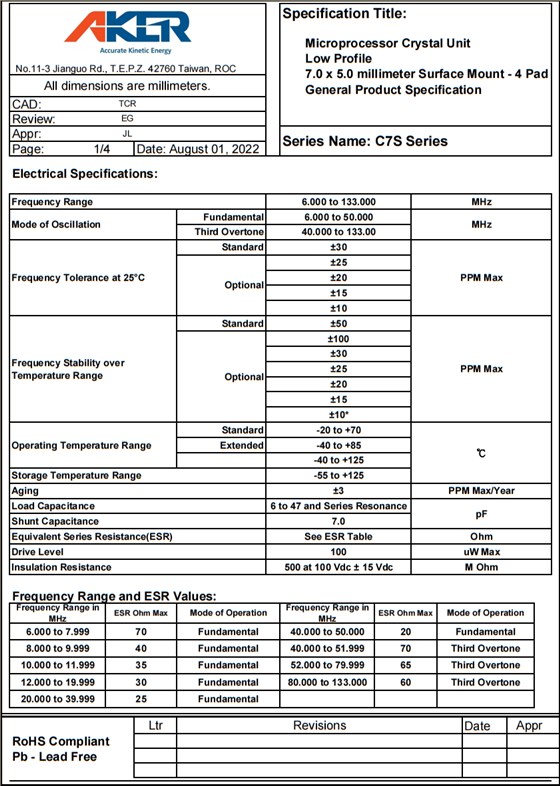

频率范围 | 6.000 to 133.000 | MHz | |||||||||||||||||||||||||
工作模式 | Fundamental | 6.000 to 52.000 | MHz | ||||||||||||||||||||||||
Third Overtone | 40.000 to 133.00 | MHz | |||||||||||||||||||||||||
频率容差at25°C | Standard | ±30 | PPMMax(Note1) | ||||||||||||||||||||||||
Optional | ±25 | ||||||||||||||||||||||||||
±20 | |||||||||||||||||||||||||||
±15 | |||||||||||||||||||||||||||
±10 | |||||||||||||||||||||||||||
在温度范围内的频率稳定 | Standard | ±50 | PPMMax(Note1) | ||||||||||||||||||||||||
Optional | ±100 | ||||||||||||||||||||||||||
±30 | |||||||||||||||||||||||||||
±25 | |||||||||||||||||||||||||||
±20 | |||||||||||||||||||||||||||
±15 | |||||||||||||||||||||||||||
±10* | |||||||||||||||||||||||||||
工作温度范围 | Standard | -20to+70 | ℃ | ||||||||||||||||||||||||
Extended | -40to+85 | ||||||||||||||||||||||||||
-40to+125 | |||||||||||||||||||||||||||
储存温度范围 | -55to+125 | ||||||||||||||||||||||||||
老化 | ±3 | PPMMax/Year | |||||||||||||||||||||||||
负载电容 | 6to47andSeriesResonance | pF | |||||||||||||||||||||||||
并联电容 | 7.0 | ||||||||||||||||||||||||||
等效串联电阻(ESR) | SeeESRTable | Ohm | |||||||||||||||||||||||||
驱动电平 | 100 | uWMax | |||||||||||||||||||||||||
绝缘电阻 | 500at100Vdc±15Vdc |
MOhm |
AKER,C7S-8.000-18-1030-X-R,8.0000MHz,18PF,10PPM,7050
AKER制造商零件编号 | 供应商 | 系列 | 频率 | 频率稳定性 | 频率容差 | 负载电容 |
C16-32.000-8-1515-X-R | Aker晶振 | C16 | 32 MHz | ±15ppm | ±15ppm | 8pF |
C1E-96.000-8-1216-X2-R | Aker晶振 | - | 96 MHz | ±16ppm | ±12ppm | 8pF |
C2E-25.000-10-3030-X-M | Aker晶振 | C2E | 25 MHz | ±30ppm | ±30ppm | 10pF |
C1E-25.000-20-2030-R | Aker晶振 | C1E | 25 MHz | ±30ppm | ±20ppm | 20pF |
C16-32.000-8-3030-X-R | Aker晶振 | C16 | 32 MHz | ±30ppm | ±30ppm | 8pF |
C2E-16.000-8-1530-X-R | Aker晶振 | C2E | 16 MHz | ±30ppm | ±15ppm | 8pF |
C1E-32.000-8-1515-R | Aker晶振 | C1E | 32 MHz | ±15ppm | ±15ppm | 8pF |
C2E-24.000-10-1010-R | Aker晶振 | C2E | 24 MHz | ±10ppm | ±10ppm | 10pF |
C1E-24.000-10-1010-R | Aker晶振 | C1E | 24 MHz | ±10ppm | ±10ppm | 10pF |
C2E-25.000-10-3030-X-R | Aker晶振 | C2E | 25 MHz | ±30ppm | ±30ppm | 10pF |
C5S-8.000-18-3030-R | Aker晶振 | C5S | 8 MHz | ±30ppm | ±30ppm | 18pF |
C2E-16.000-10-1010-R | Aker晶振 | C2E | 16 MHz | ±10ppm | ±10ppm | 10pF |
C16-26.000-8-1520-R | Aker晶振 | C16 | 26 MHz | ±20ppm | ±15ppm | 8pF |
C1E-32.000-10-1015-X-R | Aker晶振 | C1E | 32 MHz | ±15ppm | ±10ppm | 10pF |
C1E-24.000-10-1015-M | Aker晶振 | C1E | 24 MHz | ±15ppm | ±10ppm | 10pF |
C1E-32.000-8-1015-X-R | Aker晶振 | C1E | 32 MHz | ±15ppm | ±10ppm | 8pF |
C1E-24.000-10-1015-R | Aker晶振 | C1E | 24 MHz | ±15ppm | ±10ppm | 10pF |
C2E-16.000-12-3030-X-R | Aker晶振 | C2E | 16 MHz | ±30ppm | ±30ppm | 12pF |
C7S-8.000-18-1020-R | Aker晶振 | C7S | 8 MHz | ±20ppm | ±10ppm | 18pF |
C5S-12.000-18-1020-R | Aker晶振 | C5S | 12 MHz | ±20ppm | ±10ppm | 18pF |
C3E-20.000-8-3050-X1-R | Aker晶振 | C3E X1 | 20 MHz | ±50ppm | ±30ppm | 8pF |
C3E-20.000-10-3050-X1-R | Aker晶振 | C3E X1 | 20 MHz | ±50ppm | ±30ppm | 10pF |
C3E-16.000-10-2050-X1-R | Aker晶振 | C3E X1 | 10 MHz | ±50ppm | ±20ppm | 10pF |
C3E-12.000-8-2050-X1-R | Aker晶振 | C3E X1 | 12 MHz | ±50ppm | ±20ppm | 8pF |
C2E-12.000-10-2050-X1-R | Aker晶振 | C2E X1 | 12 MHz | ±50ppm | ±20ppm | 10pF |
C2E-12.000-8-2050-X1-R | Aker晶振 | C2E X1 | 12 MHz | ±50ppm | ±20ppm | 8pF |
C3E-16.000-10-3050-X1-R | Aker晶振 | C3E X1 | 16 MHz | ±50ppm | ±30ppm | 10pF |
C2E-20.000-10-2050-X1-R | Aker晶振 | C2E X1 | 20 MHz | ±50ppm | ±20ppm | 10pF |
C3E-30.000-8-2050-X1-R | Aker晶振 | C3E X1 | 8 MHz | ±50ppm | ±20ppm | 8pF |
C3E-16.000-8-2050-X1-R | Aker晶振 | C3E X1 | 16 MHz | ±50ppm | ±20ppm | 8pF |
C7S-8.000-18-1030-X-R | Aker晶振 | C7S | 8 MHz | ±30ppm | ±10ppm | 18pF |
C2E-12.000-18-1020-X-R | Aker晶振 | C2E | 12 MHz | ±20ppm | ±10ppm | 18pF |
C2E-12.000-18-1020-R | Aker晶振 | C2E | 12 MHz | ±20ppm | ±10ppm | 18pF |
C2E-19.200-13-2030-X-R | Aker晶振 | C2E | 19.2 MHz | ±30ppm | ±20ppm | 13pF |
