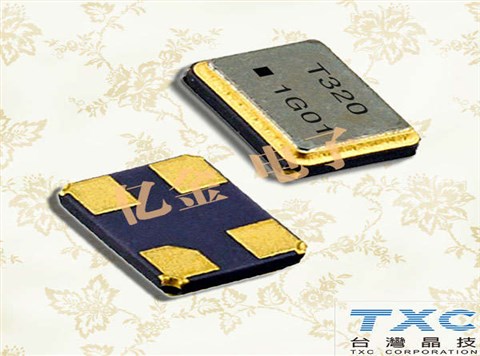

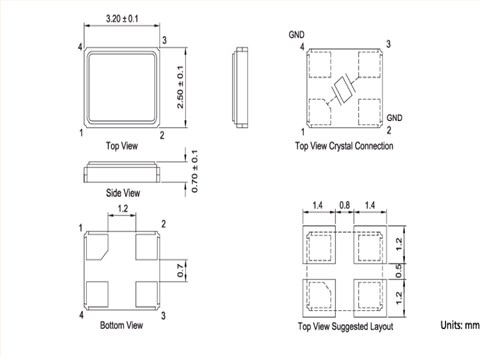

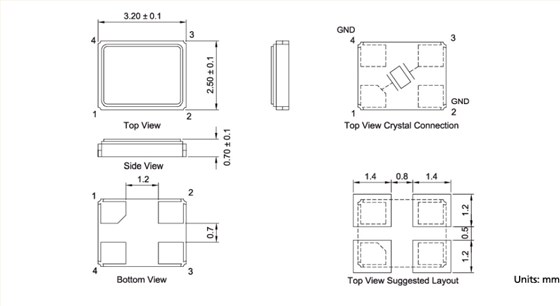

7M-26.000MAAJ-T 26M 3225 30PPM -20~70℃ TXC,台湾石英晶振,特点频率范围: 10MHz至114MHz陶瓷SMD封装,封缝密封外部尺寸 (mm) L: 3.2x宽: 2.5xH: 0.7,ROHS兼容目无铅。应用程序,蓝牙,无线局域网手机,寻呼机,DSC显示器,电视电脑外设消费品。
7M-26.000MAAJ-T 26M 3225 30PPM -20~70℃ TXC

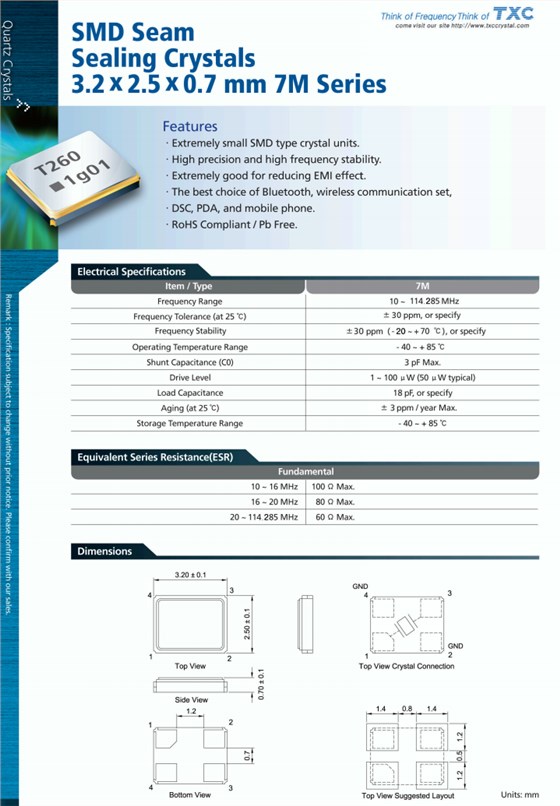

项目 | 7M | 环境 | |
频率 | F0 | 10MHz ~ 1 14MHz | |
频率容差 | Ftol | ±30ppm , ±20ppm , ± 10ppm | at 25°C |
工作温度下的频率偏差度 | Fstab | ±30 ppm | -20°C ~ +70°C |
±20 ppm | |||
± 10 ppm | |||
± 10 ppm | -30°C ~ +85°C | ||
±30 ppm | -40°C ~ +85°C | ||
±20 ppm | |||
± 15 ppm | |||
±60 ppm | -40°C ~ + 125°C | ||
工作温度范围 | TOTR | -20°C ~ +70°C | |
-40°C ~ +85°C | |||
-40°C ~ + 125°C | |||
并联电容 | C0 | 3pF Max. | |
驱动电平 | DL | 1 ~ 200μW ( 100μW Typ.) | |
负载电容 | CL |
6pF, 8pF, 9pF, 10pF 12pF, 16pF, 18pF, 20pF |
|
老化 | Faging | ±3ppm Max. | |
储存温度 | TSTR | -55°C ~ + 125°C |
7M-26.000MAAJ-T 26M 3225 30PPM -20~70℃ TXC
TXC原厂编码 | 生产厂家 | 型号 | 频率 | 工作温度 | 频率稳定度 |
7M-24.000MAAJ-T | TXC Crystal | 7M | 24MHz | -20°C ~ 70°C | ±30ppm |
7M-24.000MAAJ-T | TXC Crystal | 7M | 24MHz | -20°C ~ 70°C | ±30ppm |
7M-24.000MAAJ-T | TXC Crystal | 7M | 24MHz | -20°C ~ 70°C | ±30ppm |
7M-25.000MAAJ-T | TXC Crystal | 7M | 25MHz | -20°C ~ 70°C | ±30ppm |
7M-25.000MAAJ-T | TXC Crystal | 7M | 25MHz | -20°C ~ 70°C | ±30ppm |
7M-25.000MAAJ-T | TXC Crystal | 7M | 25MHz | -20°C ~ 70°C | ±30ppm |
7M-12.000MAAJ-T | TXC Crystal | 7M | 12MHz | -20°C ~ 70°C | ±30ppm |
7M-12.000MAAJ-T | TXC Crystal | 7M | 12MHz | -20°C ~ 70°C | ±30ppm |
7M-12.000MAAJ-T | TXC Crystal | 7M | 12MHz | -20°C ~ 70°C | ±30ppm |
7M-20.000MAAJ-T | TXC Crystal | 7M | 20MHz | -20°C ~ 70°C | ±30ppm |
7M-20.000MAAJ-T | TXC Crystal | 7M | 20MHz | -20°C ~ 70°C | ±30ppm |
7M-20.000MAAJ-T | TXC Crystal | 7M | 20MHz | -20°C ~ 70°C | ±30ppm |
7M-16.000MAAJ-T | TXC Crystal | 7M | 16MHz | -20°C ~ 70°C | ±30ppm |
7M-16.000MAAJ-T | TXC Crystal | 7M | 16MHz | -20°C ~ 70°C | ±30ppm |
7M-16.000MAAJ-T | TXC Crystal | 7M | 16MHz | -20°C ~ 70°C | ±30ppm |
7M-27.120MAAJ-T | TXC Crystal | 7M | 27.12MHz | -20°C ~ 70°C | ±30ppm |
7M-27.120MAAJ-T | TXC Crystal | 7M | 27.12MHz | -20°C ~ 70°C | ±30ppm |
7M-27.120MAAJ-T | TXC Crystal | 7M | 27.12MHz | -20°C ~ 70°C | ±30ppm |
7M-27.120MAHE-T | TXC Crystal | 7M | 27.12MHz | -40°C ~ 85°C | ±30ppm |
7M-27.120MAHE-T | TXC Crystal | 7M | 27.12MHz | -40°C ~ 85°C | ±30ppm |
7M-27.120MAHE-T | TXC Crystal | 7M | 27.12MHz | -40°C ~ 85°C | ±30ppm |
7M-26.000MAAJ-T | TXC Crystal | 7M | 26MHz | -20°C ~ 70°C | ±30ppm |
7M-26.000MAAJ-T | TXC Crystal | 7M | 26MHz | -20°C ~ 70°C | ±30ppm |
7M-26.000MAAJ-T | TXC Crystal | 7M | 26MHz | -20°C ~ 70°C | ±30ppm |
7M-12.000MAHE-T | TXC Crystal | 7M | 12MHz | -40°C ~ 85°C | ±30ppm |
7M-12.000MAHE-T | TXC Crystal | 7M | 12MHz | -40°C ~ 85°C | ±30ppm |
7M-12.000MAHE-T | TXC Crystal | 7M | 12MHz | -40°C ~ 85°C | ±30ppm |
7M-32.000MAHE-T | TXC Crystal | 7M | 32MHz | -40°C ~ 85°C | ±30ppm |
7M-32.000MAHE-T | TXC Crystal | 7M | 32MHz | -40°C ~ 85°C | ±30ppm |
7M-32.000MAHE-T | TXC Crystal | 7M | 32MHz | -40°C ~ 85°C | ±30ppm |
7M-50.000MAAJ-T | TXC Crystal | 7M | 50MHz | -20°C ~ 70°C | ±30ppm |
7M-50.000MAAJ-T | TXC Crystal | 7M | 50MHz | -20°C ~ 70°C | ±30ppm |
7M-50.000MAAJ-T | TXC Crystal | 7M | 50MHz | -20°C ~ 70°C | ±30ppm |
7M-27.120MEEQ-T | TXC Crystal | 7M | 27.12MHz | -20°C ~ 70°C | ±10ppm |
7M-27.120MEEQ-T | TXC Crystal | 7M | 27.12MHz | -20°C ~ 70°C | ±10ppm |
7M-27.120MEEQ-T | TXC Crystal | 7M | 27.12MHz | -20°C ~ 70°C | ±10ppm |
7M-16.000MEEQ-T | TXC Crystal | 7M | 16MHz | -20°C ~ 70°C | ±10ppm |
7M-16.000MEEQ-T | TXC Crystal | 7M | 16MHz | -20°C ~ 70°C | ±10ppm |
7M-16.000MEEQ-T | TXC Crystal | 7M | 16MHz | -20°C ~ 70°C | ±10ppm |
7M-27.000MEEQ-T | TXC Crystal | 7M | 27MHz | -20°C ~ 70°C | ±10ppm |
7M-27.000MEEQ-T | TXC Crystal | 7M | 27MHz | -20°C ~ 70°C | ±10ppm |
7M-27.000MEEQ-T | TXC Crystal | 7M | 27MHz | -20°C ~ 70°C | ±10ppm |
7M-12.000MEEQ-T | TXC Crystal | 7M | 12MHz | -20°C ~ 70°C | ±10ppm |
7M-12.000MEEQ-T | TXC Crystal | 7M | 12MHz | -20°C ~ 70°C | ±10ppm |
7M-12.000MEEQ-T | TXC Crystal | 7M | 12MHz | -20°C ~ 70°C | ±10ppm |
7M-25.000MEEQ-T | TXC Crystal | 7M | 25MHz | -20°C ~ 70°C | ±10ppm |
7M-25.000MEEQ-T | TXC Crystal | 7M | 25MHz | -20°C ~ 70°C | ±10ppm |
7M-25.000MEEQ-T | TXC Crystal | 7M | 25MHz | -20°C ~ 70°C | ±10ppm |
7M-30.000MEEQ-T | TXC Crystal | 7M | 30MHz | -20°C ~ 70°C | ±10ppm |
