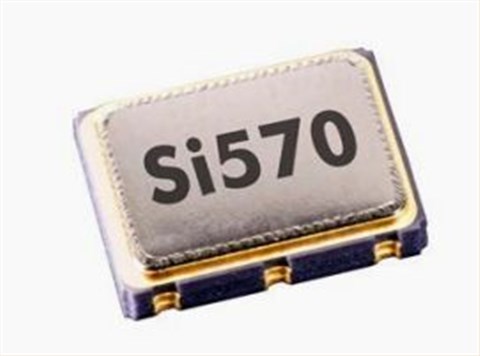

遥遥领先的570WCB000118DG晶振,6G型号接受器晶振,Skyworks六脚晶振

yijin-1

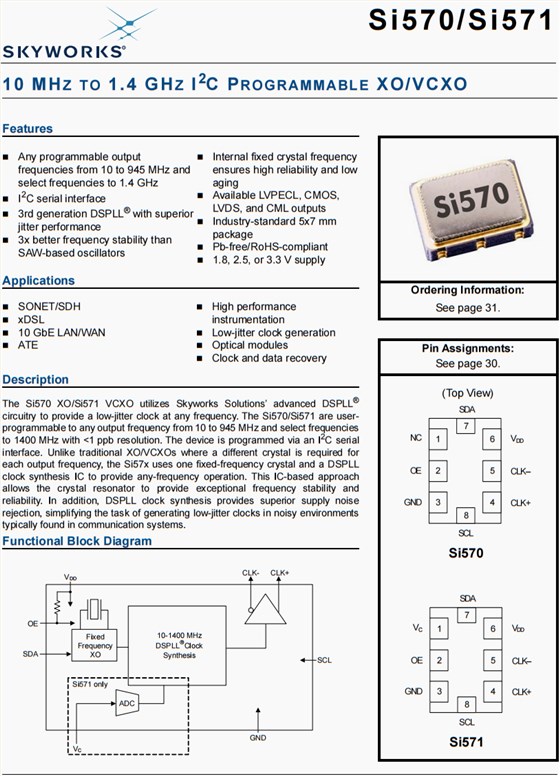

遥遥领先的570WCB000118DG晶振,6G型号接受器晶振,Skyworks六脚晶振，美国Skyworks晶振公司，Si570 XO/Si571 VCXO采用Skyworks Solutions先进的DSPLL®电路，在任何频率下提供低抖动时钟。Si570/Si571是用户可编程到从10到945 MHz的任何输出频率，并选择频率到1400 MHz，分辨率<1 ppb。该设备通过I2C串行接口编程。不同于传统的XO/ vcxo，每个输出频率需要不同的晶体，Si57x使用一个固定频率晶体和一个dspll时钟合成IC来提供任何频率的操作。这种基于ic的方法允许晶体谐振器提供卓越的频率稳定性和可靠性。此外，DSPLL时钟合成提供了优越的电源抗噪能力，简化了在通信系统中常见的噪声环境中产生低抖动时钟的任务。高品质晶振，进口晶振，欧美晶振，有源晶振，六脚晶振，高精度晶振，辅助驾驶模块晶振，6G路由器晶振，7050晶振

yijin-2

遥遥领先的570WCB000118DG晶振,6G型号接受器晶振,Skyworks六脚晶振

参数	符号	试验条件	最小值	典型的	最大值	单位
电源电压	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75
		1.8 V option	1.71	1.8	1.89
供应电流	IDD	Output enabled LVPECL CML LVDS CMOS	— — — —	120 108 99 90	130 117 108 98	mA
供应电流	IDD	TriState mode	—	60	75	mA
输出启用		VIH	0.75 x VDD	—	—	V
输出启用		VIL	—	—	0.5	V
工作温度范围	TA		–40	—	85	ºC
控制电压调谐坡度	KV	VC10 to 90% of VDD	—	33 45 90 135 180 356	—	ppm/V
控制电压线性	LVC	BSL	–5	±1	+5	%
控制电压线性	LVC	Incremental	–10	±5	+10	%
调制贷款	BW		9.3	10.0	10.7	kHz
输入电阻	ZVC		500	—	—	k?
标称控制电压	VCNOM	@ fO	—	VDD/2	—	V
控制电压调谐范围	VC		0		VDD	V
可编程批量范围	fO	LVPECL/LVDS/CML	10	—	1417.5	MHz
可编程批量范围	fO	CMOS	10	—	160	MHz
			–7	—	7
温度稳定性		TA= –40 to +85 ºC	–20 –50	— —	+20 +50	ppm
			–100	—	+100
老化	fa	Frequency drift over first year	—	—	±3	ppm
老化	fa	Frequency drift over 20-year life	—	—	±10	ppm

yijin-3

遥遥领先的570WCB000118DG晶振,6G型号接受器晶振,Skyworks六脚晶振

Skywork原厂编码	生产商	型号	类型	频率	输出	电源电压	频率稳定度
570BAB000544DG	Skyworks晶振	Si570	XO	156.25 MHz	LVDS	3.3V	±50ppm
570FAA000759DGR	Skyworks晶振	Si570	XO	644.53125 MHz	LVDS	2.5V	±50ppm
570BAB000118DG	Skyworks晶振	Si570	XO	156.25 MHz	LVDS	3.3V	±50ppm
570BCC000112DG	Skyworks晶振	Si570	XO	10 MHz	LVDS	3.3V	±7ppm
570JAC000900DG	Skyworks晶振	Si570	XO	33.3333333 MHz	CMOS	1.8V	±50ppm
570BBC000876DG	Skyworks晶振	Si570	XO	49.87013 MHz	LVDS	3.3V	±20ppm
570KCB000121DG	Skyworks晶振	Si570	XO	100 MHz	CML	1.8V	±7ppm
570ACA001527DGR	Skyworks晶振	Si570	XO	875 MHz	LVPECL	3.3V	±7ppm
570BBC000121DG	Skyworks晶振	Si570	XO	100 MHz	LVDS	3.3V	±20ppm
570BAB000544DGR	Skyworks晶振	Si570	XO	156.25 MHz	LVDS	3.3V	±50ppm
570BAB001614DGR	Skyworks晶振	Si570	XO	300 MHz	LVDS	3.3V	±50ppm
570BAB001614DG	Skyworks晶振	Si570	XO	300 MHz	LVDS	3.3V	±50ppm
570BAB000299DG	Skyworks晶振	Si570	XO	200 MHz	LVDS	3.3V	±50ppm
570GAC000112DGR	Skyworks晶振	Si570	XO	10 MHz	CMOS	2.5V	±50ppm
570AAA000111DG	Skyworks晶振	Si570	XO	25 MHz	LVPECL	3.3V	±50ppm
570CAC000121DG	Skyworks晶振	Si570	XO	100 MHz	CMOS	3.3V	±50ppm
570AAC000118DG	Skyworks晶振	Si570	XO	156.25 MHz	LVPECL	3.3V	±50ppm
570AAC000129DG	Skyworks晶振	Si570	XO	155.52 MHz	LVPECL	3.3V	±50ppm
570BAC000115DG	Skyworks晶振	Si570	XO	125 MHz	LVDS	3.3V	±50ppm
570CAC000115DG	Skyworks晶振	Si570	XO	125 MHz	CMOS	3.3V	±50ppm
570BBC000115DG	Skyworks晶振	Si570	XO	125 MHz	LVDS	3.3V	±20ppm
570FBC000121DG	Skyworks晶振	Si570	XO	100 MHz	LVDS	2.5V	±20ppm
570BCC000107DG	Skyworks晶振	Si570	XO	10 MHz	LVDS	3.3V	±7ppm
570JCC000159DG	Skyworks晶振	Si570	XO	148.5 MHz	CMOS	1.8V	±7ppm
570CAC000141DG	Skyworks晶振	Si570	XO	56.32 MHz	CMOS	3.3V	±50ppm
570MAC000118DG	Skyworks晶振	Si570	XO	156.25 MHz	LVPECL	3.3V	±50ppm
570FAB000433DG	Skyworks晶振	Si570	XO	100 MHz	LVDS	2.5V	±50ppm
570FAB000544DG	Skyworks晶振	Si570	XO	156.25 MHz	LVDS	2.5V	±50ppm
570KCB000118DGR	Skyworks晶振	Si570	XO	156.25 MHz	CML	1.8V	±7ppm
570ABB000419DG	Skyworks晶振	Si570	XO	155.52 MHz	LVPECL	3.3V	±20ppm
570BBB000115DG	Skyworks晶振	Si570	XO	125 MHz	LVDS	3.3V	±20ppm
570BCB000177DG	Skyworks晶振	Si570	XO	297 MHz	LVDS	3.3V	±7ppm
570BBC000159DG	Skyworks晶振	Si570	XO	148.5 MHz	LVDS	3.3V	±20ppm
570CBC000306DG	Skyworks晶振	Si570	XO	22.5792 MHz	CMOS	3.3V	±20ppm
570BAB001641DG	Skyworks晶振	Si570	XO	156.25 MHz	LVDS	3.3V	±50ppm
570ABA001058DGR	Skyworks晶振	Si570	XO	644.53 MHz	LVPECL	3.3V	±20ppm
570ABA001328DGR	Skyworks晶振	Si570	XO	1.066 GHz	LVPECL	3.3V	±20ppm
570BBA000504DGR	Skyworks晶振	Si570	XO	48 MHz	LVDS	3.3V	±20ppm
570BBC000131DG	Skyworks晶振	Si570	XO	120 MHz	LVDS	3.3V	±20ppm
570BBC000131DGR	Skyworks晶振	Si570	XO	120 MHz	LVDS	3.3V	±20ppm
570BCB001530DG	Skyworks晶振	Si570	XO	148.5 MHz	LVDS	3.3V	±7ppm
570BCB001530DGR	Skyworks晶振	Si570	XO	148.5 MHz	LVDS	3.3V	±7ppm
570CAC000125DG	Skyworks晶振	Si570	XO	128.5 MHz	CMOS	3.3V	±50ppm
570CAC000125DGR	Skyworks晶振	Si570	XO	128.5 MHz	CMOS	3.3V	±50ppm
570DCB000476DG	Skyworks晶振	Si570	XO	322.265625 MHz	CML	3.3V	±7ppm
570DCB000476DGR	Skyworks晶振	Si570	XO	322.265625 MHz	CML	3.3V	±7ppm
570FAB000125DG	Skyworks晶振	Si570	XO	128.5 MHz	LVDS	2.5V	±50ppm
570FAB000125DGR	Skyworks晶振	Si570	XO	128.5 MHz	LVDS	2.5V	±50ppm
570FAC000125DG	Skyworks晶振	Si570	XO	128.5 MHz	LVDS	2.5V	±50ppm
570FAC000125DGR	Skyworks晶振	Si570	XO	128.5 MHz	LVDS	2.5V	±50ppm
570FCB001691DG	Skyworks晶振	Si570	XO	698.8123 MHz	LVDS	2.5V	±7ppm
570FCB001691DGR	Skyworks晶振	Si570	XO	698.8123 MHz	LVDS	2.5V	±7ppm
570HCC001767DG	Skyworks晶振	Si570	XO	150 MHz	CML	2.5V	±7ppm
570HCC001767DGR	Skyworks晶振	Si570	XO	150 MHz	CML	2.5V	±7ppm
570JBC001668DG	Skyworks晶振	Si570	XO	32.768 MHz	CMOS	1.8V	±20ppm
570JBC001668DGR	Skyworks晶振	Si570	XO	32.768 MHz	CMOS	1.8V	±20ppm
570WCB000118DG	Skyworks晶振	Si570	XO	156.25 MHz	CML	1.8V	±7ppm
570WCB000118DGR	Skyworks晶振	Si570	XO	156.25 MHz	CML	1.8V	±7ppm
570ABB000133DG	Skyworks晶振	Si570	XO	500 MHz	LVPECL	3.3V	±20ppm
570ABB000133DGR	Skyworks晶振	Si570	XO	500 MHz	LVPECL	3.3V	±20ppm
570ACA000462DG	Skyworks晶振	Si570	XO	1 GHz	LVPECL	3.3V	±7ppm
570ACA000462DGR	Skyworks晶振	Si570	XO	1 GHz	LVPECL	3.3V	±7ppm
570BAB000125DG	Skyworks晶振	Si570	XO	128.5 MHz	LVDS	3.3V	±50ppm
570BAB000125DGR	Skyworks晶振	Si570	XO	128.5 MHz	LVDS	3.3V	±50ppm
570BAB001595DG	Skyworks晶振	Si570	XO	333 MHz	LVDS	3.3V	±50ppm
570BAB001595DGR	Skyworks晶振	Si570	XO	333 MHz	LVDS	3.3V	±50ppm
570BBA000504DG	Skyworks晶振	Si570	XO	48 MHz	LVDS	3.3V	±20ppm
570AAC000270DGR	Skyworks晶振	Si570	XO	10 MHz	LVPECL	3.3V	±50ppm
570AAC001528DGR	Skyworks晶振	Si570	XO	19.984 MHz	LVPECL	3.3V	±50ppm
570AAC001762DGR	Skyworks晶振	Si570	XO	136.39008 MHz	LVPECL	3.3V	±50ppm
570CAA000115DGR	Skyworks晶振	Si570	XO	125 MHz	CMOS	3.3V	±50ppm
570CAC000200DGR	Skyworks晶振	Si570	XO	14 MHz	CMOS	3.3V	±50ppm
570CAC000973DGR	Skyworks晶振	Si570	XO	125 MHz	CMOS	3.3V	±50ppm
570CAC001041DGR	Skyworks晶振	Si570	XO	156 MHz	CMOS	3.3V	±50ppm
570CAC001705DGR	Skyworks晶振	Si570	XO	54.36 MHz	CMOS	3.3V	±50ppm
570CAC001722DGR	Skyworks晶振	Si570	XO	24.576 MHz	CMOS	3.3V	±50ppm
570EAC000741DGR	Skyworks晶振	Si570	XO	156.25 MHz	LVPECL	2.5V	±50ppm
570FAC000465DGR	Skyworks晶振	Si570	XO	60 MHz	LVDS	2.5V	±50ppm
570FAC000833DGR	Skyworks晶振	Si570	XO	153.6 MHz	LVDS	2.5V	±50ppm
570FAC001059DGR	Skyworks晶振	Si570	XO	100 MHz	LVDS	2.5V	±50ppm
570FAC001531DGR	Skyworks晶振	Si570	XO	100 MHz	LVDS	2.5V	±50ppm
570GAC000118DGR	Skyworks晶振	Si570	XO	156.25 MHz	CMOS	2.5V	±50ppm
570GAC000121DGR	Skyworks晶振	Si570	XO	100 MHz	CMOS	2.5V	±50ppm
570GAC001519DGR	Skyworks晶振	Si570	XO	35.478 MHz	CMOS	2.5V	±50ppm
570JAC001711DGR	Skyworks晶振	Si570	XO	33.3333 MHz	CMOS	1.8V	±50ppm
570JAC001754DGR	Skyworks晶振	Si570	XO	39.0625 MHz	CMOS	1.8V	±50ppm
570WCA002323DG	Skyworks晶振	Si570	XO	13.39239 MHz	CML	1.8V	±7ppm
570BCA000136DG	Skyworks晶振	Si570	XO	160 MHz	LVDS	3.3V	±7ppm
