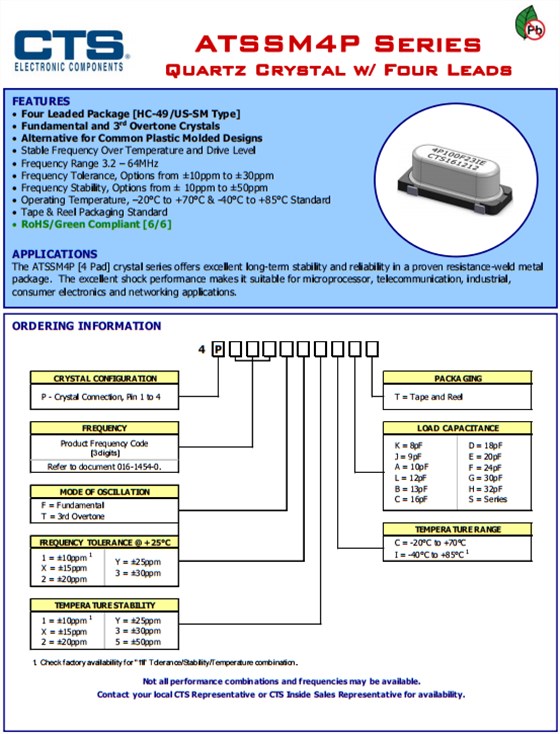

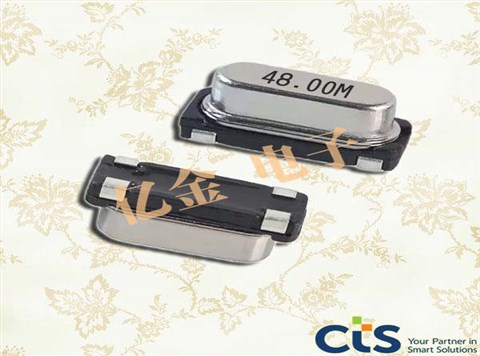

CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM,美国CTS晶振,特性:四铅包[HC-49/US-SM类型],基本和第三泛音晶体,替代常见塑料模塑设计,稳定频率在温度和驱动水平,频率范围3.2-64MHz,频率公差,选择±10ppm±30ppm,频率稳定性,选择±10ppm±50ppm,工作温度,-20°C+70°C&-40°C+85°C标准,磁带和卷轴包装标准,RoHS/绿色兼容[6/6],ATSSM4P [4 Pad]晶体系列的长期稳定性和可靠性提供了良好的电阻焊接金属封装的应用。优异的冲击性能使其适用于微处理器、电信、工业、消费电子和网络应用。
CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM
参数 | 数值 | |
频率范围 | 3.2MHz to 40MHz | 24MHz to 64MHz |
工作莫斯 | Fundamental | 3rd Overtone |
晶体切向 | AT-Cut | |
频率容差@ +25°C | ±10, ±15, ±20, ±25, ±30ppm | |
Frequency Stability Tolerance | ±10, ±15, ±20, ±25, ±30, ±50ppm | |
频率稳定公差[工作温度参考+25°C] | ||
工作温度 | -20°C to +70°C | |
-40°C to +85°C | ||
负载电容 | See Ordering Information | |
并联电阻 | 7.0pF Maximum | |
驱动电平 | 100µW Typ., 1000µW Max. | |
老化 | ±3ppm/yr Typical, ±5ppm/yr Maximum | |
绝缘电阻 | 500M Ohms @ DC 100V | |
储存温度范围 | -40°C to +100°C |
CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM
CTS原厂编码 | 生产厂家 | 型号 | 频率 | 频率偏差 | 负载电容 | 工作温度 |
4P036F35CDT | CTS晶振 | ATSSM4P | 3.579545MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P036F35IST | CTS晶振 | ATSSM4P | 3.579545MHz | ±30ppm | Series | -40°C ~ 85°C |
4P037F35CDT | CTS晶振 | ATSSM4P | 3.6864MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P037F35IST | CTS晶振 | ATSSM4P | 3.6864MHz | ±30ppm | Series | -40°C ~ 85°C |
4P040F35CDT | CTS晶振 | ATSSM4P | 4MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P040F35IST | CTS晶振 | ATSSM4P | 4MHz | ±30ppm | Series | -40°C ~ 85°C |
4P049F35CDT | CTS晶振 | ATSSM4P | 4.9152MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P049F35IST | CTS晶振 | ATSSM4P | 4.9152MHz | ±30ppm | Series | -40°C ~ 85°C |
4P050F35CDT | CTS晶振 | ATSSM4P | 5MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P060F35IST | CTS晶振 | ATSSM4P | 6MHz | ±30ppm | Series | -40°C ~ 85°C |
4P073F35CDT | CTS晶振 | ATSSM4P | 7.3728MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P080F35IST | CTS晶振 | ATSSM4P | 8MHz | ±30ppm | Series | -40°C ~ 85°C |
4P098F35CDT | CTS晶振 | ATSSM4P | 9.8304MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P100F35IST | CTS晶振 | ATSSM4P | 10MHz | ±30ppm | Series | -40°C ~ 85°C |
4P111F35CDT | CTS晶振 | ATSSM4P | 11.0592MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P120F35IST | CTS晶振 | ATSSM4P | 12MHz | ±30ppm | Series | -40°C ~ 85°C |
4P122F35CDT | CTS晶振 | ATSSM4P | 12.288MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P143F35IST | CTS晶振 | ATSSM4P | 14.31818MHz | ±30ppm | Series | -40°C ~ 85°C |
4P147F35CDT | CTS晶振 | ATSSM4P | 14.7456MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P160F35IST | CTS晶振 | ATSSM4P | 16MHz | ±30ppm | Series | -40°C ~ 85°C |
4P184F35CDT | CTS晶振 | ATSSM4P | 18.432MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P200F35IST | CTS晶振 | ATSSM4P | 20MHz | ±30ppm | Series | -40°C ~ 85°C |
4P240F35CDT | CTS晶振 | ATSSM4P | 24MHz | ±30ppm | 18pF | -20°C ~ 70°C |
4P24MF35IST | CTS晶振 | ATSSM4P | 24.7456MHz | ±30ppm | Series | -40°C ~ 85°C |
4P250F35CDT | CTS晶振 | ATSSM4P | 25MHz | ±30ppm | 18pF | -20°C ~ 70°C |
