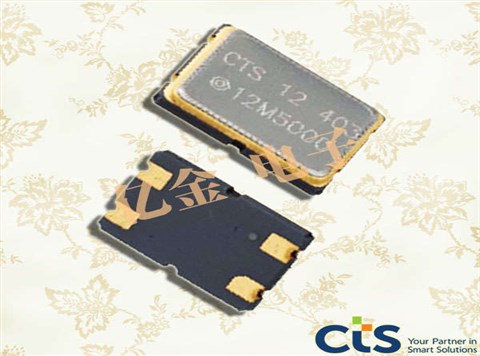

407F35D029M4912 CTS 29.4912MHz 18PF 30PPM 7050,欧美贴片石英晶振,特性?标准7.0mm x 5.0mm陶瓷表面安装包?基本和第三泛音晶体设计?频率范围6-133MHz?频率公差,±30ppm标准?频率稳定,±50ppm标准,工作温度-40°C+85°C,稳定频率超过温度和驱动器水平,磁带和卷轴包装标准,EIA-481,RoHS/绿色兼容[6/6]。407型是一种接缝密封陶瓷封装石英谐振器,为各种应用提供优异的性能,包括;无线通信、宽带接入、WLAN/WiMax/WIFI、测试和测量、便携式设备和计算机外设。
407F35D029M4912 CTS 29.4912MHz 18PF 30PPM 7050
参数 | VALUE | |
频率范围 | 6MHz to 40MHz | 35MHz to 133MHz |
工作模式 | Fundamental | 3rd Overtone |
晶体切向 | AT-Cut | |
频率容差 | ±30ppm, Standard | |
频率稳定公差[工作温度范围,参考+25°C读数] | ±30ppm, Standard | |
工作温度范围 | -20°C to +70°C | |
-30°C to +85°C | -40°C to +85°C | |
等效串联电阻-基本模式(最大值) | 6MHz - <10MHz | 80 Ohms |
10MHz - <14MHz | 70 Ohms | |
15MHz - <20MHz | 50 Ohms | |
20MHz - 40MHz | 40 Ohms | |
等效串联电阻-第3个泛音模式(最大值) | 35MHz - <44MHz | 80 Ohms |
44MHz - <50MHz | 70 Ohms | |
50MHz - <80MHz | 60 Ohms | |
80MHz - 133MHz | 60 Ohms | |
负载 | See Ordering Information | |
并联电容[C0] | 5.0pF Typical, 7.0pF Maximum | |
驱动电平 | 10µW Typ., 200µW Max. | |
老化@ +25°C | ±3ppm/yr Typical | |
绝缘电阻 | 500M Ohms @ DC 100V | |
储存温度范围 | -40°C to +100°C |
407F35D029M4912 CTS 29.4912MHz 18PF 30PPM 7050
CTS原厂编码 | CTS晶振 | 型号 | 频率 | 频率偏差 | 负载电容 | 工作温度 |
407F35E022M1184 | CTS晶振 | 407 | 22.1184MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E022M1184 | CTS晶振 | 407 | 22.1184MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E022M1184 | CTS晶振 | 407 | 22.1184MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E029M4912 | CTS晶振 | 407 | 29.4912MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E029M4912 | CTS晶振 | 407 | 29.4912MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E029M4912 | CTS晶振 | 407 | 29.4912MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E016M3840 | CTS晶振 | 407 | 16.384MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E016M3840 | CTS晶振 | 407 | 16.384MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E016M3840 | CTS晶振 | 407 | 16.384MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E009M6000 | CTS晶振 | 407 | 9.6MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E009M6000 | CTS晶振 | 407 | 9.6MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E009M6000 | CTS晶振 | 407 | 9.6MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F39E008M0000 | CTS晶振 | 407 | 8MHz | ±30ppm | 20pF | -40°C ~ 85°C |
407F39E008M0000 | CTS晶振 | 407 | 8MHz | ±30ppm | 20pF | -40°C ~ 85°C |
407F39E008M0000 | CTS晶振 | 407 | 8MHz | ±30ppm | 20pF | -40°C ~ 85°C |
407T35E050M0000 | CTS晶振 | 407 | 50MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407T35E050M0000 | CTS晶振 | 407 | 50MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407T35E050M0000 | CTS晶振 | 407 | 50MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E036M0000 | CTS晶振 | 407 | 36MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E036M0000 | CTS晶振 | 407 | 36MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E036M0000 | CTS晶振 | 407 | 36MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E012M5000 | CTS晶振 | 407 | 12.5MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E012M5000 | CTS晶振 | 407 | 12.5MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E012M5000 | CTS晶振 | 407 | 12.5MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E016M6700 | CTS晶振 | 407 | 16.67MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E016M6700 | CTS晶振 | 407 | 16.67MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E016M6700 | CTS晶振 | 407 | 16.67MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35D007M3728 | CTS晶振 | 407 | 7.3728MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D008M0000 | CTS晶振 | 407 | 8MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D009M6000 | CTS晶振 | 407 | 9.6MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D010M0000 | CTS晶振 | 407 | 10MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D011M0592 | CTS晶振 | 407 | 11.0592MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D012M0000 | CTS晶振 | 407 | 12MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D012M5000 | CTS晶振 | 407 | 12.5MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D014M3181 | CTS晶振 | 407 | 14.31818MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D014M7456 | CTS晶振 | 407 | 14.7456MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D016M0000 | CTS晶振 | 407 | 16MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D016M3840 | CTS晶振 | 407 | 16.384MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D016M6700 | CTS晶振 | 407 | 16.67MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D016M9344 | CTS晶振 | 407 | 16.9344MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D018M4320 | CTS晶振 | 407 | 18.432MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D019M6800 | CTS晶振 | 407 | 19.68MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D020M0000 | CTS晶振 | 407 | 20MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D022M1184 | CTS晶振 | 407 | 22.1184MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D024M0000 | CTS晶振 | 407 | 24MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D024M5760 | CTS晶振 | 407 | 24.576MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D025M0000 | CTS晶振 | 407 | 25MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D027M0000 | CTS晶振 | 407 | 27MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D029M4912 | CTS晶振 | 407 | 29.4912MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D032M0000 | CTS晶振 | 407 | 32MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35D036M0000 | CTS晶振 | 407 | 36MHz | ±30ppm | 18pF | -20°C ~ 70°C |
407F35E007M3728 | CTS晶振 | 407 | 7.3728MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E011M0592 | CTS晶振 | 407 | 11.0592MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E014M3181 | CTS晶振 | 407 | 14.31818MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E016M9344 | CTS晶振 | 407 | 16.9344MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E018M4320 | CTS晶振 | 407 | 18.432MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E019M6800 | CTS晶振 | 407 | 19.68MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E020M0000 | CTS晶振 | 407 | 20MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E024M0000 | CTS晶振 | 407 | 24MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E024M5760 | CTS晶振 | 407 | 24.576MHz | ±30ppm | 20pF | -20°C ~ 70°C |
407F35E027M0000 | CTS晶振 | 407 | 27MHz | ±30ppm | 20pF | -20°C ~ 70°C |
