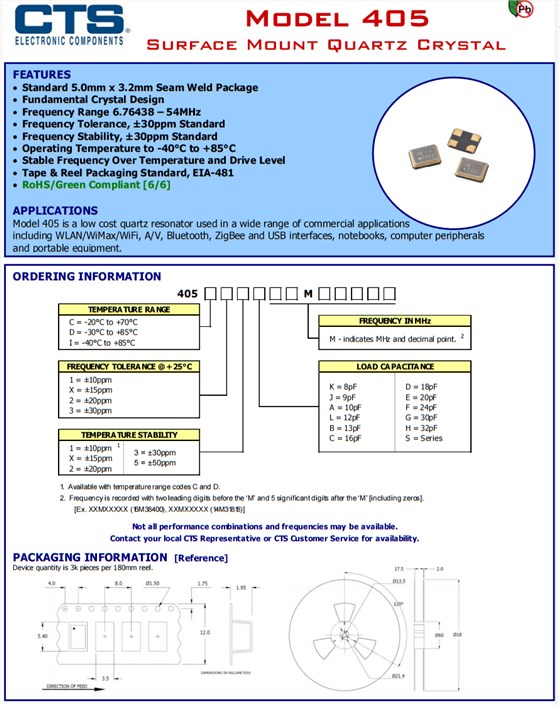

405C35B16M36800|16.368MHz|13PF|30PPM|5032,CTS晶振,特性,标准5.0毫米x3.2毫米接缝焊接包,基本晶体设计,频率范围6.76438-54MHz,频率公差,±30ppm标准,频率稳定性,±30ppm标准,操作温度-40°C+85°C,稳定频率温度和驱动器水平,磁带和卷轴包装标准,EIA-481,RoHS/绿色兼容[/6/6]应用模型405是一个低成本石英谐振器用于广泛的商业应用,包括WLAN/WiMax/WiFi,A/V,蓝牙,ZigBee和USB接口,笔记本,计算机外设和便携式设备。
405C35B16M36800|16.368MHz|13PF|30PPM|5032
参数 | VALUE | |
频率范围 | 6.76438MHz to 54MHz | |
工作,模式 | Fundamental | |
晶体切向 | AT-Cut | |
频率容差@ +25°C | ±30ppm, Standard | |
Frequency Stability Tolerance | ±30ppm, Standard | |
频率稳定公差[工作温度参考+25°C] | ||
工作温度 | -20°C to +70°C | |
-30°C to +85°C | -40°C to +85°C | |
等效串联电阻 | 6.76438MHz - <11MHz | 80 Ohms |
11MHz - <15MHz | 60 Ohms | |
15MHz - <35MHz | 50 Ohms | |
35MHz - 54MHz | 40 Ohms | |
负载电容 | See Ordering Information | |
并联电阻 | 5.0pF Typical, 7.0pF Maximum | |
驱动电平 | 10µW Typ., 200µW Max. | |
老化 | ±3ppm/yr Typical | |
绝缘电阻 | 500M Ohms @ DC 100V | |
储存温度范围 | -40°C to +100°C |
