CTS,402F360XXCAR,36MHz,15PPM,10PF,2016,-20~70℃

yijin-1

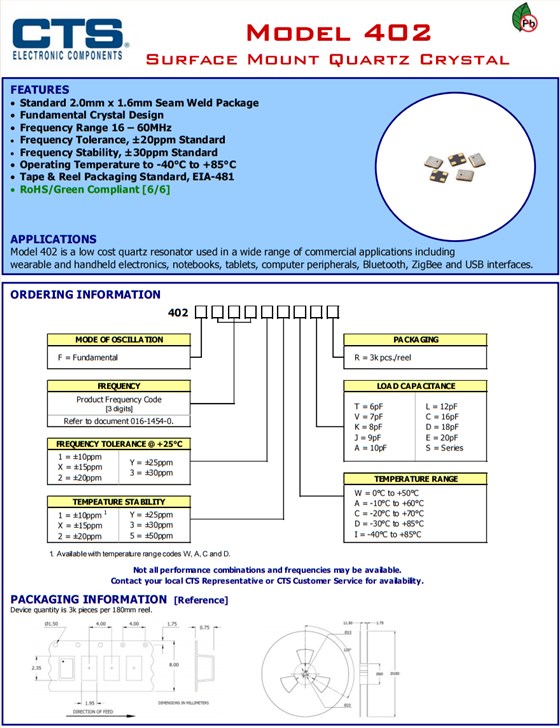

CTS,402F360XXCAR,36MHz,15PPM,10PF,2016,-20~70℃,欧美2016晶振，功能：标准2.0mm x 1.6mm接缝焊接包，基本晶体设计，频率范围16-60MHz?频率公差，±20ppm标准，频率稳定，±30ppm标准，工作温度-40°C+85°C，胶带和卷轴包装标准，EIA-481，RoHS/绿色兼容[6/6]，402型是一种低成本的石英谐振器，用于广泛的商业应用，包括可穿戴和手持电子、笔记本、平板电脑，计算机外设，蓝牙，ZigBee和USB接口。

yijin-2

CTS,402F360XXCAR,36MHz,15PPM,10PF,2016,-20~70℃

参数	VALUE
频率范围	16MHz to 60MHz
工作模式	Fundamental
晶体切向	AT-Cut
频率容差@ +25°C	±30ppm, Standard
工作温度	.-10°C to +60°C	.-20°C to +70°.C
	-30°C to +85°C	-40°C to +85°C
等效串联电阻	16MHz - <20MHz	120 Ohms
	20MHz - <30MHz	100 Ohms
	30MHz - <36MHz	80 Ohms
	36MHz - 60MHz	60 Ohms
负载电容	See Ordering Information
并联电阻	3.0pF Typical, 5.0pF Maximum
驱动电平	10µW Typ., 200µW Max.
老化	±3ppm/yr Typical
绝缘电阻	500M Ohms @ DC 100V
储存温度范围	-40°C to +90°C

CTS,402F360XXCAR,36MHz,15PPM,10PF,2016,-20~70℃

402(1)

CTS原厂编码	生产厂家	型号	频率	频率偏差	负载电容	工作温度
402F2401XIAR	CTS晶振	402	24MHz	±10ppm	10pF	-40°C ~ 85°C
402F2501XIAR	CTS晶振	402	25MHz	±10ppm	10pF	-40°C ~ 85°C
402F27011CAR	CTS晶振	402	27MHz	±10ppm	10pF	-20°C ~ 70°C
402F30011CAR	CTS晶振	402	30MHz	±10ppm	10pF	-20°C ~ 70°C
402F38411CAR	CTS晶振	402	38.4MHz	±10ppm	10pF	-20°C ~ 70°C
402F2001XIAR	CTS晶振	402	20MHz	±10ppm	10pF	-40°C ~ 85°C
402F4001XIAR	CTS晶振	402	40MHz	±10ppm	10pF	-40°C ~ 85°C
402F24011CAR	CTS晶振	402	24MHz	±10ppm	10pF	-20°C ~ 70°C
402F3201XIAR	CTS晶振	402	32MHz	±10ppm	10pF	-40°C ~ 85°C
402F32011CAR	CTS晶振	402	32MHz	±10ppm	10pF	-20°C ~ 70°C
402F160XXCKR	CTS晶振	402	16MHz	±15ppm	8pF	-20°C ~ 70°C
402F192XXCKR	CTS晶振	402	19.2MHz	±15ppm	8pF	-20°C ~ 70°C
402F200XXCKR	CTS晶振	402	20MHz	±15ppm	8pF	-20°C ~ 70°C
402F204XXCKR	CTS晶振	402	20.48MHz	±15ppm	8pF	-20°C ~ 70°C
402F240XXCKR	CTS晶振	402	24MHz	±15ppm	8pF	-20°C ~ 70°C
402F250XXCKR	CTS晶振	402	25MHz	±15ppm	8pF	-20°C ~ 70°C
402F260XXCKR	CTS晶振	402	26MHz	±15ppm	8pF	-20°C ~ 70°C
402F270XXCKR	CTS晶振	402	27MHz	±15ppm	8pF	-20°C ~ 70°C
402F271XXCKR	CTS晶振	402	27.12MHz	±15ppm	8pF	-20°C ~ 70°C
402F300XXCKR	CTS晶振	402	30MHz	±15ppm	8pF	-20°C ~ 70°C
402F307XXCKR	CTS晶振	402	30.72MHz	±15ppm	8pF	-20°C ~ 70°C
402F320XXCKR	CTS晶振	402	32MHz	±15ppm	8pF	-20°C ~ 70°C
402F360XXCKR	CTS晶振	402	36MHz	±15ppm	8pF	-20°C ~ 70°C
402F374XXCKR	CTS晶振	402	37.4MHz	±15ppm	8pF	-20°C ~ 70°C
402F384XXCKR	CTS晶振	402	38.4MHz	±15ppm	8pF	-20°C ~ 70°C
402F400XXCKR	CTS晶振	402	40MHz	±15ppm	8pF	-20°C ~ 70°C
402F160XXCJR	CTS晶振	402	16MHz	±15ppm	9pF	-20°C ~ 70°C
402F192XXCJR	CTS晶振	402	19.2MHz	±15ppm	9pF	-20°C ~ 70°C
402F200XXCJR	CTS晶振	402	20MHz	±15ppm	9pF	-20°C ~ 70°C
402F204XXCJR	CTS晶振	402	20.48MHz	±15ppm	9pF	-20°C ~ 70°C
402F240XXCJR	CTS晶振	402	24MHz	±15ppm	9pF	-20°C ~ 70°C
402F250XXCJR	CTS晶振	402	25MHz	±15ppm	9pF	-20°C ~ 70°C
402F260XXCJR	CTS晶振	402	26MHz	±15ppm	9pF	-20°C ~ 70°C
402F270XXCJR	CTS晶振	402	27MHz	±15ppm	9pF	-20°C ~ 70°C
402F271XXCJR	CTS晶振	402	27.12MHz	±15ppm	9pF	-20°C ~ 70°C
402F300XXCJR	CTS晶振	402	30MHz	±15ppm	9pF	-20°C ~ 70°C
402F307XXCJR	CTS晶振	402	30.72MHz	±15ppm	9pF	-20°C ~ 70°C
402F320XXCJR	CTS晶振	402	32MHz	±15ppm	9pF	-20°C ~ 70°C
402F360XXCJR	CTS晶振	402	36MHz	±15ppm	9pF	-20°C ~ 70°C
402F374XXCJR	CTS晶振	402	37.4MHz	±15ppm	9pF	-20°C ~ 70°C
402F384XXCJR	CTS晶振	402	38.4MHz	±15ppm	9pF	-20°C ~ 70°C
402F400XXCJR	CTS晶振	402	40MHz	±15ppm	9pF	-20°C ~ 70°C
402F160XXCAR	CTS晶振	402	16MHz	±15ppm	10pF	-20°C ~ 70°C
402F192XXCAR	CTS晶振	402	19.2MHz	±15ppm	10pF	-20°C ~ 70°C
402F200XXCAR	CTS晶振	402	20MHz	±15ppm	10pF	-20°C ~ 70°C
402F204XXCAR	CTS晶振	402	20.48MHz	±15ppm	10pF	-20°C ~ 70°C
402F240XXCAR	CTS晶振	402	24MHz	±15ppm	10pF	-20°C ~ 70°C
402F250XXCAR	CTS晶振	402	25MHz	±15ppm	10pF	-20°C ~ 70°C
402F260XXCAR	CTS晶振	402	26MHz	±15ppm	10pF	-20°C ~ 70°C
402F270XXCAR	CTS晶振	402	27MHz	±15ppm	10pF	-20°C ~ 70°C
402F271XXCAR	CTS晶振	402	27.12MHz	±15ppm	10pF	-20°C ~ 70°C
402F300XXCAR	CTS晶振	402	30MHz	±15ppm	10pF	-20°C ~ 70°C
402F307XXCAR	CTS晶振	402	30.72MHz	±15ppm	10pF	-20°C ~ 70°C
402F320XXCAR	CTS晶振	402	32MHz	±15ppm	10pF	-20°C ~ 70°C
402F360XXCAR	CTS晶振	402	36MHz	±15ppm	10pF	-20°C ~ 70°C
402F374XXCAR	CTS晶振	402	37.4MHz	±15ppm	10pF	-20°C ~ 70°C
402F384XXCAR	CTS晶振	402	38.4MHz	±15ppm	10pF	-20°C ~ 70°C
402F400XXCAR	CTS晶振	402	40MHz	±15ppm	10pF	-20°C ~ 70°C
402F160XXCLR	CTS晶振	402	16MHz	±15ppm	12pF	-20°C ~ 70°C
402F192XXCLR	CTS晶振	402	19.2MHz	±15ppm	12pF	-20°C ~ 70°C
402F200XXCLR	CTS晶振	402	20MHz	±15ppm	12pF	-20°C ~ 70°C
402F204XXCLR	CTS晶振	402	20.48MHz	±15ppm	12pF	-20°C ~ 70°C
402F240XXCLR	CTS晶振	402	24MHz	±15ppm	12pF	-20°C ~ 70°C
402F250XXCLR	CTS晶振	402	25MHz	±15ppm	12pF	-20°C ~ 70°C
402F260XXCLR	CTS晶振	402	26MHz	±15ppm	12pF	-20°C ~ 70°C
402F270XXCLR	CTS晶振	402	27MHz	±15ppm	12pF	-20°C ~ 70°C
402F271XXCLR	CTS晶振	402	27.12MHz	±15ppm	12pF	-20°C ~ 70°C
402F300XXCLR	CTS晶振	402	30MHz	±15ppm	12pF	-20°C ~ 70°C
402F307XXCLR	CTS晶振	402	30.72MHz	±15ppm	12pF	-20°C ~ 70°C
402F320XXCLR	CTS晶振	402	32MHz	±15ppm	12pF	-20°C ~ 70°C
