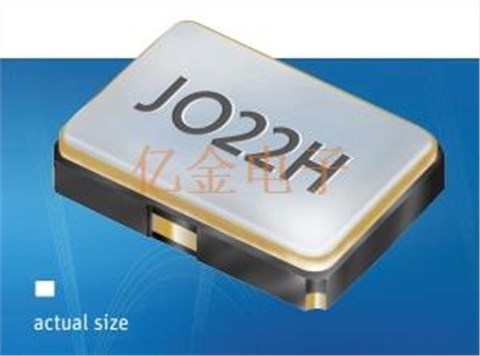

O38.40-JO22H-E-2.5-1-T1-LF,无线蓝牙应用晶振,Jauch振荡器

原厂型号Originalmodel：	O 38.40-JO22H-E-2.5-1-T1-LF	品牌brand：	Jauch振荡器
Manufacturer品牌	Jauch振荡器	OperatingTemperature温度	-40°C ~ 85°C
Series型号	JO22H	Current-Supply(Max)	6mA
Type类型	XO (Standard)	PackageHeight高度	1.00mm
Frequency频率	38.4 MHz	Termination脚位	4-pad
输出方式Output：	HCMOS	PackageType封装类型	4-SMD
Voltage-Supply电压	2.5V	Packaging包装	TapeandReel
FrequencyStability频率稳定度	±15ppm	安装方式Installation：	Surfacemount

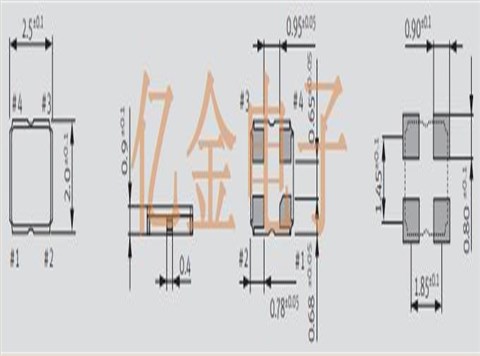

Size/Dimension尺寸	2.50mm x 2.00mm	最小包装数MPQ：	3000

JO22H-

O38.40-JO22H-E-2.5-1-T1-LF,无线蓝牙应用晶振,Jauch振荡器

J49SML-A-G-G-K-16M0	Jauch无源晶振	J49SML	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
J49SML-A-G-G-K-4M0	Jauch无源晶振	J49SML	MHz Crystal	4 MHz	±30ppm	±30ppm	12pF
J49SML-F-G-G-K-16M0	Jauch无源晶振	J49SML	MHz Crystal	16 MHz	±30ppm	±30ppm	18pF
J49SML-F-G-G-K-25M0	Jauch无源晶振	J49SML	MHz Crystal	25 MHz	±30ppm	±30ppm	18pF
J49SML-F-G-G-K-8M0	Jauch无源晶振	J49SML	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
Q 27.120-JXS22-10-10/10-FU-LF	Jauch无源晶振	JXS22	MHz Crystal	27.12 MHz	±10ppm	±10ppm	10pF
Q 38.40-JXS21-8-10/10-FU-LF	Jauch无源晶振	JXS21	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
Q 38.40-JXS21-9-10/15-T1-FU-LF	Jauch无源晶振	JXS21	MHz Crystal	38.4 MHz	±15ppm	±10ppm	9pF
Q 27.120-JXS21-12-10/15-T1-FU-LF	Jauch无源晶振	JXS21	MHz Crystal	27.12 MHz	±15ppm	±10ppm	12pF
Q 26.0-JXS11-12-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	26 MHz	±10ppm	±10ppm	12pF
Q 32.0-JXS11-8-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
Q 50.0-JXS11-8-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	50 MHz	±10ppm	±10ppm	8pF
Q 32.0-JXS11-10-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF
Q 27.120-JXS11-8-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	27.12 MHz	±10ppm	±10ppm	8pF
Q 38.40-JXS22-8-10/10-FU-LF	Jauch无源晶振	JXS22	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
Q 50.0-JXS11-12-10/20-T1-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	50 MHz	±20ppm	±10ppm	12pF
Q 27.120-JXS11-8-10/20-T1-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	27.12 MHz	±20ppm	±10ppm	8pF
Q 32.0-JXS11-10-10/20-T1-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	32 MHz	±20ppm	±10ppm	10pF
Q 38.40-JXS22-10-10/15-T1-FU-LF	Jauch无源晶振	JXS22	MHz Crystal	38.4 MHz	±15ppm	±10ppm	10pF
J49SML-F-G-G-K-4M0	Jauch无源晶振	J49SML	MHz Crystal	4 MHz	±30ppm	±30ppm	18pF
J49SML-P-G-G-K-12M0	Jauch无源晶振	J49SML	MHz Crystal	12 MHz	±30ppm	±30ppm	30pF
J49SML-A-G-G-K-12M0	Jauch无源晶振	J49SML	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF
Q 19.20-JXS32-12-10/10-LF	Jauch无源晶振	JXS32	MHz Crystal	19.2 MHz	±10ppm	±10ppm	12pF
Q 40.0-JXS11-12-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	40 MHz	±10ppm	±10ppm	12pF
Q 40.0-JXS11-10-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	40 MHz	±10ppm	±10ppm	10pF
J49SMH-C-G-G-K-16M0	Jauch无源晶振	J49SMH	MHz Crystal	16 MHz	±30ppm	±30ppm	20pF
J49SMH-B-G-G-K-14M74560	Jauch无源晶振	J49SMH	MHz Crystal	14.7456 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-10M0	Jauch无源晶振	J49SMH	MHz Crystal	10 MHz	±30ppm	±30ppm	30pF
J49SMH-B-G-G-K-27M0	Jauch无源晶振	J49SMH	MHz Crystal	27 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-18M4320	Jauch无源晶振	J49SMH	MHz Crystal	18.432 MHz	±30ppm	±30ppm	30pF
J49SMH-P-G-G-K-6M0	Jauch无源晶振	J49SMH	MHz Crystal	6 MHz	±30ppm	±30ppm	30pF
J49SMH-C-G-G-K-8M0	Jauch无源晶振	J49SMH	MHz Crystal	8 MHz	±30ppm	±30ppm	20pF
J49SMH-P-G-G-K-4M91520	Jauch无源晶振	J49SMH	MHz Crystal	4.9152 MHz	±30ppm	±30ppm	30pF
J49SMH-B-G-G-K-6M0	Jauch无源晶振	J49SMH	MHz Crystal	6 MHz	±30ppm	±30ppm	16pF
J49SMH-C-G-G-K-20M0	Jauch无源晶振	J49SMH	MHz Crystal	20 MHz	±30ppm	±30ppm	20pF
J49SMH-B-G-G-K-4M0	Jauch无源晶振	J49SMH	MHz Crystal	4 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-3M579545	Jauch无源晶振	J49SMH	MHz Crystal	3.579545 MHz	±30ppm	±30ppm	30pF
J49SMH-P-G-G-K-7M37280	Jauch无源晶振	J49SMH	MHz Crystal	7.3728 MHz	±30ppm	±30ppm	30pF
J49SMH-B-G-G-K-8M0	Jauch无源晶振	J49SMH	MHz Crystal	8 MHz	±30ppm	±30ppm	16pF
J49SMH-B-G-G-K-4M91520	Jauch无源晶振	J49SMH	MHz Crystal	4.9152 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-3M68640	Jauch无源晶振	J49SMH	MHz Crystal	3.6864 MHz	±30ppm	±30ppm	30pF
J49SMH-F-G-G-K-30M0	Jauch无源晶振	J49SMH	MHz Crystal	30 MHz	±30ppm	±30ppm	18pF
Q 30.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	30 MHz	±20ppm	±20ppm	12pF
Q 26.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	26 MHz	±20ppm	±20ppm	12pF
Q 32.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	32 MHz	±20ppm	±20ppm	12pF
Q 24.0-JXS32P4-8-20/20-T1-FU-AEC- LF	Jauch无源晶振	JXS32P4	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF
Q 25.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	25 MHz	±20ppm	±20ppm	12pF
Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	27 MHz	±20ppm	±20ppm	12pF
Q 30.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	30 MHz	±20ppm	±20ppm	12pF
Q 26.0-JXS21P4-8-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	26 MHz	±20ppm	±20ppm	8pF
Q 24.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF
Q 27.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	27 MHz	±20ppm	±20ppm	12pF
Q 32.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	32 MHz	±20ppm	±20ppm	12pF
Q 24.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF
Q 48.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	48 MHz	±20ppm	±20ppm	12pF
Q 48.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	48 MHz	±20ppm	±20ppm	12pF
Q 48.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	48 MHz	±20ppm	±20ppm	12pF
Q 0.032768-JTX110-12.5-20-T1-90K-LF	Jauch无源晶振	JTX110	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF
Q 0.032768-JTX110-9-20-T1-90K-LF	Jauch无源晶振	JTX110	MHz Crystal	32.768 kHz	-	±20ppm	9pF
J31SMT-A-D-K-32K768	Jauch无源晶振	JT31SMT	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF
