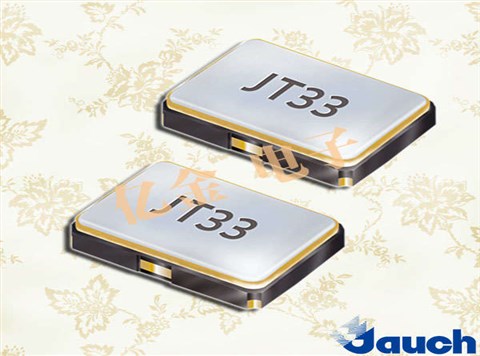

O25,0-JT33-B-K-3,3-LF是一款专为高精度电子设备设计的TCXO有源贴片晶振,采用削峰正弦波输出模式,确保信号传输的稳定性与纯净度.该晶振核心频率精准锁定25MHz,工作电压为3.3V,通过先进的温度补偿晶振技术(TCXO),可在宽温环境下有效抑制频率漂移,满足工业级设备对时间基准的严苛要求.贴片式封装设计不仅节省PCB板空间,还具备优异的抗振动,抗冲击性能,适配自动化贴片生产流程,广泛应用于通信基站,卫星导航设备等对频率稳定性要求极高的场景.晶振内部采用高品质压电晶体与精密振荡电路,结合先进的封装工艺,有效减少外部电磁辐射对内部电路的影响,进一步提升信号抗干扰能力.该特性使其适用于射频通信设备,高速数据传输模块,精密测试仪器等对信号质量要求严苛的场景,为设备提供精准,稳定的高频时钟基准.

O25,0-JT33-B-K-3,3-LF,削峰正弦波晶振,TCXO有源贴片晶振

原厂型号Originalmodel：	O 25,0-JT33-B-K-3,3-LF	品牌brand：	Jauch振荡器
Manufacturer品牌	Jauch欧美晶振	OperatingTemperature温度	-40°C ~ 85°C
Series型号	JT33	Current-Supply(Max)	2.5mA
Type类型	TCXO	PackageHeight高度	1.00mm
Frequency频率	25 MHz	Termination脚位	4-pad
输出方式Output：	削峰正弦波	PackageType封装类型	4-SMD
Voltage-Supply电压	3.3V	Packaging包装	TapeandReel
FrequencyStability频率稳定度	±2ppm	安装方式Installation：	Surfacemount

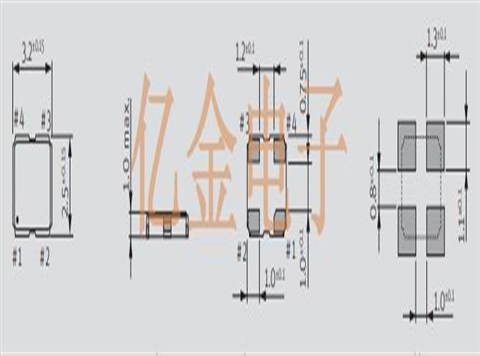

Size/Dimension尺寸	3.20mm x 2.50mm	最小包装数MPQ：	3000

O25,0-JT33-B-K-3,3-LF,削峰正弦波晶振,TCXO有源贴片晶振

JT33-

O25,0-JT33-B-K-3,3-LF,削峰正弦波晶振,TCXO有源贴片晶振

J49SML-A-G-G-K-16M0	Jauch无源晶振	J49SML	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
J49SML-A-G-G-K-4M0	Jauch无源晶振	J49SML	MHz Crystal	4 MHz	±30ppm	±30ppm	12pF
J49SML-F-G-G-K-16M0	Jauch无源晶振	J49SML	MHz Crystal	16 MHz	±30ppm	±30ppm	18pF
J49SML-F-G-G-K-25M0	Jauch无源晶振	J49SML	MHz Crystal	25 MHz	±30ppm	±30ppm	18pF
J49SML-F-G-G-K-8M0	Jauch无源晶振	J49SML	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
Q 27.120-JXS22-10-10/10-FU-LF	Jauch无源晶振	JXS22	MHz Crystal	27.12 MHz	±10ppm	±10ppm	10pF
Q 38.40-JXS21-8-10/10-FU-LF	Jauch无源晶振	JXS21	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
Q 38.40-JXS21-9-10/15-T1-FU-LF	Jauch无源晶振	JXS21	MHz Crystal	38.4 MHz	±15ppm	±10ppm	9pF
Q 27.120-JXS21-12-10/15-T1-FU-LF	Jauch无源晶振	JXS21	MHz Crystal	27.12 MHz	±15ppm	±10ppm	12pF
Q 26.0-JXS11-12-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	26 MHz	±10ppm	±10ppm	12pF
Q 32.0-JXS11-8-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
Q 50.0-JXS11-8-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	50 MHz	±10ppm	±10ppm	8pF
Q 32.0-JXS11-10-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF
Q 27.120-JXS11-8-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	27.12 MHz	±10ppm	±10ppm	8pF
Q 38.40-JXS22-8-10/10-FU-LF	Jauch无源晶振	JXS22	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
Q 50.0-JXS11-12-10/20-T1-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	50 MHz	±20ppm	±10ppm	12pF
Q 27.120-JXS11-8-10/20-T1-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	27.12 MHz	±20ppm	±10ppm	8pF
Q 32.0-JXS11-10-10/20-T1-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	32 MHz	±20ppm	±10ppm	10pF
Q 38.40-JXS22-10-10/15-T1-FU-LF	Jauch无源晶振	JXS22	MHz Crystal	38.4 MHz	±15ppm	±10ppm	10pF
J49SML-F-G-G-K-4M0	Jauch无源晶振	J49SML	MHz Crystal	4 MHz	±30ppm	±30ppm	18pF
J49SML-P-G-G-K-12M0	Jauch无源晶振	J49SML	MHz Crystal	12 MHz	±30ppm	±30ppm	30pF
J49SML-A-G-G-K-12M0	Jauch无源晶振	J49SML	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF
Q 19.20-JXS32-12-10/10-LF	Jauch无源晶振	JXS32	MHz Crystal	19.2 MHz	±10ppm	±10ppm	12pF
Q 40.0-JXS11-12-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	40 MHz	±10ppm	±10ppm	12pF
Q 40.0-JXS11-10-10/10-FU-LF	Jauch无源晶振	JXS11	MHz Crystal	40 MHz	±10ppm	±10ppm	10pF
J49SMH-C-G-G-K-16M0	Jauch无源晶振	J49SMH	MHz Crystal	16 MHz	±30ppm	±30ppm	20pF
J49SMH-B-G-G-K-14M74560	Jauch无源晶振	J49SMH	MHz Crystal	14.7456 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-10M0	Jauch无源晶振	J49SMH	MHz Crystal	10 MHz	±30ppm	±30ppm	30pF
J49SMH-B-G-G-K-27M0	Jauch无源晶振	J49SMH	MHz Crystal	27 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-18M4320	Jauch无源晶振	J49SMH	MHz Crystal	18.432 MHz	±30ppm	±30ppm	30pF
J49SMH-P-G-G-K-6M0	Jauch无源晶振	J49SMH	MHz Crystal	6 MHz	±30ppm	±30ppm	30pF
J49SMH-C-G-G-K-8M0	Jauch无源晶振	J49SMH	MHz Crystal	8 MHz	±30ppm	±30ppm	20pF
J49SMH-P-G-G-K-4M91520	Jauch无源晶振	J49SMH	MHz Crystal	4.9152 MHz	±30ppm	±30ppm	30pF
J49SMH-B-G-G-K-6M0	Jauch无源晶振	J49SMH	MHz Crystal	6 MHz	±30ppm	±30ppm	16pF
J49SMH-C-G-G-K-20M0	Jauch无源晶振	J49SMH	MHz Crystal	20 MHz	±30ppm	±30ppm	20pF
J49SMH-B-G-G-K-4M0	Jauch无源晶振	J49SMH	MHz Crystal	4 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-3M579545	Jauch无源晶振	J49SMH	MHz Crystal	3.579545 MHz	±30ppm	±30ppm	30pF
J49SMH-P-G-G-K-7M37280	Jauch无源晶振	J49SMH	MHz Crystal	7.3728 MHz	±30ppm	±30ppm	30pF
J49SMH-B-G-G-K-8M0	Jauch无源晶振	J49SMH	MHz Crystal	8 MHz	±30ppm	±30ppm	16pF
J49SMH-B-G-G-K-4M91520	Jauch无源晶振	J49SMH	MHz Crystal	4.9152 MHz	±30ppm	±30ppm	16pF
J49SMH-P-G-G-K-3M68640	Jauch无源晶振	J49SMH	MHz Crystal	3.6864 MHz	±30ppm	±30ppm	30pF
J49SMH-F-G-G-K-30M0	Jauch无源晶振	J49SMH	MHz Crystal	30 MHz	±30ppm	±30ppm	18pF
Q 30.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	30 MHz	±20ppm	±20ppm	12pF
Q 26.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	26 MHz	±20ppm	±20ppm	12pF
Q 32.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	32 MHz	±20ppm	±20ppm	12pF
Q 24.0-JXS32P4-8-20/20-T1-FU-AEC- LF	Jauch无源晶振	JXS32P4	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF
Q 25.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	25 MHz	±20ppm	±20ppm	12pF
Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	27 MHz	±20ppm	±20ppm	12pF
Q 30.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	30 MHz	±20ppm	±20ppm	12pF
Q 26.0-JXS21P4-8-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	26 MHz	±20ppm	±20ppm	8pF
Q 24.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF
Q 27.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	27 MHz	±20ppm	±20ppm	12pF
Q 32.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	32 MHz	±20ppm	±20ppm	12pF
Q 24.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF
Q 48.0-JXS21P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS21P4	MHz Crystal	48 MHz	±20ppm	±20ppm	12pF
Q 48.0-JXS32P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS32P4	MHz Crystal	48 MHz	±20ppm	±20ppm	12pF
Q 48.0-JXS22P4-12-20/20-T1-FU-AEC-LF	Jauch无源晶振	JXS22P4	MHz Crystal	48 MHz	±20ppm	±20ppm	12pF
Q 0.032768-JTX110-12.5-20-T1-90K-LF	Jauch无源晶振	JTX110	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF
Q 0.032768-JTX110-9-20-T1-90K-LF	Jauch无源晶振	JTX110	MHz Crystal	32.768 kHz	-	±20ppm	9pF
J31SMT-A-D-K-32K768	Jauch无源晶振	JT31SMT	kHz Crystal	32.768 kHz	-	±20ppm	12.5pF
