日本进口车规级NDK晶振NZ2016SH,NZ2016SH-24.000MHZNSC5022C贴片晶振
Item
Symbol
Value
Unit
Nominal frequency
fnom
32.768
MHz

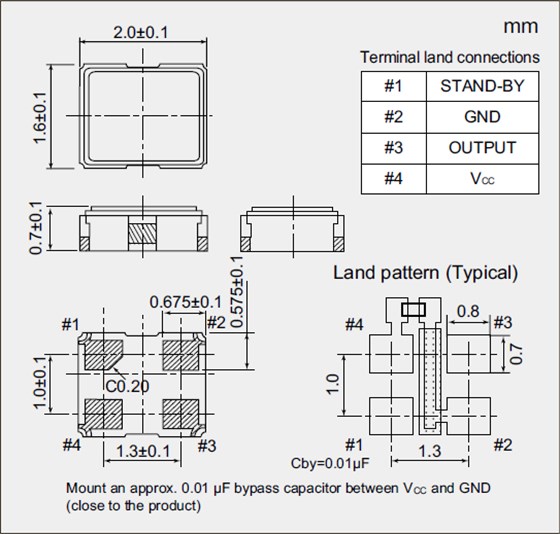

Package size (L×W×H)
-
2.0 × 1.6 × 0.7
mm
Supply voltage
VCC
+1.8 to +3.3
V
Current consumption
ICC
Max.32 (Typ. 18)
μA
(Standard type)
Current Consumption (Oscillation start-up time reduction type)
ICC
Max.72 (Typ. 41)
μA
Stand-by current (At stand-by)
IST
Max.5
μA
Output specification
-
CMOS
-
Load
CL
Max.15
pF
Storage temperature range
Tstr
-55 to +125
℃
Operating temperature range
Topr
-40 to +125
-40 to +105
-40 to +85
℃
Overall frequency tolerance
Δf/fnom
Max. ±100
Max. ±50
Max. ±30
ppm
Output voltage
VOL
Max. 0.1 VCC
V
Output voltage
VOH
Min. 0.9 VCC
V
Rise (tr), fall (tf) time
tr/tf
Max.50
ns
Symmetry
SYM
45 to 55
%
Start-up time (Standard type)
tsu
Max. 30 at Vcc=1.8V
ms
Max. 20 at Vcc=2.5V to 3.3V
Start-up time (Oscillation start-up time reduction type)
tsu
Max. 4 at Vcc=1.8V to 3.3V
ms
Frequency aging
-
Max. ±5
ppm
日本进口车规级NDK晶振NZ2016SH,NZ2016SH-24.000MHZNSC5022C贴片晶振
日本进口车规级NDK晶振NZ2016SH,NZ2016SH-24.000MHZNSC5022C贴片晶振
在使用NDK晶振时应注意以下事项：
石英晶体振荡器的处理与其略有不同其他电子元件.请阅读以下注意事项小心地正确使用晶体振荡器确保设备的最佳性能.
1.电源：旁路电容使用本产品时,请放置一个约0.01的旁路电容μF,介于电源和GND之间（尽可能靠近产品终端尽可能）.
2.安装表面贴装晶体时钟振荡器：
（1）安装电路板后温度快速变化当安装板的材料为表面安装时陶瓷有晶体时钟振荡器封装膨胀系数不同于陶瓷的膨胀系数材料,焊接的圆角部分可能会破裂,如果受到影响长时间反复发生极端温度变化.你在这样的条件下,建议情况是这样的事先检查过.
（2）通过自动安装进行冲击当晶体时钟振荡器被吸附或吸入时自动安装或超过的冲击过程安装振荡器时会发生指定值板,振荡器的特性会改变或恶化.
（3）板弯曲应力将晶体时钟振荡器焊接到印刷后板,弯曲板可能会导致焊接部分剥落关闭或振荡器封装由于机械应力而破裂.
3.抗跌落冲击力：本目录中的产品设计得非常高抗自由落体冲击（最多三次）.但是,如果错误地将产品从桌子等处丢弃,为确保最佳性能,建议您使用再次测量产品的性能或您要求我们再次测量它.
4.静电：本目录中的产品使用CMOS IC作为其有源产品元素.因此,在一个环境中处理产品对抗静电的措施拍摄.
5.耐高温：关于耐高温性,使用产品时在温度为+ 125°C的极端环境中超过24小时,产品的所有特点无法保证.要特别注意存放产品在正确的温度范围内.
6. EMI：当您考虑EMI时,低电源电压建议使用（例如2.5V,1.8V,1.5V或0.9V）.此外,请事先咨询我们有关的组合针对上述EMI的两种对策.
7.超声波清洗：当进行本目录中超薄小有源贴片晶振的超声波清洁时根据其安装状态和清洁条件等,该产品的晶体振荡器可能会发生共振断裂.在超声波清洁之前,请务必检查条件.
8.请将水晶时钟振荡器用于特殊用途时欢迎与我们联系.
日本进口车规级NDK晶振NZ2016SH,NZ2016SH-24.000MHZNSC5022C贴片晶振
| NDK原厂编码 | 生产厂商 | 型号 | 类型 | 频率 | 电压 |
| NZ2520SB-32.768KHZ-NSA3534C | NDK晶振 | NZ2520S | XO (Standard) | 32.768kHz | 1.8V |
| NZ2520SB-32.768KHZ-NSA3534C | NDK晶振 | NZ2520S | XO (Standard) | 32.768kHz | 1.8V |
| NZ2520SB-32.768KHZ-NSA3534C | NDK晶振 | NZ2520S | XO (Standard) | 32.768kHz | 1.8V |
| NT2016SA-26.000000MHZ-NBG2 | NDK晶振 | NT2016SA | TCXO | 26MHz | 1.8V |
| NT2016SA-26.000000MHZ-NBG2 | NDK晶振 | NT2016SA | TCXO | 26MHz | 1.8V |
| NT2016SA-26.000000MHZ-NBG2 | NDK晶振 | NT2016SA | TCXO | 26MHz | 1.8V |
| NZ2520SB-32.768KHZ-NSA3536C | NDK晶振 | NZ2520S | XO (Standard) | 32.768kHz | 3.3V |
| NZ2520SB-32.768KHZ-NSA3536C | NDK晶振 | NZ2520S | XO (Standard) | 32.768kHz | 3.3V |
| NZ2520SB-32.768KHZ-NSA3536C | NDK晶振 | NZ2520S | XO (Standard) | 32.768kHz | 3.3V |
| NT3225SA-13.000000MHZ | NDK晶振 | NT3225SA | VCTCXO | 13MHz | 3V |
| NT3225SA-13.000000MHZ | NDK晶振 | NT3225SA | VCTCXO | 13MHz | 3V |
| NT3225SA-13.000000MHZ | NDK晶振 | NT3225SA | VCTCXO | 13MHz | 3V |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | VCTCXO | 19.68MHz | 3V |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | VCTCXO | 19.68MHz | 3V |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | VCTCXO | 19.68MHz | 3V |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | VCTCXO | 26MHz | 3V |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | VCTCXO | 26MHz | 3V |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | VCTCXO | 26MHz | 3V |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | TCXO | 16.368MHz | 2.5V |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | TCXO | 16.368MHz | 2.5V |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | TCXO | 16.368MHz | 2.5V |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | VCTCXO | 19.2MHz | 2.8V |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | VCTCXO | 19.2MHz | 2.8V |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | VCTCXO | 19.2MHz | 2.8V |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | TCXO | 19.2MHz | 2.8V |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | TCXO | 19.2MHz | 2.8V |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | TCXO | 19.2MHz | 2.8V |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | TCXO | 26MHz | 2.4V |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | TCXO | 26MHz | 2.4V |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | TCXO | 26MHz | 2.4V |
| NZ2520SB-32.768KHZ-NSA3535C | NDK晶振 | NZ2520S | XO (Standard) | 32.768kHz | 2.5V |
| NZ2520SB-32.768KHZ-NSA3535C | NDK晶振 | NZ2520S | XO (Standard) | 32.768kHz | 2.5V |
| NZ2520SB-32.768KHZ-NSA3535C | NDK晶振 | NZ2520S | XO (Standard) | 32.768kHz | 2.5V |
