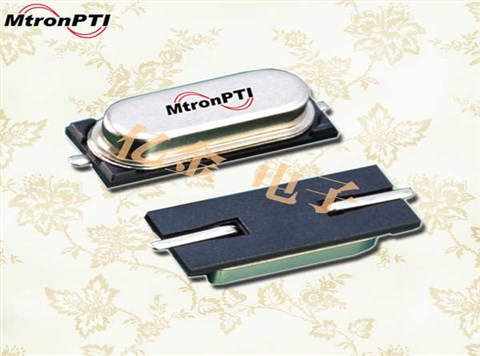

MtronPTI晶振,49SMD6G通讯设备晶振,M1001S448 8.000000二脚晶振

MtronPTI晶振,49SMD6G通讯设备晶振,M1001S448 8.000000二脚晶振MtronPTI晶振,49SMD6G通讯设备晶振,M1001S448 8.000000二脚晶振

产品简介

MtronPTI晶振,49SMD6G通讯设备晶振,M1001S448 8.000000二脚晶振美国麦特伦皮晶振公司,MtronPTI晶振,6G通讯设备晶振,6G路由器晶振,M1001S448 8.000000晶振,车载晶振,电脑主板晶振石英晶振贴片晶振,二脚晶振,49SMD晶振,进口晶振,高品质晶振,耐环境晶振,耐冲击晶振,无源晶振,环保无铅晶振

产品详情

yijin-1

MtronPTI晶振,49SMD6G通讯设备晶振,M1001S448 8.000000二脚晶振美国麦特伦皮晶振公司,MtronPTI晶振,6G通讯设备晶振,6G路由器晶振,M1001S448 8.000000晶振,车载晶振,电脑主板晶振石英晶振贴片晶振,二脚晶振,49SMD晶振,进口晶振,高品质晶振,耐环境晶振,耐冲击晶振,无源晶振,环保无铅晶振

yijin-3

MtronPTI晶振,49SMD6G通讯设备晶振,M1001S448 8.000000二脚晶振

参数 Symbol Min. Typ. Max. Units Condition/Notes
频率范围 F 3.579545 72 MHz
频率容差 F/F ±30 ppm
频率稳定度 ΔF/F ±50 ppm
工作温度 TA -10 +70 。C
储存温度 TS -55 +125 。C
老化
1st Year
Thereafter (per year)
+3
+5
ppm
ppm
Up to 3rd year
负载电容 CL 18 pF See Note 2
分流电容 CO 7 pF
驱动电平 DL 25 100 500 µW
绝缘电阻 IR 500

yijin-2

MtronPTI晶振,49SMD6G通讯设备晶振,M1001S448 8.000000二脚晶振

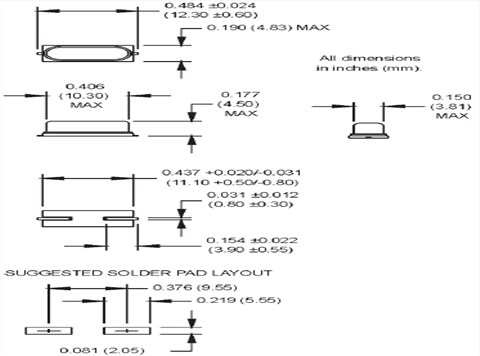

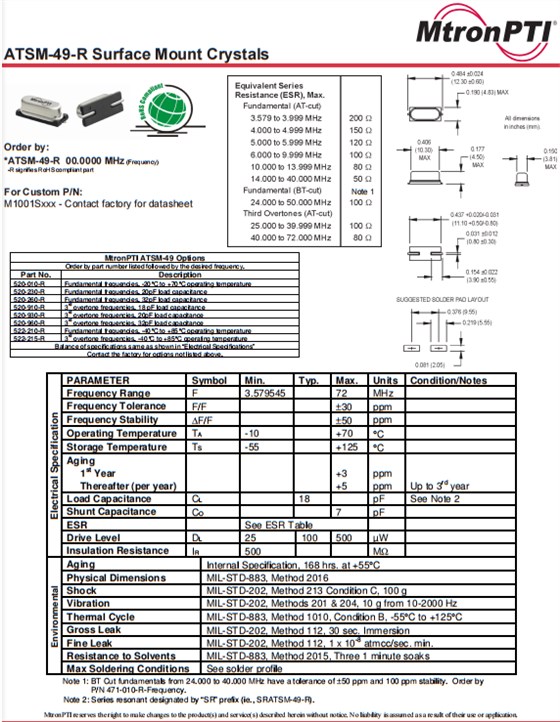

ATSM-49-R 12.3_4.83mm 49SMD

ATSM-49-R

原厂编码 型号 类型 频率稳定度 频率 频率容差
M220168MPJ 156.250000 M220x XO ±20 ppm 156.25 ±20 ppm
1698-065 18.600000 MHO+ XO ±25 ppm 18.6 ±10 ppm
XO9085-002 XO9085 OCXO ±100 ppb 100 ±100 ppb
XO9085-004 XO9085 OCXO ±100 ppb 100 ±100 ppb
M61612GTSN 10.000000 M616x VCTCXO ±0.5 ppm 10 ±1 ppm
M61612JFCN 20.000000 M616x TCXO ±1 ppm 20 ±1 ppm
M61612JTCN 10.000000 M616x VCTCXO ±1 ppm 10 ±1 ppm
M61612LTCN 10.000000 M616x VCTCXO ±4.6 ppm 10 ±1 ppm
M61612MFCN 10.000000 M616x TCXO ±0.2 ppm 10 ±1 ppm
M61613LFSN 50.000000 M616x TCXO ±4.6 ppm 50 ±1 ppm
M61616LTCN 10.000000 M616x VCTCXO ±4.6 ppm 10 ±1 ppm
M61641GFCN 10.000000 M616x TCXO ±0.5 ppm 10 ±1 ppm
M61641GFCN 40.000000 M616x TCXO ±0.5 ppm 40 ±1 ppm
M61642GFCN 24.000000 M616x TCXO ±0.5 ppm 24 ±1 ppm
M61642GFSN 20.000000 M616x TCXO ±0.5 ppm 20 ±1 ppm
M61642GTSN 40.000000 M616x VCTCXO ±0.5 ppm 40 ±1 ppm
M61642JFCN 20.000000 M616x TCXO ±1 ppm 20 ±1 ppm
M61642JFCN 50.000000 M616x TCXO ±1 ppm 50 ±1 ppm
M61642JFSN 10.000000 M616x TCXO ±1 ppm 10 ±1 ppm
M61642JTSN 9.600000 M616x VCTCXO ±1 ppm 9.6 ±1 ppm
M61642KFSN 10.000000 M616x TCXO ±2 ppm 10 ±1 ppm
M61646PTCN 50.000000 M616x VCTCXO ±0.3 ppm 50 ±1 ppm
M61652GFCN 10.000000 M616x TCXO ±0.5 ppm 10 ±1 ppm
M61652GFSN 10.000000 M616x TCXO ±0.5 ppm 10 ±1 ppm
M61812GTSN 10.000000 M168x VCTCXO ±0.5 ppm 10 ±1 ppm
M61812MFSN 16.384000 M618x TCXO ±0.2 ppm 16.384 ±1 ppm
M61812MTSN 16.384000 M618x VCTCXO ±0.2 ppm 16.384 ±1 ppm
M61812PFCN 25.000000 M168x TCXO ±0.3 ppm 25 ±1 ppm
M61812PTCN 24.576000 M168x VCTCXO ±0.3 ppm 24.576 ±1 ppm
M61816GFCN 50.000000 M168x TCXO ±0.5 ppm 50 ±1 ppm
M61816PTCN 50.000000 M168x VCTCXO ±0.3 ppm 50 ±1 ppm
M6181S020 32.000000 M618x VCTCXO ±0.28 ppm 32 ±1 ppm
M61822PFSN 8.192000 M168x TCXO ±0.3 ppm 8.192 ±1 ppm
HPO-310 66.000000 HPO XO ±5 ppm 66 ±5 ppm
HPO-310 77.760000 HPO XO ±5 ppm 77.76 ±5 ppm
HPO-311 112.500000 HPO XO ±5 ppm 112.5 ±5 ppm
HPO-311 25.000000 HPO XO ±5 ppm 25 ±5 ppm
HPO-311 62.208000 HPO XO ±5 ppm 62.208 ±5 ppm
HPO-320 66.000000 HPO XO ±5 ppm 66 ±5 ppm
HPO-320 77.760000 HPO XO ±5 ppm 77.76 ±5 ppm
HPO-321 112.500000 HPO XO ±5 ppm 112.5 ±5 ppm
HPO-321 25.000000 HPO XO ±5 ppm 25 ±5 ppm
HPO-321 62.208000 HPO XO ±5 ppm 62.208 ±5 ppm
XO5085-012R XO5085 OCXO ±100 ppb 100 ±100 ppb
XO5123-034R XO5123 OCXO ±10 ppb 10 ±10 ppb
XO5123-037R XO5123 OCXO ±10 ppb 10 ±10 ppb
XO5123-040R XO5123 OCXO ±10 ppb 10 ±10 ppb
XO5123-060R XO5123 OCXO ±0.6 ppb 40 ±0.6 ppb
XO5123-061R XO5123 OCXO ±5 ppb 10 ±5 ppb
XO5123-064R XO5123 OCXO ±10 ppb 10 ±10 ppb
XO5123-065R XO5123 OCXO ±0.6 ppb 10 ±0.6 ppb
XO5123-070R XO5123 OCXO ±2 ppb 10 ±2 ppb
1485-003 10.000000 M1 XO ±25 ppm 10 ±10 ppm
60501-26N-48.000 M1 XO ±25 ppm 48 ±25 ppm
1378-003 16.000000 MHO+ XO ±100 ppm 16 ±100 ppm
1698-575 66.666700 M2 XO ±50 ppm 66.6667 ±50 ppm
60551-43N 16.384000 M2 XO ±100 ppm 16.384 ±100 ppm
M2001S038 50.000000 M2 XO ±50 ppm 50 ±50 ppm
M2002S031 66.000000 M2 XO ±50 ppm 66 ±50 ppm
M2002S041 16.384000 M2 XO ±100 ppm 16.384 ±100 ppm
M2002S220 39.995800 M2 XO ±50 ppm 39.9958 ±50 ppm
M2002S294 40.000000 M2 XO ±100 ppm 40 ±100 ppm
M2002S295 60.000000 M2 XO ±100 ppm 60 ±100 ppm
M2002S429 16.000000 M2 XO ±100 ppm 16 ±100 ppm
M2002S454 40.000000 M2 XO ±50 ppm 40 ±50 ppm
M2002S455 12.000000 M2 XO ±50 ppm 12 ±50 ppm
M2002S654 50.000000 M2 XO ±100 ppm 50 ±100 ppm
M2002S656 99.000000 M2 XO ±100 ppm 99 ±100 ppm
M2002S709 43.200000 M2 XO ±100 ppm 43.2 ±100 ppm
M2002S725 19.660800 M2 XO ±100 ppm 19.6608 ±100 ppm
M2002S773 33.000000 M2 XO ±100 ppm 33 ±100 ppm
M2002S833 10.000000 M2 XO ±100 ppm 10 ±100 ppm
M2002T012 50.000000 M2 XO ±50 ppm 50 ±50 ppm
M2002T171 125.000000 M2 XO ±50 ppm 125 ±50 ppm
M2002T179 25.000000 M2 XO ±100 ppm 25 ±100 ppm
M2002T186 66.667000 M2 XO ±100 ppm 66.667 ±100 ppm
M2002T201 33.333300 M2 XO ±50 ppm 33.3333 ±50 ppm
M2002T202 25.000000 M2 XO ±50 ppm 25 ±50 ppm
M2002T271 66.666000 M2 XO ±25 ppm 66.666 ±25 ppm
M2002T299 33.333000 M2 XO ±50 ppm 33.333 ±50 ppm
M2002T301 50.000000 M2 XO ±30 ppm 50 ±30 ppm
M210224ULC 500.000000 M210x XO ±50 ppm 500 ±50 ppm
M218TAN 51.840000 M2 XO ±20 ppm 51.84 ±20 ppm
M218TCN 100.000000 M2 XO ±20 ppm 100 ±20 ppm
M218TCN 125.000000 M2 XO ±20 ppm 125 ±20 ppm
M218TCN 20.141600 M2 XO ±20 ppm 20.1416 ±20 ppm
M218TCN 44.736000 M2 XO ±20 ppm 44.736 ±20 ppm
