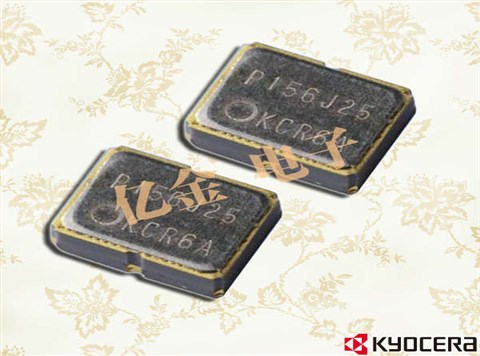

KC3225L156.250H2GJ00高频差分晶振,京瓷高品质有源6G晶振
項目 | 記号 | 条件 | Min. | Max. | 単位 |
频率范围 | fo | 25 | 175 | MHz | |
频率偏差度 | f_tol |
初期偏差、動作温度範囲内での温度特性、電源電圧変動、負 荷容量変動、経年変化(1year @25°C) 、振動 ? 衝撃を含む |
−50 | +50 | × 10−6 |
储存温度 | T_stg | −55 | +125 | °C | |
工作温度 | T_use | −40 | +105 | °C | |
最大电压 | — | −0.3 | +4.0 | V | |
电压电压 | VCC | 2.25 | 3.63 | V | |
消耗电流 | ICC | — | 55 | mA | |
待机电流 | I_std | — | 10 | A | |
波形对称 | SYM | 50ohm @crossing point | 45 | 55 | % |
上升/下降时间0.175 V~0.525 V | tr/ tf | 50ohm | — | 0.5 | ns |
电平输入电压 | VOL | −0.15 | +0.15 | V | |
电平输出电压 | VOH | +0.60 | +0.85 | V | |
出力负荷条件 | RL | HCSL Output | — | 50 | ohm |
禁用时间 | t_dis | — | 200 | ns | |
使能时间 | t_ena | — | 10 | ms | |
発振開始時間 | t_str | 最小動作電圧を0 sec. とする | — | 10 | ms |
Deterministic Jitter | DJ | Wavecrest SIA-3000にて測定 | — | 2 | ps |
1sigma Jitter | JSigma | — | 4 | ps | |
峰值到峰值抖动 | JPK-PK | — | 30 | ps | |
相位抖动 | JPhase | BW :12kHz ? 20MHz | — | 1 | ps |
相位噪音 | — |
−77 (@10Hz offset) − 107 (@100Hz offset) − 130 (@1kHz offset) − 142 (@10kHz offset) − 149 (@100kHz offset) − 150 (@1MHz offset) − 152 (@10MHz offset) |
dBc/ Hz |
KC3225L156.250H2GJ00高频差分晶振,京瓷高品质有源6G晶振
京瓷原厂编码 | 生产商品牌 | 型号 | 类型 | 频率 | 输出类型 | 电压 | 频率稳定度 |
KC3225L156.250P2GJ00 | KYOCERA晶振 | KC3225L-P2 | XO (Standard) | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
KC3225L156.250P3GJ00 | KYOCERA晶振 | KC3225L-P3 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
KC3225L156.250H2GJ00 | KYOCERA晶振 | KC3225L-H2 | XO (Standard) | 156.25 MHz | HCSL | 2.5V | ±50ppm |
KC3225L156.250H3GJ00 | KYOCERA晶振 | KC3225L-H3 | XO (Standard) | 156.25 MHz | HCSL | 3.3V | ±50ppm |
KC7050T156.250L3AEYF | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 156.25 MHz | LVDS | 3.3V | ±100ppm |
KC7050T212.500L3AEYF | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 212.5 MHz | LVDS | 3.3V | ±100ppm |
KC7050T212.500P3AEYG | KYOCERA晶振 | KC7050T-P3 | SO (SAW) | 212.5 MHz | LVPECL | 3.3V | ±100ppm |
KC7050P125.000L20E00 | KYOCERA晶振 | KC7050P-L2 | XO (Standard) | 125 MHz | LVDS | 2.5V | ±50ppm |
KC7050P150.000L20E00 | KYOCERA晶振 | KC7050P-L2 | XO (Standard) | 150 MHz | LVDS | 2.5V | ±50ppm |
KC7050T156.250L20E00 | KYOCERA晶振 | KC7050T-L2 | SO (SAW) | 156.25 MHz | LVDS | 2.5V | ±50ppm |
KC7050T156.250L30E00 | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
KC7050T200.000L20E00 | KYOCERA晶振 | KC7050T-L2 | SO (SAW) | 200 MHz | LVDS | 2.5V | ±50ppm |
KC7050T200.000L30E00 | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 200 MHz | LVDS | 3.3V | ±50ppm |
KC7050T250.000L20E00 | KYOCERA晶振 | KC7050T-L2 | SO (SAW) | 250 MHz | LVDS | 2.5V | ±50ppm |
KC7050T250.000L30E00 | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 250 MHz | LVDS | 3.3V | ±50ppm |
KC7050T312.500L20E00 | KYOCERA晶振 | KC7050T-L2 | SO (SAW) | 312.5 MHz | LVDS | 2.5V | ±50ppm |
KC7050T312.500L30E00 | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 312.5 MHz | LVDS | 3.3V | ±50ppm |
KC7050Y312.500L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 312.5 MHz | LVDS | 2.5V | ±50ppm |
KC7050Y156.250P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
KC7050Y312.500L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 312.5 MHz | LVDS | 3.3V | ±50ppm |
KC7050Y312.500P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 312.5 MHz | LVPECL | 2.5V | ±50ppm |
KC7050Y312.500P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 312.5 MHz | LVPECL | 3.3V | ±50ppm |
KC7050Y75.0000L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 75 MHz | LVDS | 2.5V | ±50ppm |
KC7050Y75.0000L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 75 MHz | LVDS | 3.3V | ±50ppm |
KC7050Y200.000L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 200 MHz | LVDS | 3.3V | ±50ppm |
KC7050Y75.0000P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 75 MHz | LVPECL | 2.5V | ±50ppm |
KC7050Y125.000P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 125 MHz | LVPECL | 3.3V | ±50ppm |
KC7050Y75.0000P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 75 MHz | LVPECL | 3.3V | ±50ppm |
KC7050Y250.000L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 250 MHz | LVDS | 2.5V | ±50ppm |
KC7050Y250.000L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 250 MHz | LVDS | 3.3V | ±50ppm |
KC7050Y250.000P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 250 MHz | LVPECL | 2.5V | ±50ppm |
KC7050Y250.000P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 250 MHz | LVPECL | 3.3V | ±50ppm |
KC7050Y125.000L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 125 MHz | LVDS | 2.5V | ±50ppm |
KC7050Y156.250P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
KC7050Y125.000L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 125 MHz | LVDS | 3.3V | ±50ppm |
KC7050Y125.000P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 125 MHz | LVPECL | 2.5V | ±50ppm |
KC7050Y200.000L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 200 MHz | LVDS | 2.5V | ±50ppm |
KC7050Y200.000P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 200 MHz | LVPECL | 2.5V | ±50ppm |
KC7050Y156.250L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 156.25 MHz | LVDS | 2.5V | ±50ppm |
KC7050Y200.000P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 200 MHz | LVPECL | 3.3V | ±50ppm |
KC7050Y156.250L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
KC7050P125.000L30E00 | KYOCERA晶振 | KC7050P-L3 | XO (Standard) | 125 MHz | LVDS | 3.3V | ±50ppm |
KC7050P156.250L30E00 | KYOCERA晶振 | KC7050P-L3 | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
KC7050P100.000P30E00 | KYOCERA晶振 | KC7050P-P3 | XO (Standard) | 100 MHz | LVPECL | 3.3V | ±50ppm |
KC7050P106.250P30E00 | KYOCERA晶振 | KC7050P-P3 | XO (Standard) | 106.25 MHz | LVPECL | 3.3V | ±50ppm |
KC7050P125.000P30E00 | KYOCERA晶振 | KC7050P-P3 | XO (Standard) | 125 MHz | LVPECL | 3.3V | ±50ppm |
KC7050P155.520P30E00 | KYOCERA晶振 | KC7050P-P3 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
KC7050T156.250P20E00 | KYOCERA晶振 | KC7050T-P2 | SO (SAW) | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
KC7050T200.000P20E00 | KYOCERA晶振 | KC7050T-P2 | SO (SAW) | 200 MHz | LVPECL | 2.5V | ±50ppm |
KC7050T250.000P20E00 | KYOCERA晶振 | KC7050T-P2 | SO (SAW) | 250 MHz | LVPECL | 2.5V | ±50ppm |
KC7050T312.500P20E00 | KYOCERA晶振 | KC7050T-P2 | SO (SAW) | 312.5 MHz | LVPECL | 2.5V | ±50ppm |
KC7050T156.250P30E00 | KYOCERA晶振 | KC7050T-P3 | SO (SAW) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
KC7050T200.000P30E00 | KYOCERA晶振 | KC7050T-P3 | SO (SAW) | 200 MHz | LVPECL | 3.3V | ±50ppm |
KC7050T250.000P30E00 | KYOCERA晶振 | KC7050T-P3 | SO (SAW) | 250 MHz | LVPECL | 3.3V | ±50ppm |
KC7050T312.500P30E00 | KYOCERA晶振 | KC7050T-P3 | SO (SAW) | 312.5 MHz | LVPECL | 3.3V | ±50ppm |
KC7050P100.000L30E00 | KYOCERA晶振 | KC7050P-L3 | XO (Standard) | 100 MHz | LVDS | 3.3V | ±50ppm |
KC3225L156.250L3GJ00 | KYOCERA晶振 | KC3225L-L3 | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
KC3225L156.250L2GJ00 | KYOCERA晶振 | KC3225L-L2 | XO (Standard) | 156.25 MHz | LVDS | 2.5V | ±50ppm |
KC7050P150.000L30E00 | KYOCERA晶振 | KC7050P-L3 | XO (Standard) | 150 MHz | LVDS | 3.3V | ±50ppm |
KC7050P155.520L30E00 | KYOCERA晶振 | KC7050P-L3 | XO (Standard) | 155.52 MHz | LVDS | 3.3V | ±50ppm |
KC7050P156.250P30E00 | KYOCERA晶振 | KC7050P-P3 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
KC7050P156.250L20E00 | KYOCERA晶振 | KC7050P-L2 | XO (Standard) | 156.25 MHz | LVDS | 2.5V | ±50ppm |
