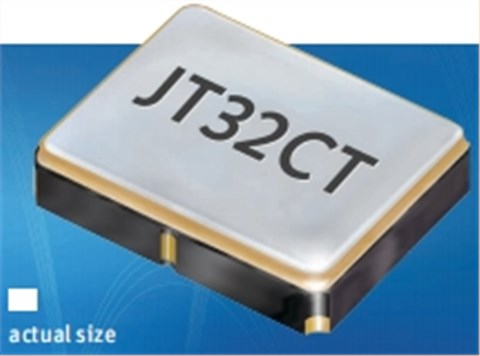

Jauch品牌,3225进口晶振,O 50.0-JT32CT-A-K-3.0-LF,6G路由器晶振,Jauch品牌,JT32CT有源晶振,O 50.0-JT32CT-A-K-3.0-LF晶振,3225进口晶振,温补石英晶体振荡器,TCXO晶振,四脚贴片晶振,频率50MHz,电压3.0V,频率稳定性2.5ppm,工作温度-40~85°C,低相位抖动晶振,轻薄小晶振,无铅环保晶振,6G路由器晶振,物联网晶振,智能设备晶振,家庭医疗保健晶振.
Jauch品牌,3225进口晶振,O 50.0-JT32CT-A-K-3.0-LF,6G路由器晶振特点:
-TCXO与HCMOS输出,3.2 x 2.5 mm
-宽工作温度范围可达+105℃
-极好的相位噪声
-具有待机功能,待机电流小
-陶瓷/金属封装

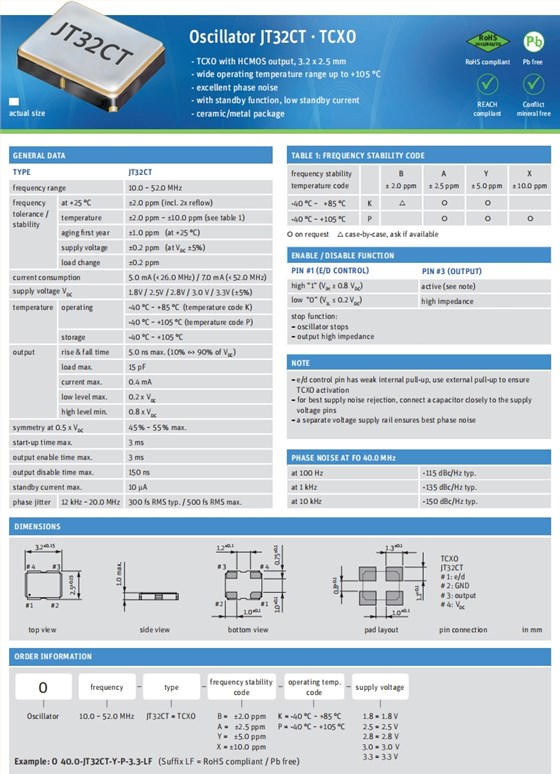

Jauch品牌,3225进口晶振,O 50.0-JT32CT-A-K-3.0-LF,6G路由器晶振规格表
TYPE
JT32CT TCXO
frequency range
50 MHz
frequency stability
at +25°℃
± 2.0 ppm (incl. 2x reflow)
temperature
±2.5 ppm (others on request)
aging hrst year
±1.0 ppm
supply voltage
±0.2 ppm (at Vuc±5%)
load change
±0.2ppm
current consumption
see table 1
supply voltage VDC
3.0V (±5%)
temperature
operating
-40℃-+85℃
storage
-40℃-+105℃
output
rise & fall time
5.0 ns max
load max
15 pF
current max
0.4mA
low level max
0.2×VDC
high level min.
0.8×VDC
harmonics distortion max.
-5.0 dBC
symmetry at 0.5x V.
45%-55% max
start-up time max
3ms
output enable time max.
3 ms
output disable time max.
150ns
standby current max.
10 µA
phase jitter 12kHz-20 MHz
300 fs RMS typ. / 500 fs RMS max.

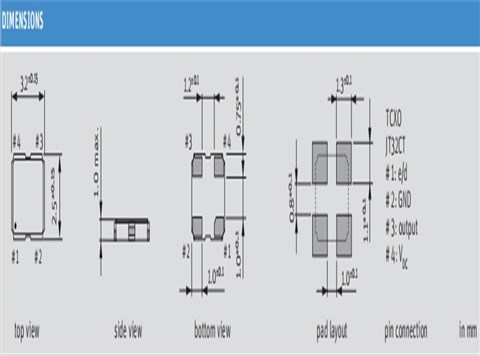

Jauch品牌,3225进口晶振,O 50.0-JT32CT-A-K-3.0-LF,6G路由器晶振尺寸图
Jauch晶振原厂编码 | 制造商 | 型号 | 频率 | 频率容差 | 负载电容 | Operating Mode | 工作温度 |
Q 0.032768-JTX410-7-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-9-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-7-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-9-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-7-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 19.2-JXS22-10-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-10-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
