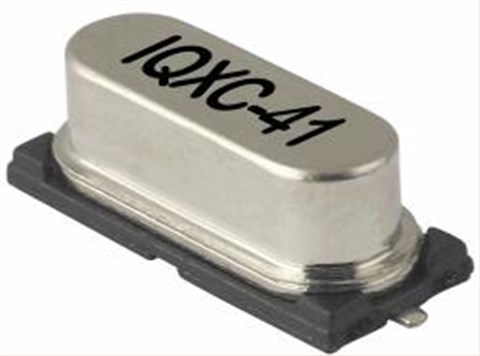

IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振

IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振

产品简介

IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振,IQD晶振,IQXC-41无源晶振,HC-49S贴片晶振,LFXTAL060055Reel晶振,石英晶体谐振器,SMD晶振,三脚封装晶振,频率24MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,低成本晶振,低老化晶振,高稳定性晶振,随身听晶振,无线路由器晶振,智能家居晶振,家用电视机顶盒晶振.

产品详情

yijin-1IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振,IQD晶振,IQXC-41无源晶振,HC-49S贴片晶振,LFXTAL060055Reel晶振,石英晶体谐振器,SMD晶体,三脚封装晶振,频率24MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,低成本晶振,低老化晶振,高稳定性晶振,随身听晶振,无线路由器晶振,智能家居晶振,家用电视机顶盒晶振.

yijin-2IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振规格表

参数 数值
频率 24MHz
频率容差@ 25°C ± 3°C ±20ppm
频率稳定性 ±30ppm
工作温度 -40~85°C
储存温度 -55~125°C
负载 18 pF
并联电容 7pFmax
驱动电平
500µW max
老化@ 25°C ± 3°C
±5.0ppm max peryear

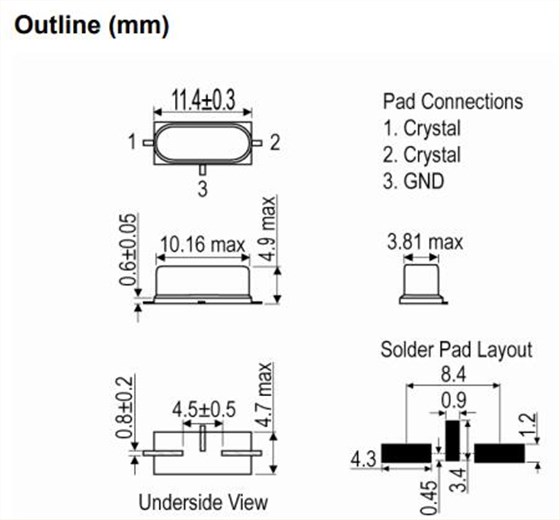

yijin-3IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振尺寸图

IQXC-41-1

IQXC-41-2

编码 型号 频率 频率容差 频率稳定性 工作温度 负载
LFXTAL081314Reel IQXC-240 37.4MHz ±7ppm ±15ppm -30°C to 85°C 5.00pF
LFXTAL081316Reel IQXC-240 38.4MHz ±7ppm ±15ppm -30°C to 85°C 5.00pF
LFXTAL072539Reel IQXC-26 24.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL078691Cutt IQXC-26 24.0MHz ±10ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL081608Cutt IQXC-26 24.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081608Reel IQXC-26 24.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081609Cutt IQXC-26 25.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL083890Cutt IQXC-26 25.0MHz ±10ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL052799Cutt IQXC-26 26.0MHz ±10ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL066742Cutt IQXC-26 26.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL066742Reel IQXC-26 26.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL069296Cutt IQXC-26 26.0MHz ±15ppm ±20ppm -20°C to 70°C 8.00pF
LFXTAL070729Cutt IQXC-26 26.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL081614Cutt IQXC-26 26.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081614Reel IQXC-26 26.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL072541Cutt IQXC-26 27.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL072541Reel IQXC-26 27.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL081610Cutt IQXC-26 27.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL072302Cutt IQXC-26 30.0MHz ±15ppm ±15ppm 20°C to 70°C 8.00pF
LFXTAL081612Cutt IQXC-26 30.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL056523Cutt IQXC-26 32.0MHz ±20ppm ±20ppm -20°C to 70°C 8.00pF
LFXTAL056523Reel IQXC-26 32.0MHz ±20ppm ±20ppm -20°C to 70°C 8.00pF
LFXTAL069526Cutt IQXC-26 32.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL069526Reel IQXC-26 32.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL079322Cutt IQXC-26 32.0MHz ±10ppm ±20ppm -20°C to 70°C 12.00pF
LFXTAL079322Reel IQXC-26 32.0MHz ±10ppm ±20ppm -20°C to 70°C 12.00pF
LFXTAL081613Cutt IQXC-26 32.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL083149Reel IQXC-26 32.0MHz ±10ppm ±20ppm -40°C to 85°C 6.00pF
LFXTAL072304Cutt IQXC-26 37.4MHz ±15ppm ±15ppm 20°C to 70°C 8.00pF
LFXTAL081616Cutt IQXC-26 37.4MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL063312Cutt IQXC-26 40.0MHz ±30ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL069527Cutt IQXC-26 40.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL069527Reel IQXC-26 40.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL081619Cutt IQXC-26 40.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL069528Cutt IQXC-26 48.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL069528Reel IQXC-26 48.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL081620Cutt IQXC-26 48.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL078795Cutt IQXC-42 16.0MHz ±15ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL081780RL3K IQXC-42 16.0MHz ±10ppm ±20ppm -30°C to 85°C 8.00pF
LFXTAL081781RL3K IQXC-42 16.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081821Cutt IQXC-42 16.0MHz ±10ppm ±15ppm -30°C to 85°C 12.00pF
LFXTAL082887RL3K IQXC-42 16.0MHz ±10ppm ±30ppm -40°C to 105°C 10.00pF
LFXTAL059585Cutt IQXC-42 20.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059585Reel IQXC-42 20.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059585RL3K IQXC-42 20.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL064174RL3K IQXC-42 24.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL066139Cutt IQXC-42 24.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069476RL3K IQXC-42 24.0MHz ±10ppm ±10ppm -20°C to 75°C 12.00pF
LFXTAL069493Cutt IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069493Reel IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069493RL3K IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072577RL3K IQXC-42 24.0MHz ±10ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL076411Cutt IQXC-42 24.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL076411RL3K IQXC-42 24.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL081531RL3K IQXC-42 24.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081646RL3K IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082123Cutt IQXC-42 24.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082123RL3K IQXC-42 24.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL090516RL3K IQXC-42 24.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL054026Cutt IQXC-42 25.0MHz ±25ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059552Reel IQXC-42 25.0MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL064933Cutt IQXC-42 25.0MHz ±30ppm ±30ppm 0°C to 50°C 10.00pF
LFXTAL066140Cutt IQXC-42 25.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494Bulk IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494Cutt IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494Reel IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494RL3K IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL075431RL3K IQXC-42 25.0MHz ±30ppm ±40ppm -30°C to 85°C 6.00pF
LFXTAL082125Cutt IQXC-42 25.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082125RL3K IQXC-42 25.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL085846RL3K IQXC-42 25.0MHz ±25ppm ±50ppm -40°C to 125°C 10.00pF
LFXTAL090436RL3K IQXC-42 25.0MHz ±10ppm ±20ppm -40°C to 105°C 10.00pF
LFXTAL059591Cutt IQXC-42 26.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059591Reel IQXC-42 26.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059591RL3K IQXC-42 26.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL066141Cutt IQXC-42 26.0MHz ±15ppm ±15ppm -20°C to 70°C 10.00pF
LFXTAL076879Bulk IQXC-42 26.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL078377RL3K IQXC-42 26.0MHz ±10ppm ±10ppm -20°C to 75°C 12.00pF
LFXTAL081595Cutt IQXC-42 26.0MHz ±10ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL082126Cutt IQXC-42 26.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082126Reel IQXC-42 26.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082126RL3K IQXC-42 26.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL083241Cutt IQXC-42 26.0MHz ±15ppm ±20ppm -20°C to 70°C 8.00pF
LFXTAL059592Cutt IQXC-42 27.0MHz ±15ppm ±15ppm -40°C to 85°C 10.00pF
LFXTAL072543Cutt IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072543Reel IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072543RL3K IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL081349Reel IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL083147RL3K IQXC-42 27.0MHz ±10ppm ±10ppm -20°C to 70°C 18.00pF
LFXTAL063227Reel IQXC-42 27.12MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL063227RL3K IQXC-42 27.12MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL071489Bulk IQXC-42 27.12MHz ±30ppm ±30ppm -20°C to 70°C 10.00pF
LFXTAL071489Cutt IQXC-42 27.12MHz ±30ppm ±30ppm -20°C to 70°C 10.00pF
LFXTAL071489RL3K IQXC-42 27.12MHz ±30ppm ±30ppm -20°C to 70°C 10.00pF
LFXTAL076164Cutt IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL076164Reel IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081630Cutt IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081630RL3K IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL082127Cutt IQXC-42 27.12MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082127RL3K IQXC-42 27.12MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL059596Cutt IQXC-42 30.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059596Reel IQXC-42 30.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059596RL3K IQXC-42 30.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082128Cutt IQXC-42 30.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082128RL3K IQXC-42 30.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL058002RL3K IQXC-42 32.0MHz ±10ppm ±10ppm 0°C to 50°C 8.00pF
LFXTAL058004Cutt IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL058004RL3K IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL058067Cutt IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL058130RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL058699Cutt IQXC-42 32.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL058962RL3K IQXC-42 32.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL059597Cutt IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059597Reel IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059597RL3K IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL061700Cutt IQXC-42 32.0MHz ±20ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL061700Reel IQXC-42 32.0MHz ±20ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL072861RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL073170RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL077362RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 6.00pF
LFXTAL081227RL3K IQXC-42 32.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL081538RL3K IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 75°C 8.00pF
LFXTAL081567Cutt IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 75°C 8.00pF
LFXTAL081839RL3K IQXC-42 32.0MHz ±30ppm ±30ppm -40°C to 85°C 6.00pF
LFXTAL082129Cutt IQXC-42 32.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082129RL3K IQXC-42 32.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL083004RL3K IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL085946RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 105°C 12.00pF
LFXTAL088678RL3K IQXC-42 32.768MHz ±30ppm ±50ppm -20°C to 70°C 8.00pF
LFXTAL082130Cutt IQXC-42 37.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082130RL3K IQXC-42 37.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL059627Cutt IQXC-42 38.4MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL059627Reel IQXC-42 38.4MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL059627RL3K IQXC-42 38.4MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL075418Cutt IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL075418Reel IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078271Cutt IQXC-42 38.4MHz ±10ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL081635Cutt IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081635RL3K IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081883RL3K IQXC-42 38.4MHz ±10ppm ±15ppm -35°C to 85°C 8.00pF
LFXTAL082131Cutt IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082131RL3K IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082468Cutt IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 10.00pF
LFXTAL082468RL3K IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 10.00pF
LFXTAL059632Cutt IQXC-42 40.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059632Reel IQXC-42 40.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059632RL3K IQXC-42 40.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082132Cutt IQXC-42 40.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082132Reel IQXC-42 40.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082132RL3K IQXC-42 40.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL090469RL3K IQXC-42 43.935MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL090628Reel IQXC-42 45.761MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL066363Cutt IQXC-42 48.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL072546Cutt IQXC-42 48.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072546Reel IQXC-42 48.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072546RL3K IQXC-42 48.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082135Cutt IQXC-42 48.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082135RL3K IQXC-42 48.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL079374Cutt IQXC-42 50.0MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL085859RL3K IQXC-42 50.0MHz ±10ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL071255Cutt IQXC-42 AUTO 16.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071255Reel IQXC-42 AUTO 16.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071256Cutt IQXC-42 AUTO 20.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071256Reel IQXC-42 AUTO 20.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL082989Cutt IQXC-42 AUTO 20.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL082989Reel IQXC-42 AUTO 20.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL083912Cutt IQXC-42 AUTO 20.0MHz ±30ppm ±45ppm -40°C to 125°C 8.00pF
LFXTAL071257Cutt IQXC-42 AUTO 24.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071257Reel IQXC-42 AUTO 24.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071258Cutt IQXC-42 AUTO 24.576MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071258Reel IQXC-42 AUTO 24.576MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071259Cutt IQXC-42 AUTO 25.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071259Reel IQXC-42 AUTO 25.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071260Cutt IQXC-42 AUTO 26.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071260Reel IQXC-42 AUTO 26.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071261Cutt IQXC-42 AUTO 27.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071261Reel IQXC-42 AUTO 27.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071262Cutt IQXC-42 AUTO 32.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071262Reel IQXC-42 AUTO 32.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL084010Reel IQXC-42 AUTO 32.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082907Cutt IQXC-42 AUTO 38.4MHz ±20ppm ±80ppm -40°C to 125°C 8.00pF
LFXTAL070734Cutt IQXC-42 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL070734Reel IQXC-42 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071265Cutt IQXC-42 AUTO 40.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071265Reel IQXC-42 AUTO 40.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL090472Reel IQXC-42 AUTO 43.935MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL071266Cutt IQXC-42 AUTO 48.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071266Reel IQXC-42 AUTO 48.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071267Cutt IQXC-42 AUTO 50.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071267Reel IQXC-42 AUTO 50.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL083269Cutt IQXC-152 200.0MHz ±50ppm ±50ppm -10°C to 60°C SR
LFXTAL083706Reel IQXC-180 AUTO 8.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL071742Cutt IQXC-180 AUTO 12.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071742Reel IQXC-180 AUTO 12.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071774Cutt IQXC-180 AUTO 12.0MHz ±50ppm ±100ppm -40°C to 85°C 8.00pF
LFXTAL071774Reel IQXC-180 AUTO 12.0MHz ±50ppm ±100ppm -40°C to 85°C 8.00pF
LFXTAL073664Cutt IQXC-180 AUTO 12.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL073664Reel IQXC-180 AUTO 12.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL081472Reel IQXC-180 AUTO 12.0MHz ±50ppm ±150ppm -40°C to 85°C 18.00pF
LFXTAL082456Cutt IQXC-180 AUTO 12.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL082456Reel IQXC-180 AUTO 12.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL082563Reel IQXC-180 AUTO 12.0MHz ±30ppm ±30ppm -40°C to 105°C 16.00pF
LFXTAL071743Cutt IQXC-180 AUTO 14.318MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071743Reel IQXC-180 AUTO 14.318MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071775Cutt IQXC-180 AUTO 14.318MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071775Reel IQXC-180 AUTO 14.318MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL082014Reel IQXC-180 AUTO 14.7456MHz ±25ppm ±30ppm -40°C to 105°C 18.00pF
LFXTAL053426Cutt IQXC-180 AUTO 16.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL053426Reel IQXC-180 AUTO 16.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL053849Reel IQXC-180 AUTO 16.0MHz ±15ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL054327Cutt IQXC-180 AUTO 16.0MHz ±50ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL054327Reel IQXC-180 AUTO 16.0MHz ±50ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL065160Reel IQXC-180 AUTO 16.0MHz ±20ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL065518Reel IQXC-180 AUTO 16.0MHz ±25ppm ±50ppm -40°C to 125°C 16.00pF
LFXTAL071744Cutt IQXC-180 AUTO 16.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071744Reel IQXC-180 AUTO 16.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL076098Cutt IQXC-180 AUTO 16.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL076098Reel IQXC-180 AUTO 16.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL076787Reel IQXC-180 AUTO 16.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL071747Cutt IQXC-180 AUTO 16.384MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071747Reel IQXC-180 AUTO 16.384MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071777Cutt IQXC-180 AUTO 16.384MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071777Reel IQXC-180 AUTO 16.384MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL055720Bulk IQXC-180 AUTO 20.0MHz ±50ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL055720Reel IQXC-180 AUTO 20.0MHz ±50ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL055998Cutt IQXC-180 AUTO 20.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL055998Reel IQXC-180 AUTO 20.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071750Cutt IQXC-180 AUTO 20.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071750Reel IQXC-180 AUTO 20.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL081836Reel IQXC-180 AUTO 20.0MHz ±15ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL082433Reel IQXC-180 AUTO 20.0MHz ±30ppm ±100ppm -40°C to 125°C 12.00pF
LFXTAL082940Cutt IQXC-180 AUTO 20.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL082940Reel IQXC-180 AUTO 20.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL056140Bulk IQXC-180 AUTO 24.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL056140Cutt IQXC-180 AUTO 24.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL056140Reel IQXC-180 AUTO 24.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL057623Cutt IQXC-180 AUTO 24.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL057623Reel IQXC-180 AUTO 24.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071455Reel IQXC-180 AUTO 24.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL073317Cutt IQXC-180 AUTO 24.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL073317Reel IQXC-180 AUTO 24.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL075729Reel IQXC-180 AUTO 24.0MHz ±20ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL082615Reel IQXC-180 AUTO 24.0MHz ±30ppm ±100ppm -40°C to 125°C 6.00pF
LFXTAL082659Reel IQXC-180 AUTO 24.0MHz ±30ppm ±100ppm -40°C to 125°C 6.00pF
LFXTAL071782Cutt IQXC-180 AUTO 24.576MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL078894Cutt IQXC-180 AUTO 24.576MHz ±30ppm ±100ppm -40°C to 125°C 12.00pF
LFXTAL078894Reel IQXC-180 AUTO 24.576MHz ±30ppm ±100ppm -40°C to 125°C 12.00pF
LFXTAL053510Reel IQXC-180 AUTO 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL066777Bulk IQXC-180 AUTO 25.0MHz ±50ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL071758Cutt IQXC-180 AUTO 25.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071758Reel IQXC-180 AUTO 25.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071785Cutt IQXC-180 AUTO 25.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071785Reel IQXC-180 AUTO 25.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL075419Cutt IQXC-180 AUTO 25.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL075419Reel IQXC-180 AUTO 25.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL081757Reel IQXC-180 AUTO 25.0MHz ±20ppm ±30ppm -40°C to 125°C 8.00pF
LFXTAL083358Reel IQXC-180 AUTO 25.0MHz ±30ppm ±50ppm -40°C to 105°C 12.50pF
LFXTAL053044Reel IQXC-180 AUTO 26.0MHz ±15ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL071761Cutt IQXC-180 AUTO 26.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071761Reel IQXC-180 AUTO 26.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071788Cutt IQXC-180 AUTO 26.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071788Reel IQXC-180 AUTO 26.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL082658Reel IQXC-180 AUTO 26.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL071765Cutt IQXC-180 AUTO 27.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071765Reel IQXC-180 AUTO 27.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071791Cutt IQXC-180 AUTO 27.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071791Reel IQXC-180 AUTO 27.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL080872Cutt IQXC-180 AUTO 28.63636MHz ±20ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL080872Reel IQXC-180 AUTO 28.63636MHz ±20ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071768Cutt IQXC-180 AUTO 30.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071794Cutt IQXC-180 AUTO 30.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL075983Reel IQXC-180 AUTO 32.0MHz ±20ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL071771Cutt IQXC-180 AUTO 36.4MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071773Cutt IQXC-180 AUTO 40.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071799Bulk IQXC-180 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071799Cutt IQXC-180 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071799Reel IQXC-180 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL079388Reel IQXC-180 AUTO 48.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL079399Reel IQXC-180 AUTO 48.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081760Reel IQXC-180 AUTO 50.0MHz ±20ppm ±30ppm -40°C to 125°C 8.00pF
LFXTAL081789Reel IQXC-180 AUTO 50.0MHz ±20ppm ±20ppm -10°C to 105°C 12.00pF
LFXTAL081818Reel IQXC-180 AUTO 50.0MHz ±20ppm ±20ppm -10°C to 105°C 19.00pF
LFXTAL085222Reel IQXC-32 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL057150Reel IQXC-104 AUTO 12.288MHz ±50ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL077082Cutt IQXC-49 8.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL077089Cutt IQXC-49 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077089Reel IQXC-49 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL084035Reel IQXC-49 8.0MHz ±30ppm ±30ppm -20°C to 70°C 12.00pF
LFXTAL084673Reel IQXC-49 8.0MHz ±50ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL085089Reel IQXC-49 8.0MHz ±20ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL077084Reel IQXC-49 10.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077086Reel IQXC-49 10.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL084712Reel IQXC-49 11.0592MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL077079Reel IQXC-49 18.432MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL084840Reel IQXC-49 20.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL077077Reel IQXC-49 24.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL081544Cutt IQXC-49 24.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077078Reel IQXC-49 25.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL077083Bulk IQXC-49 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077083Cutt IQXC-49 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077083Reel IQXC-49 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077085Cutt IQXC-49 25.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL083868Reel IQXC-49 25.0MHz ±30ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL080861Bulk IQXC-49 27.12MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL084410Cutt IQXC-49 30.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL084410Reel IQXC-49 30.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL083139Reel IQXC-41 18.432MHz ±30ppm ±30ppm -20°C to 70°C 20.00pF
LFXTAL060055Reel IQXC-41 24.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL066245Bulk IQXC-41 25.0MHz ±20ppm ±30ppm -25°C to 90°C 20.00pF
LFXTAL066245Reel IQXC-41 25.0MHz ±20ppm ±30ppm -25°C to 90°C 20.00pF

上一页 余下全文

1/5

我要下单

  • 姓名
  • 手机
  • 留言

关于“IQD晶振,IQXC-41无源晶振,HC-49S贴片晶振,石英晶体谐振器,SMD晶体,低成本晶振,低老化晶振,高稳定性晶振,随身听晶振,无线路由器晶振,智能家居晶振,家用电视机顶盒晶振”的相关产品

CITIZEN晶振,贴片晶振,CM315晶振,CM315D32768DZYT晶振CITIZEN晶振,贴片晶振,CM315晶振,CM315D32768DZYT晶振KDS晶振,32.768K晶振,DT-26晶振KDS晶振,32.768K晶振,DT-26晶振

KDS晶振,32.768K,DMX-26S晶振,1TJS125BJ4A421P晶振KDS晶振,32.768K,DMX-26S晶振,1TJS125BJ4A421P晶振NDK晶振,石英晶振,NX2520SA晶振,NX2520SA-16MHZ-STD-CSW-4晶振NDK晶振,石英晶振,NX2520SA晶振,NX2520SA-16MHZ-STD-CSW-4晶振

NKG晶振|SCO5|SCO5-6D-44M000-YTS|5032进口晶振NKG晶振|SCO5|SCO5-6D-44M000-YTS|5032进口晶振NKG晶振|SCO3|SCO3-9G-32M000-WTS|5x7石英晶体振荡器NKG晶振|SCO3|SCO3-9G-32M000-WTS|5x7石英晶体振荡器

NKG晶振|SEO8|SEO86A-20.000-WTC1.0|无线局域网晶振NKG晶振|SEO8|SEO86A-20.000-WTC1.0|无线局域网晶振香港NKG晶振|SEO7|SEO79B-38.400-MTC1.0|低EMI晶振香港NKG晶振|SEO7|SEO79B-38.400-MTC1.0|低EMI晶振

NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器福克斯超小型表晶,FK121进口晶振,FK121EIWM0.032768-T5医疗器械晶振福克斯超小型表晶,FK121进口晶振,FK121EIWM0.032768-T5医疗器械晶振

热点推荐

CVCO55CW-3500-4500非常适合卫星通信系统应用节能单片机专用音叉晶体ABS07-120-32.768KHZ-T可编程晶振CPPC7L-A7BR-28.63636TS适用于驱动模数转换器汽车氛围灯控制器晶振E1SJA18-28.63636M TR京瓷陶瓷晶振原厂编码曝光CX3225GB16000D0HPQCC适合于数字家电

返回头部
