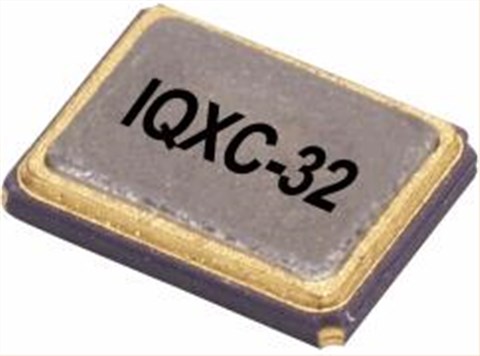

IQD晶振|IQXC-32晶振|LFXTAL085222Reel|3225进口晶振

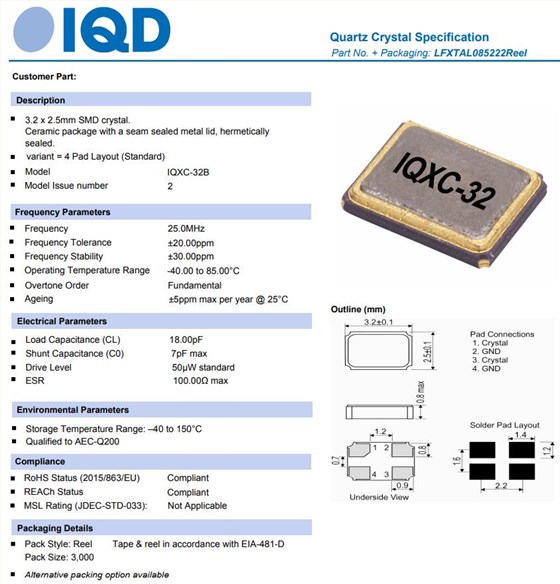

yijin-1 IQD晶振|IQXC-32晶振|LFXTAL085222Reel|3225进口晶振,欧美晶振品牌,IQD晶振,IQXC-32无源晶振,石英晶振,LFXTAL085222Reel晶振,石英晶体谐振器,3225进口晶振,SMD晶体,四脚贴片晶振,频率25MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,高可靠性晶振,小体积晶振,无铅环保晶振,笔记本电脑晶振,调制解调器晶振,无线通信晶振,工业自动化晶振.

yijin-2 IQD晶振|IQXC-32晶振|LFXTAL085222Reel|3225进口晶振规格表

参数	数值
频率	25MHz
频率容差@ 25°C ± 3°C	±20ppm
频率稳定性	±30ppm
工作温度	-40~85°C
储存温度	-55~125°C
负载	18 pF
并联电容	7pFmax
驱动电平	50µW max
老化@ 25°C ± 3°C	±5.0ppm max peryear

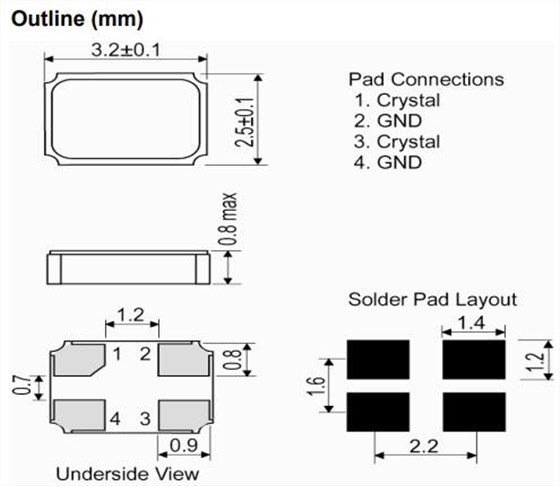

yijin-3 IQD晶振|IQXC-32晶振|LFXTAL085222Reel|3225进口晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL081314Reel	IQXC-240	37.4MHz	±7ppm	±15ppm	-30°C to 85°C	5.00pF
LFXTAL081316Reel	IQXC-240	38.4MHz	±7ppm	±15ppm	-30°C to 85°C	5.00pF
LFXTAL072539Reel	IQXC-26	24.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL078691Cutt	IQXC-26	24.0MHz	±10ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL081608Cutt	IQXC-26	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081608Reel	IQXC-26	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081609Cutt	IQXC-26	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083890Cutt	IQXC-26	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL052799Cutt	IQXC-26	26.0MHz	±10ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL066742Cutt	IQXC-26	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL066742Reel	IQXC-26	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069296Cutt	IQXC-26	26.0MHz	±15ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL070729Cutt	IQXC-26	26.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL081614Cutt	IQXC-26	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081614Reel	IQXC-26	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL072541Cutt	IQXC-26	27.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL072541Reel	IQXC-26	27.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081610Cutt	IQXC-26	27.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL072302Cutt	IQXC-26	30.0MHz	±15ppm	±15ppm	20°C to 70°C	8.00pF
LFXTAL081612Cutt	IQXC-26	30.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL056523Cutt	IQXC-26	32.0MHz	±20ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL056523Reel	IQXC-26	32.0MHz	±20ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL069526Cutt	IQXC-26	32.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069526Reel	IQXC-26	32.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL079322Cutt	IQXC-26	32.0MHz	±10ppm	±20ppm	-20°C to 70°C	12.00pF
LFXTAL079322Reel	IQXC-26	32.0MHz	±10ppm	±20ppm	-20°C to 70°C	12.00pF
LFXTAL081613Cutt	IQXC-26	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083149Reel	IQXC-26	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	6.00pF
LFXTAL072304Cutt	IQXC-26	37.4MHz	±15ppm	±15ppm	20°C to 70°C	8.00pF
LFXTAL081616Cutt	IQXC-26	37.4MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL063312Cutt	IQXC-26	40.0MHz	±30ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL069527Cutt	IQXC-26	40.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069527Reel	IQXC-26	40.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081619Cutt	IQXC-26	40.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL069528Cutt	IQXC-26	48.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069528Reel	IQXC-26	48.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081620Cutt	IQXC-26	48.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL078795Cutt	IQXC-42	16.0MHz	±15ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL081780RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-30°C to 85°C	8.00pF
LFXTAL081781RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081821Cutt	IQXC-42	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	12.00pF
LFXTAL082887RL3K	IQXC-42	16.0MHz	±10ppm	±30ppm	-40°C to 105°C	10.00pF
LFXTAL059585Cutt	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585Reel	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585RL3K	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL064174RL3K	IQXC-42	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066139Cutt	IQXC-42	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069476RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL069493Cutt	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493Reel	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072577RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL076411Cutt	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL076411RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL081531RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081646RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082123Cutt	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082123RL3K	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090516RL3K	IQXC-42	24.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL054026Cutt	IQXC-42	25.0MHz	±25ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059552Reel	IQXC-42	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL064933Cutt	IQXC-42	25.0MHz	±30ppm	±30ppm	0°C to 50°C	10.00pF
LFXTAL066140Cutt	IQXC-42	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Bulk	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Cutt	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Reel	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494RL3K	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL075431RL3K	IQXC-42	25.0MHz	±30ppm	±40ppm	-30°C to 85°C	6.00pF
LFXTAL082125Cutt	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082125RL3K	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL085846RL3K	IQXC-42	25.0MHz	±25ppm	±50ppm	-40°C to 125°C	10.00pF
LFXTAL090436RL3K	IQXC-42	25.0MHz	±10ppm	±20ppm	-40°C to 105°C	10.00pF
LFXTAL059591Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591Reel	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591RL3K	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL066141Cutt	IQXC-42	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	10.00pF
LFXTAL076879Bulk	IQXC-42	26.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL078377RL3K	IQXC-42	26.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL081595Cutt	IQXC-42	26.0MHz	±10ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL082126Cutt	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126Reel	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126RL3K	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083241Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL059592Cutt	IQXC-42	27.0MHz	±15ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL072543Cutt	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543RL3K	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL081349Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL083147RL3K	IQXC-42	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	18.00pF
LFXTAL063227Reel	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL063227RL3K	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL071489Bulk	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489Cutt	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489RL3K	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL076164Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL076164Reel	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630RL3K	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL082127Cutt	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082127RL3K	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059596Cutt	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596Reel	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596RL3K	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082128Cutt	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082128RL3K	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL058002RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	0°C to 50°C	8.00pF
LFXTAL058004Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058067Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL058130RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL058699Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL058962RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL059597Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597Reel	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597RL3K	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL061700Cutt	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL061700Reel	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL072861RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL073170RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL077362RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	6.00pF
LFXTAL081227RL3K	IQXC-42	32.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL081538RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081567Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081839RL3K	IQXC-42	32.0MHz	±30ppm	±30ppm	-40°C to 85°C	6.00pF
LFXTAL082129Cutt	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082129RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL085946RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 105°C	12.00pF
LFXTAL088678RL3K	IQXC-42	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	8.00pF
LFXTAL082130Cutt	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082130RL3K	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059627Cutt	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627Reel	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627RL3K	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL075418Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL075418Reel	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078271Cutt	IQXC-42	38.4MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL081635Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081635RL3K	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081883RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-35°C to 85°C	8.00pF
LFXTAL082131Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082131RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082468Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL082468RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL059632Cutt	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632Reel	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632RL3K	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082132Cutt	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132Reel	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132RL3K	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090469RL3K	IQXC-42	43.935MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL090628Reel	IQXC-42	45.761MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066363Cutt	IQXC-42	48.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL072546Cutt	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546Reel	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546RL3K	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082135Cutt	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082135RL3K	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL079374Cutt	IQXC-42	50.0MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL085859RL3K	IQXC-42	50.0MHz	±10ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL071255Cutt	IQXC-42 AUTO	16.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071255Reel	IQXC-42 AUTO	16.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071256Cutt	IQXC-42 AUTO	20.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071256Reel	IQXC-42 AUTO	20.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL082989Cutt	IQXC-42 AUTO	20.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL082989Reel	IQXC-42 AUTO	20.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL083912Cutt	IQXC-42 AUTO	20.0MHz	±30ppm	±45ppm	-40°C to 125°C	8.00pF
LFXTAL071257Cutt	IQXC-42 AUTO	24.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071257Reel	IQXC-42 AUTO	24.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071258Cutt	IQXC-42 AUTO	24.576MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071258Reel	IQXC-42 AUTO	24.576MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071259Cutt	IQXC-42 AUTO	25.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071259Reel	IQXC-42 AUTO	25.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071260Cutt	IQXC-42 AUTO	26.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071260Reel	IQXC-42 AUTO	26.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071261Cutt	IQXC-42 AUTO	27.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071261Reel	IQXC-42 AUTO	27.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071262Cutt	IQXC-42 AUTO	32.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071262Reel	IQXC-42 AUTO	32.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL084010Reel	IQXC-42 AUTO	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082907Cutt	IQXC-42 AUTO	38.4MHz	±20ppm	±80ppm	-40°C to 125°C	8.00pF
LFXTAL070734Cutt	IQXC-42 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL070734Reel	IQXC-42 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071265Cutt	IQXC-42 AUTO	40.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071265Reel	IQXC-42 AUTO	40.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL090472Reel	IQXC-42 AUTO	43.935MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL071266Cutt	IQXC-42 AUTO	48.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071266Reel	IQXC-42 AUTO	48.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071267Cutt	IQXC-42 AUTO	50.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071267Reel	IQXC-42 AUTO	50.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL083269Cutt	IQXC-152	200.0MHz	±50ppm	±50ppm	-10°C to 60°C	SR
LFXTAL083706Reel	IQXC-180 AUTO	8.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL071742Cutt	IQXC-180 AUTO	12.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071742Reel	IQXC-180 AUTO	12.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071774Cutt	IQXC-180 AUTO	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	8.00pF
LFXTAL071774Reel	IQXC-180 AUTO	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	8.00pF
LFXTAL073664Cutt	IQXC-180 AUTO	12.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL073664Reel	IQXC-180 AUTO	12.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL081472Reel	IQXC-180 AUTO	12.0MHz	±50ppm	±150ppm	-40°C to 85°C	18.00pF
LFXTAL082456Cutt	IQXC-180 AUTO	12.0MHz	±20ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL082456Reel	IQXC-180 AUTO	12.0MHz	±20ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL082563Reel	IQXC-180 AUTO	12.0MHz	±30ppm	±30ppm	-40°C to 105°C	16.00pF
LFXTAL071743Cutt	IQXC-180 AUTO	14.318MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071743Reel	IQXC-180 AUTO	14.318MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071775Cutt	IQXC-180 AUTO	14.318MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071775Reel	IQXC-180 AUTO	14.318MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL082014Reel	IQXC-180 AUTO	14.7456MHz	±25ppm	±30ppm	-40°C to 105°C	18.00pF
LFXTAL053426Cutt	IQXC-180 AUTO	16.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL053426Reel	IQXC-180 AUTO	16.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL053849Reel	IQXC-180 AUTO	16.0MHz	±15ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL054327Cutt	IQXC-180 AUTO	16.0MHz	±50ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL054327Reel	IQXC-180 AUTO	16.0MHz	±50ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL065160Reel	IQXC-180 AUTO	16.0MHz	±20ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL065518Reel	IQXC-180 AUTO	16.0MHz	±25ppm	±50ppm	-40°C to 125°C	16.00pF
LFXTAL071744Cutt	IQXC-180 AUTO	16.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071744Reel	IQXC-180 AUTO	16.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL076098Cutt	IQXC-180 AUTO	16.0MHz	±20ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL076098Reel	IQXC-180 AUTO	16.0MHz	±20ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL076787Reel	IQXC-180 AUTO	16.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL071747Cutt	IQXC-180 AUTO	16.384MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071747Reel	IQXC-180 AUTO	16.384MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071777Cutt	IQXC-180 AUTO	16.384MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071777Reel	IQXC-180 AUTO	16.384MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL055720Bulk	IQXC-180 AUTO	20.0MHz	±50ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL055720Reel	IQXC-180 AUTO	20.0MHz	±50ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL055998Cutt	IQXC-180 AUTO	20.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL055998Reel	IQXC-180 AUTO	20.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071750Cutt	IQXC-180 AUTO	20.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071750Reel	IQXC-180 AUTO	20.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL081836Reel	IQXC-180 AUTO	20.0MHz	±15ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL082433Reel	IQXC-180 AUTO	20.0MHz	±30ppm	±100ppm	-40°C to 125°C	12.00pF
LFXTAL082940Cutt	IQXC-180 AUTO	20.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL082940Reel	IQXC-180 AUTO	20.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL056140Bulk	IQXC-180 AUTO	24.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL056140Cutt	IQXC-180 AUTO	24.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL056140Reel	IQXC-180 AUTO	24.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL057623Cutt	IQXC-180 AUTO	24.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL057623Reel	IQXC-180 AUTO	24.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071455Reel	IQXC-180 AUTO	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL073317Cutt	IQXC-180 AUTO	24.0MHz	±20ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL073317Reel	IQXC-180 AUTO	24.0MHz	±20ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL075729Reel	IQXC-180 AUTO	24.0MHz	±20ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL082615Reel	IQXC-180 AUTO	24.0MHz	±30ppm	±100ppm	-40°C to 125°C	6.00pF
LFXTAL082659Reel	IQXC-180 AUTO	24.0MHz	±30ppm	±100ppm	-40°C to 125°C	6.00pF
LFXTAL071782Cutt	IQXC-180 AUTO	24.576MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL078894Cutt	IQXC-180 AUTO	24.576MHz	±30ppm	±100ppm	-40°C to 125°C	12.00pF
LFXTAL078894Reel	IQXC-180 AUTO	24.576MHz	±30ppm	±100ppm	-40°C to 125°C	12.00pF
LFXTAL053510Reel	IQXC-180 AUTO	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL066777Bulk	IQXC-180 AUTO	25.0MHz	±50ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL071758Cutt	IQXC-180 AUTO	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071758Reel	IQXC-180 AUTO	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071785Cutt	IQXC-180 AUTO	25.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071785Reel	IQXC-180 AUTO	25.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL075419Cutt	IQXC-180 AUTO	25.0MHz	±20ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL075419Reel	IQXC-180 AUTO	25.0MHz	±20ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL081757Reel	IQXC-180 AUTO	25.0MHz	±20ppm	±30ppm	-40°C to 125°C	8.00pF
LFXTAL083358Reel	IQXC-180 AUTO	25.0MHz	±30ppm	±50ppm	-40°C to 105°C	12.50pF
LFXTAL053044Reel	IQXC-180 AUTO	26.0MHz	±15ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL071761Cutt	IQXC-180 AUTO	26.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071761Reel	IQXC-180 AUTO	26.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071788Cutt	IQXC-180 AUTO	26.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071788Reel	IQXC-180 AUTO	26.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL082658Reel	IQXC-180 AUTO	26.0MHz	±20ppm	±50ppm	-40°C to 125°C	12.00pF
LFXTAL071765Cutt	IQXC-180 AUTO	27.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071765Reel	IQXC-180 AUTO	27.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071791Cutt	IQXC-180 AUTO	27.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071791Reel	IQXC-180 AUTO	27.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL080872Cutt	IQXC-180 AUTO	28.63636MHz	±20ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL080872Reel	IQXC-180 AUTO	28.63636MHz	±20ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071768Cutt	IQXC-180 AUTO	30.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071794Cutt	IQXC-180 AUTO	30.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL075983Reel	IQXC-180 AUTO	32.0MHz	±20ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL071771Cutt	IQXC-180 AUTO	36.4MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071773Cutt	IQXC-180 AUTO	40.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL071799Bulk	IQXC-180 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071799Cutt	IQXC-180 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071799Reel	IQXC-180 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL079388Reel	IQXC-180 AUTO	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL079399Reel	IQXC-180 AUTO	48.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081760Reel	IQXC-180 AUTO	50.0MHz	±20ppm	±30ppm	-40°C to 125°C	8.00pF
LFXTAL081789Reel	IQXC-180 AUTO	50.0MHz	±20ppm	±20ppm	-10°C to 105°C	12.00pF
LFXTAL081818Reel	IQXC-180 AUTO	50.0MHz	±20ppm	±20ppm	-10°C to 105°C	19.00pF
LFXTAL085222Reel	IQXC-32	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL057150Reel	IQXC-104 AUTO	12.288MHz	±50ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL077082Cutt	IQXC-49	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL077089Cutt	IQXC-49	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077089Reel	IQXC-49	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL084035Reel	IQXC-49	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL084673Reel	IQXC-49	8.0MHz	±50ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL085089Reel	IQXC-49	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL077084Reel	IQXC-49	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077086Reel	IQXC-49	10.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL084712Reel	IQXC-49	11.0592MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL077079Reel	IQXC-49	18.432MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL084840Reel	IQXC-49	20.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL077077Reel	IQXC-49	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL081544Cutt	IQXC-49	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077078Reel	IQXC-49	25.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL077083Bulk	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077083Cutt	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077083Reel	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077085Cutt	IQXC-49	25.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL083868Reel	IQXC-49	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL080861Bulk	IQXC-49	27.12MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL084410Cutt	IQXC-49	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL084410Reel	IQXC-49	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL083139Reel	IQXC-41	18.432MHz	±30ppm	±30ppm	-20°C to 70°C	20.00pF
LFXTAL060055Reel	IQXC-41	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL066245Bulk	IQXC-41	25.0MHz	±20ppm	±30ppm	-25°C to 90°C	20.00pF
LFXTAL066245Reel	IQXC-41	25.0MHz	±20ppm	±30ppm	-25°C to 90°C	20.00pF

首页 IQD晶振

IQD晶振|IQXC-26晶振|LFXTAL083149Reel|1612mm晶振

产品简介

产品详情

我要下单

关于“欧美晶振品牌,IQD晶振,IQXC-32无源晶振,石英晶振,石英晶体谐振器,3225进口晶振,SMD晶体,四脚贴片晶振,高可靠性晶振,小体积晶振,无铅环保晶振,笔记本电脑晶振,调制解调器晶振”的相关产品

热点推荐
