IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振

IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振

产品简介

IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振,IQD晶振,12SMX无源晶振,石英贴片晶振,LFXTAL036703Bulk晶振,5x7mm贴片晶振,晶体谐振器,四脚封装晶振,频率16MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,高可靠性晶振,低老化晶振,无铅环保晶振,存储区域网络晶振,监控摄像机晶振,医疗电子设备晶振,调制解调器晶振.

产品详情

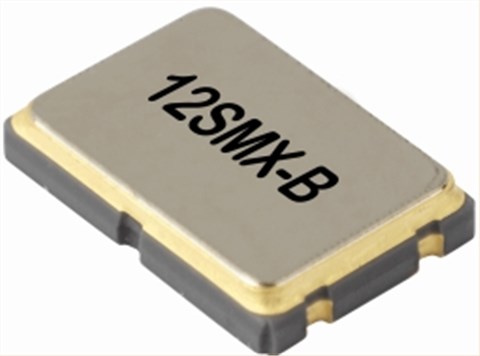

yijin-1

Y-2IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振,IQD晶振,12SMX无源晶振,石英贴片晶振,LFXTAL036703Bulk晶振,5x7mm贴片晶振,晶体谐振器,四脚封装晶振,频率16MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,高可靠性晶振,低老化晶振,无铅环保晶振,存储区域网络晶振,监控摄像机晶振,医疗电子设备晶振,调制解调器晶振.

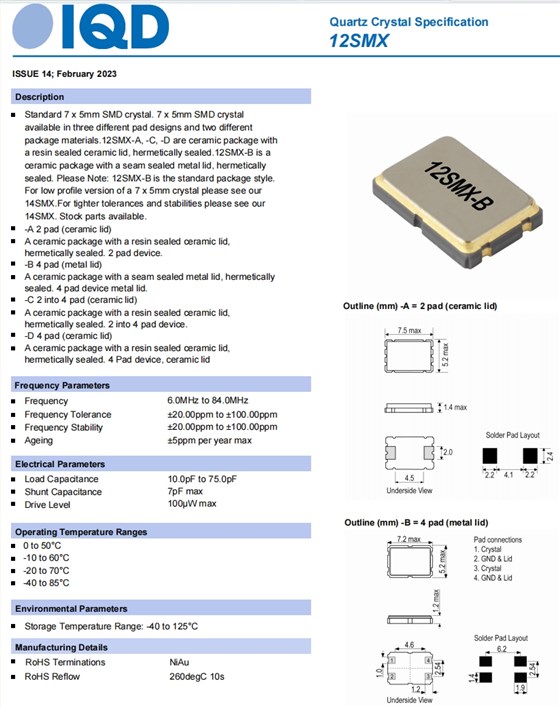

yijin-2IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振规格表

参数 数值
频率 16MHz
频率容差@ 25°C ± 3°C ±20ppm
频率稳定性 ±30ppm
工作温度 -40~85°C
储存温度 -40~125°C
负载 18pF
并联电容 7pFtyp
驱动电平
100µW max.
老化@ 25°C ± 3°C
±5.0ppm peryearmax

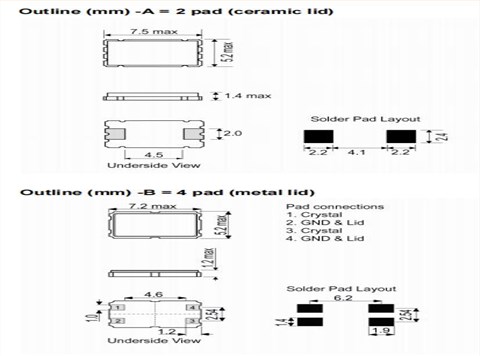

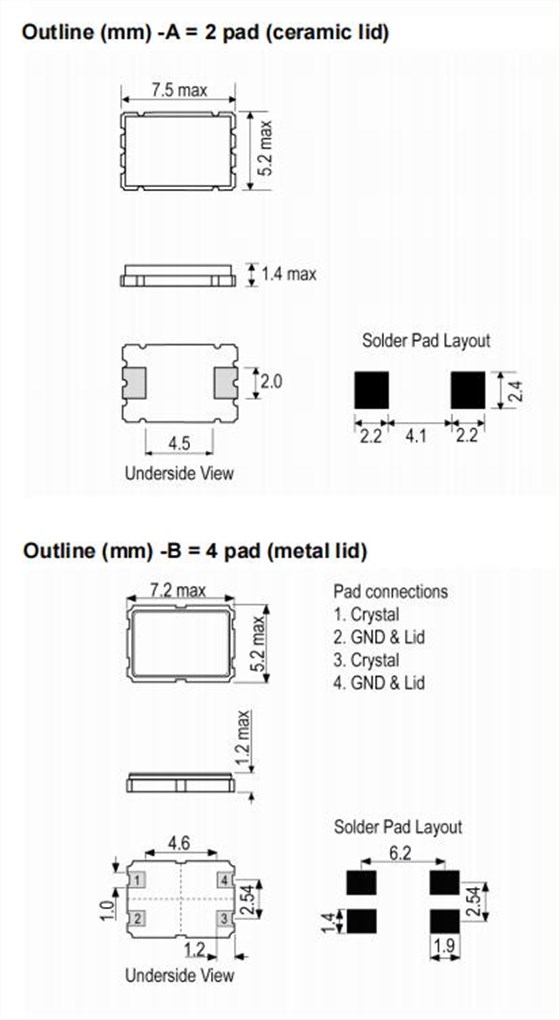

yijin-3IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振尺寸图

12SMX-1

12smx

编码 型号 频率 频率容差 频率稳定性 工作温度 负载
LFXTAL035561Cutt 12SMX 6.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL037076Bulk 12SMX 6.0MHz ±30ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL053899Reel 12SMX 6.0MHz ±30ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL081961Reel 12SMX 6.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL083786Reel 12SMX 6.5536MHz ±30ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL058999Cutt 12SMX 7.3728MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL058999Reel 12SMX 7.3728MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL062701Bulk 12SMX 7.3728MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL062701Reel 12SMX 7.3728MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL063838Cutt 12SMX 7.3728MHz ±20ppm ±50ppm -40°C to 125°C 18.00pF
LFXTAL070694Bulk 12SMX 7.3728MHz ±50ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL026380Bulk 12SMX 8.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026380Cutt 12SMX 8.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026380Reel 12SMX 8.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL028138Reel 12SMX 8.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL033064Reel 12SMX 8.0MHz ±50ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL035430Bulk 12SMX 8.0MHz ±30ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL035430Cutt 12SMX 8.0MHz ±30ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL035983Reel 12SMX 8.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL036902Bulk 12SMX 8.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL050611Reel 12SMX 8.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL050644Reel 12SMX 8.0MHz ±20ppm ±20ppm -20°C to 70°C 75.00pF
LFXTAL054213Reel 12SMX 8.0MHz ±30ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL055050Bulk 12SMX 8.0MHz ±30ppm ±50ppm -20°C to 70°C 12.00pF
LFXTAL056516Bulk 12SMX 8.0MHz ±30ppm ±30ppm -20°C to 70°C 12.00pF
LFXTAL059082Cutt 12SMX 8.0MHz ±20ppm ±50ppm -20°C to 70°C 10.00pF
LFXTAL059082Reel 12SMX 8.0MHz ±20ppm ±50ppm -20°C to 70°C 10.00pF
LFXTAL061125Bulk 12SMX 8.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL078329Cutt 12SMX 8.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082934Bulk 12SMX 8.0MHz ±30ppm ±30ppm 0°C to 70°C 10.00pF
LFXTAL083440Reel 12SMX 8.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL083524Reel 12SMX 8.0MHz ±30ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL079369Reel 12SMX 9.216MHz ±50ppm ±100ppm -40°C to 85°C 20.00pF
LFXTAL078330Cutt 12SMX 9.6MHz ±10ppm ±25ppm -40°C to 85°C 10.00pF
LFXTAL076072Bulk 12SMX 9.8MHz ±30ppm ±30ppm -20°C to 70°C 20.00pF
LFXTAL076296Reel 12SMX 9.8304MHz ±30ppm ±30ppm -20°C to 70°C 12.00pF
LFXTAL029106Reel 12SMX 10.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL030919Reel 12SMX 10.0MHz ±50ppm ±50ppm -30°C to 80°C 20.00pF
LFXTAL037108Reel 12SMX 10.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL052197Reel 12SMX 10.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL052921Cutt 12SMX 10.0MHz ±30ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL090515Reel 12SMX 10.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL090532Reel 12SMX 10.245MHz ±20ppm ±20ppm -20°C to 70°C 10.00pF
LFXTAL090533Reel 12SMX 10.245MHz ±20ppm ±20ppm -20°C to 70°C 30.00pF
LFXTAL026382Bulk 12SMX 11.0592MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026382Cutt 12SMX 11.0592MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026382Reel 12SMX 11.0592MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL029535Bulk 12SMX 11.0592MHz ±50ppm ±50ppm -20°C to 70°C 30.00pF
LFXTAL026384Bulk 12SMX 12.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026384Reel 12SMX 12.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL027623Reel 12SMX 12.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL031880Bulk 12SMX 12.0MHz ±30ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL034834Bulk 12SMX 12.0MHz ±30ppm ±50ppm -20°C to 70°C 22.00pF
LFXTAL035467Bulk 12SMX 12.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL050609Bulk 12SMX 12.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL050609Reel 12SMX 12.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL057971Reel 12SMX 12.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL050352Bulk 12SMX 12.8MHz ±10ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL026386Bulk 12SMX 14.31818MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026386Reel 12SMX 14.31818MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL035020Reel 12SMX 14.74546MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL020965Reel 12SMX 14.7456MHz ±50ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026388Bulk 12SMX 14.7456MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026388Reel 12SMX 14.7456MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL060686Reel 12SMX 14.7456MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL062468Bulk 12SMX 14.7456MHz ±30ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL062696Reel 12SMX 14.7456MHz ±50ppm ±100ppm -40°C to 85°C 12.00pF
LFXTAL073093Cutt 12SMX 14.7456MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL081921Cutt 12SMX 14.7456MHz ±20ppm ±20ppm -40°C to 85°C 30.00pF
LFXTAL026392Bulk 12SMX 16.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026392Cutt 12SMX 16.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026392Reel 12SMX 16.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL034857Reel 12SMX 16.0MHz ±30ppm ±50ppm -20°C to 70°C 12.00pF
LFXTAL036703Bulk 12SMX 16.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL036703Cutt 12SMX 16.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059444Bulk 12SMX 16.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL061480Bulk 12SMX 16.0MHz ±30ppm ±50ppm -40°C to 85°C 22.00pF
LFXTAL090604Reel 12SMX 16.2MHz ±30ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL034572Reel 12SMX 18.432MHz ±50ppm ±50ppm -20°C to 70°C 12.00pF
LFXTAL035742Bulk 12SMX 18.432MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL035742Cutt 12SMX 18.432MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL058902Bulk 12SMX 19.6608MHz ±15ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL026394Bulk 12SMX 20.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026394Cutt 12SMX 20.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026394Reel 12SMX 20.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL036521Bulk 12SMX 20.0MHz ±30ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL036521Cutt 12SMX 20.0MHz ±30ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL055012Bulk 12SMX 20.0MHz ±50ppm ±50ppm -20°C to 70°C 12.00pF
LFXTAL083597Reel 12SMX 20.0MHz ±30ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL034854Reel 12SMX 24.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL059090Bulk 12SMX 24.0MHz ±30ppm ±30ppm -20°C to 70°C 16.00pF
LFXTAL066367Reel 12SMX 24.0MHz ±30ppm ±30ppm -20°C to 70°C 12.00pF
LFXTAL022248Reel 12SMX 24.576MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL026396Bulk 12SMX 24.576MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026396Cutt 12SMX 24.576MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026396Reel 12SMX 24.576MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL028567Reel 12SMX 25.0MHz ±30ppm ±50ppm -10°C to 60°C 20.00pF
LFXTAL028918Bulk 12SMX 25.0MHz ±30ppm ±50ppm 0°C to 70°C 20.00pF
LFXTAL028918Reel 12SMX 25.0MHz ±30ppm ±50ppm 0°C to 70°C 20.00pF
LFXTAL032328Bulk 12SMX 25.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL032762Cutt 12SMX 25.0MHz ±20ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL033425Reel 12SMX 25.0MHz ±30ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL033818Cutt 12SMX 25.0MHz ±30ppm ±50ppm -20°C to 70°C 12.00pF
LFXTAL033992Reel 12SMX 25.0MHz ±50ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL034775Reel 12SMX 25.0MHz ±30ppm ±50ppm -40°C to 85°C 30.00pF
LFXTAL035638Cutt 12SMX 25.0MHz ±100ppm ±30ppm -10°C to 60°C 16.00pF
LFXTAL036368Cutt 12SMX 25.0MHz ±30ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL055488Bulk 12SMX 25.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL056906Bulk 12SMX 25.0MHz ±20ppm ±20ppm -10°C to 60°C 18.00pF
LFXTAL078331Cutt 12SMX 25.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL079086Cutt 12SMX 25.0MHz ±25ppm ±25ppm -40°C to 85°C 20.00pF
LFXTAL060693Bulk 12SMX 27.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL035375Cutt 12SMX 27.12MHz ±100ppm ±30ppm -10°C to 60°C 16.00pF
LFXTAL026504Bulk 12SMX 30.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL026504Reel 12SMX 30.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL034993Bulk 12SMX 30.0MHz ±30ppm ±50ppm -20°C to 70°C 12.50pF
LFXTAL063964Bulk 12SMX 30.0MHz ±50ppm ±100ppm -40°C to 85°C 12.00pF
LFXTAL034268Cutt 12SMX 32.768MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL034268Reel 12SMX 32.768MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL071673Cutt 12SMX AUTO 6.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071673Reel 12SMX AUTO 6.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL072351Cutt 12SMX AUTO 6.0MHz ±50ppm ±100ppm -40°C to 125°C 18.00pF
LFXTAL072351Reel 12SMX AUTO 6.0MHz ±50ppm ±100ppm -40°C to 125°C 18.00pF
LFXTAL053699Cutt 12SMX AUTO 8.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL053699Reel 12SMX AUTO 8.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL056187Reel 12SMX AUTO 8.0MHz ±50ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL071664Reel 12SMX AUTO 8.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL072352Cutt 12SMX AUTO 8.0MHz ±50ppm ±100ppm -40°C to 125°C 18.00pF
LFXTAL072352Reel 12SMX AUTO 8.0MHz ±50ppm ±100ppm -40°C to 125°C 18.00pF
LFXTAL090563Reel 12SMX AUTO 10.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL071675Cutt 12SMX AUTO 11.0592MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071675Reel 12SMX AUTO 11.0592MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071676Cutt 12SMX AUTO 12.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071676Reel 12SMX AUTO 12.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071677Cutt 12SMX AUTO 14.7456MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071677Reel 12SMX AUTO 14.7456MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL050310Bulk 12SMX AUTO 16.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL050310Reel 12SMX AUTO 16.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL050311Cutt 12SMX AUTO 20.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL050311Reel 12SMX AUTO 20.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
