ECS-.327-12.5-12-TR,32.768KHz音叉晶振,2012贴片晶振

YJ-1

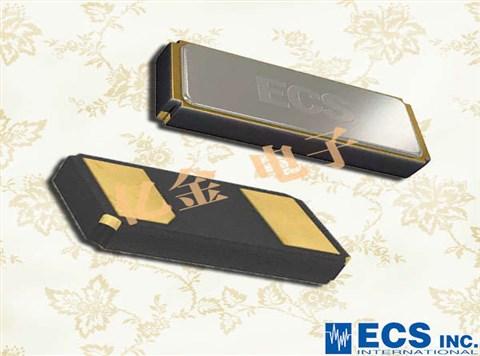

ECS-.327-12.5-12-TR,32.768KHz音叉晶振,2012贴片晶振

ECS-.327-12.5-12-TR集小尺寸,高精度,低功耗于一体,是32.768KHz时序元件的优选方案.2012贴片封装完美契合电子产品轻薄化趋势,为智能终端,工业仪表等紧凑布局设备节省宝贵空间,工业级宽温设计(-40℃~+85℃)与低相位噪声特性,保障在恶劣工况下的信号稳定性.产品状态为Active,供应稳定,最小订购量灵活,Tape&Reel封装适配自动化生产线,同时提供完整EDA/CAD模型,简化前期电路设计流程,全方位满足消费电子与工业控制领域的多元需求.

YJ-2

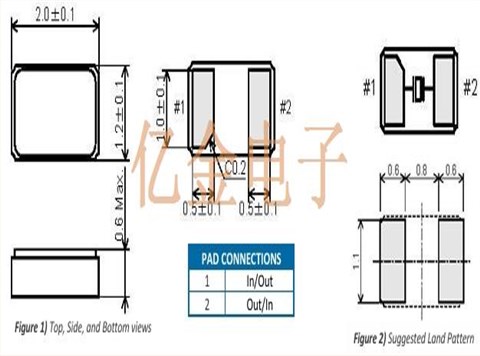

ECS-.327-12.5-12-TR,32.768KHz音叉晶振,2012贴片晶振

原厂型号Originalmodel：	ECS-.327-12.5-12-TR	品牌brand：	ECS
品牌brand：	ECS	高度PackageHeight：	0.6mm
型号名称Modelname：	ECX-12晶振	温度OperatingTemperature	-40+85℃
Type系列：	KHzCrystal	脚位Termination：	2-pad
频率frequency：	32.768KHz	封装类型PackageType：	2-smd
frequencytolerance频率容差	20PP	最小包装数MPQ：	3000
Loadcapacitance负载电容	12.5PF	Packaging包装	TapeandReel
Size/Dimension尺寸	2012mm	安装方式Installation：	Surfacemount

YJ-3

ECS-.327-12.5-12-TR,32.768KHz音叉晶振,2012贴片晶振

ECS-.327-12.5-12-TR- 2012
