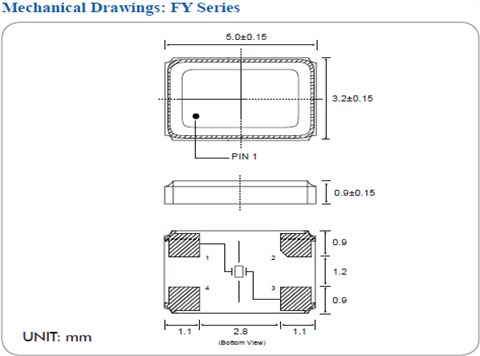

FY2500117|25MHz|18PF|20PPM|-40~85℃|FY|DIODES,台湾Diodes晶振公司,坚固的AT-cut晶体结构微型5.0 x 3.2mm陶瓷包装,可卷带12mm胶带,1000个单位FY:无铅和RoHS/绿色兼容F9: RoHS兼容*(*根据#5,指令2002/05/EC附件),2垫F9系列玻璃密封和4垫FY系列接缝密封装置采用标准的5.0 x 3.2mm封装封装。这些协议用于PCB应用中的表面安装。PCMCIA Cards ,Portable / hand-held PCs ,Notebook PC ,Wireless LAN ,Portable Multimedia Devices ,GPS ,HDD ,Bluetooth ,USB Dongle.
FY2500117|25MHz|18PF|20PPM|-40~85℃|FY|DIODES
亚陶晶振规格 |
单位 |
FY晶振频率范围 |
石英晶振基本条件 |
标准频率 |
f_nom |
25MHZ |
标准频率 |
储存温度 |
T_stg |
-55°C ~ +125°C |
裸存 |
工作温度 |
T_use |
-40°C ~ +85°C |
标准温度 |
激励功率 |
DL |
200μW Max. |
推荐:1μW ~ 100μW |
频率公差 |
f_— l |
±50 × 10-6(标准), |
+25°C 对于超出标准的规格说明, |
频率温度特征 |
f_tem |
±30 × 10-6/-20°C ~ +70°C |
超出标准的规格请联系我们. |
负载电容 |
CL |
18PF |
超出标准说明,请联系我们. |
FY2500117|25MHz|18PF|20PPM|-40~85℃|FY|DIODES
DIODES原厂编码 | 生产厂家 | 型号 | 频率 | 频率偏差 | 负载电容 | Operating Temperature工作温度 |
FY2500117 | Diodes晶振 | FY | 25MHz | ±20ppm | 18pF | -40°C ~ 85°C |
FY2500117 | Diodes晶振 | FY | 25MHz | ±20ppm | 18pF | -40°C ~ 85°C |
FY2500117 | Diodes晶振 | FY | 25MHz | ±20ppm | 18pF | -40°C ~ 85°C |
FY0800018 | Diodes晶振 | FY | 8MHz | ±30ppm | 18pF | -40°C ~ 85°C |
FY0800018 | Diodes晶振 | FY | 8MHz | ±30ppm | 18pF | -40°C ~ 85°C |
FY0800018 | Diodes晶振 | FY | 8MHz | ±30ppm | 18pF | -40°C ~ 85°C |
FY1000009 | Diodes晶振 | FY | 10MHz | ±30ppm | 20pF | -40°C ~ 85°C |
FY1000009 | Diodes晶振 | FY | 10MHz | ±30ppm | 20pF | -40°C ~ 85°C |
FY1000009 | Diodes晶振 | FY | 10MHz | ±30ppm | 20pF | -40°C ~ 85°C |
FY2400053 | Diodes晶振 | FY | 24MHz | ±10ppm | 8pF | -20°C ~ 70°C |
FY2400053 | Diodes晶振 | FY | 24MHz | ±10ppm | 8pF | -20°C ~ 70°C |
FY2400053 | Diodes晶振 | FY | 24MHz | ±10ppm | 8pF | -20°C ~ 70°C |
FY2500016 | Diodes晶振 | FY | 25MHz | ±30ppm | 18pF | -20°C ~ 70°C |
FY2500016 | Diodes晶振 | FY | 25MHz | ±30ppm | 18pF | -20°C ~ 70°C |
FY2500016 | Diodes晶振 | FY | 25MHz | ±30ppm | 18pF | -20°C ~ 70°C |
FY2500068 | Diodes晶振 | FY | 25MHz | ±10ppm | 10pF | -10°C ~ 70°C |
FY2500068 | Diodes晶振 | FY | 25MHz | ±10ppm | 10pF | -10°C ~ 70°C |
FY2500068 | Diodes晶振 | FY | 25MHz | ±10ppm | 10pF | -10°C ~ 70°C |
FY2500115 | Diodes晶振 | FY | 25MHz | ±10ppm | 8pF | -20°C ~ 70°C |
FY2500115 | Diodes晶振 | FY | 25MHz | ±10ppm | 8pF | -20°C ~ 70°C |
FY2500115 | Diodes晶振 | FY | 25MHz | ±10ppm | 8pF | -20°C ~ 70°C |
FY1000020 | Diodes晶振 | FY | 10MHz | ±10ppm | 10pF | -20°C ~ 70°C |
FY1000020 | Diodes晶振 | FY | 10MHz | ±10ppm | 10pF | -20°C ~ 70°C |
FY1000020 | Diodes晶振 | FY | 10MHz | ±10ppm | 10pF | -20°C ~ 70°C |
FY1200011 | Diodes晶振 | FY | 12MHz | ±20ppm | 18pF | -20°C ~ 70°C |
FY1200011 | Diodes晶振 | FY | 12MHz | ±20ppm | 18pF | -20°C ~ 70°C |
FY1200011 | Diodes晶振 | FY | 12MHz | ±20ppm | 18pF | -20°C ~ 70°C |
FY0800027 | Diodes晶振 | FY | 8MHz | ±20ppm | 18pF | -20°C ~ 70°C |
FY0800027 | Diodes晶振 | FY | 8MHz | ±20ppm | 18pF | -20°C ~ 70°C |
FY0800027 | Diodes晶振 | FY | 8MHz | ±20ppm | 18pF | -20°C ~ 70°C |
