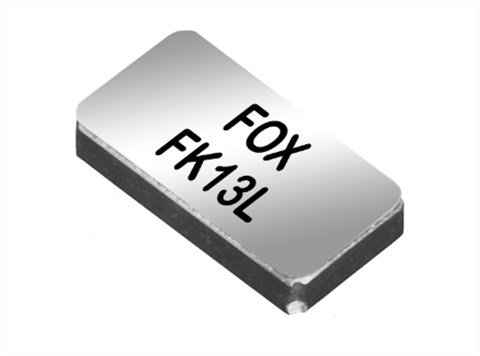

福克斯美国表晶,FK13L进口音叉晶振,FK13LEIBM0.032768-T3无人机遥控器晶振

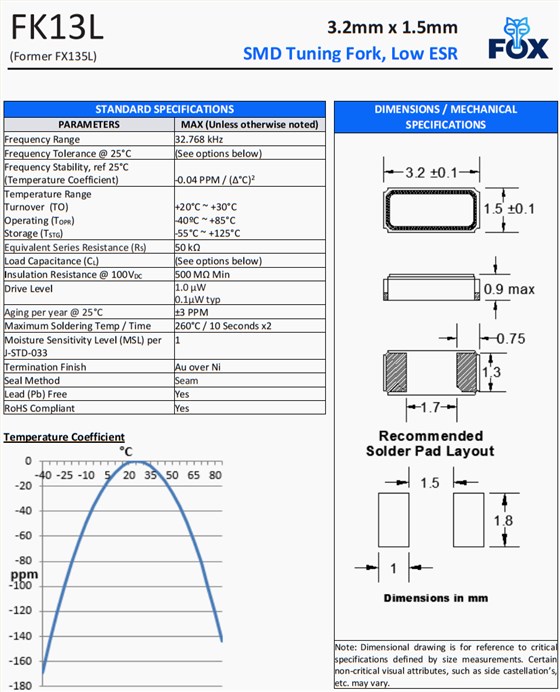

标准范围
参数
MAX (Unless otherwise noted)
频率
32.768 kHz
频率容差
(See options below)
频率稳定度
-0.04 PPM / (?°C)2
等效串联电阻
50 k?
负载电容
(See options below)
绝缘电阻
500 M? Min
驱动电平
1.0 µW0.1µW typ
老化
±3 PPM
最大焊接温度/时间
260°C / 10 Seconds x2
温度敏感度
1
终止完成
Au over Ni
密封方法
Seam
无铅
Yes
符合RoHS
Yes
福克斯美国表晶,FK13L进口音叉晶振,FK13LEIBM0.032768-T3无人机遥控器晶振
编码
品牌
型号
工作温度
频率
频率稳定度
频率容差
负载电容
FC0BSFEEN23A99675-T2
Fox
FC0BS
-20°C ~ 85°C
23.99675 MHz
±20ppm
±15ppm
10 pF
FC0BSFEEN23A99675-T3
Fox
FC0BS
-20°C ~ 85°C
23.99675 MHz
±20ppm
±15ppm
10 pF
FC1BACBEI20.0-T3
Fox
FC1BA
-40°C ~ 12°C
20 MHz
±50ppm
±30ppm
10 pF
FC1BAEBDI16.0-T1
Fox
FC1BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI20.0-T1
Fox
FC1BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI24.0-T1
Fox
FC1BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI25.0-T1
Fox
FC1BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI40.0-T1
Fox
FC1BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
8 pF
FC1BAEBEI16.0-T1
Fox
FC1BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI20.0-T1
Fox
FC1BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI24.0-T1
Fox
FC1BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI25.0-T1
Fox
FC1BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI40.0-T1
Fox
FC1BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
10 pF
FC1BAEBGI16.0-T1
Fox
FC1BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI20.0-T1
Fox
FC1BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI24.0-T1
Fox
FC1BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI25.0-T1
Fox
FC1BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI40.0-T1
Fox
FC1BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
12 pF
FC1BQCCEK27.12-1
Fox
FC1BQ
-30°C ~ 85°C
27.12 MHz
±30ppm
±30ppm
10 pF
FC1BSCBEM27.12-T3
Fox
FC1BS
-40°C ~ 85°C
27.12 MHz
±50ppm
±30ppm
10 pF
FC1BSCCEM16.0-T3
Fox
FC1BS
-40°C ~ 85°C
16 MHz
±30ppm
±30ppm
10 pF
FC1BSHFEM32.0-T3
Fox
FC1BS
-40°C ~ 85°C
32 MHz
±15ppm
±10ppm
10 pF
FC1BSHHVK50.0-1-T3
Fox
FC1BS
-30°C ~ 85°C
50 MHz
±10ppm
±10ppm
7 pF
FC2BACBEI16.0-T1
Fox
FC2BA
-40°C ~ 12°C
16 MHz
±50ppm
±30ppm
10 pF
FC2BACBEI16.0-T3
Fox
FC2BA
-40°C ~ 12°C
16 MHz
±50ppm
±30ppm
10 pF
FC2BAEBDI12.0-T1
Fox
FC2BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI16.0-T1
Fox
FC2BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI20.0-T1
Fox
FC2BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI24.0-T1
Fox
FC2BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI25.0-T1
Fox
FC2BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI40.0-T1
Fox
FC2BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
8 pF
FC2BAEBEI12.0-T1
Fox
FC2BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI16.0-T1
Fox
FC2BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI20.0-T1
Fox
FC2BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI24.0-T1
Fox
FC2BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI25.0-T1
Fox
FC2BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI40.0-T1
Fox
FC2BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
10 pF
FC2BAEBGI25.0-T1
Fox
FC2BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
12 pF
FC2BSBBMM16.0-T1
Fox
FC2BS
-40°C ~ 85°C
16 MHz
±50ppm
±50ppm
20 pF
FC2BSBBMM16.0-T3
Fox
FC2BS
-40°C ~ 85°C
16 MHz
±50ppm
±50ppm
20 pF
FC3BABBKM20.0-T3
Fox
FC3BA
-40°C ~ 85°C
20 MHz
±50ppm
±50ppm
16 pF
FC3BACAGI16.0-T3
Fox
FC3BA
-40°C ~ 12°C
16 MHz
±100ppm
±30ppm
12 pF
FC3BACALI16.0-T3
Fox
FC3BA
-40°C ~ 12°C
16 MHz
±100ppm
±30ppm
18 pF
FC3BACBDI16.0-T3
Fox
FC3BA
-40°C ~ 12°C
16 MHz
±50ppm
±30ppm
8 pF
FC3BACCGM20.0-T3
Fox
FC3BA
-40°C ~ 85°C
20 MHz
±30ppm
±30ppm
12 pF
FC3BACCLP12.0-T3
Fox
FC3BA
-40°C ~ 10°C
12 MHz
±30ppm
±30ppm
18 pF
FC3BAEBDI12.0-T1
Fox
FC3BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI16.0-T1
Fox
FC3BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI20.0-T1
Fox
FC3BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI24.0-T1
Fox
FC3BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI25.0-T1
Fox
FC3BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI40.0-T1
Fox
FC3BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI8.0-T1
Fox
FC3BA
-40°C ~ 125°C
8 MHz
±50ppm
±20ppm
8 pF
FC3BAEBGI12.0-T1
Fox
FC3BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
12 pF
FC3BAEBGI24.0-T1
Fox
FC3BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
12 pF
FC3BAEBGI25.0-T1
Fox
FC3BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
12 pF
FC3BAEBGI40.0-T1
Fox
FC3BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
12 pF
FC3BQBBDM20.0-T3
Fox
FC3BQ
-40°C ~ 85°C
20 MHz
±50ppm
±50ppm
8 pF
FC3BQBBME12.0-T3
Fox
FC3BQ
-10°C ~ 70°C
12 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME16.0-T1
Fox
FC3BQ
-10°C ~ 70°C
16 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME24.0-T1
Fox
FC3BQ
-10°C ~ 70°C
24 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME25.0-T1
Fox
FC3BQ
-10°C ~ 70°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME25.0-T3
Fox
FC3BQ
-10°C ~ 70°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME27.0-T1
Fox
FC3BQ
-10°C ~ 70°C
27 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM12.0-T1
Fox
FC3BQ
-40°C ~ 85°C
12 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM12.0-T3
Fox
FC3BQ
-40°C ~ 85°C
12 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM24.0-T1
Fox
FC3BQ
-40°C ~ 85°C
24 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM24.0-T3
Fox
FC3BQ
-40°C ~ 85°C
24 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM25.0-T1
Fox
FC3BQ
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM25.0-T3
Fox
FC3BQ
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBVM25.0-T3
Fox
FC3BQ
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
7 pF
FC3BSBBEM26.0-T3
Fox
FC3BS
-40°C ~ 85°C
26 MHz
±50ppm
±50ppm
10 pF
FC3BSBBLM25.0-T3
Fox
FC3BS
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
18 pF
FC3BSBBMM25.0-T3
Fox
FC3BS
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BSHFEM12.0-T3
Fox
FC3BS
-40°C ~ 85°C
12 MHz
±15ppm
±10ppm
10 pF
FC3BSHHEF26.0-T3
Fox
FC3BS
-20°C ~ 70°C
26 MHz
±10ppm
±10ppm
10 pF
FC3BSHHEF32.0-T3
Fox
FC3BS
-20°C ~ 70°C
32 MHz
±10ppm
±10ppm
10 pF
FC3BSHLGA27.0-1-T3
Fox
FC3BS
0°C ~ 50°C
27 MHz
±5ppm
±10ppm
12 pF
FC3VAEEGM50.0-T3
Fox
FC3VA
-40°C ~ 85°C
50 MHz
±20ppm
±20ppm
12 pF
FC3VREEDM38.4-T1
Fox
FC3VR
-40°C ~ 85°C
38.4 MHz
±20ppm
±20ppm
8 pF
FC3VREEDM38.88-T1
Fox
FC3VR
-40°C ~ 85°C
38.88 MHz
±20ppm
±20ppm
8 pF
FC3VREEDM40.0-T1
Fox
FC3VR
-40°C ~ 85°C
40 MHz
±20ppm
±20ppm
8 pF
FC3VREEDM48.0-T1
Fox
FC3VR
-40°C ~ 85°C
48 MHz
±20ppm
±20ppm
8 pF
FC3VREEEM38.4-T1
Fox
FC3VR
-40°C ~ 85°C
38.4 MHz
±20ppm
±20ppm
10 pF
FC3VREEGM36.0-T1
Fox
FC3VR
-40°C ~ 85°C
36 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM38.4-T1
Fox
FC3VR
-40°C ~ 85°C
38.4 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM38.88-T1
Fox
FC3VR
-40°C ~ 85°C
38.88 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM40.0-T1
Fox
FC3VR
-40°C ~ 85°C
40 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM50.0-T1
Fox
FC3VR
-40°C ~ 85°C
50 MHz
±20ppm
±20ppm
12 pF
FC4SDBBMF3.2-T1
Fox
FC4SD
-20°C ~ 70°C
3.2 MHz
±50ppm
±50ppm
20 pF
FC4SDCBGF24.0-T1
Fox
FC4SD
-20°C ~ 70°C
24 MHz
±50ppm
±30ppm
12 pF
FC4SDCBGF4.194304-T1
Fox
FC4SD
-20°C ~ 70°C
4.194304 MHz
±50ppm
±30ppm
12 pF
FC4SDCBGM8.0-T1
Fox
FC4SD
-40°C ~ 85°C
8 MHz
±50ppm
±30ppm
12 pF
FC4SDCBKF24.0-T1
Fox
FC4SD
-20°C ~ 70°C
24 MHz
±50ppm
±30ppm
16 pF
