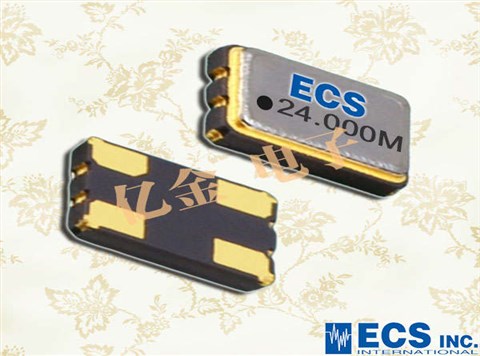

ECS-3225MV-160-BN-TR,ECS晶振,物联网应用
ECS-3225MV-160-BN-TR凭借16MHz频率,3225低功耗晶振封装及高稳定性,全面适配物联网各类终端设备,在智能传感终端(如温湿度传感器,烟雾报警器)中,作为数据采集模块的时钟源,保障采样数据的时序准确性,避免数据丢失或错乱,在无线通信模块(如NB-IoT模块,蓝牙网关)中,为信号调制解调提供稳定时序支撑,提升无线传输速率与信号完整性,在工业物联网终端(如RFID读卡器,智能电表)中,16MHz频率可匹配多数MCU的时钟需求,配合3225封装的空间优势,适配终端设备的紧凑结构设计,同时满足工业级可靠性要求,是一款跨物联网细分场景的通用型晶振.
ECS-3225MV-160-BN-TR,ECS晶振,物联网应用
| 原厂型号Originalmodel： |
          ECS-3225MV-160-BN-TR
|
品牌brand： | ECS晶振 |
| Manufacturer品牌 |
 ECS无线通信设备晶振
|
OperatingTemperature温度 | -40°C ~ 85°C |
| Series型号 |
   ECS-3225MV
|
Current-Supply(Max) | 4mA |
| Type类型 | XO (Standard) | PackageHeight高度 | 1.19mm |
| Frequency频率 |
  16 MHz
|
Termination脚位 |
 4 pad
|
| 输出方式Output： | HCMOS | PackageType封装类型 | 4-SMD |
| Voltage-Supply电压 | 1.62V ~ 3.63V | Packaging包装 | TapeandReel |
| FrequencyStability频率稳定度 |
      ±50ppm
|
安装方式Installation： | Surfacemount |

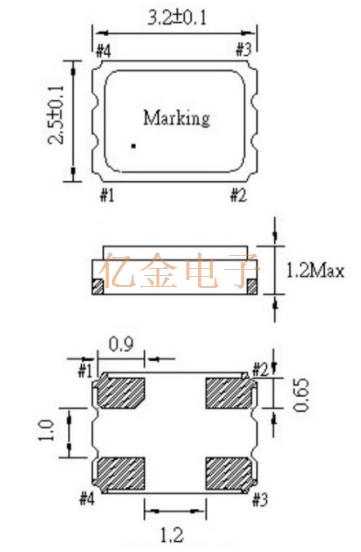

| Size/Dimension尺寸 | 3.20mm x 2.50mm | 最小包装数MPQ： | 3000 |
ECS-3225MV-160-BN-TR,ECS晶振,物联网应用
ECS-3225MV-160-BN-TR,ECS晶振,物联网应用
| ECS-2333-160-BN-TR | ECS晶振 | ECS-2333 | XO | 16 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-2033-250-BN | ECS晶振 | ECS-2033 | XO | 25 MHz | CMOS | 3.3V | ±50ppm |
| ECS-2333-500-BN-TR | ECS晶振 | ECS-2333 | XO | 50 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-2018-270-BN | ECS晶振 | ECS-2018 | XO | 27 MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-240-BN-TR3 | ECS晶振 | ECS-2018 | XO | 24 MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2033-500-BN | ECS晶振 | ECS-2033 | XO | 50 MHz | CMOS | 3.3V | ±50ppm |
| ECS-3963-250-BN-TR | ECS晶振 | ECS-3963-BN | XO | 25 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-2033-240-BN | ECS晶振 | ECS-2033 | XO | 24 MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-120-BN | ECS晶振 | ECS-2033 | XO | 12 MHz | CMOS | 3.3V | ±50ppm |
| ECS-327MVATX-2-CN-TR3 | ECS晶振 | ECS-327MVATX | XO | 32.768 kHz | CMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-327MVATX-3-CN-TR | ECS晶振 | ECS-327MVATX | XO | 32.768 kHz | CMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-3225MV-260-CN-TR | ECS晶振 | ECS-3225MV | XO | 26 MHz | HCMOS | 1.62V ~ 3.63V | ±25ppm |
| ECS-3225MV-240-BN-TR | ECS晶振 | ECS-3225MV | XO | 24 MHz | HCMOS | 1.62V ~ 3.63V | ±50ppm |
| ECS-2018-250-BN | ECS晶振 | ECS-2018 | XO | 25 MHz | HCMOS | 1.8V | ±50ppm |
| ECS-3225MV-500-CN-TR | ECS晶振 | ECS-3225MV | XO | 50 MHz | HCMOS | 1.62V ~ 3.63V | ±25ppm |
| ECS-3225MV-120-BN-TR | ECS晶振 | ECS-3225MV | XO | 12 MHz | HCMOS | 1.62V ~ 3.63V | ±50ppm |
| ECS-3225MV-250-CN-TR3 | ECS晶振 | ECS-3225MV | XO | 25 MHz | HCMOS | 1.8V ~ 3.3V | ±25ppm |
| ECS-3225MV-160-BN-TR | ECS晶振 | ECS-3225MV | XO | 16 MHz | HCMOS | 1.62V ~ 3.63V | ±50ppm |
| ECS-3225MV-500-BN-TR | ECS晶振 | ECS-3225MV | XO | 50 MHz | HCMOS | 1.62V ~ 3.63V | ±50ppm |
| ECS-3225MV-160-CN-TR | ECS晶振 | ECS-3225MV | XO | 16 MHz | HCMOS | 1.62V ~ 3.63V | ±25ppm |
| ECS-2520MV-160-CN-TR | ECS晶振 | ECS-2520MV | XO | 16 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2520MV-250-CN-TR | ECS晶振 | ECS-2520MV | XO | 25 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2520MV-250-BN-TR | ECS晶振 | ECS-2520MV | XO | 25 MHz | HCMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MV-240-BN-TR | ECS晶振 | ECS-2520MV | XO | 24 MHz | HCMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MV-120-BL-TR | ECS晶振 | ECS-2520MV | XO | 12 MHz | HCMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-5032MV-250-CN-TR | ECS晶振 | ECS-5032MV | XO | 25 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2520MV-480-BN-TR | ECS晶振 | ECS-2520MV | XO | 48 MHz | HCMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MV-080-CN-TR | ECS晶振 | ECS-2520MV | XO | 8 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2033-240-BN-TR3 | ECS晶振 | ECS-2033 | XO | 24 MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-250-BN-TR3 | ECS晶振 | ECS-2033 | XO | 25 MHz | CMOS | 3.3V | ±50ppm |
| ECS-2520MV-500-BL-TR | ECS晶振 | ECS-2520MV | XO | 50 MHz | HCMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MV-480-CN-TR | ECS晶振 | ECS-2520MV | XO | 48 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-3225MV-250-CN-TR | ECS晶振 | ECS-3225MV | XO | 25 MHz | HCMOS | 1.62V ~ 3.63V | ±25ppm |
| ECS-5032MV-240-CN-TR | ECS晶振 | ECS-5032MV | XO | 24 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-3953M-480-B-TR | ECS晶振 | ECS-3953M | XO | 48 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-5032MV-200-CN-TR | ECS晶振 | ECS-5032MV | XO | 20 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2520MVQ-250-CN-TR | ECS晶振 | ECS-2520MVQ | XO | 25 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-5032MV-500-CN-TR | ECS晶振 | ECS-5032MV | XO | 50 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-3963-040-BN-TR | ECS晶振 | ECS-3963-BN | XO | 4 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-2520MVLC-075-BN-TR | ECS晶振 | ECS-2520MVLC | XO | 7.5728 MHz | CMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MVLC-081.92-BN-TR | ECS晶振 | ECS-2520MVLC | XO | 8.192 MHz | CMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MVLC-120-CN-TR | ECS晶振 | ECS-2520MVLC | XO | 12 MHz | CMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2520MVLC-271.2-BN-TR | ECS晶振 | ECS-2520MVLC | XO | 27.12 MHz | CMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MVLC-049-BN-TR | ECS晶振 | ECS-2520MVLC | XO | 4.9152 MHz | CMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MVLC-250-CN-TR | ECS晶振 | ECS-2520MVLC | XO | 25 MHz | CMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-3951M-160-B-TR | ECS晶振 | ECS-3951M | XO | 16 MHz | HCMOS | 5V | ±50ppm |
| ECS-5032MV-122.8-CN-TR | ECS晶振 | ECS-5032MV | XO | 12.288 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-327MVATX-7-CN-TR | ECS晶振 | ECS-327MVATX | XO | 32.768 kHz | CMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-5032MV-1250-CN-TR | ECS晶振 | ECS-5032MV | XO | 125 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2018-143-BN | ECS晶振 | ECS-2018 | XO | 14.31818 MHz | HCMOS | 1.8V | ±50ppm |
| ECS-327ATQMV-AS-TR | ECS晶振 | ECS-327ATQMV | XO | 32.768 kHz | CMOS | 1.62V ~ 3.63V | ±100ppm |
| ECS-3963-120-BN-TR | ECS晶振 | ECS-3963-BN | XO | 12 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-3225MVQ-1000-CN-TR | ECS晶振 | ECS-3225MVQ | XO | 100 MHz | HCMOS | 1.7V ~ 3.6V | ±25ppm |
| ECS-3953M-250-B-TR | ECS晶振 | ECS-3953M | XO | 25 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-3963-250-AU-TR | ECS晶振 | ECS-3963 | XO | 25 MHz | HCMOS | 3.3V | ±100ppm |
| ECS-3953M-500-BN-TR | ECS晶振 | ECS-3953M-BN | XO | 50 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-3951M-160-BN-TR | ECS晶振 | ECS-3951M-BN | XO | 16 MHz | HCMOS | 5V | ±50ppm |
| ECS-3953M-250-BN-TR | ECS晶振 | ECS-3953M-BN | XO | 25 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-3953M-120-BN-TR | ECS晶振 | ECS-3953M-BN | XO | 12 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-3953M-018-BN-TR | ECS晶振 | ECS-3953M-BN | XO | 1.8432 MHz | HCMOS | 3.3V | ±50ppm |
