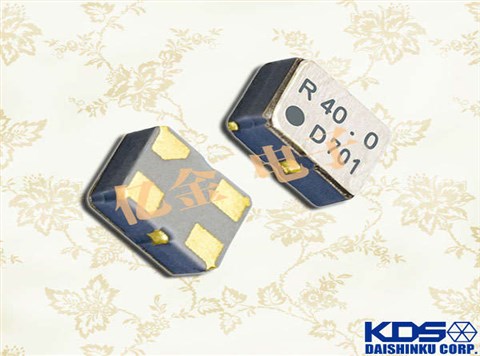

日本进口KDS晶振,6G通讯模块晶振,DSV211AV 48MHz晶振

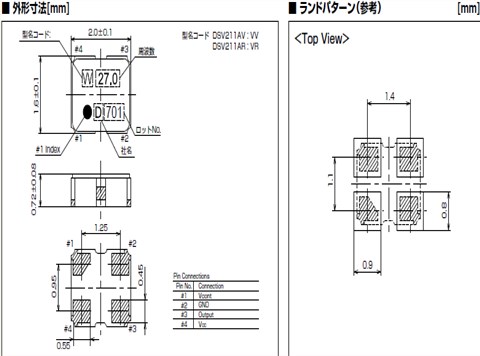

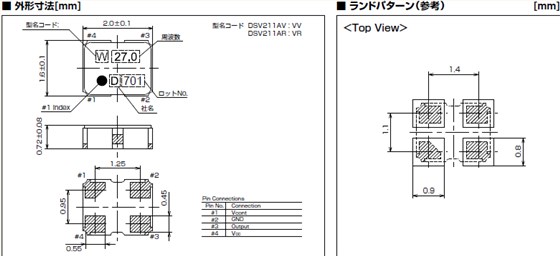

日本进口KDS晶振,6G通讯模块晶振，DSV211AV 48MHz晶振，日本大真空株式会社， KDS晶振公司，超小型晶振，6G通讯模块晶振，6G发射器晶振，压控晶振，有源晶振，石英晶振，KDS贴片晶振，2016尺寸，厚度0.72mm，超小型SMD-VCXO,体积小，但确保足够的可变量，频率线性变化，模拟VCXO，低耗电流，地面数字调谐器模块，媒体播放器，PND，DVD，数字电视，STB，相机模块

yijin-2

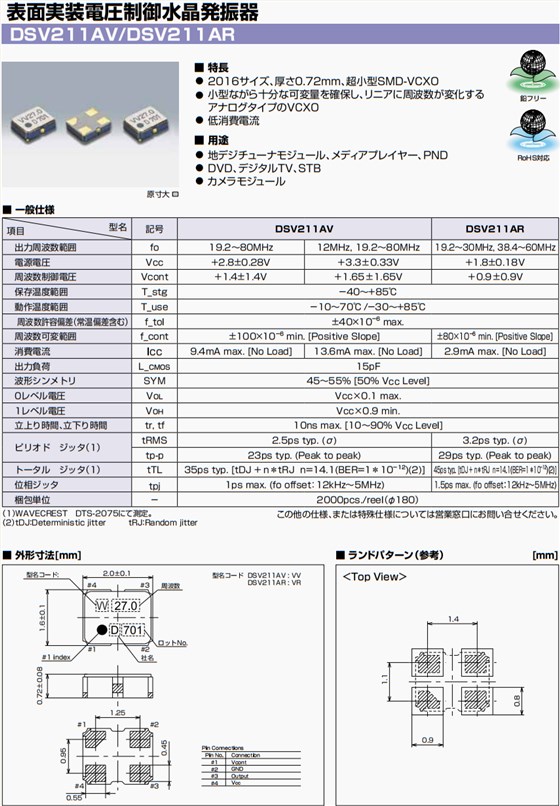

日本进口KDS晶振,6G通讯模块晶振，DSV211AV 48MHz晶振

项目	型号	符号	DSV211AV		DSV211AR
频率范围		fo	19.2?80MHz	12MHz, 19.2?80MHz	19.2?30MHz, 38.4?60MHz
电源电压		VCC	＋2.8±0.28V	＋3 .3±0.33V	＋1.8±0. 18V
频率控制电压		Vcont	＋1.4±1.4V	＋1 .65±1.65V	＋0 .9±0.9V
储存温度范围		T_stg	−40?+85℃
工作温度范围		T_use	−10?70℃ /−30?+85℃
温度范围内的频率偏差度		f_tol	±40×10−6max.
频率容差		f_cont	±100×10−6min. [Positive Slope]		±80×10−6min. [Positive Slope]
消耗电流		ICC	9.4mA max. [No Load]	13.6mA max. [No Load]	2.9mA max. [No Load]
输出负荷		L_CMOS	15pF
波形识别器		SYM	45?55% [50％ VCC Level]
零电平电压		VOL	VCC×0. 1 max.
一级电压		VOH	VCC×0.9 min.
上升时间和下降时间		tr, tf	10ns max. [10?90％ VCC Level]
结束		tRMS	2.5ps typ. (σ)		3.2ps typ. (σ)
		tp-p	23ps typ. (Peak to peak)		29ps typ. (Peak to peak)
总抖动		tTL	35ps typ. [tDJ + n＊tRJn=14. 1(BER=1＊10−12)(2)]		45ps typ. [tDJ + n＊tRJ n=14.1(BER=1＊10−12)(2)]
相位抖动		tpj	1ps max. (fo offset：12kHz?5MHz)		1.5ps max. (fo offset：12kHz?5MHz)
包装单位		−	2000pcs./reel(φ180)

yijin-3

日本进口KDS晶振,6G通讯模块晶振，DSV211AV 48MHz晶振

品牌	原厂代码	型号	尺寸	频率	负载/电压	精度
KDS晶振	1TJH125DR1A0004	DST1610A	1610	32.768KHZ	12.5PF	20PPM
KDS晶振	TJF080DP1AA003	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF080DP1AA003	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF0SPDJ1AI00S	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF080DP1AI00P	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF090DP1AI007	DST310S	3215	32.768KHZ	9PF	20PPM
KDS晶振	1TJF0SPDP1AI008	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF125DP1AI009	DST310S	3215	32.768KHZ	12.5PF	20PPM
KDS晶振	1TJF090DP1AA00L	DST310S	3215	32.768KHZ	9PF	20PPM
KDS晶振	1TJF080DP1AA00K	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF0SPDP1AA00G	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF0SPDN1A000B	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TD125DGNS003	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD125DHNS036	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD125DHNS002	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD060DHNS014	DT-26	206	32.768KHZ	6.0PF	20PPM
KDS晶振	1TD125BHNS001	DT-26	206	32.768KHZ	12.5PF	10PPM
KDS晶振	1TD075BHNS001	DT-26	206	32.768KHZ	7.5PF	10PPM
KDS晶振	1TD125BFNS001	DT-26	206	32.768KHZ	12.5PF	10PPM
KDS晶振	1TD1001HNS001	DT-26	206	32.768KHZ	10.0PF	-6/+2PPM
KDS晶振	1TD1250HNS005	DT-26	206	32.768KHZ	12.5PF	30/40P
KDS晶振	1TC125DFNS030	DT-38	308	32.768KHZ	12.5PF	20PPM
KDS晶振	1TC125NFNS002	DT-38	308	32.768KHZ	12.5PF	1000PPM
KDS晶振	1TC125AFSS003	DT-38	308	32.768KHZ	12.5PF	5PPM
KDS晶振	1TC250E65	DT-38	308	32.768KHZ	12.5PF	+12/+28PPM
KDS晶振	1C240000AB0G	DSX321G	3225	40.000MHZ	10PF	10PPM
KDS晶振	1C241600CDAA	DSX321G	3225	41.6MHZ	10PF	30PPM
KDS晶振	1AJ043324C	SMD-49	11*4.6	4.332MHZ	12PF	20PPM
KDS晶振	1ZZNAE26000AB0J	DSX211SH	2016	26.000MHZ	7PF	10PPM
KDS晶振	1AJ17408AAGA	SMD-49	11*4.6	17.408MHZ	16PF	50PPM
KDS晶振	1AJ250004B	SMD-49	11*4.6	25.000MHZ	20PF	30PPM
KDS晶振	1ZZCAA24000BE0B	DSX211G	2016	24.000MHZ	10PF	20PPM
KDS晶振	1N227000BB0AK	DSX321G	3225	27.000MHZ	11PF	12PPM
KDS晶振	1N230000AB0C	DSX321G	3225	30.000MHZ	10PF	30PPM
KDS晶振	1N240000AB0J	DSX321G	3225	40.000MHZ	15PF	15PPM
KDS晶振	1XSE098304AR2	DSO321SR	3225	98.304MHZ	3.3V	50ppm
KDS晶振	1AJ100005B	SMD-49	11*4.6	10.000MHZ	12PF	50PPM
KDS晶振	1ZN326000AB0A	DSX221SH	2520	26.000MHZ	7PF	10PPM
KDS晶振	1AJ240006AEA	SMD-49	11*4.6	24.000MHZ	16PF	50PPM
KDS晶振	1AJ240006AK	SMD-49	11*4.6	24.000MHZ	16PF	30PPM
KDS晶振	1AJ240006BB	SMD-49	11*4.6	24.000MHZ	16PF	30PPM
KDS晶振	1AJ245765C	SMD-49	11*4.6	24.576MHZ	18PF	30PPM
KDS晶振	ZC08759	DSO211AH	2016	25.000MHZ	3.3V	50ppm
KDS晶振	1AR270002GA	SMD-49	11*4.6	27.000MHZ	12.9PF	20PPM
KDS晶振	1AR304002A	SMD-49	11*4.6	30.400MHZ	12PF	50ppm
KDS晶振	1XXD16367MAA	DSB211SDN	2016	16.367MHZ	3.3V	1.5ppm
KDS晶振	ZC12467	DSA211SDN	2016	16.32MHZ	3.3V	1.5ppm
KDS晶振	1XXB16367MAA	DSB221SDN	2520	16.367MHZ	2.8V	1.5ppm
KDS晶振	1XXB16369JFA	DSB221SDN	2520	16.369MHZ	3.3V	1.5ppm
KDS晶振	ZC09382	DSA535SG	5032	18.432MHZ	3.3V	1.5ppm
