CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD

CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMDCX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD

产品简介

CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD石英晶体谐振器小的整体包装,尺寸可在2和4垫,陶瓷表面安装贴片晶体,Cardinal贴片晶振,四脚贴片晶振,石英晶振,5032晶振,无源晶振,石英晶体谐振器,美国进口晶振,CX532Z-A2B3C5-70-1966080D18晶振,汽车充电枪晶振,汽车电子中控晶振,用于通讯设备,无线网络,蓝牙模块晶振,汽车电子晶振,医疗设备,数码电子,物联网应用等。

产品详情

SITIME-2

yijin-1

CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD石英晶体谐振器小的整体包装,尺寸可在2和4垫,陶瓷表面安装贴片晶体,Cardinal贴片晶振,四脚贴片晶振,陶瓷晶振,5032晶振,无源晶振,陶瓷晶体谐振器,美国进口晶振,CX532Z-A2B3C5-70-1966080D18晶振,汽车充电枪晶振,汽车电子中控晶振被广泛用于通讯设备,无线网络,蓝牙模块晶振,汽车电子晶振,医疗设备,数码电子,物联网应用等。

yijin-2

CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD

OperatingTemperature:- 10°C ~ +60°CStandard
FrequencyStability: ±100
±50
±30
ppm
ppm
ppm
Standard
FrequencyTolerance: ±100 ppm
(at25°C) ±50 ppm Standard
±30 ppm
Load Capacitance: Standard 16,
Other values
18 pF or series.
are available.
Resistance: Maximum resistance corresponds to frequency.
See chart below.
Standard: Mode: Fundamental or 3rd Overtone
Shunt Capacitance: 7 pF Max
Aging: ± 5 ppm/year
Drive Level: 100 µW Max
yijin-3

CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD

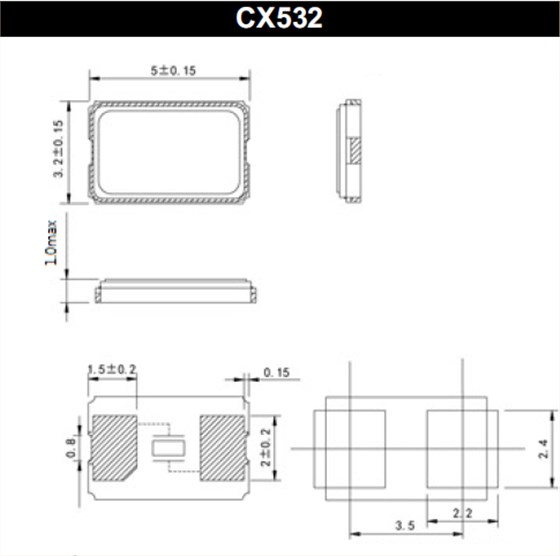

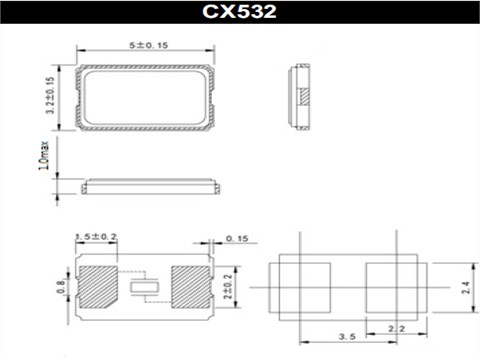

CX532 5032


cx532

进口晶振 厂家 型号 系列 频率 频率稳定度
CX532Z-A2B3C5-70-12.288D18 Cardinal Crystal CX532 MHz Crystal 12.288MHz ±30ppm
CX532Z-A2B3C5-70-16.0D18 Cardinal Crystal CX532 MHz Crystal 16MHz ±30ppm
CX532Z-A2B3C5-70-12.0D18 Cardinal Crystal CX532 MHz Crystal 12MHz ±30ppm
CX532Z-A2B3C5-70-1966080D18 Cardinal Crystal CX532 MHz Crystal 19.6608MHz ±30ppm
CX532Z-A2B3C5-70-33.0D18 Cardinal Crystal CX532 MHz Crystal 33MHz ±30ppm
CX532Z-A2B3C5-70-27.0D18 Cardinal Crystal CX532 MHz Crystal 27MHz ±30ppm
CX532Z-A5B3C5-70-20.0D18 Cardinal Crystal CX532 MHz Crystal 20MHz ±30ppm
CX532Z-A2B3C5-70-14.7456D18 Cardinal Crystal CX532 MHz Crystal 14.7456MHz ±30ppm
CX532Z-A5B3C5-70-12.0D18 Cardinal Crystal CX532 MHz Crystal 12MHz ±30ppm
CX532Z-A2B3C5-70-50.0D18 Cardinal Crystal CX532 MHz Crystal 50MHz ±30ppm
CX532Z-A2B3C5-70-30.0D18 Cardinal Crystal CX532 MHz Crystal 30MHz ±30ppm
CX532Z-A5B3C5-70-27.0D18 Cardinal Crystal CX532 MHz Crystal 27MHz ±30ppm
CX532AZ-A5B2C5-70-25.0D18 Cardinal Crystal CX532 MHz Crystal 25MHz ±50ppm
CX532Z-A5B3C5-70-25.0D18 Cardinal Crystal CX532 MHz Crystal 25MHz ±30ppm
CX532Z-A2B3C5-70-20.0D18 Cardinal Crystal CX532 MHz Crystal 20MHz ±30ppm
CX532Z-A2B3C5-70-8.0D18 Cardinal Crystal CX532 MHz Crystal 8MHz ±30ppm
CX532Z-A5B3C5-70-18.432D18 Cardinal Crystal CX532 MHz Crystal 18.432MHz ±30ppm
CX532Z-A2B3C5-70-25.0D18 Cardinal Crystal CX532 MHz Crystal 25MHz ±30ppm
