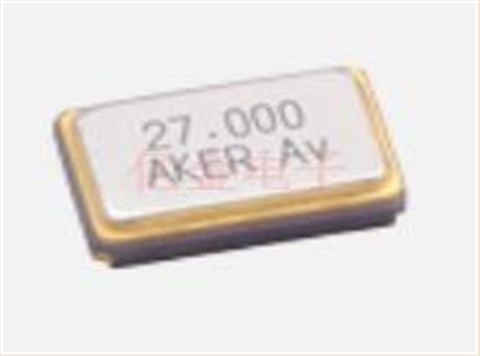

C5S-12.000-18-1020-R|12MHz|10PPM|18PF|5032|-10~70℃

产品简介

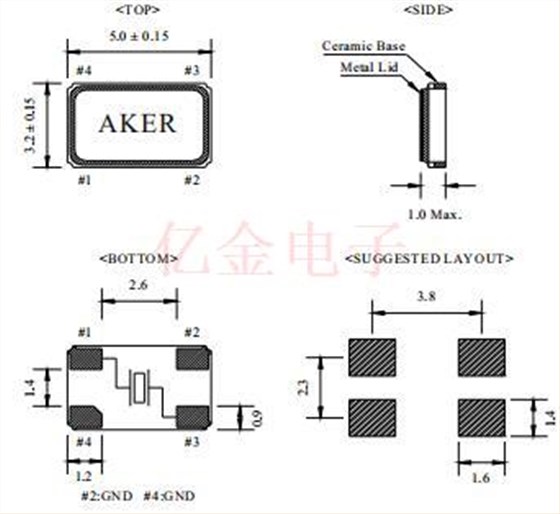

C5S-12.000-18-1020-R|12MHz|10PPM|18PF|5032|-10~70℃,贴片晶振，微处理器晶体，高质量晶振,高品质晶振,台湾晶振,AKER晶振,C5S-12.000-18-1020-R晶振,工业级晶振,四脚晶振,石英晶振,贴片晶振,5032晶振,智能手表晶振,儿童学习用品晶振单元低轮廓5.0 x 3.2毫米表面安装-4垫通用产品规格

产品详情

SITIME-2

C5S-12.000-18-1020-R|12MHz|10PPM|18PF|5032|-10~70℃,贴片晶振，微处理器晶体，高质量晶振,高品质晶振,台湾晶振,AKER晶振,C5S-12.000-18-1020-R晶振,工业级晶振,四脚晶振,石英晶振,贴片晶振,5032晶振,智能手表晶振,儿童学习用品晶振单元低轮廓5.0 x 3.2毫米表面安装-4垫通用产品规格

yijin-2

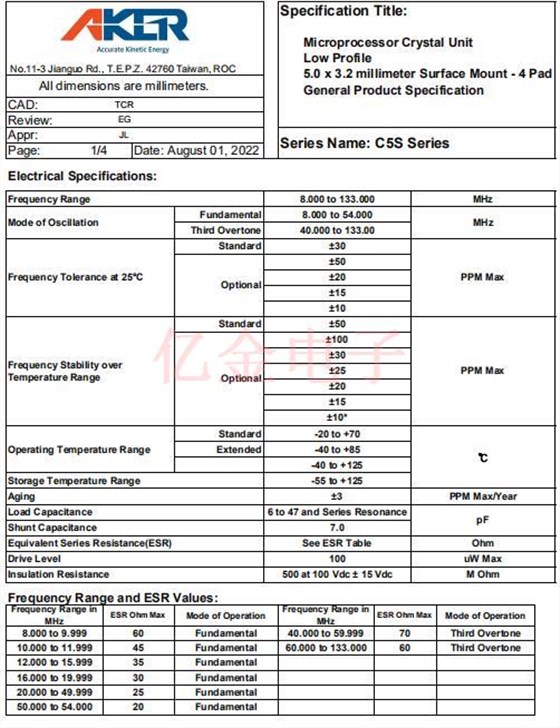

C5S-12.000-18-1020-R|12MHz|10PPM|18PF|5032|-10~70℃

频率范围		8.000to133.000	MHz
工作模式	Fundamental	8.000to54.000	MHz
	ThirdOvertone	40.000to133.00
频率容差at25°C	Standard	±30	PPMMax
	Optional	±50
		±20
		±15
		±10
在温度下的频率偏差度	Standard	±50	PPMMax
	Optional	±100
		±30
		±25
		±20
		±15
		±10*
工作温度范围	Standard	-20to+70	℃
	Extended	-40to+85
		-40to+125
储存温度范围		-55to+125
老化		±3	PPMMax/Year
负载电容		6to47andSeriesResonance	pF
并联电容		7.0
等效串联电阻(ESR)		SeeESRTable	Ohm
驱动电平		100	uWMax
绝缘电阻		500at100Vdc±15Vdc	MOhm

yijin-3

C5S-12.000-18-1020-R|12MHz|10PPM|18PF|5032|-10~70℃

AKER制造商零件编号	供应商	系列	频率	频率稳定性	频率容差	负载电容
C16-32.000-8-1515-X-R	Aker晶振	C16	32 MHz	±15ppm	±15ppm	8pF
C2E-25.000-10-3030-X-M	Aker晶振	C2E	25 MHz	±30ppm	±30ppm	10pF
C1E-25.000-20-2030-R	Aker晶振	C1E	25 MHz	±30ppm	±20ppm	20pF
C16-32.000-8-3030-X-R	Aker晶振	C16	32 MHz	±30ppm	±30ppm	8pF
C2E-16.000-8-1530-X-R	Aker晶振	C2E	16 MHz	±30ppm	±15ppm	8pF
C1E-32.000-8-1515-R	Aker晶振	C1E	32 MHz	±15ppm	±15ppm	8pF
C2E-24.000-10-1010-R	Aker晶振	C2E	24 MHz	±10ppm	±10ppm	10pF
C1E-24.000-10-1010-R	Aker晶振	C1E	24 MHz	±10ppm	±10ppm	10pF
C2E-25.000-10-3030-X-R	Aker晶振	C2E	25 MHz	±30ppm	±30ppm	10pF
C5S-8.000-18-3030-R	Aker晶振	C5S	8 MHz	±30ppm	±30ppm	18pF
C2E-16.000-10-1010-R	Aker晶振	C2E	16 MHz	±10ppm	±10ppm	10pF
C16-26.000-8-1520-R	Aker晶振	C16	26 MHz	±20ppm	±15ppm	8pF
C1E-32.000-10-1015-X-R	Aker晶振	C1E	32 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1015-M	Aker晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C1E-32.000-8-1015-X-R	Aker晶振	C1E	32 MHz	±15ppm	±10ppm	8pF
C1E-24.000-10-1015-R	Aker晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C2E-16.000-12-3030-X-R	Aker晶振	C2E	16 MHz	±30ppm	±30ppm	12pF
C7S-8.000-18-1020-R	Aker晶振	C7S	8 MHz	±20ppm	±10ppm	18pF
C5S-12.000-18-1020-R	Aker晶振	C5S	12 MHz	±20ppm	±10ppm	18pF
C3E-20.000-8-3050-X1-R	Aker晶振	C3E X1	20 MHz	±50ppm	±30ppm	8pF
C3E-20.000-10-3050-X1-R	Aker晶振	C3E X1	20 MHz	±50ppm	±30ppm	10pF
C3E-16.000-10-2050-X1-R	Aker晶振	C3E X1	10 MHz	±50ppm	±20ppm	10pF
C3E-12.000-8-2050-X1-R	Aker晶振	C3E X1	12 MHz	±50ppm	±20ppm	8pF
C2E-12.000-10-2050-X1-R	Aker晶振	C2E X1	12 MHz	±50ppm	±20ppm	10pF
C2E-12.000-8-2050-X1-R	Aker晶振	C2E X1	12 MHz	±50ppm	±20ppm	8pF
C3E-16.000-10-3050-X1-R	Aker晶振	C3E X1	16 MHz	±50ppm	±30ppm	10pF
C2E-20.000-10-2050-X1-R	Aker晶振	C2E X1	20 MHz	±50ppm	±20ppm	10pF
C3E-30.000-8-2050-X1-R	Aker晶振	C3E X1	8 MHz	±50ppm	±20ppm	8pF
C3E-16.000-8-2050-X1-R	Aker晶振	C3E X1	16 MHz	±50ppm	±20ppm	8pF
C7S-8.000-18-1030-X-R	Aker晶振	C7S	8 MHz	±30ppm	±10ppm	18pF
C2E-12.000-18-1020-X-R	Aker晶振	C2E	12 MHz	±20ppm	±10ppm	18pF
C2E-12.000-18-1020-R	Aker晶振	C2E	12 MHz	±20ppm	±10ppm	18pF
C2E-19.200-13-2030-X-R	Aker晶振	C2E	19.2 MHz	±30ppm	±20ppm	13pF
