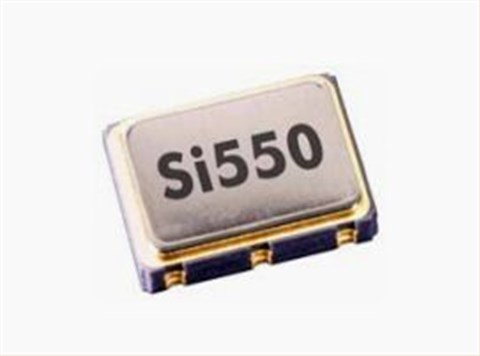

遥遥领先的Skyworks晶振/辅助驾驶模块晶振/550CD16M0000DG压控晶振

yijin-1

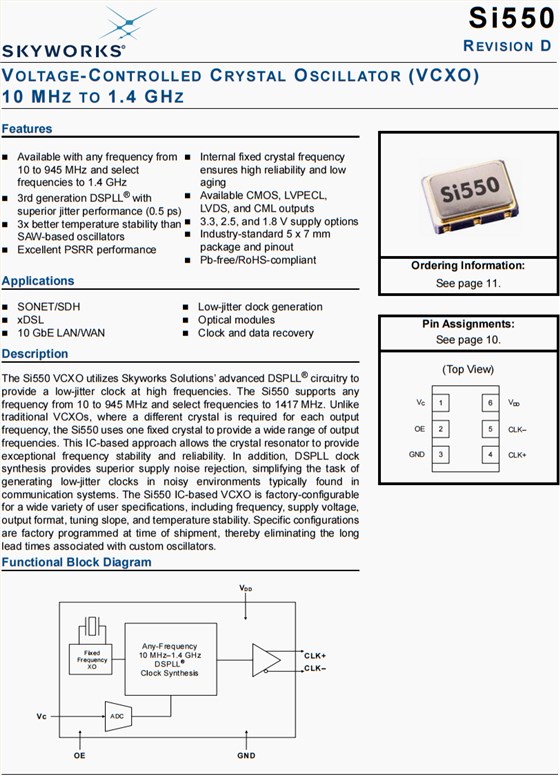

遥遥领先的Skyworks晶振/辅助驾驶模块晶振/550CD16M0000DG压控晶振，美国Skyworks晶振公司，高品质晶振，进口晶振，欧美晶振，有源晶振，压控晶振，VCXO晶振，高精度晶振，辅助驾驶模块晶振，6G路由器晶振，Si550 VCXO采用Skyworks Solutions先进的DSPLL®电路，在高频下提供低抖动时钟。Si550支持从10到945 MHz的任意频率和1417 MHz的选择频率。与传统VCXOs不同的是，Si550使用一个固定的晶体来提供广泛的输出频率。这种基于集成电路的方法允许晶体谐振器提供卓越的频率稳定性和可靠性。此外，DSPLL时钟合成提供了优越的电源噪声抑制，简化了在通信系统中通常发现的嘈杂环境中产生低抖动时钟的任务。Si550基于ic的VCXO可在工厂配置，以满足各种用户规格，包括频率，电源电压，输出格式，调谐斜率和温度稳定性。

yijin-2

遥遥领先的Skyworks晶振/辅助驾驶模块晶振/550CD16M0000DG压控晶振

参数	符号	试验条件	最小值	典型的	最大值	单位
电源电压	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
供应电流	IDD	Output enabled LVPECL CML LVDS CMOS	— — — —	120 108 99 90	130 117 108 98	mA
供应电流	IDD	tristate mode	—	60	75	mA
输出启用		VIH	0.75 x VDD	—	—	V
输出启用		VIL	—	—	0.5	V
工作温度范围	TA		–40	—	85	°C
控制电压调整坡度	KV	10 to 90% of VDD	— —	33 45	— —
			— —	90 135	— —	ppm/V
			—	180	—
			—	356	—
控制电压线性	LVC	BSL	–5	±1	+5	%
控制电压线性	LVC	Incremental	–10	±5	+10	%
调制带宽	BW		9.3	10.0	10.7	kHz
输入抗阻	ZVC		500	—	—	k?
标称控制电压	VCNOM	@ fO	—	VDD/2	—	V
控制电压协调范围	VC		0		VDD	V
标称频率	fO	LVDS/CML/LVPECL	10	—	945	MHz
标称频率	fO	CMOS	10	—	160	MHz
温度稳定度		TA= –40 to +85 ºC	–20 –50 –100	— — —	20 +50 +100	ppm
老化		Frequency drift over first year.	—	—	±3	ppm
老化		Frequency drift over 15 year life.	—	—	±10	ppm

yijin-3

遥遥领先的Skyworks晶振/辅助驾驶模块晶振/550CD16M0000DG压控晶振

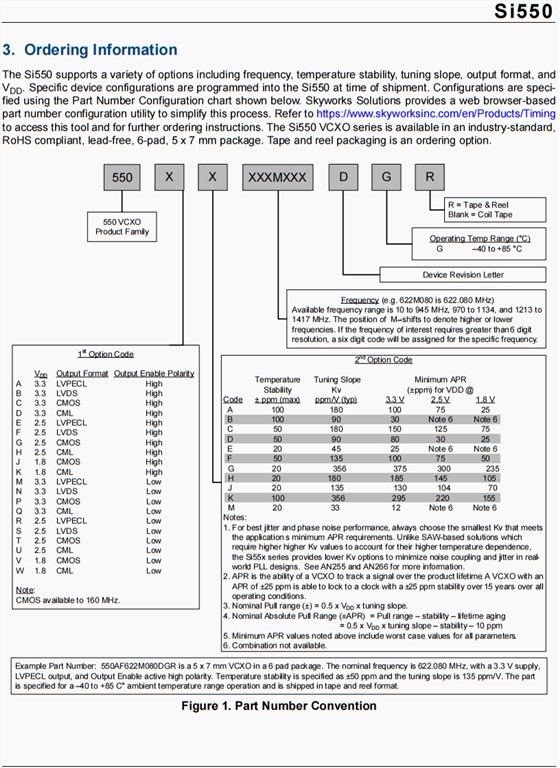

Skywork原厂编码	生产商	型号	类型	频率	输出	电源电压	频率稳定度
550CE100M000DG	Skyworks晶振	Si550	VCXO	100 MHz	CMOS	3.3V	±20ppm
550BJ25M0000DG	Skyworks晶振	Si550	VCXO	25 MHz	LVDS	3.3V	±20ppm
550CE102M400DG	Skyworks晶振	Si550	VCXO	102.4 MHz	CMOS	3.3V	±20ppm
550CD16M0000DGR	Skyworks晶振	Si550	VCXO	16 MHz	CMOS	3.3V	±50ppm
550CD20M0000DGR	Skyworks晶振	Si550	VCXO	20 MHz	CMOS	3.3V	±50ppm
550CD30M0000DGR	Skyworks晶振	Si550	VCXO	30 MHz	CMOS	3.3V	±50ppm
550CF10M0000DGR	Skyworks晶振	Si550	VCXO	10 MHz	CMOS	3.3V	±50ppm
550CD16M0000DG	Skyworks晶振	Si550	VCXO	16 MHz	CMOS	3.3V	±50ppm
550CD20M0000DG	Skyworks晶振	Si550	VCXO	20 MHz	CMOS	3.3V	±50ppm
550CD30M0000DG	Skyworks晶振	Si550	VCXO	30 MHz	CMOS	3.3V	±50ppm
550CF10M0000DG	Skyworks晶振	Si550	VCXO	10 MHz	CMOS	3.3V	±50ppm
550CJ22M5790DG	Skyworks晶振	Si550	VCXO	22.579 MHz	CMOS	3.3V	±20ppm
550CM22M5790DG	Skyworks晶振	Si550	VCXO	22.579 MHz	CMOS	3.3V	±20ppm
550CM94M0000DG	Skyworks晶振	Si550	VCXO	94 MHz	CMOS	3.3V	±20ppm
550CJ22M5790DGR	Skyworks晶振	Si550	VCXO	22.579 MHz	CMOS	3.3V	±20ppm
550CM22M5790DGR	Skyworks晶振	Si550	VCXO	22.579 MHz	CMOS	3.3V	±20ppm
550CM94M0000DGR	Skyworks晶振	Si550	VCXO	94 MHz	CMOS	3.3V	±20ppm
550AD10M0000DGR	Skyworks晶振	Si550	VCXO	10 MHz	LVPECL	3.3V	±50ppm
550AD12M5458DGR	Skyworks晶振	Si550	VCXO	12.5458 MHz	LVPECL	3.3V	±50ppm
550AD24M5760DGR	Skyworks晶振	Si550	VCXO	24.576 MHz	LVPECL	3.3V	±50ppm
550AD27M0000DGR	Skyworks晶振	Si550	VCXO	27 MHz	LVPECL	3.3V	±50ppm
550AD94M0000DGR	Skyworks晶振	Si550	VCXO	94 MHz	LVPECL	3.3V	±50ppm
550BD62M5000DGR	Skyworks晶振	Si550	VCXO	62.5 MHz	LVDS	3.3V	±50ppm
550FD74M2500DGR	Skyworks晶振	Si550	VCXO	74.25 MHz	LVDS	2.5V	±50ppm
550RC12M2230DGR	Skyworks晶振	Si550	VCXO	12.223 MHz	LVPECL	2.5V	±50ppm
550AJ873M515DG	Skyworks晶振	Si550	VCXO	873.515 MHz	LVPECL	3.3V	±20ppm
550AJ873M515DGR	Skyworks晶振	Si550	VCXO	873.515 MHz	LVPECL	3.3V	±20ppm
550FG125M000DG	Skyworks晶振	Si550	VCXO	125 MHz	LVDS	2.5V	±20ppm
550FG125M000DGR	Skyworks晶振	Si550	VCXO	125 MHz	LVDS	2.5V	±20ppm
550AD10M0000DG	Skyworks晶振	Si550	VCXO	10 MHz	LVPECL	3.3V	±50ppm
550AD12M5458DG	Skyworks晶振	Si550	VCXO	12.5458 MHz	LVPECL	3.3V	±50ppm
550AD24M5760DG	Skyworks晶振	Si550	VCXO	24.576 MHz	LVPECL	3.3V	±50ppm
550AD27M0000DG	Skyworks晶振	Si550	VCXO	27 MHz	LVPECL	3.3V	±50ppm
550AD94M0000DG	Skyworks晶振	Si550	VCXO	94 MHz	LVPECL	3.3V	±50ppm
550BD62M5000DG	Skyworks晶振	Si550	VCXO	62.5 MHz	LVDS	3.3V	±50ppm
550FD74M2500DG	Skyworks晶振	Si550	VCXO	74.25 MHz	LVDS	2.5V	±50ppm
550RC12M2230DG	Skyworks晶振	Si550	VCXO	12.223 MHz	LVPECL	2.5V	±50ppm
550AJ40M0000DGR	Skyworks晶振	Si550	VCXO	40 MHz	LVPECL	3.3V	±20ppm
550CA100M000DGR	Skyworks晶振	Si550	VCXO	100 MHz	CMOS	3.3V	±100ppm
550CA24M5760DGR	Skyworks晶振	Si550	VCXO	24.576 MHz	CMOS	3.3V	±100ppm
550CA25M0000DGR	Skyworks晶振	Si550	VCXO	25 MHz	CMOS	3.3V	±100ppm
550CA27M0000DGR	Skyworks晶振	Si550	VCXO	27 MHz	CMOS	3.3V	±100ppm
550CA30M7200DGR	Skyworks晶振	Si550	VCXO	30.72 MHz	CMOS	3.3V	±100ppm
550CA38M8800DGR	Skyworks晶振	Si550	VCXO	38.88 MHz	CMOS	3.3V	±100ppm
550CA48M0000DGR	Skyworks晶振	Si550	VCXO	48 MHz	CMOS	3.3V	±100ppm
550CA49M1250DGR	Skyworks晶振	Si550	VCXO	49.125 MHz	CMOS	3.3V	±100ppm
550CA49M1520DGR	Skyworks晶振	Si550	VCXO	49.152 MHz	CMOS	3.3V	±100ppm
550CB25M0000DGR	Skyworks晶振	Si550	VCXO	25 MHz	CMOS	3.3V	±100ppm
550CK11M2896DGR	Skyworks晶振	Si550	VCXO	11.2896 MHz	CMOS	3.3V	±100ppm
550CK22M5792DGR	Skyworks晶振	Si550	VCXO	22.5792 MHz	CMOS	3.3V	±100ppm
550CK24M5760DGR	Skyworks晶振	Si550	VCXO	24.576 MHz	CMOS	3.3V	±100ppm
550CK29M5000DGR	Skyworks晶振	Si550	VCXO	29.5 MHz	CMOS	3.3V	±100ppm
550PK13M5600DGR	Skyworks晶振	Si550	VCXO	13.56 MHz	CMOS	3.3V	±100ppm
550CB24M5760DGR	Skyworks晶振	Si550	VCXO	24.576 MHz	CMOS	3.3V	±100ppm
550AE19M2000DGR	Skyworks晶振	Si550	VCXO	19.2 MHz	LVPECL	3.3V	±20ppm
550CC78M3360DGR	Skyworks晶振	Si550	VCXO	78.336 MHz	CMOS	3.3V	±50ppm
550CC86M0160DGR	Skyworks晶振	Si550	VCXO	86.016 MHz	CMOS	3.3V	±50ppm
550CD000149DGR	Skyworks晶振	Si550	VCXO	74.175824 MHz	CMOS	3.3V	±50ppm
550CD000230DGR	Skyworks晶振	Si550	VCXO	43.04895 MHz	CMOS	3.3V	±50ppm
550CD000231DGR	Skyworks晶振	Si550	VCXO	77.570634 MHz	CMOS	3.3V	±50ppm
550CD100M000DGR	Skyworks晶振	Si550	VCXO	100 MHz	CMOS	3.3V	±50ppm
550CD108M000DGR	Skyworks晶振	Si550	VCXO	108 MHz	CMOS	3.3V	±50ppm
550CD10M0000DGR	Skyworks晶振	Si550	VCXO	10 MHz	CMOS	3.3V	±50ppm
550CD120M000DGR	Skyworks晶振	Si550	VCXO	120 MHz	CMOS	3.3V	±50ppm
550CD122M880DGR	Skyworks晶振	Si550	VCXO	122.88 MHz	CMOS	3.3V	±50ppm
550CD125M000DGR	Skyworks晶振	Si550	VCXO	125 MHz	CMOS	3.3V	±50ppm
550CD19M4400DGR	Skyworks晶振	Si550	VCXO	19.44 MHz	CMOS	3.3V	±50ppm
550CD24M7040DGR	Skyworks晶振	Si550	VCXO	24.704 MHz	CMOS	3.3V	±50ppm
550CD25M0000DGR	Skyworks晶振	Si550	VCXO	25 MHz	CMOS	3.3V	±50ppm
550CD27M0000DGR	Skyworks晶振	Si550	VCXO	27 MHz	CMOS	3.3V	±50ppm
550CD30M7200DGR	Skyworks晶振	Si550	VCXO	30.72 MHz	CMOS	3.3V	±50ppm
550CD36M8640DGR	Skyworks晶振	Si550	VCXO	36.864 MHz	CMOS	3.3V	±50ppm
550CD49M5000DGR	Skyworks晶振	Si550	VCXO	49.5 MHz	CMOS	3.3V	±50ppm
550CD50M0000DGR	Skyworks晶振	Si550	VCXO	50 MHz	CMOS	3.3V	±50ppm
550CD63M8976DGR	Skyworks晶振	Si550	VCXO	63.8976 MHz	CMOS	3.3V	±50ppm
550CD64M0000DGR	Skyworks晶振	Si550	VCXO	64 MHz	CMOS	3.3V	±50ppm
550CD65M5360DGR	Skyworks晶振	Si550	VCXO	65.536 MHz	CMOS	3.3V	±50ppm
550CD70M6560DGR	Skyworks晶振	Si550	VCXO	70.656 MHz	CMOS	3.3V	±50ppm
550CD74M1582DGR	Skyworks晶振	Si550	VCXO	74.1582 MHz	CMOS	3.3V	±50ppm
550CD74M1758DGR	Skyworks晶振	Si550	VCXO	74.1758 MHz	CMOS	3.3V	±50ppm
550CD77M7600DGR	Skyworks晶振	Si550	VCXO	77.76 MHz	CMOS	3.3V	±50ppm
550CD80M0000DGR	Skyworks晶振	Si550	VCXO	80 MHz	CMOS	3.3V	±50ppm
550CD89M6000DGR	Skyworks晶振	Si550	VCXO	89.6 MHz	CMOS	3.3V	±50ppm
550CF000205DGR	Skyworks晶振	Si550	VCXO	36.5714285 MHz	CMOS	3.3V	±50ppm
550CF000256DGR	Skyworks晶振	Si550	VCXO	27.9127092 MHz	CMOS	3.3V	±50ppm
550CF100M000DGR	Skyworks晶振	Si550	VCXO	100 MHz	CMOS	3.3V	±50ppm
550CF125M000DGR	Skyworks晶振	Si550	VCXO	125 MHz	CMOS	3.3V	±50ppm
550CF12M2880DGR	Skyworks晶振	Si550	VCXO	12.288 MHz	CMOS	3.3V	±50ppm
550CF16M0000DGR	Skyworks晶振	Si550	VCXO	16 MHz	CMOS	3.3V	±50ppm
550CF20M0000DGR	Skyworks晶振	Si550	VCXO	20 MHz	CMOS	3.3V	±50ppm
550CF23M5000DGR	Skyworks晶振	Si550	VCXO	23.5 MHz	CMOS	3.3V	±50ppm
550CF27M0000DGR	Skyworks晶振	Si550	VCXO	27 MHz	CMOS	3.3V	±50ppm
550CF30M2400DGR	Skyworks晶振	Si550	VCXO	30.24 MHz	CMOS	3.3V	±50ppm
550CF35M3280DGR	Skyworks晶振	Si550	VCXO	35.328 MHz	CMOS	3.3V	±50ppm
550CF36M8640DGR	Skyworks晶振	Si550	VCXO	36.864 MHz	CMOS	3.3V	±50ppm
550CF38M7853DGR	Skyworks晶振	Si550	VCXO	38.7853 MHz	CMOS	3.3V	±50ppm
550CF65M5360DGR	Skyworks晶振	Si550	VCXO	65.536 MHz	CMOS	3.3V	±50ppm
550GC10M0000DGR	Skyworks晶振	Si550	VCXO	10 MHz	CMOS	2.5V	±50ppm
550GC125M000DGR	Skyworks晶振	Si550	VCXO	125 MHz	CMOS	2.5V	±50ppm
550GC38M7853DGR	Skyworks晶振	Si550	VCXO	38.7853 MHz	CMOS	2.5V	±50ppm
