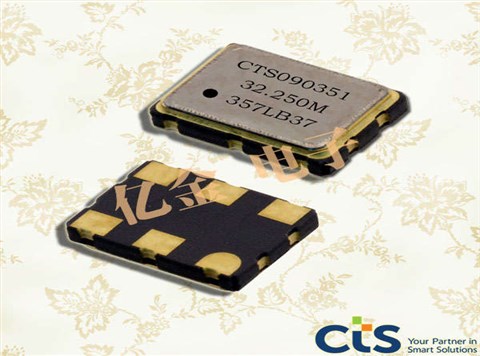

315LB5C1555T-CTS-155.52M-3.3V-VCXO-5032,CTS压控晶振,陶瓷表面安装封装,超低相位抖动性能,高频基本晶体设计,频率范围100-170MHz*+3.3V操作,输出使标准?磁带和卷轴包装,EIA-418.小区无线网,无线通信,宽带接入,SONET/SDH/DWDM,基站,以太网/GbE/SyncE,数字视频,测试和测量。CTS315型车是一款低成本、小尺寸、高性能的VCXO车型。M315采用最新的IC技术,再加上高频基晶,具有优异的稳定性和低抖动/相位噪声性能。

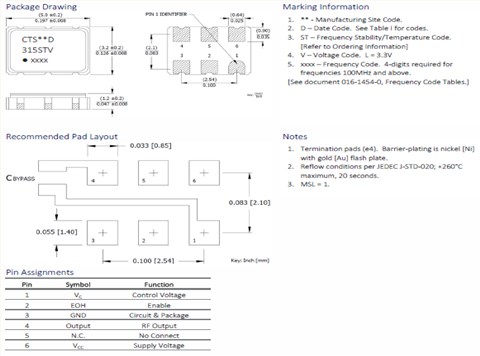

315LB5C1555T-CTS-155.52M-3.3V-VCXO-5032
参数 | SYMBOL | CONDITIONS | MIN | TYP | MAX | UNIT |
最大电源电压 | VCC | ‐ | ‐0.5 | ‐ | 5 .0 | V |
最大控制电压 | VC | ‐ | ‐0.5 | ‐ | VCC | V |
电源电压 | VCC | ±5% | 3 .14 | 3 .3 | 3 .47 | V |
供应电流 | ICC | Typical @ CL = 15 pF, TA = +25°C | ‐ | 20 | 30 | mA |
输出负载 | CL | ‐ | ‐ | ‐ | 15 | pF |
工作温度 | TA | ‐ |
‐ 20 ‐40 |
+25 |
+70 +85 |
°C |
储存温度 | TSTG | ‐ | ‐40 | ‐ | +100 | °C |
频率范围 | O | ‐ | 100 ‐ 170 | MHz | ||
频率稳定度 | Δf/fO | ±20ppm stability, ‐ 20°C to +70°C only | 20, 25 or 50 | ±ppm | ||
绝对拉力范围 | APR | ‐ | 50 | ‐ | ±ppm | |
老化 | Δf/f25 | First Year @ +25°C, nominal VCC and VC | ‐ 3 | ‐ | ppm | |
输出类型 | ‐ | ‐ | HCMOS | ‐ | ||
输出电压水平 |
VOH VOL |
Logic '1' Level, CMOS Load Logic '0' Level, CMOS Load |
0 .9VCC ‐ |
‐ ‐ |
‐ 0 .1VCC |
V |
输出占空比 | SYM | @ 50% Level | 45 | ‐ | 55 | % |
上升和下降的时间 | TR, TF | @ 20%/80% Levels | ‐ | 1 .5 | 3 .0 | ns |
启动时间 | TS | Application of VCC | ‐ | ‐ | 5 | ms |
相位抖动,RMS | tjrms | Bandwidth 12 kHz ‐ 20 MHz | ‐ | 50 | 500 | fs |
相位噪音 | ‐ | See Typical Plots | ‐ | ‐ | ‐ | ‐ |
315LB5C1555T-CTS-155.52M-3.3V-VCXO-5032
CTS原厂代码 | 生产商品牌 | 型号 | 类型 | 频率 | 输出 | 电压 | 频率稳定度 | 工作温度 |
317LB3I1228T | CTS晶振 | 317 | VCXO | 122.88MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
317LB3I1228T | CTS晶振 | 317 | VCXO | 122.88MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
317LB3I1228T | CTS晶振 | 317 | VCXO | 122.88MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB3I1228T | CTS晶振 | 315 | VCXO | 122.88MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB3I1228T | CTS晶振 | 315 | VCXO | 122.88MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB3I1228T | CTS晶振 | 315 | VCXO | 122.88MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
317LB3C1228T | CTS晶振 | 317 | VCXO | 122.88MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
315LB3C1228T | CTS晶振 | 315 | VCXO | 122.88MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
317LB5C1000T | CTS晶振 | 317 | VCXO | 100MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
317LB5I1000T | CTS晶振 | 317 | VCXO | 100MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
317LB6C1000T | CTS晶振 | 317 | VCXO | 100MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
315LB5C1000T | CTS晶振 | 315 | VCXO | 100MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
317LB5C1228T | CTS晶振 | 317 | VCXO | 122.88MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
317LB3C1000T | CTS晶振 | 317 | VCXO | 100MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
315LB5I1000T | CTS晶振 | 315 | VCXO | 100MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
315LB6C1000T | CTS晶振 | 315 | VCXO | 100MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
317LB5C1250T | CTS晶振 | 317 | VCXO | 125MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
317LB5I1228T | CTS晶振 | 317 | VCXO | 122.88MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
317LB6C1228T | CTS晶振 | 317 | VCXO | 122.88MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
317LB3C1250T | CTS晶振 | 317 | VCXO | 125MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
317LB3I1000T | CTS晶振 | 317 | VCXO | 100MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB5C1228T | CTS晶振 | 315 | VCXO | 122.88MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
317LB5I1250T | CTS晶振 | 317 | VCXO | 125MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
317LB6C1250T | CTS晶振 | 317 | VCXO | 125MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
317LB3I1250T | CTS晶振 | 317 | VCXO | 125MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB3C1000T | CTS晶振 | 315 | VCXO | 100MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
315LB3C1250T | CTS晶振 | 315 | VCXO | 125MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
315LB3I1000T | CTS晶振 | 315 | VCXO | 100MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB5C1250T | CTS晶振 | 315 | VCXO | 125MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
315LB5I1228T | CTS晶振 | 315 | VCXO | 122.88MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
315LB6C1228T | CTS晶振 | 315 | VCXO | 122.88MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
315LB3I1250T | CTS晶振 | 315 | VCXO | 125MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB5I1250T | CTS晶振 | 315 | VCXO | 125MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
315LB6C1250T | CTS晶振 | 315 | VCXO | 125MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
317LB3C1536T | CTS晶振 | 317 | VCXO | 153.6MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
317LB5C1536T | CTS晶振 | 317 | VCXO | 153.6MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
317LB3C1555T | CTS晶振 | 317 | VCXO | 155.52MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
317LB3C1562T | CTS晶振 | 317 | VCXO | 156.25MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
317LB3I1536T | CTS晶振 | 317 | VCXO | 153.6MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
317LB5I1536T | CTS晶振 | 317 | VCXO | 153.6MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
317LB6C1536T | CTS晶振 | 317 | VCXO | 153.6MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
317LB3I1555T | CTS晶振 | 317 | VCXO | 155.52MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
317LB3I1562T | CTS晶振 | 317 | VCXO | 156.25MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB5C1536T | CTS晶振 | 315 | VCXO | 153.6MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
317LB5C1555T | CTS晶振 | 317 | VCXO | 155.52MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
315LB5I1536T | CTS晶振 | 315 | VCXO | 153.6MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
315LB6C1536T | CTS晶振 | 315 | VCXO | 153.6MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
317LB5I1555T | CTS晶振 | 317 | VCXO | 155.52MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
317LB6C1555T | CTS晶振 | 317 | VCXO | 155.52MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
315LB3C1536T | CTS晶振 | 315 | VCXO | 153.6MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
317LB3C1660T | CTS晶振 | 317 | VCXO | 166MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
315LB5C1555T | CTS晶振 | 315 | VCXO | 155.52MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
317LB5C1562T | CTS晶振 | 317 | VCXO | 156.25MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
315LB3C1555T | CTS晶振 | 315 | VCXO | 155.52MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
315LB3C1562T | CTS晶振 | 315 | VCXO | 156.25MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
315LB3I1536T | CTS晶振 | 315 | VCXO | 153.6MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
317LB3I1660T | CTS晶振 | 317 | VCXO | 166MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB5I1555T | CTS晶振 | 315 | VCXO | 155.52MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
315LB6C1555T | CTS晶振 | 315 | VCXO | 155.52MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
317LB5I1562T | CTS晶振 | 317 | VCXO | 156.25MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
317LB6C1562T | CTS晶振 | 317 | VCXO | 156.25MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
315LB3I1555T | CTS晶振 | 315 | VCXO | 155.52MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB3I1562T | CTS晶振 | 315 | VCXO | 156.25MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
315LB5C1562T | CTS晶振 | 315 | VCXO | 156.25MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
317LB5C1660T | CTS晶振 | 317 | VCXO | 166MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
315LB5I1562T | CTS晶振 | 315 | VCXO | 156.25MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
315LB6C1562T | CTS晶振 | 315 | VCXO | 156.25MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
317LB5I1660T | CTS晶振 | 317 | VCXO | 166MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
317LB6C1660T | CTS晶振 | 317 | VCXO | 166MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
315LB3C1660T | CTS晶振 | 315 | VCXO | 166MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
315LB5C1660T | CTS晶振 | 315 | VCXO | 166MHz | HCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
315LB5I1660T | CTS晶振 | 315 | VCXO | 166MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
315LB6C1660T | CTS晶振 | 315 | VCXO | 166MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
315LB3I1660T | CTS晶振 | 315 | VCXO | 166MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
