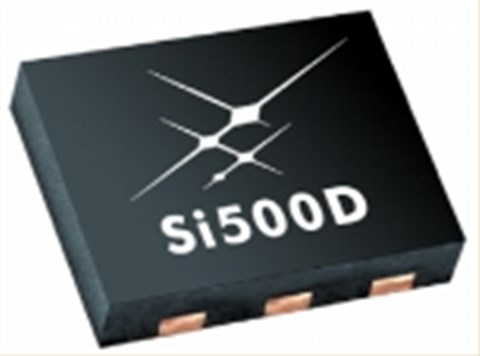

Silicon品牌|500DLAA200M000ACF|6G低功耗晶振,欧美进口晶振,Silicon晶振,Si500D差分石英晶体振荡器,500DLAA200M000ACF晶振,LVDS输出晶振,有源晶振,六脚贴片晶振,5032贴片晶振,频率200MHz,电压2.5V,频率稳定性150ppm,工作温度0~70°C,无锁相环晶振,低功耗晶振,抗冲击晶振,抗振动晶振,数字设备晶振,测试与测量设备晶振,高速转换器晶振,电信交换机晶振.
Silicon品牌|500DLAA200M000ACF|6G低功耗晶振特点：
-无石英，无MEMS，无锁相环
-从0.9到200mhz的任意输出频率
-缩短交货期
-优异的温度稳定性(±20 ppm)
-高度可靠的启动和运行
-抗冲击、抗振动能力强
-低抖动:<1.5 ps rms
-0至85°C的操作包括在高温环境下的10年老化
-足迹与工业标准3.2 x 5.0 mm xo兼容
-支持CMOS、SSTL、LVPECL、LVDS、HCSL等版本
-驱动程序停止、三状态或下电操作
-符合RoHS标准
-1.8, 2.5, 3.3 V选项
-低功耗
-比竞争对手的晶体解决方案高出10倍以上的配合率

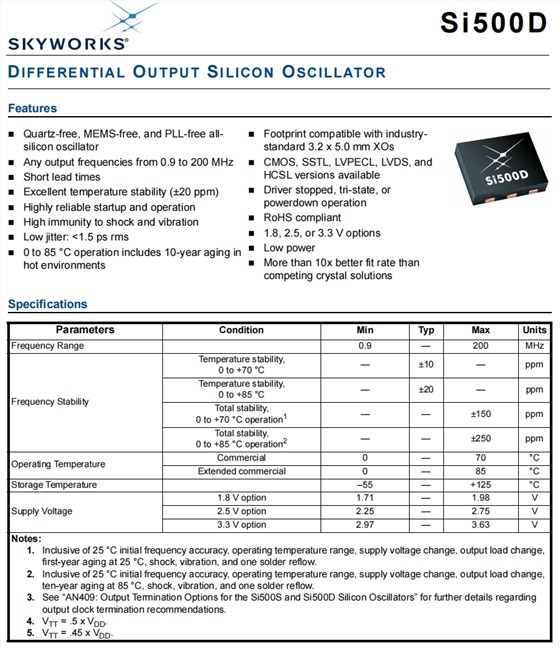

Silicon品牌|500DLAA200M000ACF|6G低功耗晶振规格表
(RTERM = 100Ωdiff)3
Parameters
Condition
Si500D
Frequency Range
200MHZ
Frequency Stability
±150ppm
Operating Temperature
Commercial
0°C~+70°C
Extended commercial
0°C~+85°C
Storage Temperature
-55°C~+125°C
Supply Voltage
2.5V
Supply Current
LVDS
16.5 mA Max
Output Symmetry
VDIFF = 0
46 – 13 ns/TCLK% Min
54 + 13 ns/TCLK% Max
Rise and Fall Times (20/80%)3
LVPECL/LVDS
460ps Max
LVDS Output Option (2.5/3.3 V)
Mid-level
1.26V Max
Diff swing
0.45 VPK Max
Return From Powerdown Time
2 ms Max
Period Jitter (1-sigma)
Non-CMOS
2 ps RMS Max
CMOS, CL = 7 pF
3 ps RMS Max
Integrated Phase Jitter
1.0 MHz – min(20 MHz,
0.4 x FOUT),non-CMOS
1 ps RMS Max
1.0 MHz – min(20 MHz,
0.4 x FOUT),CMOS format
1.5 ps RMS Max

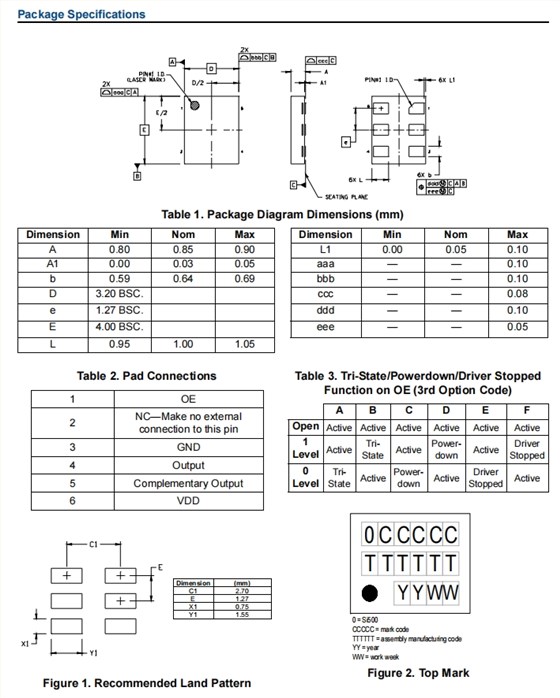

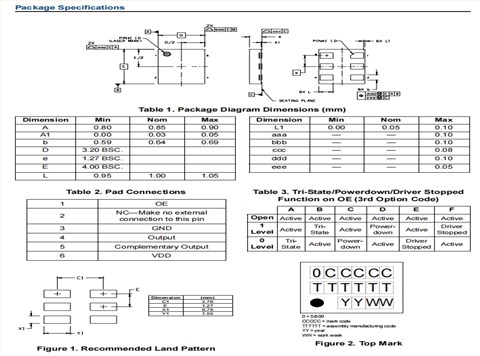

Silicon品牌|500DLAA200M000ACF|6G低功耗晶振尺寸图
| 原厂代码 | 品牌 | 型号 | 频率 | 电压 | 频率稳定度 | 尺寸 |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA125M000BAG | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA100M000AAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA200M000BAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 530FB125M000DG | Silicon Labs | Si530 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BB125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BB125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FB200M000DG | Silicon Labs | Si531 | 200MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FB200M000DG | Silicon Labs | Si530 | 200MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC156M250DG | Silicon Labs | Si530 | 156.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC250M000DG | Silicon Labs | Si531 | 250MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA125M000BAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA125M000BAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA100M000AAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA200M000BAG | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA200M000BAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA200M000AAG | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA25M0000BAG | Silicon Labs | Si511 | 25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FCA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BCA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 530BA125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FB125M000DG | Silicon Labs | Si531 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BB100M000DG | Silicon Labs | Si530 | 100MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC156M250DG | Silicon Labs | Si530 | 156.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA125M000BAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA200M000BAG | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA200M000BAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 530FA156M250DG | Silicon Labs | Si530 | 156.25MHz | 2.5V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC000110DG | Silicon Labs | Si531 | 148.35165MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535FB125M000DG | Silicon Labs | Si535 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| SI50122-A4-GM | Silicon Labs | SI50122-A4 | 100MHz | 2.25 V ~ 3.63 V | +100ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC125M000DG | Silicon Labs | Si530 | 125MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC200M000DG | Silicon Labs | Si531 | 200MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC250M000DG | Silicon Labs | Si531 | 250MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC622M080DG | Silicon Labs | Si530 | 622.08MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FB106M250DG | Silicon Labs | Si531 | 106.25MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC156M250DG | Silicon Labs | Si531 | 156.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC200M000DG | Silicon Labs | Si531 | 200MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC148M500DG | Silicon Labs | Si531 | 148.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC200M000DG | Silicon Labs | Si530 | 200MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC200M000DG | Silicon Labs | Si530 | 200MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC156M250DG | Silicon Labs | Si531 | 156.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC200M000DG | Silicon Labs | Si530 | 200MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536BB156M250DG | Silicon Labs | Si536 | 156.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536FB156M250DG | Silicon Labs | Si536 | 156.25MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536AB156M250DG | Silicon Labs | Si536 | 156.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA125M000BAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA100M000BAG | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA106M250BAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA125M000AAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA125M000AAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA100M000AAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510DBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC125M000DG | Silicon Labs | Si531 | 125MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC156M250DG | Silicon Labs | Si530 | 156.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC156M250DG | Silicon Labs | Si531 | 156.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC148M500DG | Silicon Labs | Si531 | 148.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC155M520DG | Silicon Labs | Si531 | 155.52MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC155M520DG | Silicon Labs | Si530 | 155.52MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC155M520DG | Silicon Labs | Si531 | 155.52MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC200M000DG | Silicon Labs | Si531 | 200MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC148M500DG | Silicon Labs | Si530 | 148.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536EB156M250DG | Silicon Labs | Si536 | 156.25MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536BB125M000DG | Silicon Labs | Si536 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC622M080DG | Silicon Labs | Si531 | 622.08MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC312M500DG | Silicon Labs | Si531 | 312.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA106M250BAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA125M000AAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA200M000BAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA200M000AAG | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510EBA125M000AAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ACA47M2500AAG | Silicon Labs | Si510 | 47.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC106M250DG | Silicon Labs | Si530 | 106.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC106M250DG | Silicon Labs | Si530 | 106.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC106M250DG | Silicon Labs | Si531 | 106.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC106M250DG | Silicon Labs | Si531 | 106.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC106M250DG | Silicon Labs | Si530 | 106.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC106M250DG | Silicon Labs | Si530 | 106.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC187M500DG | Silicon Labs | Si531 | 187.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC155M520DG | Silicon Labs | Si530 | 155.52MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC155M520DG | Silicon Labs | Si531 | 155.52MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC187M500DG | Silicon Labs | Si530 | 187.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC187M500DG | Silicon Labs | Si531 | 187.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC187M500DG | Silicon Labs | Si531 | 187.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC000110DG | Silicon Labs | Si530 | 148.35165MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC148M500DG | Silicon Labs | Si530 | 148.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC000110DG | Silicon Labs | Si530 | 148.35165MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC000110DG | Silicon Labs | Si530 | 148.35165MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC000110DG | Silicon Labs | Si531 | 148.35165MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC148M500DG | Silicon Labs | Si531 | 148.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC155M520DG | Silicon Labs | Si530 | 155.52MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC156M250DG | Silicon Labs | Si530 | 156.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC187M500DG | Silicon Labs | Si530 | 187.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC187M500DG | Silicon Labs | Si530 | 187.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC187M500DG | Silicon Labs | Si530 | 187.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC148M500DG | Silicon Labs | Si530 | 148.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC200M000DG | Silicon Labs | Si530 | 200MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC155M520DG | Silicon Labs | Si531 | 155.52MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC156M250DG | Silicon Labs | Si531 | 156.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC155M520DG | Silicon Labs | Si530 | 155.52MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC000110DG | Silicon Labs | Si530 | 148.35165MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC148M500DG | Silicon Labs | Si530 | 148.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536AB125M000DG | Silicon Labs | Si536 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535EB125M000DG | Silicon Labs | Si535 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536EB125M000DG | Silicon Labs | Si536 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535BB125M000DG | Silicon Labs | Si535 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535BB156M250DG | Silicon Labs | Si535 | 156.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535FB156M250DG | Silicon Labs | Si535 | 156.25MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC312M500DG | Silicon Labs | Si530 | 312.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC250M000DG | Silicon Labs | Si530 | 250MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC311M040DG | Silicon Labs | Si530 | 311.04MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC311M040DG | Silicon Labs | Si530 | 311.04MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC622M080DG | Silicon Labs | Si530 | 622.08MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC311M040DG | Silicon Labs | Si531 | 311.04MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC311M040DG | Silicon Labs | Si531 | 311.04MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC311M040DG | Silicon Labs | Si531 | 311.04MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC622M080DG | Silicon Labs | Si531 | 622.08MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC622M080DG | Silicon Labs | Si531 | 622.08MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC311M040DG | Silicon Labs | Si531 | 311.04MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC311M040DG | Silicon Labs | Si530 | 311.04MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC622M080DG | Silicon Labs | Si531 | 622.08MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC312M500DG | Silicon Labs | Si531 | 312.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC622M080DG | Silicon Labs | Si530 | 622.08MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC312M500DG | Silicon Labs | Si531 | 312.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC622M080DG | Silicon Labs | Si530 | 622.08MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC250M000DG | Silicon Labs | Si531 | 250MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC311M040DG | Silicon Labs | Si530 | 311.04MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC312M500DG | Silicon Labs | Si530 | 312.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC250M000DG | Silicon Labs | Si531 | 250MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC312M500DG | Silicon Labs | Si530 | 312.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC250M000DG | Silicon Labs | Si530 | 250MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC250M000DG | Silicon Labs | Si530 | 250MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC250M000DG | Silicon Labs | Si530 | 250MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC312M500DG | Silicon Labs | Si530 | 312.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC312M500DG | Silicon Labs | Si531 | 312.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC50M0000DG | Silicon Labs | Si530 | 50MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535AB125M000DG | Silicon Labs | Si535 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 501AAA27M0000DAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA27M0000DAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA100M000CAG | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA100M000BAG | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCAM032768BAF | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCAM032768DAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCAM032768DAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| SI50122-A1-GM | Silicon Labs | SI50122-A1 | 100MHz | 2.25 V ~ 3.63 V | +100ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| SI50122-A2-GM | Silicon Labs | SI50122-A2 | 100MHz | 2.25 V ~ 3.63 V | +100ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 511SAA100M000AAG | Silicon Labs | Si511 | 100MHz | 1.8V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BCA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 530AA156M250DG | Silicon Labs | Si530 | 156.25MHz | 3.3V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AA156M250DG | Silicon Labs | Si531 | 156.25MHz | 3.3V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FB100M000DG | Silicon Labs | Si530 | 100MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA125M000AAG | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535AB156M250DG | Silicon Labs | Si535 | 156.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536FB125M000DG | Silicon Labs | Si536 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA125M000BAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA100M000BAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA125M000AAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA200M000AAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC106M250DG | Silicon Labs | Si531 | 106.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC125M000DG | Silicon Labs | Si531 | 125MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA100M000BAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA100M000AAG | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA200M000AAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA200M000AAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA200M000AAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC125M000DG | Silicon Labs | Si530 | 125MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC106M250DG | Silicon Labs | Si531 | 106.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC187M500DG | Silicon Labs | Si531 | 187.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC000110DG | Silicon Labs | Si531 | 148.35165MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC200M000DG | Silicon Labs | Si531 | 200MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC000110DG | Silicon Labs | Si531 | 148.35165MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC148M500DG | Silicon Labs | Si531 | 148.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535EB156M250DG | Silicon Labs | Si535 | 156.25MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510CBA25M0000BAG | Silicon Labs | Si510 | 25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511SBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 1.8V | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 501JAA24M0000DAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501BAA16M0000DAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA24M0000CAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA27M0000CAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA25M0000BAF | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA40M0000CAF | Silicon Labs | Si501 | 40MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA24M0000BAF | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501EAA48M0000CAF | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA27M0000BAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501EAA48M0000BAF | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA25M0000BAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BAA50M0000BAF | Silicon Labs | Si501 | 50MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA50M0000CAF | Silicon Labs | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501EAA48M0000DAG | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA25M0000DAG | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501HCA27M0000DAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000BAF | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA12M0000DAF | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA24M0000DAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA24M0000BAG | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCA16M0000BAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA24M0000CAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA26M0000BAF | Silicon Labs | Si501 | 26MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA25M0000BAG | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCA16M0000CAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501EAA48M0000CAG | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BAA16M0000BAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BAA16M0000CAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA24M0000BAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA27M0000BAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000CAF | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA40M0000BAG | Silicon Labs | Si501 | 40MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000BAF | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA10M0000BAF | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA12M0000BAF | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA25M0000CAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA27M0000BAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA50M0000BAG | Silicon Labs | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ABA8M00000BAG | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA27M0000DAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000CAG | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA10M0000BAG | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000BAG | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
京瓷晶振,温补晶振,KT2016晶振,KT2016A26000ACW18TLG晶振
KDS晶振,温补晶振,DSB211SDM晶振,1XXD26000JHC晶振
精工晶振,有源晶振,SH-32S晶振
CWX825-30.0M,ConnorWinfield低抖动晶振,7050mm四脚贴片晶振
EC2600ETTS-66.666M TR,Ecliptek有源晶振,7050mm,无线模块晶振
I533-2P3-40.000MHz,ILSI低抖动晶振,I533系列TCXO晶振,5032mm
4HF050000Z3BACXGI8,Renesas进口晶振,3225mm,差分晶体振荡器
ELSADV-16.000MHz-LK-T,AEL晶振,16MHz,2016贴片晶振,进口有源晶振
AXLE5032S晶振,AXTAL进口晶振,5032贴片晶振,TCXO晶振,德国有源晶振
